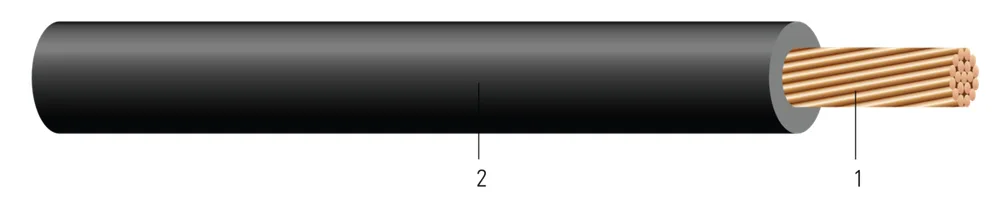

DURATRAY™ CU 1000V con aislamiento XLPE. RHH/RHW-2/RW90 UL y CSA
- Núm. Southwire
- SPEC25075
Conductores de cobre simple, aislamiento XLPE, resistente a la luz solar, 1000V, 90ºC MÁX, -40ºC MÍN, resistente a gasolina y aceite
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (9) ↓Tamaños y construcciones disponibles
| Tamaño Cond. | Número de Conductor | Hebras del Conductor | Diámetro Sobre Conductor (in)(cm) | Espesor del Aislamiento (mils)(mm) | D.E. Aprox. (inches)(cm) | Peso de Cobre (lbs/1000')(kgs/km) | Peso Aprox. (lbs/1000')(kgs/km) | ||
|---|---|---|---|---|---|---|---|---|---|
| 1/0 AWG1/0 AWG | 11 | 1919 | 0.3610.92 | 802.03 | 0.5281.34 | 326485 | 394586 | 69414099 | |
| 2/0 AWG2/0 AWG | 11 | 1919 | 0.4051.03 | 802.03 | 0.5721.45 | 410610 | 486723 | 64908999 | |
| 3/0 AWG3/0 AWG | 11 | 1919 | 0.4561.16 | 802.03 | 0.6221.58 | 518771 | 601894 | 64914999 | |
| 4/0 AWG4/0 AWG | 11 | 1919 | 0.5121.30 | 802.03 | 0.6661.69 | 653972 | 7431106 | 64909899 | |
| 350 KCMIL350 KCMIL | 11 | 3737 | 0.6611.68 | 952.41 | 0.8412.14 | 10801607 | 12161810 | 64910801 | |
| 500 KCMIL500 KCMIL | 11 | 3737 | 0.7892.00 | 952.41 | 0.9662.45 | 15432296 | 17022533 | 64904799 | |
| 750 KCMIL750 KCMIL | 11 | 6161 | 0.9682.46 | 1102.79 | 1.2003.05 | 23153445 | 25443786 | 64904999 | |
| 1000 KCMIL1000 KCMIL | 11 | 6161 | 1.1172.84 | 1102.79 | 1.3493.43 | 30874594 | 33494984 | 64913199 | |
| 1/0 AWG1/0 AWG | 11 | 2.15.33 | 844382.83 | 0.1020.15 | 0.1220.18 | 0.0440.07 | 150150 | 170170 | 69414099 |
| 2/0 AWG2/0 AWG | 11 | 2.25.59 | 1064482.62 | 0.0810.12 | 0.0970.14 | 0.0430.06 | 175175 | 195195 | 64908999 |
| 3/0 AWG3/0 AWG | 11 | 2.46.10 | 1342608.72 | 0.0640.10 | 0.0780.12 | 0.0420.06 | 200200 | 225225 | 64914999 |
| 4/0 AWG4/0 AWG | 11 | 2.66.60 | 1692767.48 | 0.0510.08 | 0.0620.09 | 0.0410.06 | 230230 | 260260 | 64909899 |
| 350 KCMIL350 KCMIL | 11 | 3.38.38 | 28001270.06 | 0.0310.05 | 0.0390.06 | 0.0400.06 | 310310 | 350350 | 64910801 |
| 500 KCMIL500 KCMIL | 11 | 3.89.65 | 40001814.37 | 0.0220.03 | 0.0290.04 | 0.0390.06 | 380380 | 430430 | 64904799 |
| 750 KCMIL750 KCMIL | 11 | 6.015.24 | 60002721.55 | 0.0140.02 | 0.0220.03 | 0.0380.06 | 475475 | 535535 | 64904999 |
| 1000 KCMIL1000 KCMIL | 11 | 6.717.02 | 80003628.74 | 0.0110.02 | 0.0180.03 | 0.0370.06 | 545545 | 615615 | 64913199 |
| 1/01/0 | 649133649133 | 649135649135 | 649138649138 | TBATBA | TBATBA | TBATBA | TBATBA | ||
| 2/02/0 | 649082649082 | 649084649084 | 649086649086 | TBATBA | TBATBA | TBATBA | TBATBA | ||
| 3/03/0 | 649142649142 | 649144649144 | 649147649147 | TBATBA | TBATBA | TBATBA | TBATBA | ||
| 4/04/0 | 649091649091 | 649093649093 | 649096649096 | TBATBA | TBATBA | TBATBA | TBATBA | ||
| 250Kcmil250Kcmil | TBATBA | TBATBA | TBATBA | TBATBA | TBATBA | TBATBA | TBATBA | TBATBA | |
| 350Kcmil350Kcmil | 649101649101 | 649104649104 | 649106649106 | TBATBA | TBATBA | TBATBA | TBATBA | ||
| 500Kcmil500Kcmil | 649112649112 | 649114649114 | 649116649116 | TBATBA | TBATBA | TBATBA | TBATBA | ||
| 750Kcmil750Kcmil | 649118649118 | 649120649120 | 649122649122 | TBATBA | TBATBA | TBATBA | TBATBA | ||
| 1000Kcmil1000Kcmil | 649124649124 | 649126649126 | 649128649128 | TBATBA | TBATBA | TBATBA | TBATBA |
Números de parte en esta familia (9)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Empaque | |
|---|---|---|---|---|
| 1/0 AWG (1) | ||||
| 69414099 | 1/0-19 CU RHH-RHW-2 RW90 1KV DURATRAY NEGRO UL/CSA 1/0-19 CU RHH-RHW-2 RW90 1KV DURATRAY BLACK UL/CSA | 1/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 2/0 AWG (1) | ||||
| 64908999 | 2/0-19 CU RHH-RHW-2 RW90 1KV DURATRAY NEGRO UL/CSA 2/0-19 CU RHH-RHW-2 RW90 1KV DURATRAY BLACK UL/CSA | 2/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 3/0 AWG (1) | ||||
| 64914999 | 3/0-19 CU RHH-RHW-2 RW90 1KV DURATRAY NEGRO UL/CSA 3/0-19 CU RHH-RHW-2 RW90 1KV DURATRAY BLACK UL/CSA | 3/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 4/0 AWG (1) | ||||
| 64909899 | 4/0-19 CU RHH-RHW-2 RW90 1KV DURATRAY NEGRO UL/CSA 4/0-19 CU RHH-RHW-2 RW90 1KV DURATRAY BLACK UL/CSA | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 350 kcmil (2) | ||||
| 64910899 | 350-37 CU RHH-RHW-2 RW90 1KV DURATRAY NEGRO UL/CSA 0 FT 350-37 CU RHH-RHW-2 RW90 1KV DURATRAY BLACK UL/CSA 0 FT | 350 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 64910801 | CONDUCTOR 350 kcmil 37 HILOS CU RHH-RHW-2 RW90 1KV DURATRAY NEGRO UL/CSA 4921 FT 350-37 CU RHH-RHW-2 RW90 1KV DURATRAY BLACK UL/CSA 4921 FT | 350 KCMIL 1C 37S | CARRETE DE 4921 FT | |
| 500 kcmil (1) | ||||
| 64904799 | 500-37 CU RHH-RHW-2 RW90 1KV DURATRAY NEGRO UL/CSA 500-37 CU RHH-RHW-2 RW90 1KV DURATRAY BLACK UL/CSA | 500 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 750 kcmil (1) | ||||
| 64904999 | 750-61 CU RHH-RHW-2 RW90 1KV DURATRAY NEGRO UL/CSA 750-61 CU RHH-RHW-2 RW90 1KV DURATRAY BLACK UL/CSA | 750 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 1000 kcmil (1) | ||||
| 64913199 | 1000-61 CU RHH-RHW-2 RW90 1KV DURATRAY NEGRO UL/CSA 1000-61 CU RHH-RHW-2 RW90 1KV DURATRAY BLACK UL/CSA | 1000 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
Aplicación y características
Adecuado para instalación en charolas portacables, bancos de ductos subterráneos según las limitaciones del código CE. El color estándar es negro. Algunos tamaños pueden estar disponibles en blanco, rojo, azul, amarillo, café, naranja o gris. Duraground™ verde también disponible.
Normas y referencias
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- CSA C22.2 No. 38 Thermoset-insulated wires and cables
- CSA C22.2 No.230 Tray Cables - Rated TC-ER (1/0 AWG and Larger)
- CSA C22.2 No. 2556 & No. 0.3 Wire and Cable Test Methods
- CSA LTGG [-40°C] - as per C68.10 - for Cold Bend and Impact rating
- CSA SUN RES - for Sunlight Resistant rating
- CSA ST1 Smoke Test - marked FT4-ST1 (1/0 and Larger)
- Oil Res I & Sun Res - AWG 8 & Larger
