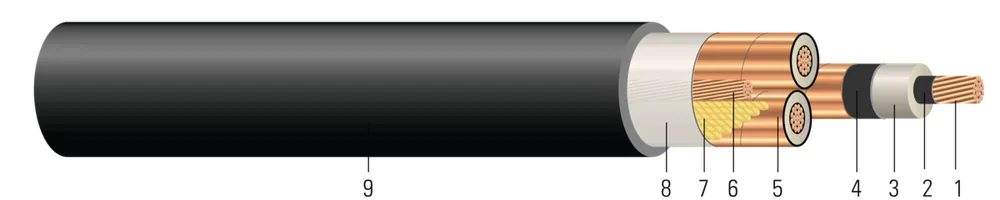

CU Comprimido 5/8kV Aislamiento NLEPR Nivel de Aislamiento 133/100% Cubierta de PVC. MV 105 - Clasificado para Charola UL - Resistente a la Luz Solar - Para Enterramiento Directo
- Núm. Southwire
- SPEC46202
Tipo MV-105, Tres Conductores de Cobre, 115 Mils de Hule de Etileno Propileno Sin Plomo (NL-EPR), Nivel de Aislamiento 5kV 133% / 8kV 100%, Pantalla de Cinta, Cubierta de Cloruro de Polivinilo (PVC), Doble Clasificación UL/CSA. Libre de silicona.
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (13) ↓Tamaños y construcciones disponibles
| Tamaño Cond. | Hebras del Conductor | Diámetro Sobre Conductor (in)(cm) | Diámetro Sobre Aislamiento (in)(cm) | Espesor del Aislamiento (mils)(mm) | Diámetro Sobre Blindaje (in)(cm) | Tamaño de Tierra | Espesor de Cubierta (mils)(mm) | D.E. Aprox. (inches)(cm) | Peso Aprox. (lbs/1000')(kgs/km) | Tensión de Jalado Máximo (lbs)(kg) | Radio de Curvatura Mín. (in)(cm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 AWG2 AWG | 77 | 0.2820.72 | 0.5451.38 | 1152.92 | 0.6051.54 | 1x61x6 | 802.03 | 1.5183.86 | 15612323 | 1592722.12 | 10.626.92 | 95629277 |
| 1/0 AWG1/0 AWG | 1919 | 0.3610.92 | 0.6301.60 | 1152.92 | 0.6901.75 | 1x41x4 | 1102.79 | 1.7624.48 | 22203304 | 25341149.40 | 12.331.24 | 95630099 |
| 2/0 AWG2/0 AWG | 1919 | 0.4051.03 | 0.6741.71 | 1152.92 | 0.7341.86 | 1x41x4 | 1102.79 | 1.8574.72 | 25703825 | 31941448.77 | 12.932.77 | 95837199 |
| 3/0 AWG3/0 AWG | 1919 | 0.4561.16 | 0.7241.84 | 1152.92 | 0.7841.99 | 1x31x3 | 1102.79 | 1.9654.99 | 29534395 | 40271826.61 | 13.734.80 | 55817199 |
| 4/0 AWG4/0 AWG | 1919 | 0.5121.30 | 0.7661.95 | 1152.92 | 0.8262.10 | 1x31x3 | 1102.79 | 2.0565.22 | 35275249 | 50782303.34 | 14.336.32 | 95745677 |
| 250 KCMIL250 KCMIL | 3737 | 0.5581.42 | 0.8342.12 | 1152.92 | 0.8942.27 | 1x21x2 | 1102.79 | 2.2095.61 | 40606042 | 60002721.55 | 15.439.12 | 95838699 |
| 350 KCMIL350 KCMIL | 3737 | 0.6611.68 | 0.9172.33 | 1152.92 | 0.9772.48 | 1x21x2 | 1102.79 | 2.3886.07 | 51977734 | 84003810.17 | 16.742.42 | 95517977 |
| 500 KCMIL500 KCMIL | 3737 | 0.7892.00 | 1.0422.65 | 1152.92 | 1.1022.80 | 1x11x1 | 1102.79 | 2.6586.75 | 694810340 | 120005443.10 | 18.647.24 | 95839777 |
| 750 KCMIL750 KCMIL | 6161 | 0.9682.46 | 1.2543.19 | 1152.92 | 1.3143.34 | 1x1/01x1/0 | 1353.43 | 3.1668.04 | 997214840 | 180008164.66 | 22.156.13 | 55749699 |
| 2 AWG2 AWG | 0.1620.24 | 0.2040.30 | 0.0340.05 | 0.0400.06 | 0.355 + j0.2470.355 + j0.247 | 0.023 + j0.0330.023 + j0.033 | 19201920 | 135135 | 145145 | 140140 | 154154 | 95629277 |
| 1/0 AWG1/0 AWG | 0.1020.15 | 0.1280.19 | 0.0280.04 | 0.0370.06 | 0.355 + j0.2470.355 + j0.247 | 0.023 + j0.0330.023 + j0.033 | 21652165 | 175175 | 190190 | 185185 | 205205 | 95630099 |
| 2/0 AWG2/0 AWG | 0.0810.12 | 0.1020.15 | 0.0260.04 | 0.0360.05 | 0.355 + j0.2470.355 + j0.247 | 0.023 + j0.0330.023 + j0.033 | 23022302 | 200200 | 220220 | 215215 | 240240 | 95837199 |
| 3/0 AWG3/0 AWG | 0.0640.10 | 0.0810.12 | 0.0240.04 | 0.0350.05 | 0.324 + j0.1990.324 + j0.199 | 0.019 + j0.0340.019 + j0.034 | 24592459 | 230230 | 250250 | 250250 | 280280 | 55817199 |
| 4/0 AWG4/0 AWG | 0.0510.08 | 0.0650.10 | 0.0210.03 | 0.0340.05 | 0.355 + j0.2470.355 + j0.247 | 0.023 + j0.0330.023 + j0.033 | 26332633 | 265265 | 280280 | 285285 | 320320 | 95745677 |
| 250 KCMIL250 KCMIL | 0.0430.06 | 0.0560.08 | 0.0200.03 | 0.0330.05 | 0.355 + j0.2470.355 + j0.247 | 0.023 + j0.0330.023 + j0.033 | 28002800 | 290290 | 315315 | 320320 | 355355 | 95838699 |
| 350 KCMIL350 KCMIL | 0.0310.05 | 0.0410.06 | 0.0180.03 | 0.0320.05 | 0.353 + j0.2480.353 + j0.248 | 0.024 + j0.0360.024 + j0.036 | 31203120 | 355355 | 380380 | 395395 | 440440 | 95517977 |
| 500 KCMIL500 KCMIL | 0.0220.03 | 0.0300.04 | 0.0150.02 | 0.0300.04 | 0.356 + j0.2420.356 + j0.242 | 0.031 + j0.0390.031 + j0.039 | 35163516 | 430430 | 460460 | 485485 | 545545 | 95839777 |
| 750 KCMIL750 KCMIL | 0.0140.02 | 0.0230.03 | 0.0130.02 | 0.0290.04 | 0.324 + j0.1990.324 + j0.199 | 0.019 + j0.0340.019 + j0.034 | 41024102 | 530530 | 570570 | 615615 | 685685 | 55749699 |
Números de parte en esta familia (13)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Color del Conductor | Empaque | |
|---|---|---|---|---|---|
| 2 AWG (2) | |||||
| 95629277 | 2-7 3 CONDUCTORES CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X6 CU GW NEGRO PVC UL/CSA 0 FT 2-7 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X6 CU GW BLACK PVC UL/CSA 0 FT | 2 AWG 3C 7 STR | NEGRO-/NEGRO-/NEGRO-/- | CARRETE CORTE A LA MEDIDA | |
| 95629299 | 2-7 3 CONDUCTORES CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X6 CU GW NEGRO PVC UL/CSA 0 FT 2-7 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X6 CU GW BLACK PVC UL/CSA 0 FT | 2 AWG 3C 7 STR | NEGRO-/NEGRO-/NEGRO-/- | CARRETE CORTE A LA MEDIDA | |
| 1/0 AWG (1) | |||||
| 95630099 | 1/0-19 3 CONDUCTORES CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X4 CU GW NEGRO PVCUL/CSA 0 FT 1/0-19 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X4 CU GW BLACK PVCUL/CSA 0 FT | 1/0 AWG 3C 19 STR | NEGRO-/NEGRO-/NEGRO-/- | CARRETE CORTE A LA MEDIDA | |
| 2/0 AWG (1) | |||||
| 95837199 | 2/0-19 3 CONDUCTORES CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X4 CU GW NEGRO PVCUL/CSA 0 FT 2/0-19 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X4 CU GW BLACK PVCUL/CSA 0 FT | 2/0 AWG 3C 19 STR | NEGRO-/NEGRO-/NEGRO-/- | CARRETE CORTE A LA MEDIDA | |
| 3/0 AWG (1) | |||||
| 55817199 | 3/0-19 3 CONDUCTORES CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X3 CU GW NEGRO PVC UL/CSA 3/0-19 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X3 CU GW BLACK PVCUL/CSA | 3/0 AWG 3C 19 STR | NEGRO-/NEGRO-/NEGRO-/- | CARRETE CORTE A LA MEDIDA | |
| 4/0 AWG (2) | |||||
| 95745677 | 4/0-19 3 CONDUCTORES CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X3 CU TIERRA PVC NEGRO/CSA E5G04/0C03G 0 FT 4/0-19 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X3 CU GW BLACK PVCUL/CSA E5G04/0C03G 0 FT | 4/0 AWG 3C 19 STR | NEGRO-/NEGRO-/NEGRO-/- | CARRETE CORTE A LA MEDIDA | |
| 95745699 | 4/0-19 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X3 CU TIERRA NEGRO PVCUL/CSA E5G04/0C03G 4/0-19 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X3 CU GW BLACK PVCUL/CSA E5G04/0C03G | 4/0 AWG 3C 19 STR | NEGRO-/NEGRO-/NEGRO-/- | CARRETE CORTE A LA MEDIDA | |
| 250 kcmil (1) | |||||
| 95838699 | 250-37 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X2 CU GW NEGRO CUBIERTA PVCUL/CSA 250-37 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X2 CU GW BLACK PVCUL/CSA | 250 KCMIL 3C 37S | NEGRO-/NEGRO-/NEGRO-/- | CARRETE CORTE A LA MEDIDA | |
| 350 kcmil (2) | |||||
| 95517977 | 350-37 3 CONDUCTORES CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X2 CU GW NEGRO PVCUL/CSA 0 FT 350-37 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X2 CU GW BLACK PVCUL/CSA 0 FT | 350 KCMIL 3C 37 STR | NEGRO-/NEGRO-/NEGRO-/- | CARRETE CORTE A LA MEDIDA | |
| 95517999 | 350-37 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X2 CU GW NEGRO CUBIERTA PVCUL/CSA 350-37 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X2 CU GW BLACK PVCUL/CSA | 350 KCMIL 3C 37 STR | NEGRO-/NEGRO-/NEGRO-/- | CARRETE CORTE A LA MEDIDA | |
| 500 kcmil (2) | |||||
| 95839777 | 500-37 3 CONDUCTORES CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X1 CU GW NEGRO PVCUL/CSA 0 FT 500-37 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X1 CU GW BLACK PVCUL/CSA 0 FT | 500 KCMIL 3C 37S | NEGRO-/NEGRO-/NEGRO-/- | CARRETE CORTE A LA MEDIDA | |
| 95839799 | 500-37 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X1 CU GW NEGRO PVCUL/CSA 500-37 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X1 CU GW BLACK PVCUL/CSA | 500 KCMIL 3C 37S | NEGRO-/NEGRO-/NEGRO-/- | CARRETE CORTE A LA MEDIDA | |
| 750 kcmil (1) | |||||
| 55749699 | 750 kcmil 61 HILOS 3 CONDUCTORES CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X1/0 CU TIERRA BLANCO PVC UL/CSA 750-61 3/C CU 115 MILS NL-EPR 5KV 133%/8KV 100% T/S 1X1/0 CU GW BLACK PVC UL/CSA | 750 KCMIL 3C 61S | NEGRO-/NEGRO-/NEGRO-/- | CARRETE CORTE A LA MEDIDA | |
Aplicación y características
Los cables de 5kV / 8kV de Southwire son adecuados para usar en áreas húmedas y secas, tubos conduit, ductos, canaletas, charolas portacables, enterramiento directo, y donde se desean propiedades eléctricas superiores. Estos cables son capaces de funcionar continuamente a la temperatura del conductor no superior a 105°C para operación normal, 140°C para sobrecarga de emergencia, y 250°C para condiciones de cortocircuito. Clasificados a -40°C para doblado en frío e impacto en frío y marcados con "LTGG" cuando están certificados CSA. Para usos en lugares peligrosos Clase I y II, División 2 según NEC Artículos 501 y 502. Clasificados para presión máxima de pared lateral de 1000 lbs./FT.
Normas y referencias
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
- ASTM B496 Compact Round Concentric-lay-standard copper
- UL 1072 Medium-Voltage Power Cables
- UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test
- UL 2225 Cables and Cable-Fittings For Use In Hazardous (Classified) Locations
- CSA C22.2 No. 2556 / UL 2556 Cable Test Methods
- CSA C68.10 Shielded Power Cables for Commercial and Industrial Applications - 5 to 46 KV
- ICEA S-58-679 Cable Conductor Identification Method 3 (1-BLACK, 2-RED, 3-BLUE)
- ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
- ICEA S-97-682 Standard for Shielded Utility Cable Rated for 5 - 46kV
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
- AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV (Qualification Test Requirements)
- Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661
