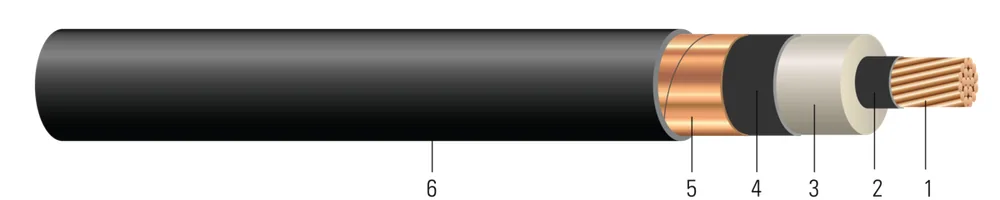

Cobre comprimido 15kV con aislamiento NLEPR 133% IL, cubierta LSZH-TP negra. MV 105 - Apto para charola - Resistente a la luz solar - Para enterramiento directo
- Núm. Southwire
- SPEC46305
Tipo MV-105, conductor sencillo de cobre, 220 mils de hule de etileno propileno sin plomo (NL-EPR), nivel de aislamiento 133%, pantalla de cinta, cubierta de bajo humo libre de halógenos SOLONON® termoplástica (LSZH-TP), certificación UL. Libre de silicona
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (12) ↓Tamaños y construcciones disponibles
| Tamaño Cond. | Hebras del Conductor | Diámetro Sobre Conductor (in)(cm) | Diámetro Sobre Aislamiento (in)(cm) | Espesor del Aislamiento (mils)(mm) | Diámetro Sobre Blindaje (in)(cm) | Espesor de Cubierta (mils)(mm) | D.E. Aprox. (inches)(cm) | Peso Aprox. (lbs/1000')(kgs/km) | Tensión de Jalado Máximo (lbs)(kg) | Radio de Curvatura Mín. (in)(cm) | Tamaño de Tubo Conduit (in)(cm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 AWG1 AWG | 1919 | 0.3220.82 | 0.8002.03 | 2205.59 | 0.8602.18 | 802.03 | 1.0402.64 | 7391100 | 669303.45 | 12.431.50 | 3.07.62 | 58553505 |
| 1/0 AWG1/0 AWG | 1919 | 0.3610.92 | 0.8402.13 | 2205.59 | 0.9002.29 | 802.03 | 1.0802.74 | 8311237 | 844382.83 | 12.932.77 | 3.07.62 | 55078499 |
| 3/0 AWG3/0 AWG | 1919 | 0.4561.16 | 0.9342.37 | 2205.59 | 0.9942.52 | 802.03 | 1.1742.98 | 10861616 | 1342608.72 | 14.035.56 | 3.58.89 | 67127099 |
| 4/0 AWG4/0 AWG | 1919 | 0.5121.30 | 0.9902.51 | 2205.59 | 1.0502.67 | 802.03 | 1.2303.12 | 12601875 | 1692767.48 | 14.737.34 | 3.58.89 | 55078699 |
| 250 KCMIL250 KCMIL | 3737 | 0.5581.42 | 1.0442.65 | 2205.59 | 1.1042.80 | 802.03 | 1.2843.26 | 14172109 | 2000907.18 | 15.439.12 | 4.010.16 | 45772899 |
| 350 KCMIL350 KCMIL | 3737 | 0.6611.68 | 1.1472.91 | 2205.59 | 1.2073.07 | 802.03 | 1.3873.52 | 17952671 | 28001270.06 | 16.642.16 | 4.010.16 | 55078899 |
| 500 KCMIL500 KCMIL | 3737 | 0.7892.00 | 1.2523.18 | 2205.59 | 1.3123.33 | 802.03 | 1.4923.79 | 23293466 | 40001814.37 | 17.945.47 | 4.511.43 | 55078999 |
| 750 KCMIL750 KCMIL | 6161 | 0.9682.46 | 1.4643.72 | 2205.59 | 1.5243.87 | 1102.79 | 1.7644.48 | 33584997 | 60002721.55 | 21.153.59 | 5.012.70 | 55079099 |
| 1500 KCMIL1500 KCMIL | 9191 | 1.3703.48 | 1.9004.83 | 2205.59 | 1.9604.98 | 1102.79 | 2.2005.59 | 60318975 | 120005443.10 | 26.467.06 | 55064399 | |
| 1 AWG1 AWG | 0.1280.19 | 0.1620.24 | 0.0470.07 | 0.0490.07 | 0.387 + j0.2640.387 + j0.264 | 0.057 + j0.0480.057 + j0.048 | 26952695 | 175175 | 185185 | 225225 | 250250 | 58553505 |
| 1/0 AWG1/0 AWG | 0.1020.15 | 0.1280.19 | 0.0430.06 | 0.0470.07 | 0.387 + j0.2640.387 + j0.264 | 0.057 + j0.0480.057 + j0.048 | 28162816 | 200200 | 215215 | 260260 | 290290 | 55078499 |
| 3/0 AWG3/0 AWG | 0.0640.10 | 0.0810.12 | 0.0370.06 | 0.0430.06 | 0.387 + j0.2640.387 + j0.264 | 0.057 + j0.0480.057 + j0.048 | 31103110 | 260260 | 275275 | 345345 | 385385 | 67127099 |
| 4/0 AWG4/0 AWG | 0.0510.08 | 0.0650.10 | 0.0340.05 | 0.0420.06 | 0.387 + j0.2640.387 + j0.264 | 0.057 + j0.0480.057 + j0.048 | 32843284 | 295295 | 315315 | 400400 | 445445 | 55078699 |
| 250 KCMIL250 KCMIL | 0.0430.06 | 0.0560.08 | 0.0250.04 | 0.0410.06 | 0.417 + j0.3540.417 + j0.354 | 0.057 + j0.0410.057 + j0.041 | 34513451 | 325325 | 345345 | 445445 | 495495 | 45772899 |
| 350 KCMIL350 KCMIL | 0.0310.05 | 0.0410.06 | 0.0280.04 | 0.0390.06 | 0.387 + j0.3040.387 + j0.304 | 0.033 + j0.0300.033 + j0.030 | 37703770 | 390390 | 415415 | 550550 | 610610 | 55078899 |
| 500 KCMIL500 KCMIL | 0.0220.03 | 0.0300.04 | 0.0250.04 | 0.0370.06 | 0.387 + j0.3040.387 + j0.304 | 0.033 + j0.0300.033 + j0.030 | 41674167 | 465465 | 500500 | 685685 | 765765 | 55078999 |
| 750 KCMIL750 KCMIL | 0.0140.02 | 0.0230.03 | 0.0210.03 | 0.0350.05 | 0.387 + j0.3270.387 + j0.327 | 0.031 + j0.0340.031 + j0.034 | 47524752 | 565565 | 610610 | 885885 | 990990 | 55079099 |
| 1500 KCMIL1500 KCMIL | 0.0070.01 | 0.0170.03 | 0.0160.02 | 0.0320.05 | 0.472 + j0.4120.472 + j0.412 | 0.102 + j0.0420.102 + j0.042 | 60106010 | 815815 | 880880 | 13451345 | 15001500 | 55064399 |
Números de parte en esta familia (12)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Empaque | |
|---|---|---|---|---|
| 1 AWG (2) | ||||
| 58553599 | 1-19 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SOLONON-TP UL 1-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SOLONON-TP UL | 1 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 58553505 | 1/0 AWG 19 HILOS CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SOLONON-TP UL 5000 FT 1-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SOLONON-TP UL 5000 FT | 1 AWG 1C 19S | CARRETE DE 5000 FT | |
| 1/0 AWG (1) | ||||
| 55078499 | 1/0-19 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SOLONON-TP UL 1/0-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SOLONON-TP UL | 1/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 3/0 AWG (1) | ||||
| 67127099 | 3/0-19 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SOLONON-TP UL 3/0-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SOLONON-TP UL | 3/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 4/0 AWG (2) | ||||
| 55078699 | 4/0-19 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SOLONON-TP UL 4/0-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SOLONON-TP UL | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 64415299 | 4/0 AWG 19 HILOS CU ESTAÑADO 220 MILS NL-EPR 15KV 133% T/S NEGRO CUBIERTA SOLONON-TP UL 4/0-19 TINNED CU 220 MILS NL-EPR 15KV 133% T/S BLACK SOLONON-TP UL | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 250 kcmil (1) | ||||
| 45772899 | 250-37 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SOLONON-TP UL 250-37 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SOLONON-TP UL | 250 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 350 kcmil (2) | ||||
| 55078899 | 350-37 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SOLONON-TP UL 350-37 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SOLONON-TP UL | 350 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 64414999 | 350 kcmil 37 HILOS CU ESTAÑADO 220 MILS NL-EPR 15KV 133% T/S NEGRO CUBIERTA SOLONON-TP UL 350-37 TINNED CU 220 MILS NL-EPR 15KV 133% T/S BLACK SOLONON-TP UL | 350 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 500 kcmil (1) | ||||
| 55078999 | 500-37 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SOLONON-TP UL 500-37 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SOLONON-TP UL | 500 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 750 kcmil (1) | ||||
| 55079099 | 750-61 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SOLONON-TP UL 750-61 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SOLONON-TP UL | 750 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 1500 kcmil (1) | ||||
| 55064399 | 1500-91 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SOLONON-TP UL 1500-91 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SOLONON-TP UL | 1500 KCMIL 1C 91S | CARRETE CORTE A LA MEDIDA | |
Aplicación y características
Los cables Southwire de 15KV son adecuados para uso en áreas húmedas y secas, tubos conduit, ductos, canales, charolas portacables, enterramiento directo cuando se instalan con un conductor de puesta a tierra en proximidad cercana que cumple con la sección NEC 311.36 y 250.4(A)(5), y donde se desean propiedades eléctricas superiores. Estos cables son capaces de operar continuamente a temperaturas de conductor no superiores a 105°C para operación normal, 140°C para sobrecarga de emergencia, y 250°C para condiciones de cortocircuito. Clasificado a -25°C para doblado en frío. ST1 (bajo humo) Clasificado para tamaños 1/0 y mayores. Clasificado para presión lateral máxima de 1000 lbs./FT.
Normas y referencias
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
- ASTM B496 Compact Round Concentric-lay-standard copper
- UL 1072 Medium-Voltage Power Cables
- UL 1685 FT4-ST1 Vertical-Tray Fire Propagation and Smoke Release Test (1/0 and Larger)
- UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test
- ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
- ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
- ICEA S-97-682 Standard for Shielded Utility Cable Rated for 5 - 46kV
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test (1/0 and Larger)
- AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV (Qualification Test Requirements)
- NFPA 130 Standard for Fixed Guideway Transit and Passenger Rail Systems (500kcmil & Larger)
- Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661
- NFPA 502 Standard for Road Tunnels, Bridges, and Other Limited Access Highways (non-emergency circuits only)
