CU 600V Aislamiento EPR Chaqueta Termoestable LSZH-TS RHH/RHW-2. Clasificado para charola (CT) - Resistente a la luz solar - Para enterrado directo - Libre de silicona
- Núm. Southwire
- SPEC45006

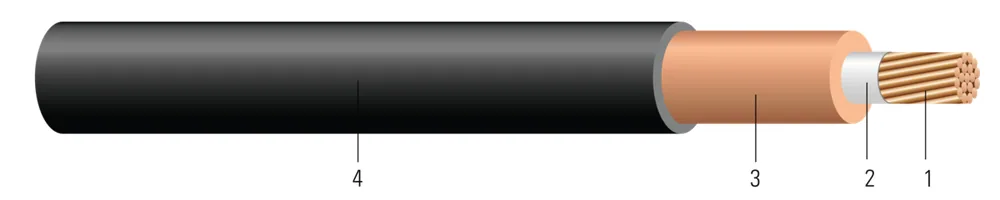

Cable de potencia 600 voltios conductor sencillo de cobre, aislamiento de caucho etileno propileno (EPR) RHH/RHW-2 USE-2 termofijo SOLONON® bajo humo cero halógeno (LSZH-TS) cubierta. Clasificado CT 1/0 y mayor - Libre de silicona
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (28) ↓Tamaños y construcciones disponibles
| Tamaño Cond. | Número de Conductor | Hebras del Conductor | Diámetro Sobre Conductor (in)(cm) | Espesor del Aislamiento (mils)(mm) | Espesor de Cubierta (mils)(mm) | D.E. Aprox. (inches)(cm) | Peso de Cobre (lbs/1000')(kgs/km) | Peso Aprox. (lbs/1000')(kgs/km) | |
|---|---|---|---|---|---|---|---|---|---|
| 8 AWG8 AWG | 11 | 77 | 0.1410.36 | 451.14 | 150.38 | 0.2680.68 | 5074 | 74110 | 89066001 |
| 6 AWG6 AWG | 11 | 77 | 0.1770.45 | 451.14 | 300.76 | 0.3380.86 | 81121 | 119177 | 89065999 |
| 2 AWG2 AWG | 11 | 77 | 0.2820.72 | 451.14 | 300.76 | 0.4381.11 | 204304 | 258384 | 55108801 |
| 1/0 AWG1/0 AWG | 11 | 1919 | 0.3610.92 | 551.40 | 451.14 | 0.5751.46 | 326485 | 418622 | 56156101 |
| 2/0 AWG2/0 AWG | 11 | 1919 | 0.4051.03 | 551.40 | 451.14 | 0.6171.57 | 410610 | 511760 | 56156099 |
| 3/0 AWG3/0 AWG | 11 | 1919 | 0.4561.16 | 551.40 | 451.14 | 0.6691.70 | 518771 | 628935 | 58179999 |
| 4/0 AWG4/0 AWG | 11 | 1919 | 0.5121.30 | 551.40 | 451.14 | 0.7111.81 | 653972 | 7701146 | 56155601 |
| 250 KCMIL250 KCMIL | 11 | 3737 | 0.5581.42 | 651.65 | 651.65 | 0.8172.08 | 7711147 | 9441405 | 56155499 |
| 350 KCMIL350 KCMIL | 11 | 3737 | 0.6611.68 | 651.65 | 651.65 | 0.9162.33 | 10801607 | 12801905 | 56155301 |
| 500 KCMIL500 KCMIL | 11 | 3737 | 0.7892.00 | 651.65 | 651.65 | 1.0412.64 | 15432296 | 17752641 | 89065801 |
| 750 KCMIL750 KCMIL | 11 | 6161 | 0.9682.46 | 802.03 | 651.65 | 1.2463.16 | 23153445 | 26253906 | 55109199 |
| 8 AWG8 AWG | 11 | 1.02.54 | 13259.87 | 0.6530.97 | 0.7861.17 | 0.0520.08 | 5050 | 5555 | 89066001 |
| 6 AWG6 AWG | 11 | 1.33.30 | 20994.80 | 0.4110.61 | 0.4950.74 | 0.0510.08 | 6565 | 7575 | 89065999 |
| 2 AWG2 AWG | 11 | 1.74.32 | 530240.40 | 0.1620.24 | 0.1950.29 | 0.0450.07 | 115115 | 130130 | 55108801 |
| 1/0 AWG1/0 AWG | 11 | 2.35.84 | 844382.83 | 0.1020.15 | 0.1220.18 | 0.0440.07 | 150150 | 170170 | 56156101 |
| 2/0 AWG2/0 AWG | 11 | 2.46.10 | 1064482.62 | 0.0810.12 | 0.0970.14 | 0.0430.06 | 175175 | 195195 | 56156099 |
| 3/0 AWG3/0 AWG | 11 | 2.66.60 | 1342608.72 | 0.0640.10 | 0.0780.12 | 0.0420.06 | 200200 | 225225 | 58179999 |
| 4/0 AWG4/0 AWG | 11 | 2.87.11 | 1692767.48 | 0.0510.08 | 0.0620.09 | 0.0410.06 | 230230 | 260260 | 56155601 |
| 250 KCMIL250 KCMIL | 11 | 3.28.13 | 2000907.18 | 0.0430.06 | 0.0530.08 | 0.0410.06 | 255255 | 290290 | 56155499 |
| 350 KCMIL350 KCMIL | 11 | 3.69.14 | 28001270.06 | 0.0310.05 | 0.0390.06 | 0.0400.06 | 310310 | 350350 | 56155301 |
| 500 KCMIL500 KCMIL | 11 | 5.213.21 | 40001814.37 | 0.0220.03 | 0.0290.04 | 0.0390.06 | 380380 | 430430 | 89065801 |
| 750 KCMIL750 KCMIL | 11 | 6.215.75 | 60002721.55 | 0.0140.02 | 0.0220.03 | 0.0380.06 | 475475 | 535535 | 55109199 |
Números de parte en esta familia (28)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Empaque | |
|---|---|---|---|---|
| 8 AWG (2) | ||||
| 89066099 | 8-7 CU 45 EPR/15 LSZH 600V RHH/RHW-2 NEGRO 8-7 CU 45 EPR/15 LSZH 600V RHH/RHW-2 BLACK | 8 AWG 1C 7S | CARRETE CORTE A LA MEDIDA | |
| 89066001 | 8-7 CU 45 EPR/15 LSZH 600V RHH/RHW-2 NEGRO 500 FT 8-7 CU 45 EPR/15 LSZH 600V RHH/RHW-2 BLACK 500 FT | 8 AWG 1C 7S | CARRETE DE 500 FT | |
| 6 AWG (1) | ||||
| 89065999 | 6-7 CU 45 EPR/30 LSZH 600V RHH/RHW-2 NEGRO 6-7 CU 45 EPR/30 LSZH 600V RHH/RHW-2 BLACK | 6 AWG 1C 7S | CARRETE CORTE A LA MEDIDA | |
| 2 AWG (4) | ||||
| 55108899 | 2-7 CU 45 EPR/30 LSZH 600V RHH/RHW-2/USE-2 NEGRO 2-7 CU 45 EPR/30 LSZH 600V RHH/RHW-2/USE-2 BLACK | 2 AWG 1C 7S | CARRETE CORTE A LA MEDIDA | |
| 55108802 | 2-7 CU 45 EPR/30 LSZH 600V RHH/RHW-2/USE-2 NEGRO 1000 FT 2-7 CU 45 EPR/30 LSZH 600V RHH/RHW-2/USE-2 BLACK 1000 FT | 2 AWG 1C 7S | CARRETE DE 1000 FT | |
| 55108803 | 2-7 CU 45 EPR/30 LSZH 600V RHH/RHW-2/USE-2 NEGRO 2000 FT 2-7 CU 45 EPR/30 LSZH 600V RHH/RHW-2/USE-2 BLACK 2000 FT | 2 AWG 1C 7S | CARRETE DE 2000 FT | |
| 55108801 | 2-7 CU 45 EPR/30 LSZH 600V RHH/RHW-2/USE-2 NEGRO 2500 FT 2-7 CU 45 EPR/30 LSZH 600V RHH/RHW-2/USE-2 BLACK 2500 FT | 2 AWG 1C 7S | CARRETE DE 2500 FT | |
| 1/0 AWG (3) | ||||
| 56156199 | 1/0-19 CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 NEGRO 1/0-19 CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 BLACK | 1/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 56156101 | 1/0-19 CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 NEGRO 1000 FT 1/0-19 CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 BLACK 1000 FT | 1/0 AWG 1C 19S | CARRETE DE 1000 FT | |
| 56156102 | 1/0 AWG 19 HILOS 100% de cobre 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 NEGRO 500 FT 1/0-19 CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 BLACK 500 FT | 1/0 AWG 1C 19S | CARRETE DE 500 FT | |
| 2/0 AWG (1) | ||||
| 56156099 | 2/0-19 CU 55 EPR/45 SOLONON 600V RHW-2 USE-2 2/0-19 CU 55 EPR/45 SOLONON 600V RHW-2 USE-2 | 2/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 3/0 AWG (1) | ||||
| 58179999 | 3/0-19 CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 NEGRO 3/0-19 CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 BLACK | 3/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 4/0 AWG (6) | ||||
| 56155699 | 4/0-19 CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 NEGRO 4/0-19 CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 BLACK | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 56155602 | 4/0-19 CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 NEGRO 1000 FT 4/0-19 CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 BLACK 1000 FT | 4/0 AWG 1C 19S | CARRETE DE 1000 FT | |
| 56155601 | 4/0-19 CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 NEGRO 2000 FT 4/0-19 CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 BLACK 2000 FT | 4/0 AWG 1C 19S | CARRETE DE 2000 FT | |
| 59958299 | 4/0-19 CU ESTAÑADO 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 NEGRO 4/0-19 TINNED CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 BLACK | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 59958201 | 4/0 AWG 19 HILOS CU ESTAÑADO 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 NEGRO 2000 FT 4/0-19 TINNED CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 BLACK 2000 FT | 4/0 AWG 1C 19S | CARRETE DE 2000 FT | |
| 59958202 | 4/0 AWG 19 HILOS CU ESTAÑADO 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 NEGRO 500 FT 4/0-19 TINNED CU 55 EPR/45 LSZH 600V RHH/RHW-2/USE-2 BLACK 500 FT | 4/0 AWG 1C 19S | CARRETE DE 500 FT | |
| 250 kcmil (1) | ||||
| 56155499 | 250-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 NEGRO 250-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 BLACK | 250 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 350 kcmil (2) | ||||
| 56155399 | 350-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 NEGRO 350-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 BLACK | 350 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 56155301 | 350-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 NEGRO 1000 FT 350-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 BLACK 1000 FT | 350 KCMIL 1C 37S | CARRETE DE 1000 FT | |
| 500 kcmil (6) | ||||
| 89065899 | 500-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 NEGRO 500-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 BLACK | 500 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 89065804 | 500-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 NEGRO 1000 FT 500-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 BLACK 1000 FT | 500 KCMIL 1C 37S | CARRETE DE 1000 FT | |
| 89065805 | 500-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 NEGRO 1000 FT 500-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 BLACK 1000 FT | 500 KCMIL 1C 37S | CARRETE DE 1000 FT | |
| 89065801 | 500-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 NEGRO 1800 FT 500-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 BLACK 1800 FT | 500 KCMIL 1C 37S | CARRETE DE 1800 FT | |
| 89065803 | 500-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 NEGRO 1800 FT 500-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 BLACK 1800 FT | 500 KCMIL 1C 37S | CARRETE DE 1800 FT | |
| 89065825 | 500-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 NEGRO 2000 FT 500-37 CU 65 EPR/65 LSZH 600V RHH/RHW-2/USE-2 BLACK 2000 FT | 500 KCMIL 1C 37S | CARRETE DE 2000 FT | |
| 750 kcmil (1) | ||||
| 55109199 | 750-61 CU 80 EPR/65 LSZH 600V RHH/RHW-2/USE-2 NEGRO 750-61 CU 80 EPR/65 LSZH 600V RHH/RHW-2/USE-2 BLACK | 750 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
Aplicación y características
Los cables de potencia de 600 Voltios de Southwire son adecuados para uso en áreas húmedas y secas, tubos conduit, ductos, canaletas, charolas portacables, enterramiento directo, instalación aérea soportada por mensajero, y donde se deseen propiedades eléctricas superiores. Estos cables pueden funcionar continuamente a una temperatura de conductor no superior a 90°C para operación normal en lugares húmedos y secos, 130°C para sobrecarga de emergencia, y 250°C para condiciones de cortocircuito. Para uso en ubicaciones peligrosas Clase I, II y III, División 2 según los Artículos 501 y 502 de la NEC. CT Clasificado 1/0 y Mayor - Libre de Silicona
Normas y referencias
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
- UL 44 Thermoset-Insulated Wires and Cables
- UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test
- ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- CT USE Sizes 1/0 AWG and Larger
