ACSS
- Núm. Southwire
- ALBARE7

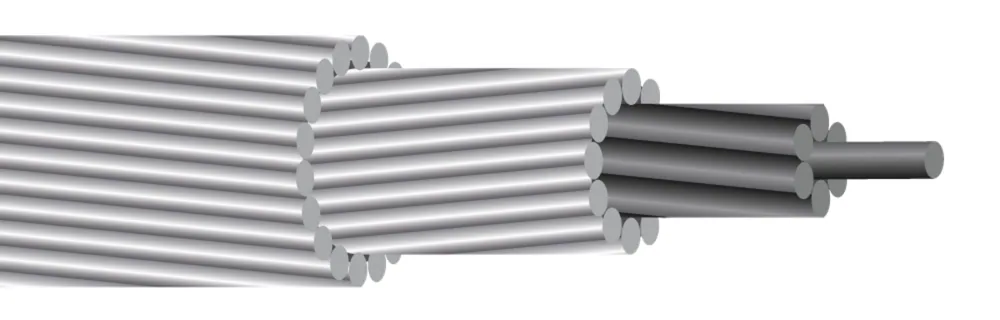

Conductor de aluminio con soporte de acero. Desnudo.
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (306) ↓Tamaños y construcciones disponibles
| Palabra clave | Tamaño (AWG or kcmil)(mm2) | Número de Alambres | Diámetro Nom. (mils)(mm) | Peso Total Nominal (lbs/1000')(kgs/km) | |
|---|---|---|---|---|---|
| LINNETLINNET | 336.4 KCMIL336.4 KCMIL | 2626 | 72018.29 | 462688 | 68794701 |
| IBISIBIS | 397.5 KCMIL397.5 KCMIL | 2626 | 78219.88 | 546813 | 47824803 |
| HAWKHAWK | 477 KCMIL477 KCMIL | 2626 | 85721.78 | 655975 | 61508426 |
| HENHEN | 477 KCMIL477 KCMIL | 3030 | 88222.42 | 7461111 | 61477126 |
| DOVEDOVE | 556.5 KCMIL556.5 KCMIL | 2626 | 92623.54 | 7651139 | 61193015 |
| SQUABSQUAB | 605 KCMIL605 KCMIL | 2626 | 96524.53 | 8311237 | 66205302 |
| GOLDFINCHGOLDFINCH | 636 KCMIL636 KCMIL | 2222 | 96324.47 | 7651138 | 62554701 |
| GROSBEAKGROSBEAK | 636 KCMIL636 KCMIL | 2626 | 99025.16 | 8741301 | 50602201 |
| FLAMINGOFLAMINGO | 666.6 KCMIL666.6 KCMIL | 2424 | 100025.40 | 8581277 | 61318304 |
| DRAKEDRAKE | 795 KCMIL795 KCMIL | 2626 | 110728.13 | 10931627 | 61239415 |
| TERNTERN | 795 KCMIL795 KCMIL | 4545 | 106327.01 | 8951331 | 67890402 |
| CONDORCONDOR | 795 KCMIL795 KCMIL | 5454 | 109127.73 | 10221521 | 61217225 |
| CANVASBACKCANVASBACK | 954 KCMIL954 KCMIL | 3030 | 124831.70 | 14802203 | 61492125 |
| RAILRAIL | 954 KCMIL954 KCMIL | 4545 | 116429.59 | 10741598 | 67898701 |
| CARDINALCARDINAL | 954 KCMIL954 KCMIL | 5454 | 119630.38 | 12271826 | 61036102 |
| ORTOLANORTOLAN | 1033.5 KCMIL1033.5 KCMIL | 4545 | 121230.78 | 11631730 | 60670825 |
| CURLEWCURLEW | 1033.5 KCMIL1033.5 KCMIL | 5454 | 124431.62 | 13291978 | 68575009 |
| BLUEJAYBLUEJAY | 1113 KCMIL1113 KCMIL | 4545 | 125831.97 | 12541865 | 61209401 |
| FINCHFINCH | 1113 KCMIL1113 KCMIL | 5454 | 129232.83 | 14302128 | 61349015 |
| BUNTINGBUNTING | 1192.5 KCMIL1192.5 KCMIL | 4545 | 130233.08 | 13421998 | 61126601 |
| BITTERNBITTERN | 1272 KCMIL1272 KCMIL | 4545 | 134434.16 | 14322130 | 65650401 |
| PHEASANTPHEASANT | 1272 KCMIL1272 KCMIL | 5454 | 138135.09 | 16342431 | 61120525 |
| MARTINMARTIN | 1351.5 KCMIL1351.5 KCMIL | 5454 | 142336.16 | 17352582 | 67869827 |
| LAPWINGLAPWING | 1590 KCMIL1590 KCMIL | 4545 | 150338.20 | 17902664 | 61143915 |
| FALCONFALCON | 1590 KCMIL1590 KCMIL | 5454 | 154439.23 | 20423039 | 61190315 |
| BLUEBIRDBLUEBIRD | 2156 KCMIL2156 KCMIL | 8484 | 176244.76 | 25083732 | 60220715 |
Números de parte en esta familia (306)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Empaque | |
|---|---|---|---|---|
| 336.4 kcmil (4) | ||||
| 68794727 | 336.4-26/7 ACSS/MA2/63% LINNET 2484 LB 336.4-26/7 ACSS/MA2/63% LINNET 2484 LB | 336.4 KCMIL 0C 26S | CARRETE DE 2484 LB | |
| 68794725 | 336.4-26/7 ACSS/MA2/63% LINNET 3787 LB 336.4-26/7 ACSS/MA2/63% LINNET 3787 LB | 336.4 KCMIL 0C 26S | CARRETE DE 3787 LB | |
| 68794728 | 336.4-26/7 ACSS/MA2/63% LINNET 6500 FT 336.4-26/7 ACSS/MA2/63% LINNET 6500 FT | 336.4 KCMIL 0C 26S | CARRETE DE 6500 FT | |
| 68794701 | 336.4-26/7 ACSS/MA2/63% LINNET 7580 LB 336.4-26/7 ACSS/MA2/63% LINNET 7580 LB | 336.4 KCMIL 0C 26S | CARRETE DE 7580 LB | |
| 397.5 kcmil (4) | ||||
| 47824803 | 397.5-26/7 ACSS/MA2/63% IBIS 5192 LB 397.5-26/7 ACSS/MA2/63% IBIS 5192 LB | 397.5 KCMIL 0C 26S | 5192 LB ROLLO | |
| 60412625 | 397.5-26/7 ACSS/MA3 (HS)/63% IBIS 11370 LB 397.5-26/7 ACSS/MA3 (HS)/63% IBIS 11370 LB | 397.5 KCMIL 0C 26S | CARRETE DE 11370 LB | |
| 60412627 | 397.5-26/7 ACSS/MA3 (HS)/63% IBIS 3790 LB 397.5-26/7 ACSS/MA3 (HS)/63% IBIS 3790 LB | 397.5 KCMIL 0C 26S | CARRETE DE 3790 LB | |
| 60412626 | 397.5-26/7 ACSS/MA3 (HS)/63% IBIS 7211 LB 397.5-26/7 ACSS/MA3 (HS)/63% IBIS 7211 LB | 397.5 KCMIL 0C 26S | CARRETE 7211 LB | |
| 477 kcmil (34) | ||||
| 68706140 | 477-26/7 ACSS/MA2/63% HAWK 1000 FT 477-26/7 ACSS/MA2/63% HAWK 1000 FT | 477 KCMIL 0C 26S | CARRETE DE 1000 FT | |
| 68706138 | 477-26/7 ACSS/MA2/63% HAWK 10000 FT 477-26/7 ACSS/MA2/63% HAWK 10000 FT | 477 KCMIL 0C 26S | CARRETE DE 10000 FT | |
| 68706145 | 477-26/7 ACSS/MA2/63% HAWK 10000 FT 477-26/7 ACSS/MA2/63% HAWK 10000 FT | 477 KCMIL 0C 26S | CARRETE DE 10000 FT | |
| 68706124 | 477-26/7 ACSS/MA2/63% HAWK 10500 FT 477-26/7 ACSS/MA2/63% HAWK 10500 FT | 477 KCMIL 0C 26S | CARRETE DE 10500 FT | |
| 68706144 | 477-26/7 ACSS/MA2/63% HAWK 11000 FT 477-26/7 ACSS/MA2/63% HAWK 11000 FT | 477 KCMIL 0C 26S | CARRETE DE 11000 FT | |
| 68706116 | 477-26/7 ACSS/MA2/63% HAWK 11500 FT 477-26/7 ACSS/MA2/63% HAWK 11500 FT | 477 KCMIL 0C 26S | CARRETE DE 11500 FT | |
| 68706148 | 477-26/7 ACSS/MA2/63% HAWK 11560 FT 477-26/7 ACSS/MA2/63% HAWK 11560 FT | 477 KCMIL 0C 26S | CARRETE DE 11560 FT | |
| 68706147 | 477-26/7 ACSS/MA2/63% HAWK 12000 FT 477-26/7 ACSS/MA2/63% HAWK 12000 FT | 477 KCMIL 0C 26S | CARRETE DE 12000 FT | |
| 68706139 | 477-26/7 ACSS/MA2/63% HAWK 13000 FT 477-26/7 ACSS/MA2/63% HAWK 13000 FT | 477 KCMIL 0C 26S | CARRETE DE 13000 FT | |
| 68706104 | 477-26/7 ACSS/MA2/63% HAWK 13600 FT 477-26/7 ACSS/MA2/63% HAWK 13600 FT | 477 KCMIL 0C 26S | CARRETE DE 13600 FT | |
| 68706153 | 477-26/7 ACSS/MA2/63% HAWK 14500 FT 477-26/7 ACSS/MA2/63% HAWK 14500 FT | 477 KCMIL 0C 26S | CARRETE DE 14500 FT | |
| 68706136 | 477-26/7 ACSS/MA2/63% HAWK 15000 FT 477-26/7 ACSS/MA2/63% HAWK 15000 FT | 477 KCMIL 0C 26S | CARRETE DE 15000 FT | |
| 68706154 | 477-26/7 ACSS/MA2/63% HAWK 16000 FT 477-26/7 ACSS/MA2/63% HAWK 16000 FT | 477 KCMIL 0C 26S | CARRETE DE 16000 FT | |
| 68706103 | 477-26/7 ACSS/MA2/63% HAWK 16500 FT 477-26/7 ACSS/MA2/63% HAWK 16500 FT | 477 KCMIL 0C 26S | CARRETE DE 16500 FT | |
| 68706105 | 477-26/7 ACSS/MA2/63% HAWK 17000 FT 477-26/7 ACSS/MA2/63% HAWK 17000 FT | 477 KCMIL 0C 26S | CARRETE DE 17000 FT | |
| 68706152 | 477-26/7 ACSS/MA2/63% HAWK 2000 FT 477-26/7 ACSS/MA2/63% HAWK 2000 FT | 477 KCMIL 0C 26S | CARRETE DE 2000 FT | |
| 68706150 | 477-26/7 ACSS/MA2/63% HAWK 20000 FT 477-26/7 ACSS/MA2/63% HAWK 20000 FT | 477 KCMIL 0C 26S | CARRETE DE 20000 FT | |
| 68706142 | 477-26/7 ACSS/MA2/63% HAWK 3000 FT 477-26/7 ACSS/MA2/63% HAWK 3000 FT | 477 KCMIL 0C 26S | CARRETE DE 3000 FT | |
| 68706151 | 477-26/7 ACSS/MA2/63% HAWK 4050 FT 477-26/7 ACSS/MA2/63% HAWK 4050 FT | 477 KCMIL 0C 26S | CARRETE DE 4050 FT | |
| 68706113 | 477-26/7 ACSS/MA2/63% HAWK 5000 FT 477-26/7 ACSS/MA2/63% HAWK 5000 FT | 477 KCMIL 0C 26S | CARRETE DE 5000 FT | |
| 68706141 | 477-26/7 ACSS/MA2/63% HAWK 5333 FT 477-26/7 ACSS/MA2/63% HAWK 5333 FT | 477 KCMIL 0C 26S | CARRETE DE 5333 FT | |
| 68706155 | 477-26/7 ACSS/MA2/63% HAWK 5780 FT 477-26/7 ACSS/MA2/63% HAWK 5780 FT | 477 KCMIL 0C 26S | CARRETE DE 5780 FT | |
| 68706156 | 477-26/7 ACSS/MA2/63% HAWK 6500 FT 477-26/7 ACSS/MA2/63% HAWK 6500 FT | 477 KCMIL 0C 26S | CARRETE DE 6500 FT | |
| 68706129 | 477-26/7 ACSS/MA2/63% HAWK 6558 LB 477-26/7 ACSS/MA2/63% HAWK 6558 LB | 477 KCMIL 0C 26S | CARRETE DE 6558 LB | |
| 68706143 | 477-26/7 ACSS/MA2/63% HAWK 6750 FT 477-26/7 ACSS/MA2/63% HAWK 6750 FT | 477 KCMIL 0C 26S | CARRETE DE 6750 FT | |
| 68706123 | 477-26/7 ACSS/MA2/63% HAWK 7000 FT 477-26/7 ACSS/MA2/63% HAWK 7000 FT | 477 KCMIL 0C 26S | CARRETE DE 7000 FT | |
| 68706109 | 477-26/7 ACSS/MA2/63% HAWK 7500 FT 477-26/7 ACSS/MA2/63% HAWK 7500 FT | 477 KCMIL 0C 26S | CARRETE DE 7500 FT | |
| 68706149 | 477-26/7 ACSS/MA2/63% HAWK 8000 FT 477-26/7 ACSS/MA2/63% HAWK 8000 FT | 477 KCMIL 0C 26S | CARRETE DE 8000 FT | |
| 68706146 | 477-26/7 ACSS/MA2/63% HAWK 9000 FT 477-26/7 ACSS/MA2/63% HAWK 9000 FT | 477 KCMIL 0C 26S | CARRETE DE 9000 FT | |
| 68706135 | 477-26/7 ACSS/MA2/63% HAWK 9500 FT 477-26/7 ACSS/MA2/63% HAWK 9500 FT | 477 KCMIL 0C 26S | CARRETE DE 9500 FT | |
| 61508427 | 477-26/7 ACSS/MA3 (HS)/63% HAWK 11370 LB 477-26/7 ACSS/MA3 (HS)/63% HAWK 11370 LB | 477 KCMIL 0C 26S | CARRETE DE 11370 LB | |
| 61508428 | 477-26/7 ACSS/MA3 (HS)/63% HAWK 15160 LB 477-26/7 ACSS/MA3 (HS)/63% HAWK 15160 LB | 477 KCMIL 0C 26S | CARRETE 15160 LB | |
| 61508426 | 477-26/7 ACSS/MA3 (HS)/63% HAWK 3790 LB 477-26/7 ACSS/MA3 (HS)/63% HAWK 3790 LB | 477 KCMIL 0C 26S | CARRETE DE 3790 LB | |
| 61477126 | 477-30/7 ACSS/MA2/63% HEN 7463 LB 477-30/7 ACSS/MA2/63% HEN 7463 LB | 477 KCMIL 0C 30S | CARRETE DE 7463 LB | |
| 556.5 kcmil (27) | ||||
| 61193027 | 556.5-26/7 ACSS/MA2/63% DOVE 10000 FT 556.5-26/7 ACSS/MA2/63% DOVE 10000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 10000 FT | |
| 61193030 | 556.5-26/7 ACSS/MA2/63% DOVE 12000 FT 556.5-26/7 ACSS/MA2/63% DOVE 12000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 12000 FT | |
| 61193029 | 556.5-26/7 ACSS/MA2/63% DOVE 15000 FT 556.5-26/7 ACSS/MA2/63% DOVE 15000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 15000 FT | |
| 61193032 | 556.5-26/7 ACSS/MA2/63% DOVE 16500 FT 556.5-26/7 ACSS/MA2/63% DOVE 16500 FT | 556.5 KCMIL 0C 26S | CARRETE DE 16500 FT | |
| 61193031 | 556.5-26/7 ACSS/MA2/63% DOVE 17000 FT 556.5-26/7 ACSS/MA2/63% DOVE 17000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 17000 FT | |
| 61193033 | 556.5-26/7 ACSS/MA2/63% DOVE 22700 FT 556.5-26/7 ACSS/MA2/63% DOVE 22700 FT | 556.5 KCMIL 0C 26S | CARRETE DE 22700 FT | |
| 61193034 | 556.5-26/7 ACSS/MA2/63% DOVE 5000 FT 556.5-26/7 ACSS/MA2/63% DOVE 5000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 5000 FT | |
| 61193015 | 556.5-26/7 ACSS/MA2/63% DOVE 8330 FT 556.5-26/7 ACSS/MA2/63% DOVE 8330 FT | 556.5 KCMIL 0C 26S | CARRETE DE 8330 FT | |
| 61325416 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 10000 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 10000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 10000 FT | |
| 61325405 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 10600 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 10600 FT | 556.5 KCMIL 0C 26S | CARRETE DE 10600 FT | |
| 61325423 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 11000 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 11000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 11000 FT | |
| 61325425 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 12000 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 12000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 12000 FT | |
| 61325422 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 12600 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 12600 FT | 556.5 KCMIL 0C 26S | CARRETE DE 12600 FT | |
| 61325409 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 15000 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 15000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 15000 FT | |
| 61325421 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 15500 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 15500 FT | 556.5 KCMIL 0C 26S | CARRETE DE 15500 FT | |
| 61325403 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 16500 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 16500 FT | 556.5 KCMIL 0C 26S | CARRETE DE 16500 FT | |
| 61325402 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 17900 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 17900 FT | 556.5 KCMIL 0C 26S | CARRETE DE 17900 FT | |
| 61325420 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 20000 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 20000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 20000 FT | |
| 61325407 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 3000 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 3000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 3000 FT | |
| 61325417 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 4000 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 4000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 4000 FT | |
| 61325424 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 4500 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 4500 FT | 556.5 KCMIL 0C 26S | CARRETE DE 4500 FT | |
| 61325419 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 5000 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 5000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 5000 FT | |
| 61325415 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 6000 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 6000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 6000 FT | |
| 61325418 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 7500 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 7500 FT | 556.5 KCMIL 0C 26S | CARRETE DE 7500 FT | |
| 61325406 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 8000 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 8000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 8000 FT | |
| 61325404 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 8500 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 8500 FT | 556.5 KCMIL 0C 26S | CARRETE DE 8500 FT | |
| 61325408 | 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 9000 FT 556.5-26/7 ACSS/MA3 (HS)/63% DOVE 9000 FT | 556.5 KCMIL 0C 26S | CARRETE DE 9000 FT | |
| 605 kcmil (7) | ||||
| 66205302 | 605-26/7 ACSS/MA2/63% SQUAB 4600 FT 605-26/7 ACSS/MA2/63% SQUAB 4600 FT | 605 KCMIL 0C 26S | CARRETE DE 4600 FT | |
| 66205304 | 605-26/7 ACSS/MA2/63% SQUAB 5900 FT 605-26/7 ACSS/MA2/63% SQUAB 5900 FT | 605 KCMIL 0C 26S | CARRETE 5900 FT | |
| 66205305 | 605-26/7 ACSS/MA2/63% SQUAB 6100 FT 605-26/7 ACSS/MA2/63% SQUAB 6100 FT | 605 KCMIL 0C 26S | CARRETE DE 6100 FT | |
| 66205306 | 605-26/7 ACSS/MA2/63% SQUAB 7100 FT 605-26/7 ACSS/MA2/63% SQUAB 7100 FT | 605 KCMIL 0C 26S | CARRETE DE 7100 FT | |
| 66205307 | 605-26/7 ACSS/MA2/63% SQUAB 7500 FT 605-26/7 ACSS/MA2/63% SQUAB 7500 FT | 605 KCMIL 0C 26S | CARRETE DE 7500 FT | |
| 66205308 | 605-26/7 ACSS/MA2/63% SQUAB 8400 FT 605-26/7 ACSS/MA2/63% SQUAB 8400 FT | 605 KCMIL 0C 26S | CARRETE DE 8400 FT | |
| 66205309 | 605-26/7 ACSS/MA2/63% SQUAB 9100 FT 605-26/7 ACSS/MA2/63% SQUAB 9100 FT | 605 KCMIL 0C 26S | CARRETE DE 9100 FT | |
| 636 kcmil (6) | ||||
| 62554715 | 636-22/7 ACSS/MA3 (HS)/63% GOLDFINCH 10499 FT 636-22/7 ACSS/MA3 (HS)/63% GOLDFINCH 10499 FT | 636 KCMIL 0C 22S | CARRETE DE 10499 FT | |
| 62554702 | 636-22/7 ACSS/MA3 (HS)/63% GOLDFINCH 11483 FT 636-22/7 ACSS/MA3 (HS)/63% GOLDFINCH 11483 FT | 636 KCMIL 0C 22S | CARRETE 11483 FT | |
| 62554701 | 636-22/7 ACSS/MA3 (HS)/63% GOLDFINCH 8750 FT 636-22/7 ACSS/MA3 (HS)/63% GOLDFINCH 8750 FT | 636 KCMIL 0C 22S | CARRETE DE 8750 FT | |
| 62554717 | 636-22/7 ACSS/MA3 (HS)/63% GOLDFINCH 9803 FT 636-22/7 ACSS/MA3 (HS)/63% GOLDFINCH 9803 FT | 636 KCMIL 0C 22S | CARRETE DE 9803 FT | |
| 50602202 | 636-26/7 ACSS/MA2/63% GROSBEAK 12350 FT 636-26/7 ACSS/MA2/63% GROSBEAK 12350 FT | 636 KCMIL 0C 26S | CARRETE DE 12350 FT | |
| 50602201 | 636-26/7 ACSS/MA2/63% GROSBEAK 19000 FT 636-26/7 ACSS/MA2/63% GROSBEAK 19000 FT | 636 KCMIL 0C 26S | CARRETE DE 19000 FT | |
| 666.6 kcmil (1) | ||||
| 61318304 | 666.6-24/7 ACSS/MA2/63% FLAMINGO 5000 FT 666.6-24/7 ACSS/MA2/63% FLAMINGO 5000 FT | 666.6 KCMIL 0C 24S | CARRETE DE 5000 FT | |
| 795 kcmil (96) | ||||
| 64641401 | 795-26/7 ACSS/MA2/63% DRAKE 10000 FT 795-26/7 ACSS/MA2/63% DRAKE 10000 FT | 795 KCMIL 0C 26S | CARRETE DE 10000 FT | |
| 64641426 | 795-26/7 ACSS/MA2/63% DRAKE 10000 FT 795-26/7 ACSS/MA2/63% DRAKE 10000 FT | 795 KCMIL 0C 26S | CARRETE DE 10000 FT | |
| 64641471 | 795-26/7 ACSS/MA2/63% DRAKE 10000 FT 795-26/7 ACSS/MA2/63% DRAKE 10000 FT | 795 KCMIL 0C 26S | CARRETE DE 10000 FT | |
| 64641442 | 795-26/7 ACSS/MA2/63% DRAKE 10384 LB 795-26/7 ACSS/MA2/63% DRAKE 10384 LB | 795 KCMIL 0C 26S | CARRETE 10384 LB | |
| 64641454 | 795-26/7 ACSS/MA2/63% DRAKE 10400 FT 795-26/7 ACSS/MA2/63% DRAKE 10400 FT | 795 KCMIL 0C 26S | CARRETE DE 10400 FT | |
| 64641402 | 795-26/7 ACSS/MA2/63% DRAKE 10410 FT 795-26/7 ACSS/MA2/63% DRAKE 10410 FT | 795 KCMIL 0C 26S | CARRETE 10410 FT | |
| 64641444 | 795-26/7 ACSS/MA2/63% DRAKE 10500 FT 795-26/7 ACSS/MA2/63% DRAKE 10500 FT | 795 KCMIL 0C 26S | CARRETE DE 10500 FT | |
| 64641467 | 795-26/7 ACSS/MA2/63% DRAKE 10500 FT 795-26/7 ACSS/MA2/63% DRAKE 10500 FT | 795 KCMIL 0C 26S | CARRETE DE 10500 FT | |
| 64641411 | 795-26/7 ACSS/MA2/63% DRAKE 10800 FT 795-26/7 ACSS/MA2/63% DRAKE 10800 FT | 795 KCMIL 0C 26S | CARRETE 10800 FT | |
| 64641421 | 795-26/7 ACSS/MA2/63% DRAKE 10930 LB 795-26/7 ACSS/MA2/63% DRAKE 10930 LB | 795 KCMIL 0C 26S | CARRETE DE 10930 LB | |
| 64641463 | 795-26/7 ACSS/MA2/63% DRAKE 11100 FT 795-26/7 ACSS/MA2/63% DRAKE 11100 FT | 795 KCMIL 0C 26S | CARRETE DE 11100 FT | |
| 64641478 | 795-26/7 ACSS/MA2/63% DRAKE 11200 FT 795-26/7 ACSS/MA2/63% DRAKE 11200 FT | 795 KCMIL 0C 26S | CARRETE DE 11200 FT | |
| 64641476 | 795-26/7 ACSS/MA2/63% DRAKE 11500 FT 795-26/7 ACSS/MA2/63% DRAKE 11500 FT | 795 KCMIL 0C 26S | CARRETE DE 11500 FT | |
| 64641419 | 795-26/7 ACSS/MA2/63% DRAKE 11600 FT 795-26/7 ACSS/MA2/63% DRAKE 11600 FT | 795 KCMIL 0C 26S | CARRETE DE 11600 FT | |
| 64641427 | 795-26/7 ACSS/MA2/63% DRAKE 12000 FT 795-26/7 ACSS/MA2/63% DRAKE 12000 FT | 795 KCMIL 0C 26S | CARRETE DE 12000 FT | |
| 64641492 | 795-26/7 ACSS/MA2/63% DRAKE 12400 FT 795-26/7 ACSS/MA2/63% DRAKE 12400 FT | 795 KCMIL 0C 26S | CARRETE DE 12400 FT | |
| 64641477 | 795-26/7 ACSS/MA2/63% DRAKE 12500 FT 795-26/7 ACSS/MA2/63% DRAKE 12500 FT | 795 KCMIL 0C 26S | CARRETE DE 12500 FT | |
| 64641404 | 795-26/7 ACSS/MA2/63% DRAKE 12600 FT 795-26/7 ACSS/MA2/63% DRAKE 12600 FT | 795 KCMIL 0C 26S | CARRETE DE 12600 FT | |
| 64641484 | 795-26/7 ACSS/MA2/63% DRAKE 12800 FT 795-26/7 ACSS/MA2/63% DRAKE 12800 FT | 795 KCMIL 0C 26S | CARRETE DE 12800 FT | |
| 64641475 | 795-26/7 ACSS/MA2/63% DRAKE 13000 FT 795-26/7 ACSS/MA2/63% DRAKE 13000 FT | 795 KCMIL 0C 26S | CARRETE DE 13000 FT | |
| 64641460 | 795-26/7 ACSS/MA2/63% DRAKE 13100 FT 795-26/7 ACSS/MA2/63% DRAKE 13100 FT | 795 KCMIL 0C 26S | CARRETE DE 13100 FT | |
| 64641408 | 795-26/7 ACSS/MA2/63% DRAKE 13500 FT 795-26/7 ACSS/MA2/63% DRAKE 13500 FT | 795 KCMIL 0C 26S | CARRETE DE 13500 FT | |
| 64641458 | 795-26/7 ACSS/MA2/63% DRAKE 14000 FT 795-26/7 ACSS/MA2/63% DRAKE 14000 FT | 795 KCMIL 0C 26S | CARRETE DE 14000 FT | |
| 64641495 | 795-26/7 ACSS/MA2/63% DRAKE 14100 FT 795-26/7 ACSS/MA2/63% DRAKE 14100 FT | 795 KCMIL 0C 26S | CARRETE 14100 FT | |
| 64641473 | 795-26/7 ACSS/MA2/63% DRAKE 14600 FT 795-26/7 ACSS/MA2/63% DRAKE 14600 FT | 795 KCMIL 0C 26S | CARRETE DE 14600 FT | |
| 64641485 | 795-26/7 ACSS/MA2/63% DRAKE 14700 FT 795-26/7 ACSS/MA2/63% DRAKE 14700 FT | 795 KCMIL 0C 26S | CARRETE DE 14700 FT | |
| 64641482 | 795-26/7 ACSS/MA2/63% DRAKE 14900 FT 795-26/7 ACSS/MA2/63% DRAKE 14900 FT | 795 KCMIL 0C 26S | 14900 FT CARRETE | |
| 64641491 | 795-26/7 ACSS/MA2/63% DRAKE 15000 FT 795-26/7 ACSS/MA2/63% DRAKE 15000 FT | 795 KCMIL 0C 26S | CARRETE DE 15000 FT | |
| 64641405 | 795-26/7 ACSS/MA2/63% DRAKE 15400 FT 795-26/7 ACSS/MA2/63% DRAKE 15400 FT | 795 KCMIL 0C 26S | CARRETE 15400 FT | |
| 64641487 | 795-26/7 ACSS/MA2/63% DRAKE 15600 FT 795-26/7 ACSS/MA2/63% DRAKE 15600 FT | 795 KCMIL 0C 26S | CARRETE 15600 FT | |
| 64641483 | 795-26/7 ACSS/MA2/63% DRAKE 16000 FT 795-26/7 ACSS/MA2/63% DRAKE 16000 FT | 795 KCMIL 0C 26S | CARRETE DE 16000 FT | |
| 64641479 | 795-26/7 ACSS/MA2/63% DRAKE 16500 FT 795-26/7 ACSS/MA2/63% DRAKE 16500 FT | 795 KCMIL 0C 26S | CARRETE DE 16500 FT | |
| 64641410 | 795-26/7 ACSS/MA2/63% DRAKE 16600 FT 795-26/7 ACSS/MA2/63% DRAKE 16600 FT | 795 KCMIL 0C 26S | CARRETE 16600 FT | |
| 64641461 | 795-26/7 ACSS/MA2/63% DRAKE 17000 FT 795-26/7 ACSS/MA2/63% DRAKE 17000 FT | 795 KCMIL 0C 26S | CARRETE DE 17000 FT | |
| 64641486 | 795-26/7 ACSS/MA2/63% DRAKE 17400 FT 795-26/7 ACSS/MA2/63% DRAKE 17400 FT | 795 KCMIL 0C 26S | CARRETE 17400 FT | |
| 64641446 | 795-26/7 ACSS/MA2/63% DRAKE 17488 LB 795-26/7 ACSS/MA2/63% DRAKE 17488 LB | 795 KCMIL 0C 26S | CARRETE 17488 LB | |
| 64641494 | 795-26/7 ACSS/MA2/63% DRAKE 17800 FT 795-26/7 ACSS/MA2/63% DRAKE 17800 FT | 795 KCMIL 0C 26S | CARRETE 17800 FT | |
| 64641480 | 795-26/7 ACSS/MA2/63% DRAKE 18000 FT 795-26/7 ACSS/MA2/63% DRAKE 18000 FT | 795 KCMIL 0C 26S | CARRETE DE 18000 FT | |
| 64641445 | 795-26/7 ACSS/MA2/63% DRAKE 18035 LB 795-26/7 ACSS/MA2/63% DRAKE 18035 LB | 795 KCMIL 0C 26S | CARRETE 18035 LB | |
| 64641429 | 795-26/7 ACSS/MA2/63% PATO 2000 FT 795-26/7 ACSS/MA2/63% DRAKE 2000 FT | 795 KCMIL 0C 26S | CARRETE DE 2000 FT | |
| 64641406 | 795-26/7 ACSS/MA2/63% DRAKE 21000 FT 795-26/7 ACSS/MA2/63% DRAKE 21000 FT | 795 KCMIL 0C 26S | CARRETE 21000 FT | |
| 64641498 | 795-26/7 ACSS/MA2/63% DRAKE 21800 FT 795-26/7 ACSS/MA2/63% DRAKE 21800 FT | 795 KCMIL 0C 26S | CARRETE DE 21800 FT | |
| 64641468 | 795-26/7 ACSS/MA2/63% PATO 2200 FT 795-26/7 ACSS/MA2/63% DRAKE 2200 FT | 795 KCMIL 0C 26S | CARRETE DE 2200 FT | |
| 64641420 | 795-26/7 ACSS/MA2/63% PATO 2500 FT 795-26/7 ACSS/MA2/63% DRAKE 2500 FT | 795 KCMIL 0C 26S | CARRETE DE 2500 FT | |
| 64641472 | 795-26/7 ACSS/MA2/63% PATO 3000 FT 795-26/7 ACSS/MA2/63% DRAKE 3000 FT | 795 KCMIL 0C 26S | CARRETE DE 3000 FT | |
| 64641490 | 795-26/7 ACSS/MA2/63% DRAKE 3300 FT 795-26/7 ACSS/MA2/63% DRAKE 3300 FT | 795 KCMIL 0C 26S | CARRETE DE 3300 FT | |
| 64641497 | 795-26/7 ACSS/MA2/63% DRAKE 3500 FT 795-26/7 ACSS/MA2/63% DRAKE 3500 FT | 795 KCMIL 0C 26S | CARRETE DE 3500 FT | |
| 64641470 | 795-26/7 ACSS/MA2/63% PATO 4500 FT 795-26/7 ACSS/MA2/63% DRAKE 4500 FT | 795 KCMIL 0C 26S | CARRETE DE 4500 FT | |
| 64641430 | 795-26/7 ACSS/MA2/63% PATO 4800 FT 795-26/7 ACSS/MA2/63% DRAKE 4800 FT | 795 KCMIL 0C 26S | CARRETE 4800 FT | |
| 64641488 | 795-26/7 ACSS/MA2/63% DRAKE 5200 FT 795-26/7 ACSS/MA2/63% DRAKE 5200 FT | 795 KCMIL 0C 26S | CARRETE DE 5200 FT | |
| 64641414 | 795-26/7 ACSS/MA2/63% PATO 5400 FT 795-26/7 ACSS/MA2/63% DRAKE 5400 FT | 795 KCMIL 0C 26S | CARRETE DE 5400 FT | |
| 64641416 | 795-26/7 ACSS/MA2/63% PATO 5465 LB 795-26/7 ACSS/MA2/63% DRAKE 5465 LB | 795 KCMIL 0C 26S | CARRETE DE 5465 LB | |
| 64641481 | 795-26/7 ACSS/MA2/63% DRAKE 6000 FT 795-26/7 ACSS/MA2/63% DRAKE 6000 FT | 795 KCMIL 0C 26S | CARRETE DE 6000 FT | |
| 64641412 | 795-26/7 ACSS/MA2/63% PATO 6600 FT 795-26/7 ACSS/MA2/63% DRAKE 6600 FT | 795 KCMIL 0C 26S | CARRETE DE 6600 FT | |
| 64641437 | 795-26/7 ACSS/MA2/63% PATO 6600 FT 795-26/7 ACSS/MA2/63% DRAKE 6600 FT | 795 KCMIL 0C 26S | CARRETE DE 6600 FT | |
| 64641474 | 795-26/7 ACSS/MA2/63% DRAKE 7000 FT 795-26/7 ACSS/MA2/63% DRAKE 7000 FT | 795 KCMIL 0C 26S | CARRETE DE 7000 FT | |
| 64641403 | 795-26/7 ACSS/MA2/63% PATO 7585 LB 795-26/7 ACSS/MA2/63% DRAKE 7585 LB | 795 KCMIL 0C 26S | CARRETE DE 7585 LB | |
| 64641424 | 795-26/7 ACSS/MA2/63% PATO 7900 FT 795-26/7 ACSS/MA2/63% DRAKE 7900 FT | 795 KCMIL 0C 26S | CARRETE DE 7900 FT | |
| 64641443 | 795-26/7 ACSS/MA2/63% PATO 8000 FT 795-26/7 ACSS/MA2/63% DRAKE 8000 FT | 795 KCMIL 0C 26S | CARRETE DE 8000 FT | |
| 64641452 | 795-26/7 ACSS/MA2/63% PATO 8500 FT 795-26/7 ACSS/MA2/63% DRAKE 8500 FT | 795 KCMIL 0C 26S | CARRETE DE 8500 FT | |
| 64641407 | 795-26/7 ACSS/MA2/63% PATO 8800 FT 795-26/7 ACSS/MA2/63% DRAKE 8800 FT | 795 KCMIL 0C 26S | CARRETE DE 8800 FT | |
| 64641428 | 795-26/7 ACSS/MA2/63% PATO 9000 FT 795-26/7 ACSS/MA2/63% DRAKE 9000 FT | 795 KCMIL 0C 26S | CARRETE DE 9000 FT | |
| 64641493 | 795-26/7 ACSS/MA2/63% DRAKE 9000 FT 795-26/7 ACSS/MA2/63% DRAKE 9000 FT | 795 KCMIL 0C 26S | CARRETE DE 9000 FT | |
| 64641425 | 795-26/7 ACSS/MA2/63% PATO 9050 FT 795-26/7 ACSS/MA2/63% DRAKE 9050 FT | 795 KCMIL 0C 26S | CARRETE DE 9050 FT | |
| 64641453 | 795-26/7 ACSS/MA2/63% PATO 9150 FT 795-26/7 ACSS/MA2/63% DRAKE 9150 FT | 795 KCMIL 0C 26S | CARRETE DE 9150 FT | |
| 64641496 | 795-26/7 ACSS/MA2/63% DRAKE 9900 FT 795-26/7 ACSS/MA2/63% DRAKE 9900 FT | 795 KCMIL 0C 26S | CARRETE DE 9900 FT | |
| 61239430 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 10400 FT 795-26/7 ACSS/MA3 (HS)/63% DRAKE 10400 FT | 795 KCMIL 0C 26S | CARRETE DE 10400 FT | |
| 61239441 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 11378 LB 795-26/7 ACSS/MA3 (HS)/63% DRAKE 11378 LB | 795 KCMIL 0C 26S | CARRETE DE 11378 LB | |
| 61239432 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 11650 LB 795-26/7 ACSS/MA3 (HS)/63% DRAKE 11650 LB | 795 KCMIL 0C 26S | CARRETE DE 11650 LB | |
| 61239437 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 16082 LB 795-26/7 ACSS/MA3 (HS)/63% DRAKE 16082 LB | 795 KCMIL 0C 26S | CARRETE DE 16082 LB | |
| 61239416 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 20330 LB 795-26/7 ACSS/MA3 (HS)/63% DRAKE 20330 LB | 795 KCMIL 0C 26S | CARRETE DE 20330 LB | |
| 61239442 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 20330 LB 795-26/7 ACSS/MA3 (HS)/63% DRAKE 20330 LB | 795 KCMIL 0C 26S | CARRETE DE 20330 LB | |
| 61239418 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 3600 FT 795-26/7 ACSS/MA3 (HS)/63% DRAKE 3600 FT | 795 KCMIL 0C 26S | CARRETE DE 3600 FT | |
| 61239421 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 3826 LB 795-26/7 ACSS/MA3 (HS)/63% DRAKE 3826 LB | 795 KCMIL 0C 26S | CARRETE DE 3826 LB | |
| 61239417 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 4500 FT 795-26/7 ACSS/MA3 (HS)/63% DRAKE 4500 FT | 795 KCMIL 0C 26S | CARRETE DE 4500 FT | |
| 61239422 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 6801 LB 795-26/7 ACSS/MA3 (HS)/63% DRAKE 6801 LB | 795 KCMIL 0C 26S | CARRETE DE 6801 LB | |
| 61239439 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 7105 LB 795-26/7 ACSS/MA3 (HS)/63% DRAKE 7105 LB | 795 KCMIL 0C 26S | CARRETE DE 7105 LB | |
| 61239419 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 7200 FT 795-26/7 ACSS/MA3 (HS)/63% DRAKE 7200 FT | 795 KCMIL 0C 26S | CARRETE DE 7200 FT | |
| 61239415 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 7500 FT 795-26/7 ACSS/MA3 (HS)/63% DRAKE 7500 FT | 795 KCMIL 0C 26S | CARRETE DE 7500 FT | |
| 61239440 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 7585 LB 795-26/7 ACSS/MA3 (HS)/63% DRAKE 7585 LB | 795 KCMIL 0C 26S | CARRETE DE 7585 LB | |
| 61239420 | 795-26/7 ACSS/MA3 (HS)/63% DRAKE 8100 FT 795-26/7 ACSS/MA3 (HS)/63% DRAKE 8100 FT | 795 KCMIL 0C 26S | CARRETE DE 8100 FT | |
| 67890402 | 795-45/7 ACSS/MA2/63% TERN 12000 FT 795-45/7 ACSS/MA2/63% TERN 12000 FT | 795 KCMIL 0C 45S | CARRETE DE 12000 FT | |
| 67890427 | 795-45/7 ACSS/MA2/63% TERN 7382 FT 795-45/7 ACSS/MA2/63% TERN 7382 FT | 795 KCMIL 0C 45S | CARRETE 7382 FT | |
| 61217238 | 795-54/7 ACSS/MA2/63% CONDOR 10479 FT 795-54/7 ACSS/MA2/63% CONDOR 10479 FT | 795 KCMIL 0C 54S | CARRETE DE 10479 FT | |
| 61217232 | 795-54/7 ACSS/MA2/63% CONDOR 11000 FT 795-54/7 ACSS/MA2/63% CONDOR 11000 FT | 795 KCMIL 0C 54S | CARRETE DE 11000 FT | |
| 61217242 | 795-54/7 ACSS/MA2/63% CONDOR 12470 LB 795-54/7 ACSS/MA2/63% CONDOR 12470 LB | 795 KCMIL 0C 54S | CARRETE DE 12470 LB | |
| 61217235 | 795-54/7 ACSS/MA2/63% CONDOR 16705 FT 795-54/7 ACSS/MA2/63% CONDOR 16705 FT | 795 KCMIL 0C 54S | CARRETE DE 16705 FT | |
| 61217234 | 795-54/7 ACSS/MA2/63% CONDOR 17700 FT 795-54/7 ACSS/MA2/63% CONDOR 17700 FT | 795 KCMIL 0C 54S | CARRETE DE 17700 FT | |
| 61217241 | 795-54/7 ACSS/MA2/63% CONDOR 3900 FT 795-54/7 ACSS/MA2/63% CONDOR 3900 FT | 795 KCMIL 0C 54S | CARRETE 3900 FT | |
| 61217240 | 795-54/7 ACSS/MA2/63% CONDOR 4900 FT 795-54/7 ACSS/MA2/63% CONDOR 4900 FT | 795 KCMIL 0C 54S | CARRETE DE 4900 FT | |
| 61217233 | 795-54/7 ACSS/MA2/63% CONDOR 5000 FT 795-54/7 ACSS/MA2/63% CONDOR 5000 FT | 795 KCMIL 0C 54S | CARRETE DE 5000 FT | |
| 61217225 | 795-54/7 ACSS/MA2/63% CONDOR 5000 LB 795-54/7 ACSS/MA2/63% CONDOR 5000 LB | 795 KCMIL 0C 54S | CARRETE DE 5000 LB | |
| 61217239 | 795-54/7 ACSS/MA2/63% CONDOR 5900 FT 795-54/7 ACSS/MA2/63% CONDOR 5900 FT | 795 KCMIL 0C 54S | CARRETE 5900 FT | |
| 61217231 | 795-54/7 ACSS/MA2/63% CONDOR 6136 LB 795-54/7 ACSS/MA2/63% CONDOR 6136 LB | 795 KCMIL 0C 54S | CARRETE DE 6136 LB | |
| 61217236 | 795-54/7 ACSS/MA2/63% CONDOR 7288 FT 795-54/7 ACSS/MA2/63% CONDOR 7288 FT | 795 KCMIL 0C 54S | CARRETE DE 7288 FT | |
| 61217237 | 795-54/7 ACSS/MA2/63% CONDOR 8500 FT 795-54/7 ACSS/MA2/63% CONDOR 8500 FT | 795 KCMIL 0C 54S | CARRETE DE 8500 FT | |
| 954 kcmil (26) | ||||
| 61492125 | 954-30/19 ACSS/MA2/63% CANVASBACK 4000 FT 954-30/19 ACSS/MA2/63% CANVASBACK 4000 FT | 954 KCMIL 0C 30S | CARRETE DE 4000 FT | |
| 67898712 | 954-45/7 ACSS/MA2/63% RAIL 10000 FT 954-45/7 ACSS/MA2/63% RAIL 10000 FT | 954 KCMIL 0C 45S | CARRETE DE 10000 FT | |
| 67898708 | 954-45/7 ACSS/MA2/63% RAIL 10739 LB 954-45/7 ACSS/MA2/63% RAIL 10739 LB | 954 KCMIL 0C 45S | CARRETE DE 10739 LB | |
| 67898702 | 954-45/7 ACSS/MA2/63% RAIL 11000 FT 954-45/7 ACSS/MA2/63% RAIL 11000 FT | 954 KCMIL 0C 45S | CARRETE DE 11000 FT | |
| 67898715 | 954-45/7 ACSS/MA2/63% RAIL 12000 FT 954-45/7 ACSS/MA2/63% RAIL 12000 FT | 954 KCMIL 0C 45S | CARRETE DE 12000 FT | |
| 67898701 | 954-45/7 ACSS/MA2/63% RAIL 13800 FT 954-45/7 ACSS/MA2/63% RAIL 13800 FT | 954 KCMIL 0C 45S | CARRETE DE 13800 FT | |
| 67898711 | 954-45/7 ACSS/MA2/63% RAIL 5000 FT 954-45/7 ACSS/MA2/63% RAIL 5000 FT | 954 KCMIL 0C 45S | CARRETE DE 5000 FT | |
| 67898704 | 954-45/7 ACSS/MA2/63% RAIL 6200 FT 954-45/7 ACSS/MA2/63% RAIL 6200 FT | 954 KCMIL 0C 45S | CARRETE DE 6200 FT | |
| 67898725 | 954-45/7 ACSS/MA2/63% RAIL 7000 FT 954-45/7 ACSS/MA2/63% RAIL 7000 FT | 954 KCMIL 0C 45S | CARRETE DE 7000 FT | |
| 67898703 | 954-45/7 ACSS/MA2/63% RAIL 9000 FT 954-45/7 ACSS/MA2/63% RAIL 9000 FT | 954 KCMIL 0C 45S | CARRETE DE 9000 FT | |
| 61036116 | 954-54/7 ACSS/MA2/63% CARDINAL 10000 FT 954-54/7 ACSS/MA2/63% CARDINAL 10000 FT | 954 KCMIL 0C 54S | CARRETE DE 10000 FT | |
| 61036123 | 954-54/7 ACSS/MA2/63% CARDINAL 10000 FT 954-54/7 ACSS/MA2/63% CARDINAL 10000 FT | 954 KCMIL 0C 54S | CARRETE DE 10000 FT | |
| 61036134 | 954-54/7 ACSS/MA2/63% CARDINAL 10000 FT 954-54/7 ACSS/MA2/63% CARDINAL 10000 FT | 954 KCMIL 0C 54S | CARRETE DE 10000 FT | |
| 61036120 | 954-54/7 ACSS/MA2/63% CARDINAL 11000 FT 954-54/7 ACSS/MA2/63% CARDINAL 11000 FT | 954 KCMIL 0C 54S | CARRETE DE 11000 FT | |
| 61036119 | 954-54/7 ACSS/MA2/63% CARDINAL 12000 FT 954-54/7 ACSS/MA2/63% CARDINAL 12000 FT | 954 KCMIL 0C 54S | CARRETE DE 12000 FT | |
| 61036135 | 954-54/7 ACSS/MA2/63% CARDINAL 13000 FT 954-54/7 ACSS/MA2/63% CARDINAL 13000 FT | 954 KCMIL 0C 54S | CARRETE DE 13000 FT | |
| 61036118 | 954-54/7 ACSS/MA2/63% CARDINAL 14200 FT 954-54/7 ACSS/MA2/63% CARDINAL 14200 FT | 954 KCMIL 0C 54S | CARRETE DE 14200 FT | |
| 61036117 | 954-54/7 ACSS/MA2/63% CARDINAL 15760 FT 954-54/7 ACSS/MA2/63% CARDINAL 15760 FT | 954 KCMIL 0C 54S | CARRETE DE 15760 FT | |
| 61036102 | 954-54/7 ACSS/MA2/63% CARDINAL 15955 LB 954-54/7 ACSS/MA2/63% CARDINAL 15955 LB | 954 KCMIL 0C 54S | CARRETE DE 15955 LB | |
| 61036115 | 954-54/7 ACSS/MA2/63% CARDINAL 3500 FT 954-54/7 ACSS/MA2/63% CARDINAL 3500 FT | 954 KCMIL 0C 54S | CARRETE DE 3500 FT | |
| 61036127 | 954-54/7 ACSS/MA2/63% CARDINAL 5000 LB 954-54/7 ACSS/MA2/63% CARDINAL 5000 LB | 954 KCMIL 0C 54S | CARRETE DE 5000 LB | |
| 61036133 | 954-54/7 ACSS/MA2/63% CARDINAL 6137 LB 954-54/7 ACSS/MA2/63% CARDINAL 6137 LB | 954 KCMIL 0C 54S | CARRETE 6137 LB | |
| 61036137 | 954-54/7 ACSS/MA2/63% CARDINAL 9000 FT 954-54/7 ACSS/MA2/63% CARDINAL 9000 FT | 954 KCMIL 0C 54S | CARRETE DE 9000 FT | |
| 61036124 | 954-54/7 ACSS/MA2/63% CARDINAL 9600 FT 954-54/7 ACSS/MA2/63% CARDINAL 9600 FT | 954 KCMIL 0C 54S | CARRETE DE 9600 FT | |
| 61036121 | 954-54/7 ACSS/MA2/63% CARDINAL 9800 FT 954-54/7 ACSS/MA2/63% CARDINAL 9800 FT | 954 KCMIL 0C 54S | CARRETE DE 9800 FT | |
| 61036136 | 954-54/7 ACSS/MA2/63% CARDINAL 9818 LB 954-54/7 ACSS/MA2/63% CARDINAL 9818 LB | 954 KCMIL 0C 54S | CARRETE 9818 LB | |
| 1033.5 kcmil (9) | ||||
| 61032027 | 1033.5-45/7 ACSS/MA2/63% ORTOLAN 2350 LB 1033.5-45/7 ACSS/MA2/63% ORTOLAN 2350 LB | 1033.5 KCMIL 0C 45S | CARRETE 2350 LB | |
| 60670826 | 1033.5-45/7 ACSS/MA3 (HS)/63% ORTOLAN 10738 LB 1033.5-45/7 ACSS/MA3 (HS)/63% ORTOLAN 10738 LB | 1033.5 KCMIL 0C 45S | CARRETE DE 10738 LB | |
| 60670827 | 1033.5-45/7 ACSS/MA3 (HS)/63% ORTOLAN 16113 LB 1033.5-45/7 ACSS/MA3 (HS)/63% ORTOLAN 16113 LB | 1033.5 KCMIL 0C 45S | CARRETE DE 16113 LB | |
| 60670825 | 1033.5-45/7 ACSS/MA3 (HS)/63% ORTOLAN 5369 lbs 1033.5-45/7 ACSS/MA3 (HS)/63% ORTOLAN 5369 LB | 1033.5 KCMIL 0C 45S | CARRETE DE 5369 LB | |
| 68575009 | 1033.5-54/7 ACSS/MA2/63% CURLEW 13296 LB 1033.5-54/7 ACSS/MA2/63% CURLEW 13296 LB | 1033.5 KCMIL 0C 54S | CARRETE DE 13296 LB | |
| 68575012 | 1033.5-54/7 ACSS/MA2/63% CURLEW 17285 LB 1033.5-54/7 ACSS/MA2/63% CURLEW 17285 LB | 1033.5 KCMIL 0C 54S | CARRETE DE 17285 LB | |
| 68575038 | 1033.5-54/7 ACSS/MA2/63% CURLEW 22603 LB 1033.5-54/7 ACSS/MA2/63% CURLEW 22603 LB | 1033.5 KCMIL 0C 54S | CARRETE DE 22603 LB | |
| 68575040 | 1033.5-54/7 ACSS/MA2/63% CURLEW 4000 FT 1033.5-54/7 ACSS/MA2/63% CURLEW 4000 FT | 1033.5 KCMIL 0C 54S | CARRETE DE 4000 FT | |
| 68575039 | 1033.5-54/7 ACSS/MA2/63% CURLEW 8000 FT 1033.5-54/7 ACSS/MA2/63% CURLEW 8000 FT | 1033.5 KCMIL 0C 54S | CARRETE DE 8000 FT | |
| 1113 kcmil (18) | ||||
| 61209403 | 1113-45/7 ACSS/MA2/63% BLUEJAY 13000 FT 1113-45/7 ACSS/MA2/63% BLUEJAY 13000 FT | 1113 KCMIL 0C 45S | CARRETE DE 13000 FT | |
| 61209401 | 1113-45/7 ACSS/MA2/63% BLUEJAY 5011 LB 1113-45/7 ACSS/MA2/63% BLUEJAY 5011 LB | 1113 KCMIL 0C 45S | CARRETE DE 5011 LB | |
| 61209402 | 1113-45/7 ACSS/MA2/63% BLUEJAY 9300 LB 1113-45/7 ACSS/MA2/63% BLUEJAY 9300 LB | 1113 KCMIL 0C 45S | CARRETE DE 9300 LB | |
| 61349035 | 1113-54/19 ACSS/MA2/63% FINCH 10311 LB 1113-54/19 ACSS/MA2/63% FINCH 10311 LB | 1113 KCMIL 0C 54S | CARRETE DE 10311 LB | |
| 61349036 | 1113-54/19 ACSS/MA2/63% FINCH 10576 LB 1113-54/19 ACSS/MA2/63% FINCH 10576 LB | 1113 KCMIL 0C 54S | CARRETE DE 10576 LB | |
| 61349037 | 1113-54/19 ACSS/MA2/63% FINCH 11105 LB 1113-54/19 ACSS/MA2/63% FINCH 11105 LB | 1113 KCMIL 0C 54S | CARRETE DE 11105 LB | |
| 61349038 | 1113-54/19 ACSS/MA2/63% FINCH 11219 LB 1113-54/19 ACSS/MA2/63% FINCH 11219 LB | 1113 KCMIL 0C 54S | CARRETE DE 11219 LB | |
| 61349028 | 1113-54/19 ACSS/MA2/63% FINCH 12860 LB 1113-54/19 ACSS/MA2/63% FINCH 12860 LB | 1113 KCMIL 0C 54S | CARRETE DE 12860 LB | |
| 61349039 | 1113-54/19 ACSS/MA2/63% FINCH 14780 LB 1113-54/19 ACSS/MA2/63% FINCH 14780 LB | 1113 KCMIL 0C 54S | CARRETE DE 14780 LB | |
| 61349015 | 1113-54/19 ACSS/MA2/63% FINCH 14829 LB 1113-54/19 ACSS/MA2/63% FINCH 14829 LB | 1113 KCMIL 0C 54S | CARRETE DE 14829 LB | |
| 61349030 | 1113-54/19 ACSS/MA2/63% FINCH 16064 LB 1113-54/19 ACSS/MA2/63% FINCH 16064 LB | 1113 KCMIL 0C 54S | CARRETE DE 16064 LB | |
| 61349024 | 1113-54/19 ACSS/MA2/63% FINCH 19004 LB 1113-54/19 ACSS/MA2/63% FINCH 19004 LB | 1113 KCMIL 0C 54S | CARRETE DE 19004 LB | |
| 61349016 | 1113-54/19 ACSS/MA2/63% FINCH 3000 FT 1113-54/19 ACSS/MA2/63% FINCH 3000 FT | 1113 KCMIL 0C 54S | CARRETE DE 3000 FT | |
| 61349027 | 1113-54/19 ACSS/MA2/63% FINCH 6430 LB 1113-54/19 ACSS/MA2/63% FINCH 6430 LB | 1113 KCMIL 0C 54S | CARRETE DE 6430 LB | |
| 61349031 | 1113-54/19 ACSS/MA2/63% FINCH 8066 LB 1113-54/19 ACSS/MA2/63% FINCH 8066 LB | 1113 KCMIL 0C 54S | CARRETE DE 8066 LB | |
| 61349032 | 1113-54/19 ACSS/MA2/63% FINCH 8759 LB 1113-54/19 ACSS/MA2/63% FINCH 8759 LB | 1113 KCMIL 0C 54S | CARRETE DE 8759 LB | |
| 61349033 | 1113-54/19 ACSS/MA2/63% FINCH 9582 LB 1113-54/19 ACSS/MA2/63% FINCH 9582 LB | 1113 KCMIL 0C 54S | CARRETE DE 9582 LB | |
| 61349034 | 1113-54/19 ACSS/MA2/63% FINCH 9846 LB 1113-54/19 ACSS/MA2/63% FINCH 9846 LB | 1113 KCMIL 0C 54S | CARRETE DE 9846 LB | |
| 1192.5 kcmil (9) | ||||
| 61126601 | 1192.5-45/7 ACSS/MA2/63% BUNTING 12000 FT 1192.5-45/7 ACSS/MA2/63% BUNTING 12000 FT | 1192.5 KCMIL 0C 45S | CARRETE DE 12000 FT | |
| 61126612 | 1192.5-45/7 ACSS/MA2/63% BUNTING 15665 LB 1192.5-45/7 ACSS/MA2/63% BUNTING 15665 LB | 1192.5 KCMIL 0C 45S | CARRETE DE 15665 LB | |
| 61126623 | 1192.5-45/7 ACSS/MA2/63% BUNTING 19061 LB 1192.5-45/7 ACSS/MA2/63% BUNTING 19061 LB | 1192.5 KCMIL 0C 45S | CARRETE DE 19061 LB | |
| 61126613 | 1192.5-45/7 ACSS/MA2/63% BUNTING 5000 FT 1192.5-45/7 ACSS/MA2/63% BUNTING 5000 FT | 1192.5 KCMIL 0C 45S | CARRETE DE 5000 FT | |
| 61126626 | 1192.5-45/7 ACSS/MA2/63% BUNTING 5000 FT 1192.5-45/7 ACSS/MA2/63% BUNTING 5000 FT | 1192.5 KCMIL 0C 45S | CARRETE DE 5000 FT | |
| 61126627 | 1192.5-45/7 ACSS/MA2/63% BUNTING 5500 FT 1192.5-45/7 ACSS/MA2/63% BUNTING 5500 FT | 1192.5 KCMIL 0C 45S | CARRETE DE 5500 FT | |
| 61126628 | 1192.5-45/7 ACSS/MA2/63% BUNTING 6000 FT 1192.5-45/7 ACSS/MA2/63% BUNTING 6000 FT | 1192.5 KCMIL 0C 45S | CARRETE DE 6000 FT | |
| 61126629 | 1192.5-45/7 ACSS/MA2/63% BUNTING 7500 FT 1192.5-45/7 ACSS/MA2/63% BUNTING 7500 FT | 1192.5 KCMIL 0C 45S | CARRETE DE 7500 FT | |
| 61126631 | 1192.5-45/7 ACSS/MA2/63% BUNTING 9000 FT 1192.5-45/7 ACSS/MA2/63% BUNTING 9000 FT | 1192.5 KCMIL 0C 45S | CARRETE DE 9000 FT | |
| 1272 kcmil (26) | ||||
| 65650401 | 1272-45/7 ACSS/MA2/63% BITTERN 10740 LB 1272-45/7 ACSS/MA2/63% BITTERN 10740 LB | 1272 KCMIL 0C 45S | CARRETE DE 10740 LB | |
| 65650435 | 1272-45/7 ACSS/MA2/63% BITTERN 11000 FT 1272-45/7 ACSS/MA2/63% BITTERN 11000 FT | 1272 KCMIL 0C 45S | CARRETE DE 11000 FT | |
| 65650431 | 1272-45/7 ACSS/MA2/63% BITTERN 11200 FT 1272-45/7 ACSS/MA2/63% BITTERN 11200 FT | 1272 KCMIL 0C 45S | CARRETE DE 11200 FT | |
| 65650432 | 1272-45/7 ACSS/MA2/63% BITTERN 11250 FT 1272-45/7 ACSS/MA2/63% BITTERN 11250 FT | 1272 KCMIL 0C 45S | CARRETE DE 11250 FT | |
| 65650417 | 1272-45/7 ACSS/MA2/63% BITTERN 16100 FT 1272-45/7 ACSS/MA2/63% BITTERN 16100 FT | 1272 KCMIL 0C 45S | CARRETE DE 16100 FT | |
| 65650416 | 1272-45/7 ACSS/MA2/63% BITTERN 2500 FT 1272-45/7 ACSS/MA2/63% BITTERN 2500 FT | 1272 KCMIL 0C 45S | CARRETE DE 2500 FT | |
| 65650425 | 1272-45/7 ACSS/MA2/63% BITTERN 3750 FT 1272-45/7 ACSS/MA2/63% BITTERN 3750 FT | 1272 KCMIL 0C 45S | CARRETE DE 3750 FT | |
| 65650418 | 1272-45/7 ACSS/MA2/63% BITTERN 4400 FT 1272-45/7 ACSS/MA2/63% BITTERN 4400 FT | 1272 KCMIL 0C 45S | CARRETE DE 4400 FT | |
| 65650427 | 1272-45/7 ACSS/MA2/63% BITTERN 5300 FT 1272-45/7 ACSS/MA2/63% BITTERN 5300 FT | 1272 KCMIL 0C 45S | CARRETE 5300 FT | |
| 65650428 | 1272-45/7 ACSS/MA2/63% BITTERN 5500 FT 1272-45/7 ACSS/MA2/63% BITTERN 5500 FT | 1272 KCMIL 0C 45S | CARRETE DE 5500 FT | |
| 65650429 | 1272-45/7 ACSS/MA2/63% BITTERN 6000 FT 1272-45/7 ACSS/MA2/63% BITTERN 6000 FT | 1272 KCMIL 0C 45S | CARRETE DE 6000 FT | |
| 65650434 | 1272-45/7 ACSS/MA2/63% BITTERN 6700 FT 1272-45/7 ACSS/MA2/63% BITTERN 6700 FT | 1272 KCMIL 0C 45S | CARRETE 6700 FT | |
| 65650433 | 1272-45/7 ACSS/MA2/63% BITTERN 8200 FT 1272-45/7 ACSS/MA2/63% BITTERN 8200 FT | 1272 KCMIL 0C 45S | CARRETE DE 8200 FT | |
| 65650426 | 1272-45/7 ACSS/MA2/63% BITTERN 9500 FT 1272-45/7 ACSS/MA2/63% BITTERN 9500 FT | 1272 KCMIL 0C 45S | CARRETE DE 9500 FT | |
| 61120525 | 1272-54/19 ACSS/MA2/63% PHEASANT 10000 FT 1272-54/19 ACSS/MA2/63% PHEASANT 10000 FT | 1272 KCMIL 0C 54S | CARRETE DE 10000 FT | |
| 61120526 | 1272-54/19 ACSS/MA2/63% PHEASANT 11650 FT 1272-54/19 ACSS/MA2/63% PHEASANT 11650 FT | 1272 KCMIL 0C 54S | CARRETE DE 11650 FT | |
| 61120546 | 1272-54/19 ACSS/MA2/63% PHEASANT 1510 FT 1272-54/19 ACSS/MA2/63% PHEASANT 1510 FT | 1272 KCMIL 0C 54S | CARRETE DE 1510 FT | |
| 61120551 | 1272-54/19 ACSS/MA2/63% PHEASANT 1700 FT 1272-54/19 ACSS/MA2/63% PHEASANT 1700 FT | 1272 KCMIL 0C 54S | CARRETE DE 1700 FT | |
| 61120550 | 1272-54/19 ACSS/MA2/63% PHEASANT 4000 FT 1272-54/19 ACSS/MA2/63% PHEASANT 4000 FT | 1272 KCMIL 0C 54S | CARRETE DE 4000 FT | |
| 61120548 | 1272-54/19 ACSS/MA2/63% PHEASANT 4552 FT 1272-54/19 ACSS/MA2/63% PHEASANT 4552 FT | 1272 KCMIL 0C 54S | CARRETE DE 4552 FT | |
| 61120547 | 1272-54/19 ACSS/MA2/63% PHEASANT 4692 FT 1272-54/19 ACSS/MA2/63% PHEASANT 4692 FT | 1272 KCMIL 0C 54S | CARRETE DE 4692 FT | |
| 61120538 | 1272-54/19 ACSS/MA2/63% PHEASANT 6515 LB 1272-54/19 ACSS/MA2/63% PHEASANT 6515 LB | 1272 KCMIL 0C 54S | CARRETE DE 6515 LB | |
| 61120552 | 1272-54/19 ACSS/MA2/63% PHEASANT 6865 FT 1272-54/19 ACSS/MA2/63% PHEASANT 6865 FT | 1272 KCMIL 0C 54S | CARRETE DE 6865 FT | |
| 61120549 | 1272-54/19 ACSS/MA2/63% PHEASANT 7750 FT 1272-54/19 ACSS/MA2/63% PHEASANT 7750 FT | 1272 KCMIL 0C 54S | CARRETE DE 7750 FT | |
| 61325302 | 1272-54/19 ACSS/MA3 (HS)/63% PHEASANT 11650 FT 1272-54/19 ACSS/MA3 (HS)/63% PHEASANT 11650 FT | 1272 KCMIL 0C 54S | CARRETE DE 11650 FT | |
| 61325325 | 1272-54/19 ACSS/MA3 (HS)/63% PHEASANT 12248 LB 1272-54/19 ACSS/MA3 (HS)/63% PHEASANT 12248 LB | 1272 KCMIL 0C 54S | CARRETE DE 12248 LB | |
| 1351.5 kcmil (1) | ||||
| 67869827 | 1351.5-54/19 ACSS/MA2/63% MARTIN 18457 LB 1351.5-54/19 ACSS/MA2/63% MARTIN 18457 LB | 1351.5 KCMIL 0C 54S | CARRETE DE 18457 LB | |
| 1590 kcmil (32) | ||||
| 61143927 | 1590-45/7 ACSS/MA2/63% LAPWING 25057 LB 1590-45/7 ACSS/MA2/63% LAPWING 25057 LB | 1590 KCMIL 0C 45S | CARRETE DE 25057 LB | |
| 61143929 | 1590-45/7 ACSS/MA2/63% LAPWING 3000 LB 1590-45/7 ACSS/MA2/63% LAPWING 3000 LB | 1590 KCMIL 0C 45S | CARRETE DE 3000 LB | |
| 61143931 | 1590-45/7 ACSS/MA2/63% LAPWING 3875 LB 1590-45/7 ACSS/MA2/63% LAPWING 3875 LB | 1590 KCMIL 0C 45S | CARRETE DE 3875 LB | |
| 61143932 | 1590-45/7 ACSS/MA2/63% LAPWING 4000 LB 1590-45/7 ACSS/MA2/63% LAPWING 4000 LB | 1590 KCMIL 0C 45S | CARRETE DE 4000 LB | |
| 61143933 | 1590-45/7 ACSS/MA2/63% LAPWING 4500 FT 1590-45/7 ACSS/MA2/63% LAPWING 4500 FT | 1590 KCMIL 0C 45S | CARRETE DE 4500 FT | |
| 61143915 | 1590-45/7 ACSS/MA2/63% LAPWING 4700 FT 1590-45/7 ACSS/MA2/63% LAPWING 4700 FT | 1590 KCMIL 0C 45S | CARRETE DE 4700 FT | |
| 61143916 | 1590-45/7 ACSS/MA2/63% LAPWING 4900 FT 1590-45/7 ACSS/MA2/63% LAPWING 4900 FT | 1590 KCMIL 0C 45S | CARRETE DE 4900 FT | |
| 61143925 | 1590-45/7 ACSS/MA2/63% LAPWING 6000 FT 1590-45/7 ACSS/MA2/63% LAPWING 6000 FT | 1590 KCMIL 0C 45S | CARRETE DE 6000 FT | |
| 61143921 | 1590-45/7 ACSS/MA2/63% LAPWING 6800 FT 1590-45/7 ACSS/MA2/63% LAPWING 6800 FT | 1590 KCMIL 0C 45S | CARRETE DE 6800 FT | |
| 61143930 | 1590-45/7 ACSS/MA2/63% LAPWING 7500 LB 1590-45/7 ACSS/MA2/63% LAPWING 7500 LB | 1590 KCMIL 0C 45S | CARRETE DE 7500 LB | |
| 61143917 | 1590-45/7 ACSS/MA2/63% LAPWING 7900 FT 1590-45/7 ACSS/MA2/63% LAPWING 7900 FT | 1590 KCMIL 0C 45S | CARRETE DE 7900 FT | |
| 61143928 | 1590-45/7 ACSS/MA2/63% LAPWING 8000 LB 1590-45/7 ACSS/MA2/63% LAPWING 8000 LB | 1590 KCMIL 0C 45S | CARRETE DE 8000 LB | |
| 61143918 | 1590-45/7 ACSS/MA2/63% LAPWING 8200 FT 1590-45/7 ACSS/MA2/63% LAPWING 8200 FT | 1590 KCMIL 0C 45S | CARRETE DE 8200 FT | |
| 61143919 | 1590-45/7 ACSS/MA2/63% LAPWING 8800 FT 1590-45/7 ACSS/MA2/63% LAPWING 8800 FT | 1590 KCMIL 0C 45S | CARRETE DE 8800 FT | |
| 61143920 | 1590-45/7 ACSS/MA2/63% LAPWING 9300 FT 1590-45/7 ACSS/MA2/63% LAPWING 9300 FT | 1590 KCMIL 0C 45S | CARRETE DE 9300 FT | |
| 61190334 | 1590-54/19 ACSS/MA2/63% FALCON 10000 FT 1590-54/19 ACSS/MA2/63% FALCON 10000 FT | 1590 KCMIL 0C 54S | CARRETE DE 10000 FT | |
| 61190347 | 1590-54/19 ACSS/MA2/63% FALCON 1801 FT 1590-54/19 ACSS/MA2/63% FALCON 1801 FT | 1590 KCMIL 0C 54S | CARRETE DE 1801 FT | |
| 61190351 | 1590-54/19 ACSS/MA2/63% FALCON 2000 FT 1590-54/19 ACSS/MA2/63% FALCON 2000 FT | 1590 KCMIL 0C 54S | CARRETE DE 2000 FT | |
| 61190349 | 1590-54/19 ACSS/MA2/63% FALCON 2848 FT 1590-54/19 ACSS/MA2/63% FALCON 2848 FT | 1590 KCMIL 0C 54S | CARRETE DE 2848 FT | |
| 61190348 | 1590-54/19 ACSS/MA2/63% FALCON 3741 FT 1590-54/19 ACSS/MA2/63% FALCON 3741 FT | 1590 KCMIL 0C 54S | CARRETE DE 3741 FT | |
| 61190315 | 1590-54/19 ACSS/MA2/63% FALCON 4000 FT 1590-54/19 ACSS/MA2/63% FALCON 4000 FT | 1590 KCMIL 0C 54S | CARRETE DE 4000 FT | |
| 61190317 | 1590-54/19 ACSS/MA2/63% FALCON 4452 FT 1590-54/19 ACSS/MA2/63% FALCON 4452 FT | 1590 KCMIL 0C 54S | CARRETE DE 4452 FT | |
| 61190321 | 1590-54/19 ACSS/MA2/63% FALCON 4500 FT 1590-54/19 ACSS/MA2/63% FALCON 4500 FT | 1590 KCMIL 0C 54S | CARRETE DE 4500 FT | |
| 61190322 | 1590-54/19 ACSS/MA2/63% FALCON 6200 FT 1590-54/19 ACSS/MA2/63% FALCON 6200 FT | 1590 KCMIL 0C 54S | CARRETE DE 6200 FT | |
| 61190346 | 1590-54/19 ACSS/MA2/63% FALCON 6502 FT 1590-54/19 ACSS/MA2/63% FALCON 6502 FT | 1590 KCMIL 0C 54S | CARRETE DE 6502 FT | |
| 61190323 | 1590-54/19 ACSS/MA2/63% FALCON 7050 FT 1590-54/19 ACSS/MA2/63% FALCON 7050 FT | 1590 KCMIL 0C 54S | CARRETE DE 7050 FT | |
| 61190316 | 1590-54/19 ACSS/MA2/63% FALCON 7500 FT 1590-54/19 ACSS/MA2/63% FALCON 7500 FT | 1590 KCMIL 0C 54S | CARRETE DE 7500 FT | |
| 61190327 | 1590-54/19 ACSS/MA2/63% FALCON 8000 FT 1590-54/19 ACSS/MA2/63% FALCON 8000 FT | 1590 KCMIL 0C 54S | CARRETE DE 8000 FT | |
| 61190318 | 1590-54/19 ACSS/MA2/63% FALCON 9000 FT 1590-54/19 ACSS/MA2/63% FALCON 9000 FT | 1590 KCMIL 0C 54S | CARRETE DE 9000 FT | |
| 61190324 | 1590-54/19 ACSS/MA2/63% FALCON 9300 FT 1590-54/19 ACSS/MA2/63% FALCON 9300 FT | 1590 KCMIL 0C 54S | CARRETE DE 9300 FT | |
| 61190320 | 1590-54/19 ACSS/MA2/63% FALCON 9500 FT 1590-54/19 ACSS/MA2/63% FALCON 9500 FT | 1590 KCMIL 0C 54S | CARRETE DE 9500 FT | |
| 61190319 | 1590-54/19 ACSS/MA2/63% FALCON 9720 FT 1590-54/19 ACSS/MA2/63% FALCON 9720 FT | 1590 KCMIL 0C 54S | CARRETE DE 9720 FT | |
| 2156 kcmil (6) | ||||
| 68981001 | 2156-84/19 ACSS/MA2/63% BLUEBIRD 17558 LB 2156-84/19 ACSS/MA2/63% BLUEBIRD 17558 LB | 2156 KCMIL 0C 84S | CARRETE DE 17558 LB | |
| 60220717 | 2156-84/19 ACSS/MA3 (HS)/63% BLUEBIRD 5000 FT 2156-84/19 ACSS/MA3 (HS)/63% BLUEBIRD 5000 FT | 2156 KCMIL 0C 84S | CARRETE DE 5000 FT | |
| 60220718 | 2156-84/19 ACSS/MA3 (HS)/63% BLUEBIRD 6000 FT 2156-84/19 ACSS/MA3 (HS)/63% BLUEBIRD 6000 FT | 2156 KCMIL 0C 84S | CARRETE DE 6000 FT | |
| 60220716 | 2156-84/19 ACSS/MA3 (HS)/63% BLUEBIRD 6500 FT 2156-84/19 ACSS/MA3 (HS)/63% BLUEBIRD 6500 FT | 2156 KCMIL 0C 84S | CARRETE DE 6500 FT | |
| 60220715 | 2156-84/19 ACSS/MA3 (HS)/63% BLUEBIRD 7100 FT 2156-84/19 ACSS/MA3 (HS)/63% BLUEBIRD 7100 FT | 2156 KCMIL 0C 84S | CARRETE DE 7100 FT | |
| 60220725 | 2156-84/19 ACSS/MA3 (HS)/63% BLUEBIRD 7500 FT 2156-84/19 ACSS/MA3 (HS)/63% BLUEBIRD 7500 FT | 2156 KCMIL 0C 84S | CARRETE DE 7500 FT | |
Aplicación y características
ACSS se utiliza en líneas de distribución y transmisión aéreas. Está diseñado para operar continuamente a temperaturas elevadas hasta 250°C sin pérdida de resistencia; presenta menor pandeo que un ACSR comparable bajo cargamentos eléctricos; es auto-amortiguador si se preestira durante la instalación; y sus pandeos finales no se ven afectados por el fluencia a largo plazo del aluminio. Las ventajas hacen que ACSS sea especialmente útil en aplicaciones de reconductorización que requieren mayor corriente con tensiones y espacios existentes, nuevas aplicaciones de líneas donde las estructuras pueden economizarse debido a la reducción del pandeo del conductor, nuevas aplicaciones de líneas que requieren cargamentos de emergencia altos, y líneas donde la vibración eólica es un problema.
Normas y referencias
- B500 Metallic Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced.
- B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes
- B802 Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced.
- B803 High-Strength Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum and Aluminum-Alloy Conductors, Steel Reinforced.
- B857 Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Supported (ACSS/TW).
Documentos
📎 Overhead Conductor Manual📎 Advantages of ACSS and ACSS/HS285 Conductors White Paper📎 Self-Damping Tests for Various Drake Conductors📎 ACSS & ACSS/TW Installation Guide📎 Galvanized vs. Mischmetal Coating📎 Batch Annealing vs. Bobbin Annealing📎 Mischmetal Alloy-Coated (MA) Steel Core Sales Sheet📎 ACRS, ACSS, Composite Cable Bare EPD
