ACSR/AW
- Núm. Southwire
- ALBARE8

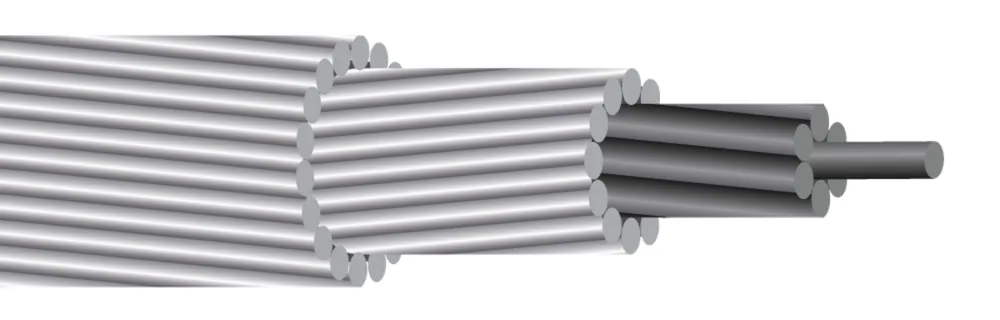

Conductor de aluminio reforzado con acero. Desnudo.
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (61) ↓Tamaños y construcciones disponibles
| Palabra clave | Tamaño (AWG or kcmil)(mm2) | Número de Alambres | Diámetro Nom. (mils)(mm) | Peso Total Nominal (lbs/1000')(kgs/km) | |
|---|---|---|---|---|---|
| SPARROWSPARROW | 2 AWG2 AWG | 66 | 3158.02 | 87129 | 19963801 |
| RAVENRAVEN | 1/0 AWG1/0 AWG | 66 | 39810.11 | 138205 | 14045960 |
| PIGEONPIGEON | 3/0 AWG3/0 AWG | 66 | 50112.74 | 219326 | 16186911 |
| PENGUINPENGUIN | 4/0 AWG4/0 AWG | 66 | 56314.31 | 277411 | 15812102 |
| GROUSEGROUSE | 80 KCMIL80 KCMIL | 88 | 3679.32 | 138205 | 66208501 |
| LINNETLINNET | 336.4 KCMIL336.4 KCMIL | 2626 | 72018.29 | 440655 | 19962027 |
| PELICANPELICAN | 477 KCMIL477 KCMIL | 1818 | 81420.68 | 507754 | 19979403 |
| HAWKHAWK | 477 KCMIL477 KCMIL | 2626 | 85721.78 | 624928 | 14509425 |
| DOVEDOVE | 556.5 KCMIL556.5 KCMIL | 2626 | 92623.54 | 7281084 | 20085726 |
| ROOKROOK | 636 KCMIL636 KCMIL | 2424 | 97624.81 | 7851168 | 22695103 |
| DRAKEDRAKE | 795 KCMIL795 KCMIL | 2626 | 110728.13 | 10411549 | 19957013 |
| CARDINALCARDINAL | 954 KCMIL954 KCMIL | 5454 | 119630.38 | 11771751 | 23491415 |
| BLUEJAYBLUEJAY | 1113 KCMIL1113 KCMIL | 4545 | 125831.96 | 12221818 | 62146515 |
| PHEASANTPHEASANT | 1272 KCMIL1272 KCMIL | 5454 | 138135.09 | 15682334 | 49994701 |
| BOBOLINKBOBOLINK | 1431 KCMIL1431 KCMIL | 4545 | 142636.23 | 15702337 | 33734529 |
| LAPWINGLAPWING | 1590 KCMIL1590 KCMIL | 4545 | 150338.20 | 17462598 | 42327707 |
| FALCONFALCON | 1590 KCMIL1590 KCMIL | 5454 | 154439.23 | 19602917 | 61398228 |
Números de parte en esta familia (61)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Empaque | |
|---|---|---|---|---|
| 2 AWG (2) | ||||
| 19963801 | 2-6/1 ACSR/AW SPARROW 1200 LB 2-6/1 ACSR/AW SPARROW 1200 LB | 2 AWG 0C 6S | CARRETE DE 1200 LB | |
| 19963831 | ACSR/AW 2-6/1 SPARROW 150 LB 2-6/1 ACSR/AW SPARROW 150 LB | 2 AWG 0C 6S | ROLLO DE 150 LB | |
| 80 kcmil (1) | ||||
| 66208501 | 80-8/1 ACSR/AW GROUSE 7580 FT 80-8/1 ACSR/AW GROUSE 7580 FT | 80 KCMIL 0C 8S | CARRETE DE 7580 FT | |
| 1/0 AWG (3) | ||||
| 14045962 | 1/0-6/1 ACSR/AW RAVEN 6095 FT 1/0-6/1 ACSR/AW RAVEN 6095 FT | 1/0 AWG 0C 6S | CARRETE DE 6095 FT | |
| 62184150 | 1/0-6/1 ACSR/COMP/AW 32000 FT 1/0-6/1 ACSR/COMP/AW 32000 FT | 1/0 AWG 0C 6S | CARRETE 32000 FT | |
| 14045960 | 1/0-6/1 RAVEN/AW/62% ACSR/AW 1/0-6/1 RAVEN/AW/62% ACSR/AW | 1/0 AWG 0C 6S | CARRETE DE 1768 LB | |
| 3/0 AWG (2) | ||||
| 16186911 | 3/0-6/1 ACSR/AW PIGEON 1683 LB 3/0-6/1 ACSR/AW PIGEON 1683 LB | 3/0 AWG 0C 6S | CARRETE 1683 LB | |
| 16186913 | 3/0-6/1 ACSR/AW PIGEON 500 LB 3/0-6/1 ACSR/AW PIGEON 500 LB | 3/0 AWG 0C 6S | CARRETE DE 500 LB | |
| 4/0 AWG (4) | ||||
| 15812116 | 4/0-6/1 ACSR/AW PENGUIN 1769 LB 4/0-6/1 ACSR/AW PENGUIN 1769 LB | 4/0 AWG 0C 6S | CARRETE DE 1769 LB | |
| 15812128 | 4/0-6/1 ACSR/AW PENGUIN 6000 FT 4/0-6/1 ACSR/AW PENGUIN 6000 FT | 4/0 AWG 0C 6S | CARRETE DE 6000 FT | |
| 15812127 | 4/0-6/1 ACSR/AW PENGUIN 6080 FT 4/0-6/1 ACSR/AW PENGUIN 6080 FT | 4/0 AWG 0C 6S | CARRETE DE 6080 FT | |
| 15812102 | 4/0-6/1 ACSR/AW PENGUIN 884 LB 4/0-6/1 ACSR/AW PENGUIN 884 LB | 4/0 AWG 0C 6S | CARRETE DE 884 LB | |
| 336.4 kcmil (1) | ||||
| 19962027 | 336.4-26/7 ACSR/AW LINNET 8195 FT 336.4-26/7 ACSR/AW LINNET 8195 FT | 336.4 KCMIL 0C 26S | CARRETE DE 8195 FT | |
| 477 kcmil (2) | ||||
| 19979403 | ACSR/AW PELICAN 477-18/1 2034 LB 477-18/1 ACSR/AW PELICAN 2034 LB | 477 KCMIL 0C 18S | CARRETE 2034 LB | |
| 14509425 | CONDUCTOR DESNUDO CABLEADO 477-26/7 ACSR/AW HAWK 10000 FT 477-26/7 ACSR/AW HAWK 10000 FT | 477 KCMIL 0C 26S | CARRETE DE 10000 FT | |
| 556.5 kcmil (2) | ||||
| 20085728 | 556.5-26/7 ACSR/AW DOVE 3650 FT 556.5-26/7 ACSR/AW DOVE 3650 FT | 556.5 KCMIL 0C 26S | CARRETE 3650 FT | |
| 20085726 | 556.5-26/7 ACSR/AW DOVE 9910 FT 556.5-26/7 ACSR/AW DOVE 9910 FT | 556.5 KCMIL 0C 26S | CARRETE DE 9910 FT | |
| 636 kcmil (7) | ||||
| 22695108 | 636-24/7 ACSR/AW ROOK 12000 FT 636-24/7 ACSR/AW ROOK 12000 FT | 636 KCMIL 0C 24S | CARRETE DE 12000 FT | |
| 22695127 | 636-24/7 ACSR/AW ROOK 12556 LB 636-24/7 ACSR/AW ROOK 12556 LB | 636 KCMIL 0C 24S | 12556 LB CARRETE | |
| 22695126 | 636-24/7 ACSR/AW ROOK 14900 FT 636-24/7 ACSR/AW ROOK 14900 FT | 636 KCMIL 0C 24S | 14900 FT CARRETE | |
| 22695128 | 636-24/7 ACSR/AW ROOK 5336 LB 636-24/7 ACSR/AW ROOK 5336 LB | 636 KCMIL 0C 24S | CARRETE 5336 LB | |
| 22695103 | 636-24/7 ACSR/AW ROOK 6514 LB 636-24/7 ACSR/AW ROOK 6514 LB | 636 KCMIL 0C 24S | CARRETE 6514 LB | |
| 22695107 | 636-24/7 ACSR/AW ROOK 8000 FT 636-24/7 ACSR/AW ROOK 8000 FT | 636 KCMIL 0C 24S | CARRETE DE 8000 FT | |
| 22695115 | 636-24/7 ACSR/AW ROOK 9888 LB 636-24/7 ACSR/AW ROOK 9888 LB | 636 KCMIL 0C 24S | CARRETE 9888 LB | |
| 795 kcmil (4) | ||||
| 19957013 | 795-26/7 ACSR/AW DRAKE 10400 FT 795-26/7 ACSR/AW DRAKE 10400 FT | 795 KCMIL 0C 26S | CARRETE DE 10400 FT | |
| 19957019 | 795-26/7 ACSR/AW DRAKE 10821 LB 795-26/7 ACSR/AW DRAKE 10821 LB | 795 KCMIL 0C 26S | 10821 LB CARRETE | |
| 19957034 | 795-26/7 ACSR/AW DRAKE 15150 FT 795-26/7 ACSR/AW DRAKE 15150 FT | 795 KCMIL 0C 26S | 15150 FT CARRETE | |
| 19957024 | 795-26/7 ACSR/AW DRAKE 7232 LB 795-26/7 ACSR/AW DRAKE 7232 LB | 795 KCMIL 0C 26S | CARRETE 7232 LB | |
| 954 kcmil (7) | ||||
| 23491415 | 954-54/7 ACSR/AW CARDINAL 10000 FT 954-54/7 ACSR/AW CARDINAL 10000 FT | 954 KCMIL 0C 54S | CARRETE DE 10000 FT | |
| 23491416 | 954-54/7 ACSR/AW CARDINAL 11500 FT 954-54/7 ACSR/AW CARDINAL 11500 FT | 954 KCMIL 0C 54S | CARRETE DE 11500 FT | |
| 23491429 | 954-54/7 ACSR/AW CARDINAL 15500 FT 954-54/7 ACSR/AW CARDINAL 15500 FT | 954 KCMIL 0C 54S | CARRETE DE 15500 FT | |
| 23491428 | 954-54/7 ACSR/AW CARDINAL 4862 LB 954-54/7 ACSR/AW CARDINAL 4862 LB | 954 KCMIL 0C 54S | CARRETE 4862 LB | |
| 23491417 | 954-54/7 ACSR/AW CARDINAL 7000 FT 954-54/7 ACSR/AW CARDINAL 7000 FT | 954 KCMIL 0C 54S | CARRETE DE 7000 FT | |
| 23491423 | 954-54/7 ACSR/AW CARDINAL 8100 FT 954-54/7 ACSR/AW CARDINAL 8100 FT | 954 KCMIL 0C 54S | CARRETE DE 8100 FT | |
| 23491427 | 954-54/7 ACSR/AW CARDINAL 9000 FT 954-54/7 ACSR/AW CARDINAL 9000 FT | 954 KCMIL 0C 54S | CARRETE DE 9000 FT | |
| 1113 kcmil (1) | ||||
| 62146515 | 1113-45/7 ACSR/AW BLUEJAY 10000 FT 1113-45/7 ACSR/AW BLUEJAY 10000 FT | 1113 KCMIL 0C 45S | CARRETE DE 10000 FT | |
| 1272 kcmil (18) | ||||
| 49994703 | 1272-54/19 ACSR/AW PHEASANT 10000 FT 1272-54/19 ACSR/AW PHEASANT 10000 FT | 1272 KCMIL 0C 54S | CARRETE DE 10000 FT | |
| 49994727 | 1272-54/19 ACSR/AW PHEASANT 10000 FT 1272-54/19 ACSR/AW PHEASANT 10000 FT | 1272 KCMIL 0C 54S | CARRETE DE 10000 FT | |
| 49994704 | 1272-54/19 ACSR/AW PHEASANT 10500 FT 1272-54/19 ACSR/AW PHEASANT 10500 FT | 1272 KCMIL 0C 54S | CARRETE DE 10500 FT | |
| 49994705 | 1272-54/19 ACSR/AW PHEASANT 11000 FT 1272-54/19 ACSR/AW PHEASANT 11000 FT | 1272 KCMIL 0C 54S | CARRETE DE 11000 FT | |
| 49994706 | 1272-54/19 ACSR/AW PHEASANT 12000 FT 1272-54/19 ACSR/AW PHEASANT 12000 FT | 1272 KCMIL 0C 54S | CARRETE DE 12000 FT | |
| 49994707 | 1272-54/19 ACSR/AW PHEASANT 12500 FT 1272-54/19 ACSR/AW PHEASANT 12500 FT | 1272 KCMIL 0C 54S | CARRETE DE 12500 FT | |
| 49994708 | 1272-54/19 ACSR/AW PHEASANT 13800 FT 1272-54/19 ACSR/AW PHEASANT 13800 FT | 1272 KCMIL 0C 54S | CARRETE DE 13800 FT | |
| 49994709 | 1272-54/19 ACSR/AW PHEASANT 14500 FT 1272-54/19 ACSR/AW PHEASANT 14500 FT | 1272 KCMIL 0C 54S | CARRETE DE 14500 FT | |
| 49994710 | 1272-54/19 ACSR/AW PHEASANT 14750 FT 1272-54/19 ACSR/AW PHEASANT 14750 FT | 1272 KCMIL 0C 54S | CARRETE DE 14750 FT | |
| 49994711 | 1272-54/19 ACSR/AW PHEASANT 15000 FT 1272-54/19 ACSR/AW PHEASANT 15000 FT | 1272 KCMIL 0C 54S | CARRETE DE 15000 FT | |
| 49994712 | 1272-54/19 ACSR/AW PHEASANT 15250 FT 1272-54/19 ACSR/AW PHEASANT 15250 FT | 1272 KCMIL 0C 54S | CARRETE DE 15250 FT | |
| 49994713 | 1272-54/19 ACSR/AW PHEASANT 16000 FT 1272-54/19 ACSR/AW PHEASANT 16000 FT | 1272 KCMIL 0C 54S | CARRETE DE 16000 FT | |
| 49994714 | 1272-54/19 ACSR/AW PHEASANT 16400 FT 1272-54/19 ACSR/AW PHEASANT 16400 FT | 1272 KCMIL 0C 54S | CARRETE DE 16400 FT | |
| 49994716 | 1272-54/19 ACSR/AW PHEASANT 4000 FT 1272-54/19 ACSR/AW PHEASANT 4000 FT | 1272 KCMIL 0C 54S | CARRETE DE 4000 FT | |
| 49994726 | 1272-54/19 ACSR/AW PHEASANT 6250 LB 1272-54/19 ACSR/AW PHEASANT 6250 LB | 1272 KCMIL 0C 54S | 6250 LB ROLLO | |
| 49994715 | 1272-54/19 ACSR/AW PHEASANT 6500 FT 1272-54/19 ACSR/AW PHEASANT 6500 FT | 1272 KCMIL 0C 54S | CARRETE DE 6500 FT | |
| 49994701 | 1272-54/19 ACSR/AW PHEASANT 9000 FT 1272-54/19 ACSR/AW PHEASANT 9000 FT | 1272 KCMIL 0C 54S | CARRETE DE 9000 FT | |
| 49994702 | 1272-54/19 ACSR/AW PHEASANT 9500 FT 1272-54/19 ACSR/AW PHEASANT 9500 FT | 1272 KCMIL 0C 54S | CARRETE DE 9500 FT | |
| 1431 kcmil (2) | ||||
| 33734529 | 1431-45/7 ACSR/AW BOBOLINK 15707 LB 1431-45/7 ACSR/AW BOBOLINK 15707 LB | 1431 KCMIL 0C 45S | CARRETE DE 15707 LB | |
| 33734531 | 1431-45/7 ACSR/AW BOBOLINK 5300 FT 1431-45/7 ACSR/AW BOBOLINK 5300 FT | 1431 KCMIL 0C 45S | CARRETE 5300 FT | |
| 1590 kcmil (5) | ||||
| 42327707 | 1590-45/7 ACSR/AW LAPWING 12675 LB 1590-45/7 ACSR/AW LAPWING 12675 LB | 1590 KCMIL 0C 45S | CARRETE DE 12675 LB | |
| 42327728 | 1590-45/7 ACSR/AW LAPWING 4500 FT 1590-45/7 ACSR/AW LAPWING 4500 FT | 1590 KCMIL 0C 45S | CARRETE DE 4500 FT | |
| 42327727 | 1590-45/7 ACSR/AW LAPWING 7000 FT 1590-45/7 ACSR/AW LAPWING 7000 FT | 1590 KCMIL 0C 45S | CARRETE DE 7000 FT | |
| 42327726 | 1590-45/7 ACSR/AW LAPWING 9000 FT 1590-45/7 ACSR/AW LAPWING 9000 FT | 1590 KCMIL 0C 45S | CARRETE DE 9000 FT | |
| 61398228 | 1590-54/19 ACSR/AW FALCON 10000 FT 1590-54/19 ACSR/AW FALCON 10000 FT | 1590 KCMIL 0C 54S | CARRETE DE 10000 FT | |
Aplicación y características
Se usa como conductor de transmisión aérea desnudo y como conductor de distribución primaria y secundaria y soporte mensajero. ACSR ofrece resistencia óptima para diseño de línea. El cableado variable de núcleo de acero permite lograr la resistencia deseada sin sacrificar la capacidad de amperaje.
Normas y referencias
- B230 Aluminum 1350-H19 Wire for Electrical Purposes
- B232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).
- B498 Zinc-Coated (Galvanized) Steel Core Wire for Use in Overhead Electrical Conductors.
- B500 Metallic Coated Stranded Steel Core for Use in Overhead Electrical Conductors.
