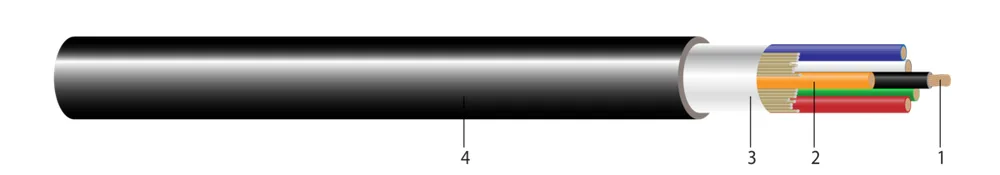

600V ROYAL® SOOW Cordón de Control con Cubierta Negra 90°C. Aprobado por MSHA
- Núm. Southwire
- SPEC70118
Cable flexible de 600 voltios, 90°C. Aislamiento de hule EPDM resistente al calor, la humedad y el aceite; cubierta flexible de CPE resistente al calor, la humedad y el aceite.
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (82) ↓Tamaños y construcciones disponibles
| Tamaño (AWG or kcmil)(mm2) | Número de Conductores | Número de Alambres | Diámetro Nom. (mils)(mm) | Peso Total Nominal (lbs/1000')(kgs/km) | Amperaje Permisible | Resistencia nominal CC (conductor) | Colores del Conductor | |
|---|---|---|---|---|---|---|---|---|
| 18 AWG18 AWG | 66 | 1616 | 49212.50 | 138205 | 5.55.5 | 6.596.59 | BLACK/WHITE/RED/GREEN/ORANGE/BLUEBLACK/WHITE/RED/GREEN/ORANGE/BLUE | 55823602 |
| 18 AWG18 AWG | 77 | 1616 | 48812.40 | 135201 | 4.54.5 | 6.596.59 | BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACKBLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK | 55823702 |
| 18 AWG18 AWG | 88 | 1616 | 52113.23 | 164244 | 4.54.5 | 6.596.59 | BLACK/RED-BLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITEBLACK/RED-BLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITE | 55823801 |
| 18 AWG18 AWG | 1010 | 1616 | 59615.14 | 196292 | 3.53.5 | 6.596.59 | 57003402 | |
| 18 AWG18 AWG | 1212 | 1616 | 62115.77 | 231343 | 3.53.5 | 6.596.59 | 57003703 | |
| 18 AWG18 AWG | 1414 | 1616 | 64016.26 | 246366 | 3.53.5 | 6.596.59 | 59830202 | |
| 18 AWG18 AWG | 1616 | 1616 | 66816.97 | 274408 | 3.53.5 | 6.596.59 | 57003902 | |
| 18 AWG18 AWG | 2020 | 1616 | 73918.77 | 321477 | 3.53.5 | 6.596.59 | 57004203 | |
| 18 AWG18 AWG | 2424 | 1616 | 83021.08 | 405603 | 33 | 6.596.59 | 57004301 | |
| 18 AWG18 AWG | 3030 | 1616 | 84921.56 | 446663 | 33 | 6.596.59 | 57169299 | |
| 16 AWG16 AWG | 66 | 2626 | 51613.11 | 164244 | 88 | 4.054.05 | BLACK/WHITE/RED/GREEN/ORANGE/BLUEBLACK/WHITE/RED/GREEN/ORANGE/BLUE | 55823201 |
| 16 AWG16 AWG | 77 | 2626 | 56414.33 | 203302 | 77 | 4.054.05 | BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACKBLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK | 55823301 |
| 16 AWG16 AWG | 88 | 2626 | 56614.38 | 201299 | 77 | 4.054.05 | BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACKBLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACK | 55823401 |
| 16 AWG16 AWG | 1010 | 2626 | 64816.46 | 255379 | 55 | 4.054.05 | 56052604 | |
| 16 AWG16 AWG | 1212 | 2626 | 70017.78 | 327486 | 55 | 4.054.05 | 56052702 | |
| 16 AWG16 AWG | 1414 | 2626 | 72718.47 | 340506 | 55 | 4.054.05 | 59830501 | |
| 16 AWG16 AWG | 1616 | 2626 | 77819.76 | 372553 | 55 | 4.054.05 | 56052802 | |
| 16 AWG16 AWG | 2020 | 2626 | 77419.66 | 416619 | 55 | 4.054.05 | 57001801 | |
| 16 AWG16 AWG | 3030 | 2626 | 98224.94 | 643956 | 4.54.5 | 4.054.05 | 57002602 | |
| 14 AWG14 AWG | 66 | 4141 | 71818.24 | 305454 | 1212 | 2.552.55 | BLACK/WHITE/RED/GREEN/ORANGE/BLUEBLACK/WHITE/RED/GREEN/ORANGE/BLUE | 55814902 |
| 14 AWG14 AWG | 77 | 4141 | 71218.08 | 310461 | 1010 | 2.552.55 | BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACKBLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK | 55815002 |
| 14 AWG14 AWG | 88 | 4141 | 73018.54 | 326486 | 1010 | 2.552.55 | BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACKBLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACK | 55823002 |
| 14 AWG14 AWG | 1010 | 4141 | 77019.56 | 404601 | 77 | 2.552.55 | 56999402 | |
| 14 AWG14 AWG | 1212 | 4141 | 88322.43 | 477710 | 77 | 2.552.55 | 57127001 | |
| 14 AWG14 AWG | 1616 | 4141 | 102025.91 | 631939 | 77 | 2.552.55 | 56999701 | |
| 12 AWG12 AWG | 66 | 6565 | 74018.80 | 380566 | 1616 | 1.611.61 | BLACK/WHITE/RED/GREEN/ORANGE/BLUEBLACK/WHITE/RED/GREEN/ORANGE/BLUE | 55814402 |
| 12 AWG12 AWG | 77 | 6565 | 74018.80 | 353525 | 1414 | 1.611.61 | BLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITEBLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITE | 55814501 |
| 12 AWG12 AWG | 88 | 6565 | 80320.40 | 432643 | 1414 | 1.611.61 | BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACKBLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACK | 55814602 |
| 12 AWG12 AWG | 99 | 6565 | 85221.64 | 483719 | 1414 | 1.611.61 | 57139799 | |
| 12 AWG12 AWG | 1212 | 6565 | 98725.07 | 627934 | 1010 | 1.611.61 | 56998299 | |
| 12 AWG12 AWG | 1414 | 6565 | 103526.29 | 7051049 | 1010 | 1.611.61 | 59830799 | |
| 10 AWG10 AWG | 66 | 104104 | 83021.08 | 488726 | 2020 | 0.980.98 | BLACK/WHITE/RED/GREEN/ORANGE/BLUEBLACK/WHITE/RED/GREEN/ORANGE/BLUE | 56997999 |
| 10 AWG10 AWG | 77 | 104104 | 84021.34 | 520774 | 1717 | 0.980.98 | BLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITEBLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITE | 56998003 |
| 1818 | 1010 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe | None/PaperNone/Paper | |||||
| 1818 | 1212 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe | None/PaperNone/Paper | |||||
| 1818 | 1414 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe | None/PaperNone/Paper | |||||
| 1818 | 1616 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe | None/PaperNone/Paper | |||||
| 1818 | 2020 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe, BK-RD 1xStripe, WE-RD 1xStripe, GN-RD 1xStripe, OE-RD 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe, BK-RD 1xStripe, WE-RD 1xStripe, GN-RD 1xStripe, OE-RD 1xStripe | None/PaperNone/Paper | |||||
| 1818 | 2424 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe, BK-RD 1xStripe, WE-RD 1xStripe, GN-RD 1xStripe, OE-RD 1xStripe, BE-RD 1xStripe, BK-WE 2xStripe, RD-WE 2xStripe, GN-WE 2xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe, BK-RD 1xStripe, WE-RD 1xStripe, GN-RD 1xStripe, OE-RD 1xStripe, BE-RD 1xStripe, BK-WE 2xStripe, RD-WE 2xStripe, GN-WE 2xStripe | None/PaperNone/Paper | |||||
| 1818 | 3030 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe, BK-RD 1xStripe, WE-RD 1xStripe, GN-RD 1xStripe, OE-RD 1xStripe, BE-RD 1xStripe, BK-WE 2xStripe, RD-WE 2xStripe, GN-WE 2xStripe, OE-WE 2xStripe, BE-WE 2xStripe, WE-BK 2xStripe, RD-BK 2xStripe, GN-BK 2xStripe, OE-BK 2xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe, BK-RD 1xStripe, WE-RD 1xStripe, GN-RD 1xStripe, OE-RD 1xStripe, BE-RD 1xStripe, BK-WE 2xStripe, RD-WE 2xStripe, GN-WE 2xStripe, OE-WE 2xStripe, BE-WE 2xStripe, WE-BK 2xStripe, RD-BK 2xStripe, GN-BK 2xStripe, OE-BK 2xStripe | None/PaperNone/Paper | |||||
| 1616 | 1010 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe | Paper/PaperPaper/Paper | |||||
| 1616 | 1212 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe | Paper/PaperPaper/Paper | |||||
| 1616 | 1414 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe | Paper/PaperPaper/Paper | |||||
| 1616 | 1616 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe | None/PaperNone/Paper | |||||
| 1616 | 2020 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe, BK-RD 1xStripe, WE-RD 1xStripe, GN-RD 1xStripe, OE-RD 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe, BK-RD 1xStripe, WE-RD 1xStripe, GN-RD 1xStripe, OE-RD 1xStripe | None/PaperNone/Paper | |||||
| 570019570019 | 1616 | 2424 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe, BK-RD 1xStripe, WE-RD 1xStripe, GN-RD 1xStripe, OE-RD 1xStripe, BE-RD 1xStripe, BK-WE 2xStripe, RD-WE 2xStripe, GN-WE 2xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe, BK-RD 1xStripe, WE-RD 1xStripe, GN-RD 1xStripe, OE-RD 1xStripe, BE-RD 1xStripe, BK-WE 2xStripe, RD-WE 2xStripe, GN-WE 2xStripe | None/PaperNone/Paper | ||||
| 1616 | 3030 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe, BK-RD 1xStripe, WE-RD 1xStripe, GN-RD 1xStripe, OE-RD 1xStripe, BE-RD 1xStripe, BK-WE 2xStripe, RD-WE 2xStripe, GN-WE 2xStripe, OE-WE 2xStripe, BE-WE 2xStripe, WE-BK 2xStripe, RD-BK 2xStripe, GN-BK 2xStripe, OE-BK 2xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe, BK-RD 1xStripe, WE-RD 1xStripe, GN-RD 1xStripe, OE-RD 1xStripe, BE-RD 1xStripe, BK-WE 2xStripe, RD-WE 2xStripe, GN-WE 2xStripe, OE-WE 2xStripe, BE-WE 2xStripe, WE-BK 2xStripe, RD-BK 2xStripe, GN-BK 2xStripe, OE-BK 2xStripe | Paper/MylarPaper/Mylar | |||||
| 1414 | 1010 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe | Paper/PaperPaper/Paper | |||||
| 1414 | 1212 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe | Paper/PaperPaper/Paper | |||||
| 569995569995 | 1414 | 1414 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe | Paper/PaperPaper/Paper | ||||
| 1414 | 1616 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe | Paper/StringPaper/String | |||||
| 1212 | 99 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe | None/PaperNone/Paper | |||||
| 569981569981 | 1212 | 1010 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe | Paper/PaperPaper/Paper | ||||
| 1212 | 1212 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe | None/PaperNone/Paper | |||||
| 1212 | 1414 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe | Paper/PaperPaper/Paper | |||||
| 569983569983 | 1212 | 2020 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe, BK-RD 1xStripe, WE-RD 1xStripe, GN-RD 1xStripe, OE-RD 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe, RD-BK 1xStripe, GN-BK 1xStripe, OE-BK 1xStripe, BE-BK 1xStripe, BK-RD 1xStripe, WE-RD 1xStripe, GN-RD 1xStripe, OE-RD 1xStripe | Poly/PaperPoly/Paper | ||||
| 595662595662 | 1010 | 1010 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe | Paper/PaperPaper/Paper | ||||
| 570006570006 | 1010 | 1212 | BK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripeBK, WE, RD, GN, OE, BE, BK-WE 1xStripe, RD-WE 1xStripe, GN-WE 1xStripe, OE-WE 1xStripe, BE-WE 1xStripe, WE-BK 1xStripe | None/PaperNone/Paper |
Números de parte en esta familia (82)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Color del Conductor | Empaque | |
|---|---|---|---|---|---|
| 18 AWG · 6 conductores (3) | |||||
| 55823606 | 18-16 CU 6/C NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL SOOW NEGRO 90C 600V N/F 250 FT 18-16 CU 6/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE SOOW BLACK 90C 600V N/F250 FT | 18 AWG 6C 16S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL | CARRETE DE 250 FT | |
| 55823605 | 18-16 CU 6/C NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL SOOW NEGRO 90C 600V N/F 500 FT 18-16 CU 6/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE SOOW BLACK 90C 600V N/F500 FT | 18 AWG 6C 16S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL | CARRETE DE 500 FT | |
| 55823602 | 18-16 CU 6 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL SOOW NEGRO 90C 600V N/F 1000 FT 18-16 CU 6/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE SOOW BLACK 90C 600V N/F1000 FT | 18 AWG 6C 16S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL | CARRETE DE 1000 FT | |
| 18 AWG · 7 conductores (3) | |||||
| 55823799 | 18-16 CU 7 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO SOOW NEGRO 90C 600V N/F 18-16 CU 7/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK SOOW BLACK 90C 600V N/F | 18 AWG 7C 16S | NEGRO/BLANCO/ROJO/VERDE/AZUL/NARANJA/FRANJA BLANCO-NEGRO | CARRETE CORTE A LA MEDIDA | |
| 55823706 | 18-16 CU 7 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO SOOW NEGRO 90C 600V N/F 250 FT 18-16 CU 7/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK SOOW BLACK 90C 600V N/F 250 FT | 18 AWG 7C 16S | NEGRO/BLANCO/ROJO/VERDE/AZUL/NARANJA/FRANJA BLANCO-NEGRO | CARRETE DE 250 FT | |
| 55823702 | 18-16 CU 7/C NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO SOOW NEGRO 90C 600V S/F 1000 FT 18-16 CU 7/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK SOOW BLACK 90C 600V N/F 1000 FT | 18 AWG 7C 16S | NEGRO/BLANCO/ROJO/VERDE/AZUL/NARANJA/FRANJA BLANCO-NEGRO | CARRETE DE 1000 FT | |
| 18 AWG · 8 conductores (5) | |||||
| 55823899 | 18-16 CU 8 CONDUCTORES NEGRO/ROJO-NEGRO/BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO SOOW NEGRO 90C 600V PAPEL 18-16 CU 8/C BLACK/RED-BLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITE SOOW BLACK 90C 600V PAPER | 18 AWG 8C 16S | NEGRO/RAYA ROJO-NEGRO/RAYA BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO | CARRETE CORTE A LA MEDIDA | |
| 55823806 | 18-16 CU 8/C NEGRO/ROJO-NEGRO/BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO SOOW NEGRO 90C 600V PAPER 250 FT 18-16 CU 8/C BLACK/RED-BLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITE SOOW BLACK 90C 600V PAPER 250 FT | 18 AWG 8C 16S | NEGRO/RAYA ROJO-NEGRO/RAYA BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO | BOBINA DE 250 FT | |
| 55823805 | 18-16 CU 8/C NEGRO/ROJO-NEGRO/BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO SOOW NEGRO 90C 600V PAPER 500 FT 18-16 CU 8/C BLACK/RED-BLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITE SOOW BLACK 90C 600V PAPER 500 FT | 18 AWG 8C 16S | NEGRO/RAYA ROJO-NEGRO/RAYA BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO | BOBINA DE 500 FT | |
| 55823802 | 18-16 CU 8/C NEGRO/ROJO-NEGRO/BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO SOOW NEGRO 90C 600V PAPER 1000 FT 18-16 CU 8/C BLACK/RED-BLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITE SOOW BLACK 90C 600V PAPER 1000 FT | 18 AWG 8C 16S | NEGRO/RAYA ROJO-NEGRO/RAYA BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO | CARRETE DE 1000 FT | |
| 55823801 | 18-16 CU 8/C NEGRO/ROJO-NEGRO/BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO SOOW NEGRO 90C 600V PAPER 5000 FT 18-16 CU 8/C BLACK/RED-BLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITE SOOW BLACK 90C 600V PAPER 5000 FT | 18 AWG 8C 16S | NEGRO/RAYA ROJO-NEGRO/RAYA BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO | CARRETE DE 5000 FT | |
| 18 AWG · 10 conductores (2) | |||||
| 57003499 | 18-16 CU 10 CONDUCTORES SOOW NEGRO 90C 600V N/F 18-16 CU 10/C SOOW BLACK 90C 600V N/F | 18 AWG 10C 16S | CARRETE CORTE A LA MEDIDA | ||
| 57003402 | 18-16 CU 10 CONDUCTORES SOOW NEGRO 90C 600V S/F 1000 FT 18-16 CU 10/C SOOW BLACK 90C 600V N/F 1000 FT | 18 AWG 10C 16S | CARRETE DE 1000 FT | ||
| 18 AWG · 12 conductores (4) | |||||
| 57003799 | 18-16 CU 12 CONDUCTORES SOOW NEGRO 90C 600V N/F 18-16 CU 12/C SOOW BLACK 90C 600V N/F | 18 AWG 12C 16S | CARRETE CORTE A LA MEDIDA | ||
| 57003705 | 18-16 CU 12 CONDUCTORES SOOW NEGRO 90C 600V S/F 1000 FT 18-16 CU 12/C SOOW BLACK 90C 600V N/F 1000 FT | 18 AWG 12C 16S | CARRETE DE 1000 FT | ||
| 57003704 | 18-16 CU 12 CONDUCTORES SOOW NEGRO 90C 600V S/F 2500 FT 18-16 CU 12/C SOOW BLACK 90C 600V N/F 2500 FT | 18 AWG 12C 16S | CARRETE DE 2500 FT | ||
| 57003703 | 18-16 CU 12 CONDUCTORES SOOW NEGRO 90C 600V S/F 500 FT 18-16 CU 12/C SOOW BLACK 90C 600V N/F 500 FT | 18 AWG 12C 16S | CARRETE DE 500 FT | ||
| 18 AWG · 14 conductores (1) | |||||
| 59830202 | 18-16 CU 14 CONDUCTORES SOOW NEGRO 90C 600V S/FORRO 1000 FT 18-16 CU 14/C SOOW BLACK 90C 600V N/F 1000 FT | 18 AWG 14C 16S | CARRETE DE 1000 FT | ||
| 18 AWG · 16 conductores (2) | |||||
| 57003999 | 18-16 CU 16 CONDUCTORES SOOW NEGRO 90C 600V N/F 18-16 CU 16/C SOOW BLACK 90C 600V N/F | 18 AWG 16C 16S | CARRETE CORTE A LA MEDIDA | ||
| 57003902 | 18-16 CU 16 CONDUCTORES SOOW NEGRO 90C 600V S/F 1000 FT 18-16 CU 16/C SOOW BLACK 90C 600V N/F 1000 FT | 18 AWG 16C 16S | CARRETE DE 1000 FT | ||
| 18 AWG · 20 conductores (2) | |||||
| 57004299 | 18-16 CU 20 CONDUCTORES SOOW NEGRO 90C 600V N/F 18-16 CU 20/C SOOW BLACK 90C 600V N/F | 18 AWG 20C 16S | CARRETE CORTE A LA MEDIDA | ||
| 57004203 | 18-16 CU 20 CONDUCTORES SOOW NEGRO 90C 600V S/F 1000 FT 18-16 CU 20/C SOOW BLACK 90C 600V N/F 1000 FT | 18 AWG 20C 16S | CARRETE DE 1000 FT | ||
| 18 AWG · 24 conductores (1) | |||||
| 57004301 | 18-16 CU 24 CONDUCTORES SOOW NEGRO 90C 600V S/F 1000 FT 18-16 CU 24/C SOOW BLACK 90C 600V N/F 1000 FT | 18 AWG 24C 16S | CARRETE DE 1000 FT | ||
| 18 AWG · 30 conductores (1) | |||||
| 57169299 | 18-16 CU 30 CONDUCTORES SOOW NEGRO 90C 600V N/F 18-16 CU 30/C SOOW BLACK 90C 600V N/F | 18 AWG 30C 16S | CARRETE CORTE A LA MEDIDA | ||
| 16 AWG · 6 conductores (3) | |||||
| 55823206 | 16-26 CU 6 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL SOOW NEGRO 90C 600V WAXED PAPER 250 FT 16-26 CU 6/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE SOOW BLACK 90C 600V WAXED PAPER 250 FT | 16 AWG 6C 26S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL | BOBINA DE 250 FT | |
| 55823202 | 16-26 CU 6/C NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL SOOW NEGRO 90C 600V WAXED PAPER 1000 FT 16-26 CU 6/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE SOOW BLACK 90C 600V WAXED PAPER 1000 FT | 16 AWG 6C 26S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL | CARRETE DE 1000 FT | |
| 55823201 | 16-26 CU 6/C NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL SOOW NEGRO 90C 600V WAXED PAPER 5000 FT 16-26 CU 6/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE SOOW BLACK 90C 600V WAXED PAPER 5000 FT | 16 AWG 6C 26S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL | CARRETE DE 5000 FT | |
| 16 AWG · 7 conductores (5) | |||||
| 55823399 | 16-26 CU 7 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO SOOW NEGRO 90C 600V PAPEL 16-26 CU 7/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK SOOW BLACK 90C 600V PAPER | 16 AWG 7C 26S | NEGRO/BLANCO/ROJO/VERDE/AZUL/NARANJA/FRANJA BLANCO-NEGRO | CARRETE CORTE A LA MEDIDA | |
| 55823306 | 16-26 CU 7/C NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO SOOW NEGRO 90C 600V PAPER 250 FT 16-26 CU 7/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK SOOW BLACK 90C 600V PAPER 250 FT | 16 AWG 7C 26S | NEGRO/BLANCO/ROJO/VERDE/AZUL/NARANJA/FRANJA BLANCO-NEGRO | BOBINA DE 250 FT | |
| 55823305 | 16-26 CU 7/C NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO SOOW NEGRO 90C 600V PAPER 500 FT 16-26 CU 7/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK SOOW BLACK 90C 600V PAPER 500 FT | 16 AWG 7C 26S | NEGRO/BLANCO/ROJO/VERDE/AZUL/NARANJA/FRANJA BLANCO-NEGRO | BOBINA DE 500 FT | |
| 55823302 | 16-26 CU 7 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO SOOW NEGRO 90C 600V PAPEL 1000 FT 16-26 CU 7/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK SOOW BLACK 90C 600V PAPER 1000 FT | 16 AWG 7C 26S | NEGRO/BLANCO/ROJO/VERDE/AZUL/NARANJA/FRANJA BLANCO-NEGRO | CARRETE DE 1000 FT | |
| 55823301 | 16-26 CU 7 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO SOOW NEGRO 90C 600V PAPEL 2500 FT 16-26 CU 7/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK SOOW BLACK 90C 600V PAPER 2500 FT | 16 AWG 7C 26S | NEGRO/BLANCO/ROJO/VERDE/AZUL/NARANJA/FRANJA BLANCO-NEGRO | CARRETE DE 2500 FT | |
| 16 AWG · 8 conductores (5) | |||||
| 55823499 | 16-26 CU 8 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO/ROJO-NEGRO SOOW NEGRO 90C 600V S/E 16-26 CU 8/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACK SOOW BLACK 90C 600V N/F | 16 AWG 8C 26S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/RAYA BLANCO-NEGRO/RAYA ROJO-NEGRO | CARRETE CORTE A LA MEDIDA | |
| 55823406 | 16-26 CU 8 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO/ROJO-NEGRO SOOW NEGRO 90C 600V N/F 250 FT 16-26 CU 8/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACK SOOW BLACK 90C 600V N/F 250 FT | 16 AWG 8C 26S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/RAYA BLANCO-NEGRO/RAYA ROJO-NEGRO | BOBINA DE 250 FT | |
| 55823405 | 16-26 CU 8 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO/ROJO-NEGRO SOOW NEGRO 90C 600V N/F 500 FT 16-26 CU 8/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACK SOOW BLACK 90C 600V N/F 500 FT | 16 AWG 8C 26S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/RAYA BLANCO-NEGRO/RAYA ROJO-NEGRO | BOBINA DE 500 FT | |
| 55823402 | 16-26 CU 8 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO/ROJO-NEGRO SOOW NEGRO 90C 600V N/F 1000 FT 16-26 CU 8/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACK SOOW BLACK 90C 600V N/F 1000 FT | 16 AWG 8C 26S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/RAYA BLANCO-NEGRO/RAYA ROJO-NEGRO | CARRETE DE 1000 FT | |
| 55823401 | 16-26 CU 8 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO/ROJO-NEGRO SOOW NEGRO 90C 600V N/F 2500 FT 16-26 CU 8/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACK SOOW BLACK 90C 600V N/F 2500 FT | 16 AWG 8C 26S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/RAYA BLANCO-NEGRO/RAYA ROJO-NEGRO | CARRETE DE 2500 FT | |
| 16 AWG · 10 conductores (3) | |||||
| 56052699 | 16-26 CU 10 CONDUCTORES SOOW NEGRO 90C 600V S/F 16-26 CU 10/C SOOW BLACK 90C 600V N/F | 16 AWG 10C 26S | CARRETE CORTE A LA MEDIDA | ||
| 56052604 | 16-26 CU 10/C SOOW NEGRO 90C 600V N/F 1000 FT 16-26 CU 10/C SOOW BLACK 90C 600V N/F 1000 FT | 16 AWG 10C 26S | 1000 FT BOBINA | ||
| 56052606 | 16-26 CU 10/C SOOW NEGRO 90C 600V S/F 250 FT 16-26 CU 10/C SOOW BLACK 90C 600V N/F 250 FT | 16 AWG 10C 26S | CARRETE DE 250 FT | ||
| 16 AWG · 12 conductores (2) | |||||
| 56052799 | 16-26 CU 12 CONDUCTORES SOOW NEGRO 90C 600V PAPEL 16-26 CU 12/C SOOW BLACK 90C 600V PAPER | 16 AWG 12C 26S | CARRETE CORTE A LA MEDIDA | ||
| 56052702 | CABLE 16-26 CU 12 CONDUCTORES SOOW NEGRO 90C 600V PAPEL 1000 FT 16-26 CU 12/C SOOW BLACK 90C 600V PAPER 1000 FT | 16 AWG 12C 26S | CARRETE DE 1000 FT | ||
| 16 AWG · 14 conductores (4) | |||||
| 59830599 | 16-26 CU 14 CONDUCTORES SOOW NEGRO 90C 600V PAPEL 16-26 CU 14/C SOOW BLACK 90C 600V PAPER | 16 AWG 14C 26S | CARRETE CORTE A LA MEDIDA | ||
| 59830503 | 16-26 CU 14/C SOOW NEGRO 90C 600V PAPEL 1000 FT 16-26 CU 14/C SOOW BLACK 90C 600V PAPER 1000 FT | 16 AWG 14C 26S | CARRETE DE 1000 FT | ||
| 59830501 | 16-26 CU 14 CONDUCTORES SOOW NEGRO 90C 600V PAPEL 250 FT 16-26 CU 14/C SOOW BLACK 90C 600V PAPER 250 FT | 16 AWG 14C 26S | CARRETE DE 250 FT | ||
| 59830502 | 16-26 CU 14 CONDUCTORES SOOW NEGRO 90C 600V PAPEL 500 FT 16-26 CU 14/C SOOW BLACK 90C 600V PAPER 500 FT | 16 AWG 14C 26S | CARRETE DE 500 FT | ||
| 16 AWG · 16 conductores (2) | |||||
| 56052899 | 16-26 CU 16 CONDUCTORES SOOW NEGRO 90C 600V S/F 16-26 CU 16/C SOOW BLACK 90C 600V N/F | 16 AWG 16C 26S | CARRETE CORTE A LA MEDIDA | ||
| 56052802 | 16-26 CU 16/C SOOW NEGRO 90C 600V N/F 1000 FT 16-26 CU 16/C SOOW BLACK 90C 600V N/F 1000 FT | 16 AWG 16C 26S | CARRETE DE 1000 FT | ||
| 16 AWG · 20 conductores (4) | |||||
| 57001899 | 16-26 CU 20 CONDUCTORES SOOW NEGRO 90C 600V N/F 16-26 CU 20/C SOOW BLACK 90C 600V N/F | 16 AWG 20C 26S | CARRETE CORTE A LA MEDIDA | ||
| 57001803 | 16-26 CU 20 CONDUCTORES SOOW NEGRO 90C 600V S/F 1000 FT 16-26 CU 20/C SOOW BLACK 90C 600V N/F 1000 FT | 16 AWG 20C 26S | CARRETE DE 1000 FT | ||
| 57001801 | 16-26 CU 20 CONDUCTORES SOOW NEGRO 90C 600V S/F 250 FT 16-26 CU 20/C SOOW BLACK 90C 600V N/F 250 FT | 16 AWG 20C 26S | BOBINA DE 250 FT | ||
| 57001804 | 16-26 CU 20 CONDUCTORES SOOW NEGRO 90C 600V S/F 2500 FT 16-26 CU 20/C SOOW BLACK 90C 600V N/F 2500 FT | 16 AWG 20C 26S | CARRETE DE 2500 FT | ||
| 16 AWG · 30 conductores (2) | |||||
| 57002699 | 16-26 CU 30 CONDUCTORES SOOW NEGRO 90C 600V PAPEL 16-26 CU 30/C SOOW BLACK 90C 600V PAPER | 16 AWG 30C 26S | CARRETE CORTE A LA MEDIDA | ||
| 57002602 | CABLE 16-26 CU 30 CONDUCTORES SOOW NEGRO 90C 600V PAPEL 1000 FT 16-26 CU 30/C SOOW BLACK 90C 600V PAPER 1000 FT | 16 AWG 30C 26S | CARRETE DE 1000 FT | ||
| 14 AWG · 6 conductores (3) | |||||
| 55814999 | 14-41 CU 6 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL SOOW NEGRO 90C 600V PAPER 14-41 CU 6/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE SOOW BLACK 90C 600V PAPER | 14 AWG 6C 41S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL | CARRETE CORTE A LA MEDIDA | |
| 55814906 | 14-41 CU 6/C NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL SOOW NEGRO 90C 600V PAPEL 250 FT 14-41 CU 6/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE SOOW BLACK 90C 600V PAPER 250 FT | 14 AWG 6C 41S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL | BOBINA DE 250 FT | |
| 55814902 | 14 AWG 41 HILOS CU 6 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL SOOW NEGRO 90C 600V PAPEL 1000 FT 14-41 CU 6/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE SOOW BLACK 90C 600V PAPER 1000 FT | 14 AWG 6C 41S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL | CARRETE DE 1000 FT | |
| 14 AWG · 7 conductores (3) | |||||
| 55815099 | 14-41 CU 7 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO SOOW NEGRO 90C 600V PAPEL 14-41 CU 7/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK SOOW BLACK 90C 600V PAPER | 14 AWG 7C 41S | NEGRO/BLANCO/ROJO/VERDE/AZUL/NARANJA/FRANJA BLANCO-NEGRO | CARRETE CORTE A LA MEDIDA | |
| 55815006 | 14-41 CU 7/C NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO SOOW NEGRO 90C 600V PAPER 250 FT 14-41 CU 7/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK SOOW BLACK 90C 600V PAPER 250 FT | 14 AWG 7C 41S | NEGRO/BLANCO/ROJO/VERDE/AZUL/NARANJA/FRANJA BLANCO-NEGRO | CARRETE DE 250 FT | |
| 55815002 | 14-41 CU 7 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO SOOW NEGRO 90C 600V PAPEL 1000 FT 14-41 CU 7/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK SOOW BLACK 90C 600V PAPER 1000 FT | 14 AWG 7C 41S | NEGRO/BLANCO/ROJO/VERDE/AZUL/NARANJA/FRANJA BLANCO-NEGRO | CARRETE DE 1000 FT | |
| 14 AWG · 8 conductores (3) | |||||
| 55823099 | 14-41 CU 8 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO/ROJO-NEGRO SOOW NEGRO 90C 600V S/E 14-41 CU 8/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACK SOOW BLACK 90C 600V N/F | 14 AWG 8C 41S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/RAYA BLANCO-NEGRO/RAYA ROJO-NEGRO | CARRETE CORTE A LA MEDIDA | |
| 55823006 | 14-41 CU 8 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO/ROJO-NEGRO SOOW NEGRO 90C 600V N/F 250 FT 14-41 CU 8/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACK SOOW BLACK 90C 600V N/F 250 FT | 14 AWG 8C 41S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/RAYA BLANCO-NEGRO/RAYA ROJO-NEGRO | BOBINA DE 250 FT | |
| 55823002 | 14-41 CU 8 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO/ROJO-NEGRO SOOW NEGRO 90C 600V N/F 1000 FT 14-41 CU 8/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACK SOOW BLACK 90C 600V N/F 1000 FT | 14 AWG 8C 41S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/RAYA BLANCO-NEGRO/RAYA ROJO-NEGRO | CARRETE DE 1000 FT | |
| 14 AWG · 10 conductores (2) | |||||
| 56999499 | 14-41 CU 10 CONDUCTORES SOOW NEGRO 90C 600V PAPEL 14-41 CU 10/C SOOW BLACK 90C 600V PAPER | 14 AWG 10C 41S | CARRETE CORTE A LA MEDIDA | ||
| 56999402 | CABLE 14-41 CU 10 CONDUCTORES SOOW NEGRO 90C 600V PAPEL 1000 FT 14-41 CU 10/C SOOW BLACK 90C 600V PAPER 1000 FT | 14 AWG 10C 41S | CARRETE DE 1000 FT | ||
| 14 AWG · 12 conductores (3) | |||||
| 57127005 | 14-41 CU 12/C SOOW NEGRO 90C 600V PAPEL 1000 FT 14-41 CU 12/C SOOW BLACK 90C 600V PAPER 1000 FT | 14 AWG 12C 41S | CARRETE DE 1000 FT | ||
| 57127001 | 14-41 CU 12/C SOOW NEGRO 90C 600V PAPEL 250 FT 14-41 CU 12/C SOOW BLACK 90C 600V PAPER 250 FT | 14 AWG 12C 41S | CARRETE DE 250 FT | ||
| 57127002 | 14-41 CU 12/C SOOW NEGRO 90C 600V PAPEL 500 FT 14-41 CU 12/C SOOW BLACK 90C 600V PAPER 500 FT | 14 AWG 12C 41S | CARRETE DE 500 FT | ||
| 14 AWG · 16 conductores (1) | |||||
| 56999701 | CABLE 14-41 CU 16 CONDUCTORES SOOW NEGRO 90C 600V PAPEL 1000 FT 14-41 CU 16/C SOOW BLACK 90C 600V PAPER 1000 FT | 14 AWG 16C 41S | CARRETE DE 1000 FT | ||
| 12 AWG · 6 conductores (2) | |||||
| 55814499 | 12-65 CU 6 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL SOOW NEGRO 90C 600V PAPER 12-65 CU 6/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE SOOW BLACK 90C 600V PAPER | 12 AWG 6C 65S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL | CARRETE CORTE A LA MEDIDA | |
| 55814402 | 12 AWG 65 HILOS CU 6 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL SOOW NEGRO 90C 600V PAPEL 1000 FT 12-65 CU 6/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE SOOW BLACK 90C 600V PAPER 1000 FT | 12 AWG 6C 65S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL | CARRETE DE 1000 FT | |
| 12 AWG · 7 conductores (4) | |||||
| 55814599 | 12-65 CU 7 CONDUCTORES NEGRO/BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO SOOW NEGRO 90C 600V N/F 12-65 CU 7/C BLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITE SOOW BLACK 90C 600V N/F | 12 AWG 7C 65S | NEGRO/FRANJA BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO | CARRETE CORTE A LA MEDIDA | |
| 55814506 | 12-65 CU 7 CONDUCTORES NEGRO/BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO SOOW NEGRO 90C 600V N/F 250 FT 12-65 CU 7/C BLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITE SOOW BLACK 90C 600V N/F 250 FT | 12 AWG 7C 65S | NEGRO/FRANJA BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO | CARRETE DE 250 FT | |
| 55814501 | 12-65 CU 7 CONDUCTORES NEGRO/BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO SOOW NEGRO 90C 600V N/F 500 FT 12-65 CU 7/C BLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITE SOOW BLACK 90C 600V N/F 500 FT | 12 AWG 7C 65S | NEGRO/FRANJA BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO | CARRETE DE 500 FT | |
| 55814502 | 12-65 CU 7/C NEGRO/BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO SOOW NEGRO 90C 600V S/F 1000 FT 12-65 CU 7/C BLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITE SOOW BLACK 90C 600V N/F 1000 FT | 12 AWG 7C 65S | NEGRO/FRANJA BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO | CARRETE DE 1000 FT | |
| 12 AWG · 8 conductores (2) | |||||
| 55814699 | 12-65 CU 8 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO/ROJO-NEGRO SOOW NEGRO 90C 600V PAPEL 12-65 CU 8/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACK SOOW BLACK 90C 600V PAPER | 12 AWG 8C 65S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/RAYA BLANCO-NEGRO/RAYA ROJO-NEGRO | CARRETE CORTE A LA MEDIDA | |
| 55814602 | 12-65 CU 8/C NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/BLANCO-NEGRO/ROJO-NEGRO SOOW NEGRO 90C 600V PAPER 1000 FT 12-65 CU 8/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK/RED-BLACK SOOW BLACK 90C 600V PAPER 1000 FT | 12 AWG 8C 65S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL/RAYA BLANCO-NEGRO/RAYA ROJO-NEGRO | CARRETE DE 1000 FT | |
| 12 AWG · 9 conductores (1) | |||||
| 57139799 | 12 AWG 65 HILOS CU 9 CONDUCTORES SOOW NEGRO 90°C 600V SIN FORRO 12-65 CU 9/C SOOW BLACK 90C 600V N/F | 12 AWG 9C 65S | CARRETE CORTE A LA MEDIDA | ||
| 12 AWG · 12 conductores (1) | |||||
| 56998299 | 12-65 CU 12 CONDUCTORES SOOW NEGRO 90C 600V N/F 12-65 CU 12/C SOOW BLACK 90C 600V N/F | 12 AWG 12C 65S | CARRETE CORTE A LA MEDIDA | ||
| 12 AWG · 14 conductores (1) | |||||
| 59830799 | 12-65 CU 14 CONDUCTORES SOOW NEGRO 90C 600V PAPEL 12-65 CU 14/C SOOW BLACK 90C 600V PAPER | 12 AWG 14C 65S | CARRETE CORTE A LA MEDIDA | ||
| 10 AWG · 6 conductores (1) | |||||
| 56997999 | 10-104 CU 6 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL SOOW NEGRO 90C 600V PAPEL 10-104 CU 6/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE SOOW BLACK 90C 600V PAPER | 10 AWG 6C 104S | NEGRO/BLANCO/ROJO/VERDE/NARANJA/AZUL | CARRETE CORTE A LA MEDIDA | |
| 10 AWG · 7 conductores (1) | |||||
| 56998003 | 10-104 CU 7/C NEGRO/BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO SOOW NEGRO 90C 600V S/F 1000 FT 10-104 CU 7/C BLACK/WHITE-BLACK/BLUE/ORANGE/GREEN/RED/WHITE SOOW BLACK90C 600V N/F 1000 FT | 10 AWG 7C 104S | NEGRO/FRANJA BLANCO-NEGRO/AZUL/NARANJA/VERDE/ROJO/BLANCO | CARRETE DE 1000 FT | |
Aplicación y características
Los cables flexibles Southwire tipo SOOW con listado UL/CSA están permitidos para su uso según lo especificado por el Artículo 400 y artículos relacionados del Código Eléctrico Nacional 2014. El cable tiene una clasificación de -40°C a 90°C, resistente al agua, aceite y clima. Los cables flexibles tipo SOOW de Southwire están diseñados para uso extra pesado en equipos industriales, herramientas pesadas, cargadores de baterías, luces portátiles, cables de soldadura, energía en muelle marino, extensiones de energía y aplicaciones mineras.
Normas y referencias
- UL 62 Flexible Cords and Cables
- CSA C22.2 No. 49 Flexible Cords and Cables
- MSHA flame test - P07-KA070018-1MSHA
- Passes CSA FT2 Flame Test
- RoHS-3 Complies with European Directive 2015/863
- NEC Article 400 Flexible Cords, Cables and Fixture Wire
- NEC Article 501.140 Class I Division 2
- Federal Specification J-C-580B
