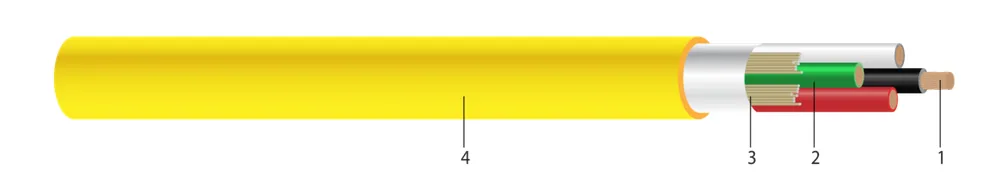

Cordón SOOW AMERICAN MUSTANG® 600V con cubierta amarilla 105°C. Aprobado por MSHA
- Núm. Southwire
- SPEC70042
Cable flexible de 600V, 105°C. Aislamiento de hule EPDM resistente al calor, la humedad y el aceite; cubierta flexible de CPE resistente al calor, la humedad y el aceite, certificado UL/CSA.
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (36) ↓Tamaños y construcciones disponibles
| Tamaño (AWG or kcmil)(mm2) | Número de Conductores | Número de Alambres | Diámetro Nom. (mils)(mm) | Peso Total Nominal (lbs/1000')(kgs/km) | Amperaje Permisible | Resistencia nominal CC (conductor) | Colores del Conductor | |
|---|---|---|---|---|---|---|---|---|
| 16 AWG16 AWG | 22 | 6565 | 3819.68 | 78115 | 1313 | 4.054.05 | BLACK/WHITEBLACK/WHITE | 57021401 |
| 16 AWG16 AWG | 33 | 2626 | 3909.91 | 90134 | 1313 | 4.054.05 | BLACK/WHITE/GREENBLACK/WHITE/GREEN | 63073001 |
| 16 AWG16 AWG | 44 | 2626 | 41510.54 | 104155 | 1010 | 4.054.05 | BLACK/WHITE/RED/GREENBLACK/WHITE/RED/GREEN | 63072701 |
| 14 AWG14 AWG | 22 | 4141 | 51313.03 | 133199 | 1818 | 2.552.55 | BLACK/WHITEBLACK/WHITE | 59833401 |
| 14 AWG14 AWG | 33 | 4141 | 52513.34 | 156233 | 1818 | 2.552.55 | BLACK/WHITE/GREENBLACK/WHITE/GREEN | 63072101 |
| 14 AWG14 AWG | 44 | 4141 | 56514.35 | 189282 | 1515 | 2.552.55 | BLACK/WHITE/RED/GREENBLACK/WHITE/RED/GREEN | 59698101 |
| 12 AWG12 AWG | 33 | 6565 | 61115.52 | 220327 | 2525 | 1.611.61 | BLACK/WHITE/GREENBLACK/WHITE/GREEN | 59532701 |
| 12 AWG12 AWG | 44 | 6565 | 66816.97 | 269400 | 2020 | 1.611.61 | BLACK/WHITE/RED/GREENBLACK/WHITE/RED/GREEN | 63072201 |
| 10 AWG10 AWG | 33 | 104104 | 65516.64 | 277412 | 3030 | 0.980.98 | BLACK/WHITE/GREENBLACK/WHITE/GREEN | 63072401 |
| 10 AWG10 AWG | 44 | 104104 | 71018.03 | 337502 | 2525 | 0.980.98 | BLACK/WHITE/RED/GREENBLACK/WHITE/RED/GREEN | 63072502 |
Números de parte en esta familia (36)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Color del Conductor | Empaque | |
|---|---|---|---|---|---|
| 16 AWG · 2 conductores (4) | |||||
| 57021499 | 16-65 CU 2 CONDUCTORES NEGRO/BLANCO SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 16-65 CU 2/C BLACK/WHITE SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER | 16 AWG 2C 65 STR | NEGRO/BLANCO | CARRETE CORTE A LA MEDIDA | |
| 57021401 | 16-65 CU 2/C NEGRO/BLANCO SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 250 FT 16-65 CU 2/C BLACK/WHITE SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 250 FT | 16 AWG 2C 65 STR | NEGRO/BLANCO | CARRETE DE 250 FT | |
| 57021402 | 16-65 CU 2/C NEGRO/BLANCO SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 1000 FT 16-65 CU 2/C BLACK/WHITE SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 1000 FT | 16 AWG 2C 65 STR | NEGRO/BLANCO | CARRETE DE 1000 FT | |
| 57021403 | 16-65 CU 2/C NEGRO/BLANCO SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 5000 FT 16-65 CU 2/C BLACK/WHITE SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 5000 FT | 16 AWG 2C 65 STR | NEGRO/BLANCO | CARRETE DE 5000 FT | |
| 16 AWG · 3 conductores (4) | |||||
| 63073099 | 16-26 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V PAPEL AMERICAN MUSTANG 16-26 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER | 16 AWG 3C 26S | NEGRO/BLANCO/VERDE | CARRETE CORTE A LA MEDIDA | |
| 63073001 | 16-26 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPER 250 FT 16-26 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 250 FT | 16 AWG 3C 26S | NEGRO/BLANCO/VERDE | CARTÓN DE 250 FT | |
| 63073003 | 16-26 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPER 1000 FT 16-26 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 1000 FT | 16 AWG 3C 26S | NEGRO/BLANCO/VERDE | CARRETE DE 1000 FT | |
| 63073005 | 16-26 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPER 5000 FT 16-26 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 5000 FT | 16 AWG 3C 26S | NEGRO/BLANCO/VERDE | CARRETE DE 5000 FT | |
| 16 AWG · 4 conductores (3) | |||||
| 63072799 | 16-26 CU 4 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPER 16-26 CU 4/C BLACK/WHITE/RED/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER | 16 AWG 4C 26 STR | NEGRO/BLANCO/ROJO/VERDE | CARRETE CORTE A LA MEDIDA | |
| 63072701 | 16-26 CU 4/C NEGRO/BLANCO/ROJO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPER 250 FT 16-26 CU 4/C BLACK/WHITE/RED/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 250 FT | 16 AWG 4C 26 STR | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 250 FT | |
| 63072702 | 16-26 CU 4/C NEGRO/BLANCO/ROJO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 1000 FT 16-26 CU 4/C BLACK/WHITE/RED/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 1000 FT | 16 AWG 4C 26 STR | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 1000 FT | |
| 14 AWG · 2 conductores (1) | |||||
| 59833401 | 14-41 CU 2/C NEGRO/BLANCO SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 1000 FT 14-41 CU 2/C BLACK/WHITE SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 1000 FT | 14 AWG 2C 41 STR | NEGRO/BLANCO | CARRETE DE 1000 FT | |
| 14 AWG · 3 conductores (4) | |||||
| 63072199 | 14-41 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V PAPEL AMERICAN MUSTANG 14-41 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER | 14 AWG 3C 41 STR | NEGRO/BLANCO/VERDE | CARRETE CORTE A LA MEDIDA | |
| 63072101 | 14-41 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 250 FT 14-41 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 250 FT | 14 AWG 3C 41 STR | NEGRO/BLANCO/VERDE | CARTÓN DE 250 FT | |
| 63072102 | 14-41 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 250 FT 14-41 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 250 FT | 14 AWG 3C 41 STR | NEGRO/BLANCO/VERDE | CARRETE DE 250 FT | |
| 63072104 | 14-41 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPER 1000 FT 14-41 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 1000 FT | 14 AWG 3C 41 STR | NEGRO/BLANCO/VERDE | CARRETE DE 1000 FT | |
| 14 AWG · 4 conductores (3) | |||||
| 59698101 | 14-41 CU 4/C NEGRO/BLANCO/ROJO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPER 250 FT 14-41 CU 4/C BLACK/WHITE/RED/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 250 FT | 14 AWG 4C 41 STR | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 250 FT | |
| 59698102 | 14-41 CU 4/C NEGRO/BLANCO/ROJO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPER 250 FT 14-41 CU 4/C BLACK/WHITE/RED/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 250 FT | 14 AWG 4C 41 STR | NEGRO/BLANCO/ROJO/VERDE | CARTÓN DE 250 FT | |
| 59698103 | 14-41 CU 4/C NEGRO/BLANCO/ROJO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 1000 FT 14-41 CU 4/C BLACK/WHITE/RED/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 1000 FT | 14 AWG 4C 41 STR | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 1000 FT | |
| 12 AWG · 3 conductores (4) | |||||
| 59532799 | 12-65 CU 3/C NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 12-65 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER | 12 AWG 3C 65 STR | NEGRO/BLANCO/VERDE | CARRETE CORTE A LA MEDIDA | |
| 59532703 | 12-65 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 250 FT 12-65 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 250 FT | 12 AWG 3C 65 STR | NEGRO/BLANCO/VERDE | CARRETE DE 250 FT | |
| 59532701 | 12-65 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 500 FT 12-65 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 500 FT | 12 AWG 3C 65 STR | NEGRO/BLANCO/VERDE | CARRETE DE 500 FT | |
| 59532704 | 12-65 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPER 1000 FT 12-65 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 1000 FT | 12 AWG 3C 65 STR | NEGRO/BLANCO/VERDE | CARRETE DE 1000 FT | |
| 12 AWG · 4 conductores (4) | |||||
| 63072299 | 12-65 CU 4 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE SOOW AMARILLO 105C 600V MUSTANG AMERICANO PAPEL 0 FT 12-65 CU 4/C BLACK/WHITE/RED/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 0 FT | 12 AWG 4C 65S | NEGRO/BLANCO/ROJO/VERDE | CARRETE CORTE A LA MEDIDA | |
| 63072201 | 12-65 CU 4/C NEGRO/BLANCO/ROJO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPER 250 FT 12-65 CU 4/C BLACK/WHITE/RED/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 250 FT | 12 AWG 4C 65S | NEGRO/BLANCO/ROJO/VERDE | CARTÓN DE 250 FT | |
| 63072202 | 12-65 CU 4/C NEGRO/BLANCO/ROJO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPER 250 FT 12-65 CU 4/C BLACK/WHITE/RED/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 250 FT | 12 AWG 4C 65S | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 250 FT | |
| 63072203 | 12-65 CU 4/C NEGRO/BLANCO/ROJO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 1000 FT 12-65 CU 4/C BLACK/WHITE/RED/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 1000 FT | 12 AWG 4C 65S | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 1000 FT | |
| 10 AWG · 3 conductores (5) | |||||
| 63072499 | 10-104 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V PAPEL AMERICAN MUSTANG 10-104 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANGPAPER | 10 AWG 3C 104S | NEGRO/BLANCO/VERDE | CARRETE CORTE A LA MEDIDA | |
| 63072401 | 10-104 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 250 FT 10-104 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANGPAPER 250 FT | 10 AWG 3C 104S | NEGRO/BLANCO/VERDE | CARTÓN DE 250 FT | |
| 63072403 | 10 AWG 3 CONDUCTORES CU NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANGPAPER 500 FT 10-104 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANGPAPER 500 FT | 10 AWG 3C 104S | NEGRO/BLANCO/VERDE | CARRETE DE 500 FT | |
| 63072404 | 10-104 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPER 1000 FT 10-104 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANGPAPER 1000 FT | 10 AWG 3C 104S | NEGRO/BLANCO/VERDE | CARRETE DE 1000 FT | |
| 63072405 | 10-104 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPER 5000 FT 10-104 CU 3/C BLACK/WHITE/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANGPAPER 5000 FT | 10 AWG 3C 104S | NEGRO/BLANCO/VERDE | CARRETE DE 5000 FT | |
| 10 AWG · 4 conductores (4) | |||||
| 63072599 | 10 AWG 104 HILOS CU 4 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 10-104 CU 4/C BLACK/WHITE/RED/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER | 10 AWG 4C 104S | NEGRO/BLANCO/ROJO/VERDE | CARRETE CORTE A LA MEDIDA | |
| 63072502 | 10-104 CU 4/C NEGRO/BLANCO/ROJO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 250 FT 10-104 CU 4/C BLACK/WHITE/RED/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 250 FT | 10 AWG 4C 104S | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 250 FT | |
| 63072503 | 10-104 CU 4/C NEGRO/BLANCO/ROJO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPEL 500 FT 10-104 CU 4/C BLACK/WHITE/RED/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 500 FT | 10 AWG 4C 104S | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 500 FT | |
| 63072504 | 10-104 CU 4 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE SOOW AMARILLO 105C 600V AMERICAN MUSTANG PAPER 1000 FT 10-104 CU 4/C BLACK/WHITE/RED/GREEN SOOW YELLOW 105C 600V AMERICAN MUSTANG PAPER 1000 FT | 10 AWG 4C 104S | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 1000 FT | |
Aplicación y características
Los Cordones Flexibles Tipo SOOW de Southwire certificados UL/CSA están permitidos para uso según lo especificado por el Artículo 400 y artículos relacionados del Código Eléctrico Nacional 2014. El cable tiene clasificación -40°C a 105°C, resistente al agua, aceite e intemperie. Los Cordones Flexibles Tipo SOOW de Southwire están diseñados para uso extra pesado en equipos industriales, herramientas pesadas, cargadores de baterías, luces portátiles, cables de soldadura, energía en muelles marinos, extensiones de energía y aplicaciones mineras.
Normas y referencias
- UL 62 Flexible Cords and Cables
- CSA C22.2 No. 49 Flexible Cords and Cables
- MSHA flame test - P07-KA070018-1MSHA
- Passes CSA FT2 Flame Test
- RoHS-3 Complies with European Directive 2015/863
- NEC Article 400 Flexible Cords, Cables and Fixture Wire
- Federal Specification J-C-580B
