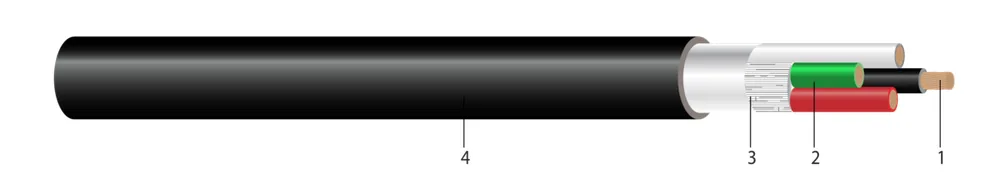

Cordón SEOPRENE® SJEOOW 300V con Cubierta Negra 105°C. Libre de Silicona
- Núm. Southwire
- SPEC70065
Cordón flexible 300 voltios -50°C a 105°C. Resistencia superior al aceite, luz solar, químicos, agua y retardante a la flama
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (66) ↓Tamaños y construcciones disponibles
| Tamaño (AWG or kcmil)(mm2) | Número de Conductores | Número de Alambres | Diámetro Nom. (mils)(mm) | Peso Total Nominal (lbs/1000')(kgs/km) | Amperaje Permisible | Resistencia nominal CC (conductor) | Colores del Conductor | |
|---|---|---|---|---|---|---|---|---|
| 18 AWG18 AWG | 22 | 1616 | 2867.26 | 3958 | BLACK/WHITEBLACK/WHITE | 55052802 | ||
| 18 AWG18 AWG | 33 | 1616 | 3087.82 | 4871 | 1010 | 6.596.59 | BLACK/WHITE/GREENBLACK/WHITE/GREEN | 55044501 |
| 18 AWG18 AWG | 44 | 1616 | 3318.41 | 5988 | 77 | 6.596.59 | WHITE/BLACK/GREEN/REDWHITE/BLACK/GREEN/RED | 55047401 |
| 16 AWG16 AWG | 22 | 2626 | 3107.87 | 4669 | 1313 | 4.054.05 | BLACK/WHITEBLACK/WHITE | 55049503 |
| 16 AWG16 AWG | 33 | 2626 | 3318.41 | 6191 | 1313 | 4.054.05 | BLACK/WHITE/GREENBLACK/WHITE/GREEN | 55040301 |
| 16 AWG16 AWG | 44 | 2626 | 3709.40 | 78116 | 1010 | 4.054.05 | BLACK/WHITE/GREEN/REDBLACK/WHITE/GREEN/RED | 55043503 |
| 14 AWG14 AWG | 22 | 4141 | 3408.64 | 6191 | 1818 | 2.552.55 | BLACK/WHITEBLACK/WHITE | 55055902 |
| 14 AWG14 AWG | 33 | 4141 | 3669.30 | 81120 | 1818 | 2.552.55 | BLACK/WHITE/GREENBLACK/WHITE/GREEN | 55043301 |
| 14 AWG14 AWG | 44 | 4141 | 39610.06 | 102151 | 1515 | 2.552.55 | BLACK/WHITE/RED/GREENBLACK/WHITE/RED/GREEN | 55040102 |
| 12 AWG12 AWG | 22 | 6565 | 41610.57 | 95142 | 2525 | 1.611.61 | BLACK/WHITEBLACK/WHITE | 55062702 |
| 12 AWG12 AWG | 33 | 6565 | 43611.07 | 123183 | 2525 | 1.611.61 | BLACK/WHITE/GREENBLACK/WHITE/GREEN | 55039601 |
| 12 AWG12 AWG | 44 | 6565 | 48012.19 | 156232 | 2020 | 1.611.61 | BLACK/WHITE/RED/GREENBLACK/WHITE/RED/GREEN | 55046501 |
| 10 AWG10 AWG | 22 | 104104 | 55114.00 | 163243 | 3030 | 0.980.98 | BLACK/WHITEBLACK/WHITE | 55076701 |
| 10 AWG10 AWG | 33 | 104104 | 57614.63 | 207308 | 3030 | 0.980.98 | BLACK/WHITE/GREENBLACK/WHITE/GREEN | 55044801 |
| 10 AWG10 AWG | 44 | 104104 | 63616.15 | 266396 | 2525 | 0.980.98 | BLACK/WHITE/RED/GREENBLACK/WHITE/RED/GREEN | 55062801 |
Números de parte en esta familia (66)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Color del Conductor | Empaque | |
|---|---|---|---|---|---|
| 18 AWG · 2 conductores (4) | |||||
| 55052806 | 18-16 CU 2 CONDUCTORES NEGRO/BLANCO SJEOOW SEOPRENO NEGRO 105C 300V POLY 250 FT 18-16 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 250 FT | 18 AWG 2C 16 STR | NEGRO/BLANCO | BOBINA DE 250 FT | |
| 55052802 | 18-16 CU 2/C NEGRO/BLANCO SJEOOW NEOPRENO NEGRO 105C 300V POLIETILENO 1000 FT 18-16 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 1000 FT | 18 AWG 2C 16 STR | NEGRO/BLANCO | 1000 FT BOBINA | |
| 55052807 | 18-16 CU 2/C NEGRO/BLANCO SJEOOW NEOPRENO NEGRO 105C 300V POLIETILENO 1000 FT 18-16 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 1000 FT | 18 AWG 2C 16 STR | NEGRO/BLANCO | 1000 FT BOBINA | |
| 55052805 | 18-16 CU 2/C NEGRO/BLANCO SJEOOW NEOPRENO NEGRO 105C 300V POLIETILENO 5000 FT 18-16 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 5000 FT | 18 AWG 2C 16 STR | NEGRO/BLANCO | CARRETE DE 5000 FT | |
| 18 AWG · 3 conductores (5) | |||||
| 55044509 | 18-16 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 25 FT 18-16 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 25 FT | 18 AWG 3C 16S | NEGRO/BLANCO/VERDE | BOBINA DE 25 FT | |
| 55044503 | 18-16 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 250FT 18-16 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 250FT | 18 AWG 3C 16S | NEGRO/BLANCO/VERDE | CARRETE DE 250 FT EN CARTÓN | |
| 55044501 | 18-16 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 500FT 18-16 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 500FT | 18 AWG 3C 16S | NEGRO/BLANCO/VERDE | BOBINA DE 500 FT | |
| 55044502 | 18-16 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 1000 FT 18-16 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 1000 FT | 18 AWG 3C 16S | NEGRO/BLANCO/VERDE | CARRETE DE 1000 FT | |
| 55044505 | 18-16 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 5000 FT 18-16 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 5000 FT | 18 AWG 3C 16S | NEGRO/BLANCO/VERDE | CARRETE DE 5000 FT | |
| 18 AWG · 4 conductores (4) | |||||
| 55047403 | 18-16 CU 4 CONDUCTORES BLANCO/NEGRO/VERDE/ROJO SJEOOW NEOPRENO NEGRO 105C 300V POLY 250 FT 18-16 CU 4/C WHITE/BLACK/GREEN/RED SJEOOW SEOPRENE BLACK 105C 300V POLY250 FT | 18 AWG 4C 16S | BLANCO/NEGRO/VERDE/ROJO | BOBINA DE 250 FT | |
| 55047401 | 18-16 CU 4 CONDUCTORES BLANCO/NEGRO/VERDE/ROJO SJEOOW NEOPRENO NEGRO 105C 300V POLY 500 FT 18-16 CU 4/C WHITE/BLACK/GREEN/RED SJEOOW SEOPRENE BLACK 105C 300V POLY500 FT | 18 AWG 4C 16S | BLANCO/NEGRO/VERDE/ROJO | BOBINA DE 500 FT | |
| 55047406 | 18-16 CU 4/C BLANCO/NEGRO/VERDE/ROJO SJEOOW SEOPRENE NEGRO 105C 300V POLY 1000 FT 18-16 CU 4/C WHITE/BLACK/GREEN/RED SJEOOW SEOPRENE BLACK 105C 300V POLY1000 FT | 18 AWG 4C 16S | BLANCO/NEGRO/VERDE/ROJO | 1000 FT BOBINA | |
| 55047405 | 18-16 CU 4/C BLANCO/NEGRO/VERDE/ROJO SJEOOW SEOPRENE NEGRO 105C 300V POLY 5000 FT 18-16 CU 4/C WHITE/BLACK/GREEN/RED SJEOOW SEOPRENE BLACK 105C 300V POLY5000 FT | 18 AWG 4C 16S | BLANCO/NEGRO/VERDE/ROJO | CARRETE DE 5000 FT | |
| 16 AWG · 2 conductores (3) | |||||
| 55049503 | 16-26 CU 2 CONDUCTORES NEGRO/BLANCO SJEOOW SEOPRENO NEGRO 105C 300V POLY 250 FT 16-26 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 250 FT | 16 AWG 2C 26 STR | NEGRO/BLANCO | CARRETE DE 250 FT EN CARTÓN | |
| 55049506 | 16-26 CU 2/C NEGRO/BLANCO SJEOOW NEOPRENO NEGRO 105C 300V POLIETILENO 1000 FT 16-26 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 1000 FT | 16 AWG 2C 26 STR | NEGRO/BLANCO | 1000 FT BOBINA | |
| 55049504 | 16-26 CU 2/C NEGRO/BLANCO SJEOOW NEOPRENO NEGRO 105C 300V POLIETILENO 5000 FT 16-26 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 5000 FT | 16 AWG 2C 26 STR | NEGRO/BLANCO | CARRETE DE 5000 FT | |
| 16 AWG · 3 conductores (5) | |||||
| 55040311 | 16-26 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 25 FT 16-26 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 25 FT | 16 AWG 3C 26S | NEGRO/BLANCO/VERDE | BOBINA DE 25 FT | |
| 55040303 | 16-26 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 250FT 16-26 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 250FT | 16 AWG 3C 26S | NEGRO/BLANCO/VERDE | CARRETE DE 250 FT EN CARTÓN | |
| 55040301 | 16-26 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 500FT 16-26 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 500FT | 16 AWG 3C 26S | NEGRO/BLANCO/VERDE | BOBINA DE 500 FT | |
| 55040302 | 16-26 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 1000 FT 16-26 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 1000 FT | 16 AWG 3C 26S | NEGRO/BLANCO/VERDE | 1000 FT BOBINA | |
| 55040305 | 16-26 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 5000 FT 16-26 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 5000 FT | 16 AWG 3C 26S | NEGRO/BLANCO/VERDE | CARRETE DE 5000 FT | |
| 16 AWG · 4 conductores (4) | |||||
| 55043503 | 16-26 CU 4 CONDUCTORES NEGRO/BLANCO/VERDE/ROJO SJEOOW NEOPRENO NEGRO 105C 300V POLY 250 FT 16-26 CU 4/C BLACK/WHITE/GREEN/RED SJEOOW SEOPRENE BLACK 105C 300V POLY250 FT | 16 AWG 4C 26 STR | NEGRO/BLANCO/VERDE/ROJO | BOBINA DE 250 FT | |
| 55043505 | 16-26 CU 4 CONDUCTORES NEGRO/BLANCO/VERDE/ROJO SJEOOW NEOPRENO NEGRO 105C 300V POLY 500 FT 16-26 CU 4/C BLACK/WHITE/GREEN/RED SJEOOW SEOPRENE BLACK 105C 300V POLY500 FT | 16 AWG 4C 26 STR | NEGRO/BLANCO/VERDE/ROJO | BOBINA DE 500 FT | |
| 55043506 | 16-26 CU 4/C NEGRO/BLANCO/VERDE/ROJO SJEOOW SEOPRENE NEGRO 105C 300V POLY 1000 FT 16-26 CU 4/C BLACK/WHITE/GREEN/RED SJEOOW SEOPRENE BLACK 105C 300V POLY1000 FT | 16 AWG 4C 26 STR | NEGRO/BLANCO/VERDE/ROJO | 1000 FT BOBINA | |
| 55043507 | 16-26 CU 4/C NEGRO/BLANCO/VERDE/ROJO SJEOOW SEOPRENE NEGRO 105C 300V POLY 5000 FT 16-26 CU 4/C BLACK/WHITE/GREEN/RED SJEOOW SEOPRENE BLACK 105C 300V POLY5000 FT | 16 AWG 4C 26 STR | NEGRO/BLANCO/VERDE/ROJO | CARRETE DE 5000 FT | |
| 14 AWG · 2 conductores (4) | |||||
| 55055903 | 14-41 CU 2 CONDUCTORES NEGRO/BLANCO SJEOOW SEOPRENO NEGRO 105C 300V POLY 250 FT 14-41 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 250 FT | 14 AWG 2C 41 STR | NEGRO/BLANCO | CARRETE DE 250 FT EN CARTÓN | |
| 55055913 | 14 AWG 41 HILOS CU 2 CONDUCTORES NEGRO/BLANCO SJEOOW NEOPRENO NEGRO 105C 300V POLY 500 FT 14-41 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 500 FT | 14 AWG 2C 41 STR | NEGRO/BLANCO | CARRETE DE 500 FT | |
| 55055902 | 14-41 CU 2/C NEGRO/BLANCO SJEOOW NEOPRENO NEGRO 105C 300V POLIETILENO 1000 FT 14-41 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 1000 FT | 14 AWG 2C 41 STR | NEGRO/BLANCO | 1000 FT BOBINA | |
| 55055905 | 14-41 CU 2/C NEGRO/BLANCO SJEOOW NEOPRENO NEGRO 105C 300V POLIETILENO 5000 FT 14-41 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 5000 FT | 14 AWG 2C 41 STR | NEGRO/BLANCO | CARRETE DE 5000 FT | |
| 14 AWG · 3 conductores (6) | |||||
| 55043321 | 14-41 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 25 FT 14-41 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 25 FT | 14 AWG 3C 41 STR | NEGRO/BLANCO/VERDE | CARRETE DE 25 FT EN CARTÓN | |
| 55043303 | 14-41 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 250FT 14-41 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 250FT | 14 AWG 3C 41 STR | NEGRO/BLANCO/VERDE | BOBINA DE 250 FT | |
| 55043301 | 14-41 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 500FT 14-41 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 500FT | 14 AWG 3C 41 STR | NEGRO/BLANCO/VERDE | CARRETE DE 500 FT | |
| 55043302 | 14-41 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 1000 FT 14-41 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 1000 FT | 14 AWG 3C 41 STR | NEGRO/BLANCO/VERDE | 1000 FT BOBINA | |
| 55043325 | 14-41 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 2500 FT 14-41 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 2500 FT | 14 AWG 3C 41 STR | NEGRO/BLANCO/VERDE | CARRETE DE 2500 FT | |
| 55043305 | 14-41 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 5000 FT 14-41 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 5000 FT | 14 AWG 3C 41 STR | NEGRO/BLANCO/VERDE | CARRETE DE 5000 FT | |
| 14 AWG · 4 conductores (3) | |||||
| 55040103 | 14-41 CU 4 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 250 FT 14-41 CU 4/C BLACK/WHITE/RED/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY250 FT | 14 AWG 4C 41 STR | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 250 FT EN CARTÓN | |
| 55040102 | 14-41 CU 4/C NEGRO/BLANCO/ROJO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 1000 FT 14-41 CU 4/C BLACK/WHITE/RED/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY1000 FT | 14 AWG 4C 41 STR | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 1000 FT | |
| 55040105 | 14-41 CU 4/C NEGRO/BLANCO/ROJO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 5000 FT 14-41 CU 4/C BLACK/WHITE/RED/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY5000 FT | 14 AWG 4C 41 STR | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 5000 FT | |
| 12 AWG · 2 conductores (4) | |||||
| 55062704 | 12 AWG 65 HILOS CU 2 CONDUCTORES NEGRO/BLANCO SJEOOW NEOPRENO NEGRO 105C 300V POLY 250 FT 12-65 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 250 FT | 12 AWG 2C 65 STR | NEGRO/BLANCO | CARRETE DE 250 FT | |
| 55062713 | 12 AWG 65 HILOS CU 2 CONDUCTORES NEGRO/BLANCO SJEOOW NEOPRENO NEGRO 105C 300V POLY 500 FT 12-65 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 500 FT | 12 AWG 2C 65 STR | NEGRO/BLANCO | CARRETE DE 500 FT | |
| 55062702 | 12-65 CU 2/C NEGRO/BLANCO SJEOOW NEOPRENO NEGRO 105C 300V POLIETILENO 1000 FT 12-65 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 1000 FT | 12 AWG 2C 65 STR | NEGRO/BLANCO | CARRETE DE 1000 FT | |
| 55062708 | 12-65 CU 2/C NEGRO/BLANCO SJEOOW NEOPRENO NEGRO 105C 300V POLIETILENO 5000 FT 12-65 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 5000 FT | 12 AWG 2C 65 STR | NEGRO/BLANCO | CARRETE DE 5000 FT | |
| 12 AWG · 3 conductores (6) | |||||
| 55039621 | 12-65 CU 3/C NEGRO/BLANCO/VERDE SJEOOW SEOPRENO NEGRO 105C 300V POLY 25 FT 12-65 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 25 FT | 12 AWG 3C 65 STR | NEGRO/BLANCO/VERDE | CARRETE DE 25 FT EN CARTÓN | |
| 55039604 | 12-65 CU 3/C NEGRO/BLANCO/VERDE SJEOOW SEOPRENO NEGRO 105C 300V POLY 250FT 12-65 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 250FT | 12 AWG 3C 65 STR | NEGRO/BLANCO/VERDE | CARRETE DE 250 FT | |
| 55039601 | 12-65 CU 3/C NEGRO/BLANCO/VERDE SJEOOW SEOPRENO NEGRO 105C 300V POLY 500FT 12-65 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 500FT | 12 AWG 3C 65 STR | NEGRO/BLANCO/VERDE | CARRETE DE 500 FT | |
| 55039602 | 12-65 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 1000 FT 12-65 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 1000 FT | 12 AWG 3C 65 STR | NEGRO/BLANCO/VERDE | CARRETE DE 1000 FT | |
| 55039606 | 12-65 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 2500 FT 12-65 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 2500 FT | 12 AWG 3C 65 STR | NEGRO/BLANCO/VERDE | CARRETE DE 2500 FT | |
| 55039605 | 12-65 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 5000 FT 12-65 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 5000 FT | 12 AWG 3C 65 STR | NEGRO/BLANCO/VERDE | CARRETE DE 5000 FT | |
| 12 AWG · 4 conductores (4) | |||||
| 55046504 | 12-65 CU 4 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 250 FT 12-65 CU 4/C BLACK/WHITE/RED/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY250 FT | 12 AWG 4C 65S | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 250 FT | |
| 55046501 | 12-65 CU 4 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 500 FT 12-65 CU 4/C BLACK/WHITE/RED/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY500 FT | 12 AWG 4C 65S | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 500 FT | |
| 55046502 | 12-65 CU 4/C NEGRO/BLANCO/ROJO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 1000 FT 12-65 CU 4/C BLACK/WHITE/RED/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY1000 FT | 12 AWG 4C 65S | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 1000 FT | |
| 55046505 | 12-65 CU 4/C NEGRO/BLANCO/ROJO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 5000 FT 12-65 CU 4/C BLACK/WHITE/RED/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY5000 FT | 12 AWG 4C 65S | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 5000 FT | |
| 10 AWG · 2 conductores (2) | |||||
| 55076701 | 10-104 CU 2/C NEGRO/BLANCO SJEOOW NEOPRENO NEGRO 105C 300V POLIETILENO 250 FT 10-104 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 250 FT | 10 AWG 2C 104 STR | NEGRO/BLANCO | CARRETE DE 250 FT | |
| 55076703 | 10-104 CU 2 CONDUCTORES NEGRO/BLANCO SJEOOW NEOPRENO NEGRO 105C 300V POLY 1000 FT 10-104 CU 2/C BLACK/WHITE SJEOOW SEOPRENE BLACK 105C 300V POLY 1000 FT | 10 AWG 2C 104 STR | NEGRO/BLANCO | CARRETE DE 1000 FT | |
| 10 AWG · 3 conductores (7) | |||||
| 55044804 | 10-104 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 20FT 10-104 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 20FT | 10 AWG 3C 104S | NEGRO/BLANCO/VERDE | BOBINA DE 20 FT | |
| 55044801 | 10-104 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 250 FT 10-104 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 250 FT | 10 AWG 3C 104S | NEGRO/BLANCO/VERDE | ROLLO DE 250 FT | |
| 55044806 | 10-104 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 250 FT 10-104 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 250 FT | 10 AWG 3C 104S | NEGRO/BLANCO/VERDE | CARRETE DE 250 FT | |
| 55044825 | 10-104 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 250 FT 10-104 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 250 FT | 10 AWG 3C 104S | NEGRO/BLANCO/VERDE | BOBINA DE 250 FT | |
| 55044807 | 10-104 CU 3 CONDUCTORES NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLY 500 FT 10-104 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 500 FT | 10 AWG 3C 104S | NEGRO/BLANCO/VERDE | CARRETE DE 500 FT | |
| 55044803 | 10-104 CU 3/C NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLI 1000 FT 10-104 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 1000 FT | 10 AWG 3C 104S | NEGRO/BLANCO/VERDE | CARRETE DE 1000 FT | |
| 55044805 | 10-104 CU 3/C NEGRO/BLANCO/VERDE SJEOOW NEOPRENO NEGRO 105C 300V POLI 5000 FT 10-104 CU 3/C BLACK/WHITE/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 5000 FT | 10 AWG 3C 104S | NEGRO/BLANCO/VERDE | CARRETE DE 5000 FT | |
| 10 AWG · 4 conductores (5) | |||||
| 55062804 | 10-104 CU 4/C NEGRO/BLANCO/ROJO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 25 FT 10-104 CU 4/C BLACK/WHITE/RED/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 25 FT | 10 AWG 4C 104S | NEGRO/BLANCO/ROJO/VERDE | BOBINA DE 25 FT | |
| 55062801 | 10-104 CU 4/C NEGRO/BLANCO/ROJO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLI 250 FT 10-104 CU 4/C BLACK/WHITE/RED/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 250 FT | 10 AWG 4C 104S | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 250 FT | |
| 55062864 | 10-104 CU 4/C NEGRO/BLANCO/ROJO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLI 250 FT 10-104 CU 4/C BLACK/WHITE/RED/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 250 FT | 10 AWG 4C 104S | NEGRO/BLANCO/ROJO/VERDE | ROLLO DE 250 FT | |
| 55062806 | 10 AWG 104 HILOS CU 4 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 1000 FT 10-104 CU 4/C BLACK/WHITE/RED/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 1000 FT | 10 AWG 4C 104S | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 1000 FT | |
| 55062805 | 10 AWG 104 HILOS CU 4 CONDUCTORES NEGRO/BLANCO/ROJO/VERDE SJEOOW SEOPRENE NEGRO 105C 300V POLY 5000 FT 10-104 CU 4/C BLACK/WHITE/RED/GREEN SJEOOW SEOPRENE BLACK 105C 300V POLY 5000 FT | 10 AWG 4C 104S | NEGRO/BLANCO/ROJO/VERDE | CARRETE DE 5000 FT | |
Aplicación y características
Los Cordones Flexibles Tipo SJEOOW de Southwire se permiten para usos de energía temporal interiores y exteriores, maquinaria industrial portátil, compresores, transportadores y equipos de producción automatizada. Los cordones son adecuados para uso en temperaturas entre -50°C a máximo 105°C.
Normas y referencias
- UL 62 Flexible Cords and Cables
- CSA C22.2 No. 49 Flexible Cords and Cables
- Passes CSA FT2 Flame Test
- RoHS-3 Complies with European Directive 2015/863
- NEC Article 400 Flexible Cords, Cables and Fixture Wire
