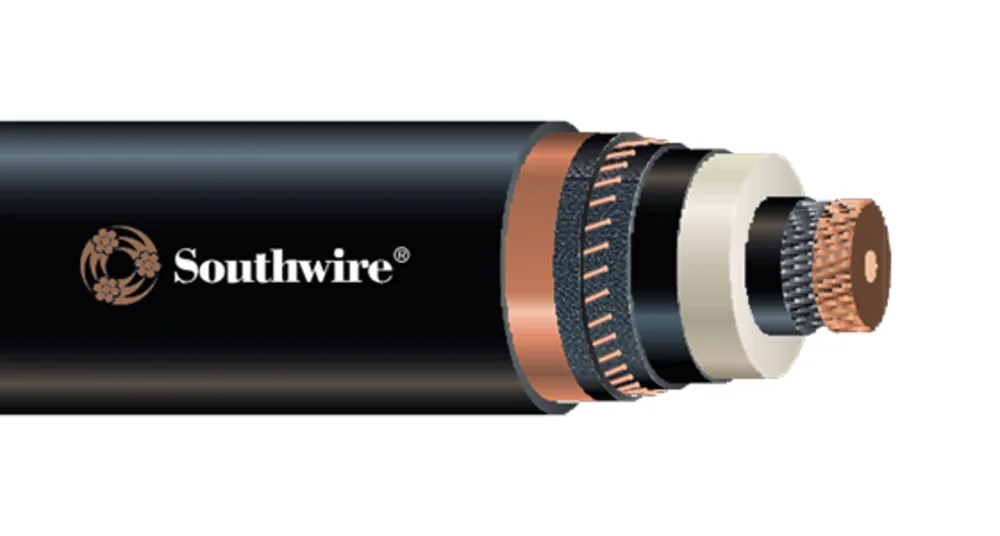

Cable de Potencia Laminado XLPE 230 kV
- Núm. Southwire
- HVUD21
Cable SW de pared estándar con conductor de cobre XLPE y cubierta corrugada, disponible hasta 6,000 kcmil.
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Tamaños y construcciones disponibles
| Tamaño (kcmil¹)(mm^2) | Diámetro del Conductor (inches)(mm) | Espesor del Aislamiento (inch)(cm) | Diámetro Sobre Aislamiento (inch)(cm) | Diámetro de Cubierta General (inch)(cm) | Radio de Curvatura Mín. (inch)(inch) | Capacitancia | Corriente de Carga (A/kft) | Peso del Cable² (lbs/ft) | Peso del Cable² (lbs/ft) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 100025.40 | 1.062.69 | 9452400.30 | 3.087.82 | 3.769.55 | 68/4668/46 | 42.7342.73 | 2.142.14 | 7.987.98 | 5.955.95 | |
| 125031.75 | 1.193.02 | 9062301.24 | 3.137.95 | 3.819.68 | 69/4669/46 | 47.0347.03 | 2.352.35 | 8.728.72 | 6.196.19 | |
| 150038.10 | 1.323.35 | 9062301.24 | 3.268.28 | 3.9410.01 | 71/4871/48 | 50.1250.12 | 2.512.51 | 9.729.72 | 6.656.65 | |
| 175044.45 | 1.433.63 | 9062301.24 | 3.378.56 | 4.0610.31 | 74/4974/49 | 52.6352.63 | 2.642.64 | 10.6610.66 | 7.087.08 | |
| 200050.80 | 1.503.81 | 9062301.24 | 3.458.76 | 4.1510.54 | 75/5075/50 | 54.3054.30 | 2.722.72 | 11.5911.59 | 7.447.44 | |
| 250063.50 | 1.734.39 | 9062301.24 | 3.739.47 | 4.4511.30 | 81/5481/54 | 61.2461.24 | 3.013.01 | 13.6813.68 | 8.538.53 | |
| 300076.20 | 1.894.80 | 9062301.24 | 3.9610.06 | 4.6911.91 | 85/5785/57 | 66.5466.54 | 3.333.33 | 15.6215.62 | 9.429.42 | |
| 350088.90 | 2.075.26 | 9062301.24 | 4.0710.34 | 4.8112.22 | 87/5887/58 | 69.0069.00 | 3.453.45 | 17.3517.35 | 10.0910.09 | |
| 4000101.60 | 2.175.51 | 9062301.24 | 4.1710.59 | 4.9112.47 | 89/5989/59 | 71.2771.27 | 3.573.57 | 19.0619.06 | 10.7510.75 | |
| 5000127.00 | 2.486.30 | 9062301.24 | 4.4811.38 | 5.2513.34 | 95/6395/63 | 78.4178.41 | 3.933.93 | 23.4023.40 | 12.2312.23 | |
| 6000152.40 | 2.676.78 | 9062301.24 | 4.6711.86 | 5.4513.84 | 99/6699/66 | 82.8682.86 | 4.154.15 | 26.1626.16 | 13.6013.60 | |
| 100025.40 | 850850 | 339339 | 720720 | 287287 | 670670 | 267267 | 570570 | 227227 | ||
| 125031.75 | 960960 | 382382 | 800800 | 319319 | 760760 | 303303 | 640640 | 255255 | ||
| 150038.10 | 10501050 | 418418 | 880880 | 351351 | 840840 | 335335 | 700700 | 279279 | ||
| 175044.45 | 11201120 | 446446 | 940940 | 374374 | 910910 | 363363 | 760760 | 303303 | ||
| 200050.80 | 11901190 | 474474 | 990990 | 394394 | 970970 | 386386 | 810810 | 323323 | ||
| 250063.50 | 14401440 | 574574 | 11901190 | 474474 | 11301130 | 450450 | 940940 | 374374 | ||
| 300076.20 | 15701570 | 625625 | 13001300 | 518518 | 12501250 | 498498 | 10301030 | 410410 | ||
| 350088.90 | 16901690 | 673673 | 13901390 | 554554 | 13601360 | 542542 | 11201120 | 446446 | ||
| 4000101.60 | 18001800 | 717717 | 14701470 | 586586 | 14501450 | 578578 | 11901190 | 474474 | ||
| 5000127.00 | 18701870 | 745745 | 16601660 | 661661 | 16601660 | 661661 | 13601360 | 542542 | ||
| 6000152.40 | 19801980 | 789789 | 17701770 | 705705 | 18201820 | 725725 | 14901490 | 594594 |
Aplicación y características
Se utiliza predominantemente para transmisión subterránea en sistemas de tubo conduit, adecuado para uso en lugares húmedos o secos, enterramiento directo, ductos subterráneos y donde esté expuesto a la luz solar. Debe utilizarse a 230,000 voltios o menos y a temperaturas del conductor que no excedan 90°C para operación normal.
Normas y referencias
- Max Voltage Rating: 245 kV
- BIL Rating: 1050 kV
- Nominal Conductor: 90 °C
- Max. Emergency Conductor: 105 °C
- Short Circuit Conductor: 250 °C
- Minimum Installation: -10 °C
- Design Standards: AEIC, ICEA, IEC
- Factory Test Voltages: 265 kV / 60 min.
- XLPE Loss Factor: 0.0005
- Relative Permittivity: 2.3
