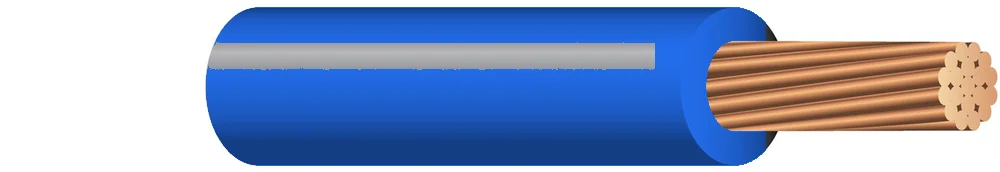

14-7 CU (2.08mm2) XHHW-2 OR SIS BLUE 25000 FT
- Southwire #
- 37094060
✓ Lists NOM: NOM-063-SCFI
600 Volt. Copper Conductor. Cross-Linked Polyethylene (XLPE) Insulation. High-Heat and Moisture Resistant. Also rated SIS.
Part of the family: XHHW-2 Copper Circuit Sizes (14, 12 & 10 AWG) Silicone Free
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
Southwire® XHHW-2 copper conductors are primarily used in conduit, Cable Tray or other recognized raceways for services, feeders, and branch circuit wiring, as specified in the National Electrical Code. XHHW-2 copper conductors may be used in wet or dry locations at temperatures not to exceed 90° C. Voltage rating for XHHW-2 conductors is 600 volts. Suitable for use in Health Care Facilities per Section 517.160 of the National Electrical Code where a dielectric constant of less than 3.5 maybe specified.
Specifications
| Cond. Size | 14 AWG14 AWG |
|---|---|
| Conductor Number | 11 |
| Cond. Strands | 77 |
| Diameter Over Conductor | 0.070 inch0.18 cm |
| Insulation Thickness | 30 mils0.76 mm |
| Approx. OD | 0.131 inch0.33 cm |
| Copper Weight | 12 lbs/1000'18 kgs/km |
| Approx. Weight | 17 lbs/1000'25 kgs/km |
Standards & references
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- UL 44 Thermoset-Insulated Wires and Cables
- ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661
- Federal Specification A-A-59544
- NMX-J-451-ANCE Thermoset insulated wires and cables
- NOM-063-SCFI Electrical Products – Conductors – Safety Requirements
- NEMA 70901-2-2024 Make It American Compliance with Domestic Preference Requirements Pt. 2 Wire & Cable
