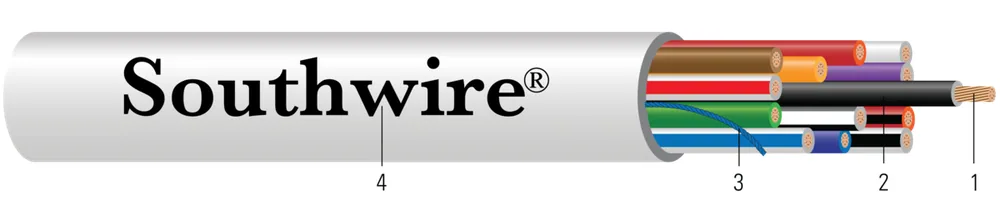

Multi Conductor CL3P/FPLP/CMP Non-Shielded

Southwire

Multi Conductor CL3P/FPLP/CMP Non-Shielded

Southwire #
SPEC13070

300V, 75°C, Multi-Conductor, Non-Shielded, Stranded Copper, CL3P/FPLP/CMP. Minimum Operating Temperature -10°C, Maximum Operating Temperature 75°C

Priced by quote — copper moves daily (COMEX), so we quote at the current price.

Quote on WhatsApp
📄 Spec sheet (PDF)

Available sizes & constructions

Cable TypeCond. SizeConductor NumberCond. TypeCond. StrandsDiameter Over Conductor (in)(cm)Insulation Thickness (mils)(mm)Jacket Thickness (mils)(mm)Approx. OD (inches)(cm)Copper Weight (lbs/1000')(kgs/km)Approx. Weight (lbs/1000')(kgs/km)Shield TypeApplicationDC Resistance at 25C (ohms/1000')(ohms/km)AC Resistance at 75C (ohms/1000')(ohms/km)Inductive Reactance (ohms/1000')(ohms/km)
CL3P/FPLP/CMPCL3P/FPLP/CMP22 AWG22 AWG22CUCU770.0220.0650.13150.380.1180.3046812NoneNone16.72024.8820.15029.99
CL3P/FPLP/CMPCL3P/FPLP/CMP22 AWG22 AWG44CUCU770.0220.0650.13150.380.1360.358121522NoneNone16.72024.8820.15029.990.0300.04
CL3P/FPLP/CMPCL3P/FPLP/CMP22 AWG22 AWG66CUCU770.0220.0650.13150.380.1630.4113192131NoneNone16.72024.8820.15029.990.0300.04
CL3P/FPLP/CMPCL3P/FPLP/CMP22 AWG22 AWG1212CUCU770.0220.0650.13150.380.2160.5526394060NoneNone16.72024.8820.15029.990.0300.04
CL3P/FPLP/CMPCL3P/FPLP/CMP20 AWG20 AWG22CUCU770.0360.0950.13150.380.1320.34691218NoneNone10.50015.6312.65018.830.0270.04
CL3P/FPLP/CMPCL3P/FPLP/CMP18 AWG18 AWG22CUCU770.0450.1150.13150.380.1520.3910151624NoneNone6.6699.928.03511.960.0360.05
CL3P/FPLP/CMPCL3P/FPLP/CMP18 AWG18 AWG33CUCU770.0450.1150.13150.380.1600.4115222334NoneNone6.6699.928.03511.960.0360.05
CL3P/FPLP/CMPCL3P/FPLP/CMP18 AWG18 AWG44CUCU770.0450.1150.13150.380.1810.4620303045NoneNone6.6699.928.03511.960.0360.05
CL3P/FPLP/CMPCL3P/FPLP/CMP18 AWG18 AWG66CUCU770.0450.1150.13150.380.2170.5530454364NoneNone6.6699.928.03511.960.0360.05
CL3P/FPLP/CMPCL3P/FPLP/CMP18 AWG18 AWG88CUCU770.0450.1150.13150.380.2370.6040605683NoneNone6.6699.928.03511.960.0360.05
CL3P/FPLP/CMPCL3P/FPLP/CMP18 AWG18 AWG1010CUCU770.0450.1150.13150.380.2800.71507470104NoneNone6.6699.928.03511.960.0360.05
CL3P/FPLP/CMPCL3P/FPLP/CMP16 AWG16 AWG22CUCU19190.0560.1450.13150.380.1740.4416242334NoneNone4.1816.225.0377.500.0330.05
CL3P/FPLP/CMPCL3P/FPLP/CMP16 AWG16 AWG44CUCU19190.0560.1450.13150.380.2010.5132484263NoneNone4.1816.225.0377.500.0330.05
CL3P/FPLP/CMPCL3P/FPLP/CMP14 AWG14 AWG22CUCU19190.070.1850.13150.380.2000.5125373349NoneNone2.6313.923.1704.720.0580.09
CL3P/FPLP/CMPCL3P/FPLP/CMP12 AWG12 AWG22CUCU19190.0880.2250.13150.380.2510.6440605277NoneNoneSecurity and Access ControlSecurity and Access Control1.6622.472.0022.980.0540.08

Application & features

For use in Remote Control, Signaling, and Power-Limited circuits per NEC Article 725. Sizes 22 AWG - 16 AWG can also be used as communication circuits per NEC Article 800. Can be used in security, sound and audio, speaker cable, public address, intercom, sound reinforcement, alarm and access control circuits and power-limited controls. The conductors are cabled together; lay length varies depending on conductor count and gauge size.

Standards & references

  • UL 1424 Cables for Power-Limited Fire-Alarm Circuits
  • ASTM B3 Soft or Annealed Copper Wire
  • ASTM B8 Concentric-Lay-Stranded Copper Conductors
  • UL 13 Power-Limited Circuit Cables
  • UL 444 Communications Cables (22 AWG - 16 AWG)
  • NFPA 262
