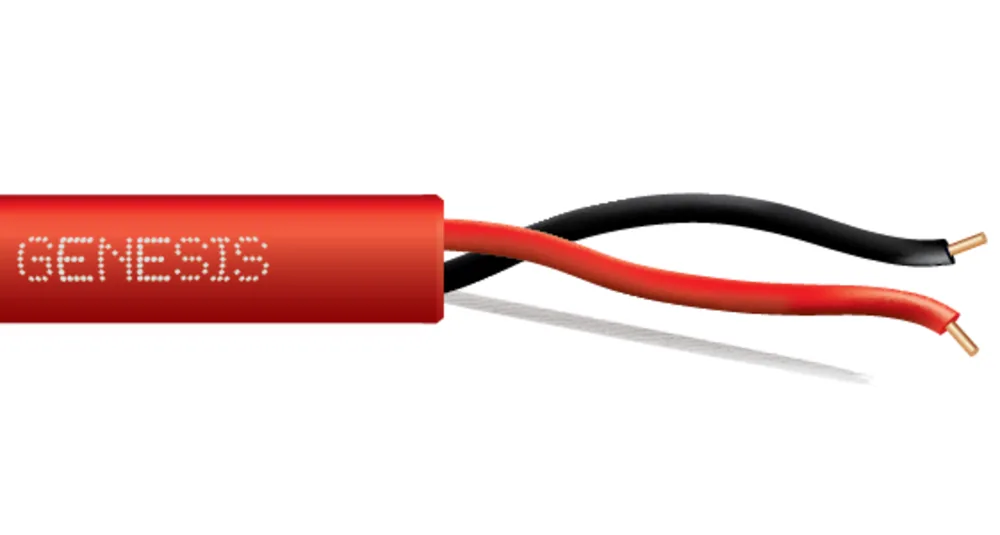

Fire Alarm Unshielded Cable, Plenum

Southwire #: GEN17

Genesis® Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.

Priced by quote — copper moves daily (COMEX), so we quote at the current price.

Part numbers in this family (59) ↓

📄 Spec sheet (PDF)📎 Genesis Fire and Life Safety Brochure 📎 Genesis Striped Fire Alarm Cable Sell Sheet

Available sizes & constructions

Size (AWG or kcmil)(mm2)	No. of Conductors	Stranding	Shielding	Nominal Total Weight (lbs/1000')(kgs/km)
18 AWG18 AWG	22	SolidSolid	UnshieldedUnshielded	1523	45061004
18 AWG18 AWG	44	SolidSolid	UnshieldedUnshielded	2741	45071004
18 AWG18 AWG	66	SolidSolid	UnshieldedUnshielded	3958	45081004
16 AWG16 AWG	22	SolidSolid	UnshieldedUnshielded	2334	45111001
16 AWG16 AWG	22	StrandedStranded	UnshieldedUnshielded	2435	45231004
16 AWG16 AWG	44	SolidSolid	UnshieldedUnshielded	4262	45121001
16 AWG16 AWG	44	StrandedStranded	UnshieldedUnshielded	4364	45261004
14 AWG14 AWG	22	SolidSolid	UnshieldedUnshielded	3450	45131001
14 AWG14 AWG	22	StrandedStranded	UnshieldedUnshielded	3552	45221004
14 AWG14 AWG	44	SolidSolid	UnshieldedUnshielded	6293	45141004
14 AWG14 AWG	44	StrandedStranded	UnshieldedUnshielded	6597	45271004
12 AWG12 AWG	22	SolidSolid	UnshieldedUnshielded	5074	45151004
12 AWG12 AWG	22	StrandedStranded	UnshieldedUnshielded	5277	45211004

Part numbers in this family (59)

By size:

Southwire #	Description	Construction	Conductor Color	Packaging
18 AWG · 2 conductors (10)
45065504	18 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 500 FT	18 AWG 2C SOL	RED/BLACK	500 FT PULL OUT BOX
45061004	18 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 1000 FT	18 AWG 2C SOL	RED/BLACK	1000 FT REEL
45061006	18 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS BLUE GEN 1000 FT	18 AWG 2C SOL	RED/BLACK	1000 FT REEL
45061008	18 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS BLACK GEN 1000 FT	18 AWG 2C SOL	RED/BLACK	1000 FT REEL
4506104B	18 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS RED-BLUE STRIPE GEN 1000 FT	18 AWG 2C SOL	RED/BLACK	1000 FT REEL
4506104K	18 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS RED-BLACK STRIPE GEN 1000 FT	18 AWG 2C SOL	RED/BLACK	1000 FT REEL
4506104W	18 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS RED-WHITE STRIPE GEN 1000 FT	18 AWG 2C SOL	RED/BLACK	1000 FT REEL
4506104Y	18 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS RED-YELLOW STRIPE GEN 1000 FT	18 AWG 2C SOL	RED/BLACK	1000 FT REEL
45061101	18 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS WHITE GEN 1000 FT	18 AWG 2C SOL	RED/BLACK	1000 FT PULL OUT BOX
45061104	18 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 1000 FT	18 AWG 2C SOL	RED/BLACK	1000 FT PULL OUT BOX
18 AWG · 4 conductors (5)
45075504	18 SOL CU 4/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 500 FT	18 AWG 4C SOL	YELLOW/RED/GREEN/BLACK	500 FT PULL OUT BOX
45071004	18 SOL CU 4/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 1000 FT	18 AWG 4C SOL	YELLOW/RED/GREEN/BLACK	1000 FT REEL
45071008	18 SOL CU 4/C N/S CMP/CL3P/FPLP PVC-LS BLACK GEN 1000 FT	18 AWG 4C SOL	YELLOW/RED/GREEN/BLACK	1000 FT REEL
45071101	18 SOL CU 4/C N/S CMP/CL3P/FPLP PVC-LS WHITE GEN 1000 FT	18 AWG 4C SOL	YELLOW/RED/GREEN/BLACK	1000 FT PULL OUT BOX
45071104	18 SOL CU 4/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 1000 FT	18 AWG 4C SOL	YELLOW/RED/GREEN/BLACK	1000 FT PULL OUT BOX
18 AWG · 6 conductors (2)
45085004	18 SOL CU 6/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 500 FT	18 AWG 6C SOL	YELLOW/RED/GREEN/BLUE/BROWN/BLACK	500 FT REEL
45081004	18 SOL CU 6/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 1000 FT	18 AWG 6C SOL	YELLOW/RED/GREEN/BLUE/BROWN/BLACK	1000 FT REEL
16 AWG · 2 conductors (17)
45115504	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 500 FT	16 AWG 2C SOL	RED/BLACK	500 FT PULL OUT BOX
45111001	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS WHITE GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT REEL
45111002	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS YELLOW GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT REEL
45111003	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS ORANGE GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT REEL
45111004	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT REEL
45111005	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS GREEN GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT REEL
45111006	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS BLUE GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT REEL
45111008	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS BLACK GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT REEL
45111010	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS PURPLE GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT REEL
4511104B	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS RED-BLUE STRIPE GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT REEL
4511104K	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS RED-BLACK STRIPE GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT REEL
4511104W	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS RED-WHITE STRIPE GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT REEL
4511104Y	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS RED-YELLOW STRIPE GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT REEL
45111101	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS WHITE GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT PULL OUT BOX
45111104	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT PULL OUT BOX
45111106	16 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS BLUE GEN 1000 FT	16 AWG 2C SOL	RED/BLACK	1000 FT PULL OUT BOX
45231004	16-19 CU 2/C N/S CMP/CL3P/FPLP PVC RED GEN 1000 FT	16 AWG 2C 19 STR	RED/BLACK	1000 FT REEL
16 AWG · 4 conductors (4)
45261004	16-19 CU 4/C N/S CMP/CL3P/FPLP PVC RED GEN 1000 FT	16 AWG 4C 19 STR	BLACK/RED/GREEN/YELLOW	1000 FT REEL
45125004	16 SOL CU 4/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 500 FT	16 AWG 4C SOL	YELLOW/RED/GREEN/BLACK	500 FT REEL
45121001	16 SOL CU 4/C N/S CMP/CL3P/FPLP PVC-LS WHITE GEN 1000 FT	16 AWG 4C SOL	YELLOW/RED/GREEN/BLACK	1000 FT REEL
45121004	16 SOL CU 4/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 1000 FT	16 AWG 4C SOL	YELLOW/RED/GREEN/BLACK	1000 FT REEL
14 AWG · 2 conductors (15)
45135004	14 SOL CU 2/C N/S CL3P/FPLP PVC-LS RED GEN 500 FT	14 AWG 2C SOL	RED/BLACK	500 FT REEL
45131001	14 SOL CU 2/C N/S CL3P/FPLP PVC-LS WHITE GEN 1000 FT	14 AWG 2C SOL	RED/BLACK	1000 FT REEL
45131002	14 SOL CU 2/C N/S CL3P/FPLP PVC-LS YELLOW GEN 1000 FT	14 AWG 2C SOL	RED/BLACK	1000 FT REEL
45131003	14 SOL CU 2/C N/S CL3P/FPLP PVC-LS ORANGE GEN 1000 FT	14 AWG 2C SOL	RED/BLACK	1000 FT REEL
45131004	14 SOL CU 2/C N/S CL3P/FPLP PVC-LS RED GEN 1000 FT	14 AWG 2C SOL	RED/BLACK	1000 FT REEL
45131005	14 SOL CU 2/C N/S CL3P/FPLP PVC-LS GREEN GEN 1000 FT	14 AWG 2C SOL	RED/BLACK	1000 FT REEL
45131006	14 SOL CU 2/C N/S CL3P/FPLP PVC-LS BLUE GEN 1000 FT	14 AWG 2C SOL	RED/BLACK	1000 FT REEL
45131008	14 SOL CU 2/C N/S CL3P/FPLP PVC-LS BLACK GEN 1000 FT	14 AWG 2C SOL	RED/BLACK	1000 FT REEL
4513104B	14 SOL CU 2/C N/S CL3P/FPLP PVC-LS RED-BLUE STRIPE GEN 1000 FT	14 AWG 2C SOL	RED/BLACK	1000 FT REEL
4513104K	14 SOL CU 2/C N/S CL3P/FPLP PVC-LS RED-BLACK STRIPE GEN 1000 FT	14 AWG 2C SOL	RED/BLACK	1000 FT REEL
4513104W	14 SOL CU 2/C N/S CL3P/FPLP PVC-LS RED-WHITE STRIPE GEN 1000 FT	14 AWG 2C SOL	RED/BLACK	1000 FT REEL
4513104Y	14 SOL CU 2/C N/S CL3P/FPLP PVC-LS RED-YELLOW STRIPE GEN 1000 FT	14 AWG 2C SOL	RED/BLACK	1000 FT REEL
45132104	14 SOL CU 2/C N/S CL3P/FPLP PVC-LS RED GEN 1000 FT	14 AWG 2C SOL	RED/BLACK	1000 FT REEL IN A BOX
45221004	14-19 CU 2/C N/S CL3P/FPLP PVC RED GEN 1000 FT	14 AWG 2C 19 STR	RED/BLACK	1000 FT REEL
4522104W	14-19 CU 2/C N/S CL3P/FPLP PVC RED-WHITE STRIPE GEN 1000 FT	14 AWG 2C 19 STR	RED/BLACK	1000 FT REEL
14 AWG · 4 conductors (3)
45271004	14-19 CU 4/C N/S CL3P/FPLP PVC RED GEN 1000 FT	14 AWG 4C 19 STR	BLACK/RED/GREEN/YELLOW	1000 FT REEL
45145004	14 SOL CU 4/C N/S CL3P/FPLP PVC-LS RED GEN 500 FT	14 AWG 4C SOL	YELLOW/RED/GREEN/BLACK	500 FT REEL
45141004	14 SOL CU 4/C N/S CL3P/FPLP PVC-LS RED GEN 1000 FT	14 AWG 4C SOL	YELLOW/RED/GREEN/BLACK	1000 FT REEL
12 AWG · 2 conductors (3)
45155004	12 SOL CU 2/C N/S CL3P/FPLP PVC-LS RED GEN 500 FT	12 AWG 2C SOL	RED/BLACK	500 FT REEL
45151004	12 SOL CU 2/C N/S CL3P/FPLP PVC-LS RED GEN 1000 FT	12 AWG 2C SOL	RED/BLACK	1000 FT REEL
45211004	12-65 OFHC 2/C N/S CL3P/FPLP PVC RED GEN 1000 FT	12 AWG 2C 65 STR	RED/BLACK	1000 FT REEL

Application & features

Genesis® Plenum Rated Unshielded Fire Alarm Cable is suitable for installation as follows:

In fabricated ducts as described in NEC 300.22(B).
In other spaces used for environmental air as described in NEC 300.22(C).
In risers.
Within buildings in other than air-handling spaces and risers.

Standards & references

NFPA 262 - Plenum Rated
CSA C22.2 No. 2556 - FT6 Rated
UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLP
UL 13 - Power-Limited Circuit Cables, Type CL3P
REACH/RoHS Compliant
