DistributorSouthwire

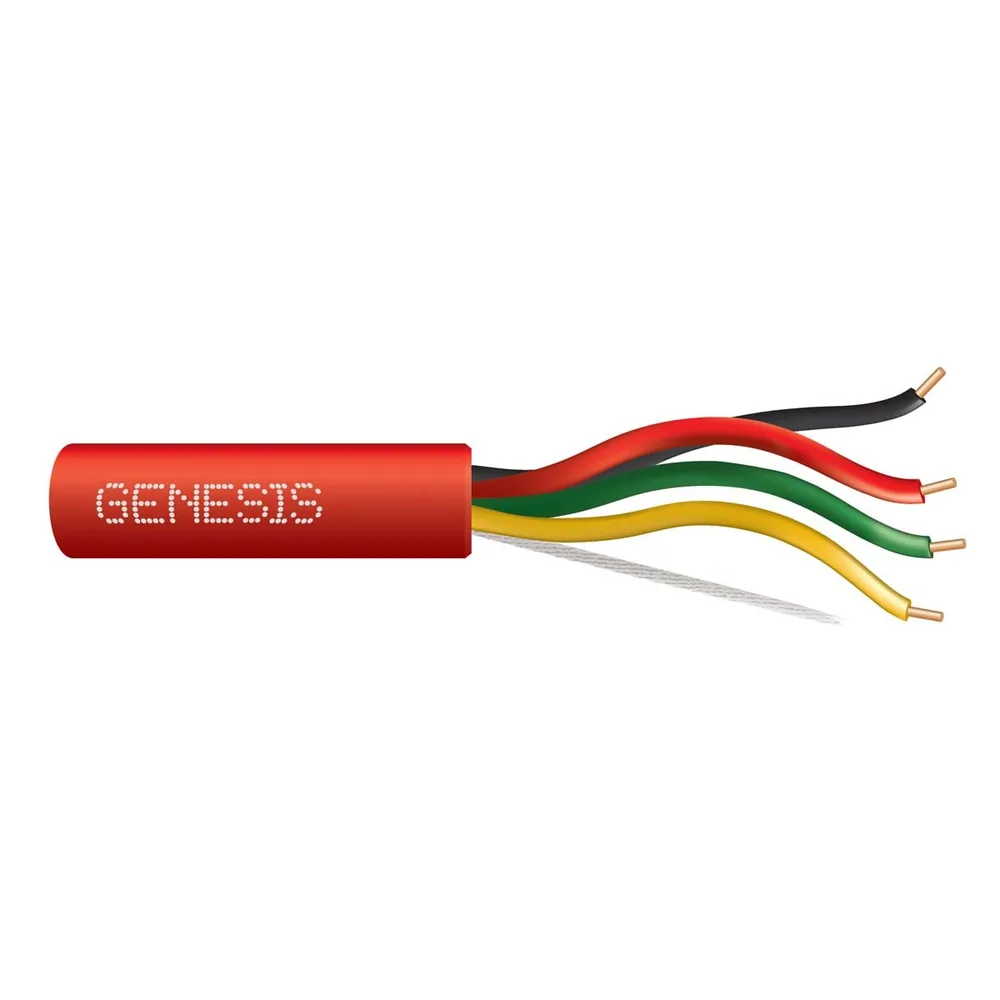

18 SOL CU 4/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 1000 FT

Southwire

18 SOL CU 4/C N/S CMP/CL3P/FPLP PVC-LS RED GEN 1000 FT

Southwire #
45071004

Genesis® Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.

Part of the family: Fire Alarm Unshielded Cable, Plenum

Priced by quote — copper moves daily (COMEX), so we quote at the current price.

Quote on WhatsApp
📄 Spec sheet (PDF)📎 Genesis Fire and Life Safety Brochure📎 Genesis Striped Fire Alarm Cable Sell Sheet

Application & features

Genesis® Plenum Rated Unshielded Fire Alarm Cable is suitable for installation as follows:

  • In fabricated ducts as described in NEC 300.22(B).
  • In other spaces used for environmental air as described in NEC 300.22(C).
  • In risers.
  • Within buildings in other than air-handling spaces and risers.

Specifications

Size18 AWG18 AWG
No. of Conductors44
StrandingSolidSolid
ShieldingUnshieldedUnshielded
Nominal Total Weight27 lbs/1000'41 kgs/km

Standards & references

  • NFPA 262 - Plenum Rated
  • CSA C22.2 No. 2556 - FT6 Rated
  • UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLP
  • UL 13 - Power-Limited Circuit Cables, Type CL3P
  • REACH/RoHS Compliant
