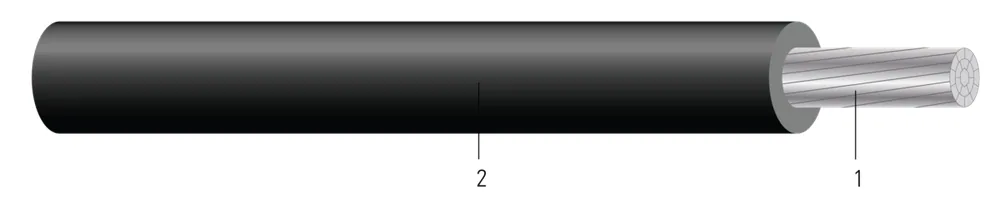

AL XLPE Type RPVU90 2KV
- Southwire #
- SPEC25251
Single Aluminum Conductors, 1000V/2000V, 90°C MAX - 40°C MIN, Sunlight Resistant and FT4 Flame Test Rated
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Part numbers in this family (7) ↓Available sizes & constructions
| Cond. Size | Conductor Number | Cond. Strands | Diameter Over Conductor (in)(cm) | Insulation Thickness (mils)(mm) | Approx. OD (inches)(cm) | Aluminum Weight (lbs/1000')(kgs/km) | Approx. Weight (lbs/1000')(kgs/km) | ||
|---|---|---|---|---|---|---|---|---|---|
| 300 KCMIL300 KCMIL | 11 | 3535 | 0.5691.45 | 1102.79 | 0.8022.04 | 282420 | 423629 | 61887201 | |
| 350 KCMIL350 KCMIL | 11 | 3535 | 0.6151.56 | 1102.79 | 0.8362.12 | 329490 | 471701 | 67257148 | |
| 500 KCMIL500 KCMIL | 11 | 3434 | 0.7351.87 | 1102.79 | 0.9662.45 | 471701 | 644958 | 66928699 | |
| 600 KCMIL600 KCMIL | 11 | 4141 | 0.8122.06 | 1253.18 | 1.0552.68 | 565841 | 7701146 | 66303101 | |
| 750 KCMIL750 KCMIL | 11 | 5353 | 0.9082.31 | 1253.18 | 1.1702.97 | 7061051 | 9471409 | 66928899 | |
| 300 KCMIL300 KCMIL | 11 | 3.28.13 | 1800816.47 | 0.0590.09 | 0.0710.11 | 0.0410.06 | 230230 | 260260 | 61887201 |
| 350 KCMIL350 KCMIL | 11 | 3.38.38 | 2100952.54 | 0.0500.07 | 0.0620.09 | 0.0400.06 | 250250 | 280280 | 67257148 |
| 500 KCMIL500 KCMIL | 11 | 3.89.65 | 30001360.78 | 0.0350.05 | 0.0440.07 | 0.0390.06 | 310310 | 350350 | 66928699 |
| 600 KCMIL600 KCMIL | 11 | 5.213.21 | 36001632.93 | 0.0290.04 | 0.0370.06 | 0.0390.06 | 340340 | 385385 | 66303101 |
| 750 KCMIL750 KCMIL | 11 | 5.814.73 | 45002041.16 | 0.0240.04 | 0.0310.05 | 0.0380.06 | 385385 | 435435 | 66928899 |
| 672572672572 | 350350 | RedRed | |||||||
| 663032663032 | 600600 | RedRed | |||||||
| 669289669289 | 750750 | RedRed |
Part numbers in this family (7)
By size:
| Southwire # | Description | Construction | Packaging | |
|---|---|---|---|---|
| 300 kcmil (2) | ||||
| 61887299 | 300 STR 3EAL RPVU90 XLPE 1000V BLACK | 300 KCMIL 1C 35S | CUT TO LENGTH REEL | |
| 61887201 | 300 STR 3EAL RPVU90 XLPE 1000V BLACK 3000 FT | 300 KCMIL 1C 35S | 3000 FT REEL | |
| 350 kcmil (2) | ||||
| 67257199 | 350 STR 3EAL RPVU90 XLPE 1000V/2000V BLACK | 350 KCMIL 1C 35S | CUT TO LENGTH REEL | |
| 67257148 | 350 STR 3EAL RPVU90 XLPE 1000V/2000V BLACK 4757 FT | 350 KCMIL 1C 35S | 4757 FT REEL | |
| 500 kcmil (1) | ||||
| 66928699 | 500 STR 3EAL RPVU90 XLPE 1000V/2000V BLACK | 500 KCMIL 1C 34S | CUT TO LENGTH REEL | |
| 600 kcmil (1) | ||||
| 66303101 | 600 STR 3EAL RPVU90 XLPE 1000V/2000V BLACK 4000 FT | 600 KCMIL 1C 41S | 4000 FT REEL | |
| 750 kcmil (1) | ||||
| 66928899 | 750 STR 3EAL RPVU90 XLPE 1000V/2000V BLACK | 750 KCMIL 1C 53S | CUT TO LENGTH REEL | |
Application & features
Single aluminum conductor with low temperature, moisture resisting XLPE (cross linked polyethylene) insulation. Sunlight Resistant. This product meets the current RoHS requirements. No lead is added or used in manufacturing.
Standards & references
- ASTM B836 Compact Rounded Stranded Aluminum Conductors
- CSA C22.2 No. 38 Thermoset-insulated wires and cables
- FT1 Flame Test (1,706 BTU/Hr nominal - Vertical Wire Flame Test)
- RoHS Compliant Lead-Free, Silicone-Free, Halogen Free
- AA 8176 Stranded Aluminum Alloy Conductors
- CSA Standard C22.2 No. 271 Photovoltaic Cables
