ACSS/TW
- Southwire #
- ALBARE10

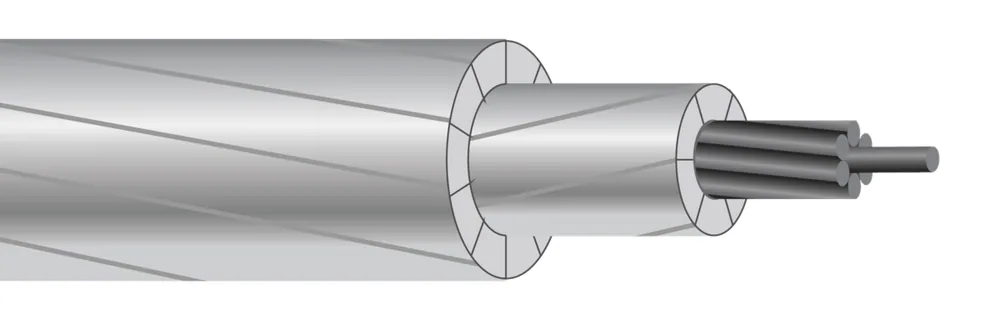

Aluminum Conductor, Steel Supported. Trapezoidal Shaped Aluminum Strands. Bare.
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Part numbers in this family (398) ↓Available sizes & constructions
| Codeword | Size (AWG or kcmil)(mm2) | No. of Strands | Nom. OD (mils)(mm) | Nominal Total Weight (lbs/1000')(kgs/km) | |
|---|---|---|---|---|---|
| ORIOLEORIOLE | 336.4 KCMIL336.4 KCMIL | 1616 | 69317.60 | 542807 | 60415325 |
| HAWKHAWK | 477 KCMIL477 KCMIL | 1818 | 79020.07 | 656976 | 62122215 |
| HENHEN | 477 KCMIL477 KCMIL | 2020 | 82020.83 | 7461111 | 61317926 |
| DOVEDOVE | 556.5 KCMIL556.5 KCMIL | 2020 | 85021.60 | 7651138 | 61372613 |
| GROSBEAKGROSBEAK | 636 KCMIL636 KCMIL | 2020 | 91023.11 | 8871321 | 61292326 |
| OSWEGOOSWEGO | 664.8 KCMIL664.8 KCMIL | 2020 | 93023.62 | 9351392 | 61310206 |
| WABASHWABASH | 762.8 KCMIL762.8 KCMIL | 2020 | 99025.15 | 10471557 | 61369715 |
| 768.2 KCMIL768.2 KCMIL | 00 | 97724.82 | 9871469 | 62662318 | |
| MAUMEEMAUMEE | 768.2 KCMIL768.2 KCMIL | 2020 | 97724.82 | 9871469 | 62662301 |
| DRAKEDRAKE | 795 KCMIL795 KCMIL | 2020 | 101025.65 | 10911624 | 61151501 |
| CARDINALCARDINAL | 954 KCMIL954 KCMIL | 2020 | 108027.43 | 12241822 | 32405315 |
| SUWANNEESUWANNEE | 959.6 KCMIL959.6 KCMIL | 2222 | 111028.19 | 13171959 | 61002701 |
| CURLEWCURLEW | 1033.5 KCMIL1033.5 KCMIL | 2222 | 113028.72 | 13261974 | 61253729 |
| HUDSONHUDSON | 1158.4 KCMIL1158.4 KCMIL | 2424 | 119630.38 | 14882214 | 61505501 |
| GRACKLEGRACKLE | 1192.5 KCMIL1192.5 KCMIL | 3838 | 122531.12 | 15312278 | 61276503 |
| YUKONYUKON | 1233.6 KCMIL1233.6 KCMIL | 3838 | 124531.62 | 15832357 | 61707925 |
| 1272 KCMIL1272 KCMIL | 00 | 126032.00 | 16302426 | 69377023 | |
| PHEASANTPHEASANT | 1272 KCMIL1272 KCMIL | 3939 | 126032.00 | 16302426 | 69377001 |
| MERRIMACKMERRIMACK | 1433.6 KCMIL1433.6 KCMIL | 3939 | 134034.04 | 18402738 | 60713725 |
| LAPWINGLAPWING | 1590 KCMIL1590 KCMIL | 3636 | 135834.49 | 17902664 | 61603203 |
| 1622 KCMIL1622 KCMIL | 00 | 142036.07 | 21073135 | 61060705 | |
| PECOSPECOS | 1622 KCMIL1622 KCMIL | 3939 | 142036.07 | 21073135 | 61060701 |
| CUMBERLANDCUMBERLAND | 1926.9 KCMIL1926.9 KCMIL | 4242 | 154939.37 | 24713677 | 61231128 |
| SANTEESANTEE | 2627.3 KCMIL2627.3 KCMIL | 6464 | 176044.71 | 30624557 | 61420301 |
| null nullnull null | 00 | 142036.07 | 21073135 | 61060703 |
Part numbers in this family (398)
By size:
| Southwire # | Description | Construction | Packaging | |
|---|---|---|---|---|
| 336.4 kcmil (1) | ||||
| 60415325 | 336.4-16/7 TYPE 23 ACSS/TW/MA3 (HS)/63% ORIOLE 10000 FT | 336.4 KCMIL 1C 16S | 10000 FT REEL | |
| 477 kcmil (6) | ||||
| 62563716 | 477-18/7 TYPE 13 ACSS/TW/MA2/63% FLICKER 5000 LB | 477 KCMIL 1C 18S | 5000 LB REEL | |
| 62563715 | 477-18/7 TYPE 13 ACSS/TW/MA2/63% FLICKER 5400 FT | 477 KCMIL 1C 18S | 5400 FT REEL | |
| 62322216 | 477-18/7 TYPE 16 ACSS/TW/MA2/63% HAWK 16000 FT | 477 KCMIL 1C 18S | 16000 FT REEL | |
| 62122215 | 477-18/7 TYPE 16 ACSS/TW/MA3 (HS)/63% HAWK 16000 FT | 477 KCMIL 1C 18S | 16000 FT REEL | |
| 62122216 | 477-18/7 TYPE 16 ACSS/TW/MA3 (HS)/63% HAWK 9000 FT | 477 KCMIL 1C 18S | 9000 FT REEL | |
| 61317926 | 477-20/7 TYPE 23 ACSS/TW/MA2/63% HEN 10000 FT | 477 KCMIL 1C 20S | 10000 FT REEL | |
| 556.5 kcmil (10) | ||||
| 61372627 | 556.5-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DOVE 4500 FT | 556.5 KCMIL 1C 20S | 4500 FT REEL | |
| 61372625 | 556.5-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DOVE 5850 FT | 556.5 KCMIL 1C 20S | 5850 FT REEL | |
| 61372615 | 556.5-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DOVE 6562 FT | 556.5 KCMIL 1C 20S | 6562 FT REEL | |
| 61372613 | 556.5-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DOVE 7125 FT | 556.5 KCMIL 1C 20S | 7125 FT REEL | |
| 61372622 | 556.5-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DOVE 7500 FT | 556.5 KCMIL 1C 20S | 7500 FT REEL | |
| 61372623 | 556.5-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DOVE 7700 FT | 556.5 KCMIL 1C 20S | 7700 FT REEL | |
| 61372624 | 556.5-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DOVE 8100 FT | 556.5 KCMIL 1C 20S | 8100 FT REEL | |
| 61372614 | 556.5-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DOVE 8400 FT | 556.5 KCMIL 1C 20S | 8400 FT REEL | |
| 61372626 | 556.5-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DOVE 8550 FT | 556.5 KCMIL 1C 20S | 8550 FT REEL | |
| 61372621 | 556.5-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DOVE 9000 FT | 556.5 KCMIL 1C 20S | 9000 FT REEL | |
| 636 kcmil (2) | ||||
| 61292327 | 636-20/7 TYPE 16 ACSS/TW/MA2/63% GROSBEAK 4000 FT | 636 KCMIL 1C 20S | 4000 FT REEL | |
| 61292326 | 636-20/7 TYPE 16 ACSS/TW/MA2/63% GROSBEAK 6000 FT | 636 KCMIL 1C 20S | 6000 FT REEL | |
| 664.8 kcmil (13) | ||||
| 61310228 | 664.8-20/7 TYPE 16 ACSS/TW/MA2/63% OSWEGO 10000 FT | 664.8 KCMIL 1C 20S | 10000 FT REEL | |
| 61310225 | 664.8-20/7 TYPE 16 ACSS/TW/MA2/63% OSWEGO 10092 LB | 664.8 KCMIL 1C 20S | 10092 LB REEL | |
| 61310226 | 664.8-20/7 TYPE 16 ACSS/TW/MA2/63% OSWEGO 11009 LB | 664.8 KCMIL 1C 20S | 11009 LB REEL | |
| 61310238 | 664.8-20/7 TYPE 16 ACSS/TW/MA2/63% OSWEGO 16170 FT | 664.8 KCMIL 1C 20S | 16170 FT REEL | |
| 61310237 | 664.8-20/7 TYPE 16 ACSS/TW/MA2/63% OSWEGO 16930 FT | 664.8 KCMIL 1C 20S | 16930 FT REEL | |
| 61310235 | 664.8-20/7 TYPE 16 ACSS/TW/MA2/63% OSWEGO 4350 FT | 664.8 KCMIL 1C 20S | 4350 FT REEL | |
| 61310240 | 664.8-20/7 TYPE 16 ACSS/TW/MA2/63% OSWEGO 5800 FT | 664.8 KCMIL 1C 20S | 5800 FT REEL | |
| 61310231 | 664.8-20/7 TYPE 16 ACSS/TW/MA2/63% OSWEGO 6400 FT | 664.8 KCMIL 1C 20S | 6400 FT REEL | |
| 61310206 | 664.8-20/7 TYPE 16 ACSS/TW/MA2/63% OSWEGO 7340 LB | 664.8 KCMIL 1C 20S | 7340 LB REEL | |
| 61310230 | 664.8-20/7 TYPE 16 ACSS/TW/MA2/63% OSWEGO 7400 FT | 664.8 KCMIL 1C 20S | 7400 FT REEL | |
| 61310215 | 664.8-20/7 TYPE 16 ACSS/TW/MA2/63% OSWEGO 8500 FT | 664.8 KCMIL 1C 20S | 8500 FT REEL | |
| 61310241 | 664.8-20/7 TYPE 16 ACSS/TW/MA2/63% OSWEGO 8800 FT | 664.8 KCMIL 1C 20S | 8800 FT REEL | |
| 61310211 | 664.8-20/7 TYPE 16 ACSS/TW/MA2/63% OSWEGO 9000 FT | 664.8 KCMIL 1C 20S | 9000 FT REEL | |
| 762.8 kcmil (6) | ||||
| 61369715 | 762.8-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% WABASH 10000 FT | 762.8 KCMIL 1C 20S | 10000 FT REEL | |
| 61369723 | 762.8-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% WABASH 5864 LB | 762.8 KCMIL 1C 20S | 5864 LB REEL | |
| 61369722 | 762.8-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% WABASH 6178 LB | 762.8 KCMIL 1C 20S | 6178 LB REEL | |
| 61369724 | 762.8-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% WABASH 6492 LB | 762.8 KCMIL 1C 20S | 6492 LB REEL | |
| 61369716 | 762.8-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% WABASH 7000 FT | 762.8 KCMIL 1C 20S | 7000 FT REEL | |
| 61369725 | 762.8-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% WABASH 8376 LB | 762.8 KCMIL 1C 20S | 8376 LB REEL | |
| 768.2 kcmil (28) | ||||
| 62662302 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 10000 FT | 768.2 KCMIL 1C 20S | 10000 FT REEL | |
| 62662316 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 11000 FT | 768.2 KCMIL 1C 20S | 11000 FT REEL | |
| 62662329 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 11400 FT | 768.2 KCMIL 1C 20S | 11400 FT REEL | |
| 62662340 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 11547 LB | 768.2 KCMIL 1C 20S | 11547 LB REEL | |
| 62662303 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 12000 FT | 768.2 KCMIL 1C 20S | 12000 FT REEL | |
| 62662315 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 14500 FT | 768.2 KCMIL 1C 20S | 14500 FT REEL | |
| 62662337 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 15300 FT | 768.2 KCMIL 1C 20S | 15300 FT REEL | |
| 62662336 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 15467 FT | 768.2 KCMIL 1C 20S | 15467 FT REEL | |
| 62662304 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 18000 FT | 768.2 KCMIL 1C 20S | 18000 FT REEL | |
| 62662317 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 2467 LB | 768.2 KCMIL 1C 20S | 2467 LB REEL | |
| 62662322 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 3454 LB | 768.2 KCMIL 1C 20S | 3454 LB REEL | |
| 62662339 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 6000 LB | 768.2 KCMIL 1C 20S | 6000 LB REEL | |
| 62662301 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 7500 FT | 768.2 KCMIL 1C 20S | 7500 FT REEL | |
| 62662325 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 8191 LB | 768.2 KCMIL 1C 20S | 8191 LB REEL | |
| 62662338 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 8800 FT | 768.2 KCMIL 1C 20S | 8800 FT REEL | |
| 62662334 | 768.2-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% MAUMEE 9168 LB | 768.2 KCMIL 1C 20S | 9168 LB REEL | |
| 62662327 | 768.2-20/7 TYPE 13 MAUMEE/TW/HS/Galfan ACSS/TW 12830 LB | 768.2 KCMIL 1C | 12830 LB REEL | |
| 62662332 | 768.2-20/7 TYPE 13 MAUMEE/TW/HS/Galfan ACSS/TW 12830 LB | 768.2 KCMIL 1C | 12830 LB REEL | |
| 62662333 | 768.2-20/7 TYPE 13 MAUMEE/TW/HS/Galfan ACSS/TW 13030 LB | 768.2 KCMIL 1C | 13030 LB REEL | |
| 62662328 | 768.2-20/7 TYPE 13 MAUMEE/TW/HS/Galfan ACSS/TW 14013 LB | 768.2 KCMIL 1C | 14013 LB REEL | |
| 62662326 | 768.2-20/7 TYPE 13 MAUMEE/TW/HS/Galfan ACSS/TW 14705 LB | 768.2 KCMIL 1C | 14705 LB REEL | |
| 62662331 | 768.2-20/7 TYPE 13 MAUMEE/TW/HS/Galfan ACSS/TW 16087 LB | 768.2 KCMIL 1C | 16087 LB REEL | |
| 62662321 | 768.2-20/7 TYPE 13 MAUMEE/TW/HS/Galfan ACSS/TW 1727 LB | 768.2 KCMIL 1C | 1727 LB REEL | |
| 62662319 | 768.2-20/7 TYPE 13 MAUMEE/TW/HS/Galfan ACSS/TW 1776 LB | 768.2 KCMIL 1C | 1776 LB REEL | |
| 62662318 | 768.2-20/7 TYPE 13 MAUMEE/TW/HS/Galfan ACSS/TW 2961 LB | 768.2 KCMIL 1C | 2961 LB REEL | |
| 62662323 | 768.2-20/7 TYPE 13 MAUMEE/TW/HS/Galfan ACSS/TW 3948 LB | 768.2 KCMIL 1C | 3948 LB REEL | |
| 62662320 | 768.2-20/7 TYPE 13 MAUMEE/TW/HS/Galfan ACSS/TW 4441 LB | 768.2 KCMIL 1C | 4441 LB REEL | |
| 62662335 | 768.2-20/7 TYPE 13 MAUMEE/TW/HS/Galfan ACSS/TW 8488 LB | 768.2 KCMIL 1C | 8488 LB REEL | |
| 795 kcmil (31) | ||||
| 62347601 | 795-20/7 TYPE 13 ACSS/TW/MA2/63% CONDOR 6562 FT | 795 KCMIL 1C 20S | 6562 FT REEL | |
| 61151525 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 10000 FT | 795 KCMIL 1C 20S | 10000 FT REEL | |
| 61151545 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 10700 FT | 795 KCMIL 1C 20S | 10700 FT REEL | |
| 61151541 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 11000 FT | 795 KCMIL 1C 20S | 11000 FT REEL | |
| 61151515 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 11200 FT | 795 KCMIL 1C 20S | 11200 FT REEL | |
| 61151520 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 11500 FT | 795 KCMIL 1C 20S | 11500 FT REEL | |
| 61151501 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 11500 LB | 795 KCMIL 1C 20S | 11500 LB REEL | |
| 61151517 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 12100 FT | 795 KCMIL 1C 20S | 12100 FT REEL | |
| 61151540 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 13500 FT | 795 KCMIL 1C 20S | 13500 FT REEL | |
| 61151549 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 14220 LB | 795 KCMIL 1C 20S | 14220 LB REEL | |
| 61151534 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 14406 LB | 795 KCMIL 1C 20S | 14406 LB REEL | |
| 61151536 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 14619 LB | 795 KCMIL 1C 20S | 14619 LB REEL | |
| 61151548 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 14723 LB | 795 KCMIL 1C 20S | 14723 LB REEL | |
| 61151533 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 16380 LB | 795 KCMIL 1C 20S | 16380 LB REEL | |
| 61151535 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 17481 LB | 795 KCMIL 1C 20S | 17481 LB REEL | |
| 61151518 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 17787 FT | 795 KCMIL 1C 20S | 17787 FT REEL | |
| 61151527 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 18382 LB | 795 KCMIL 1C 20S | 18382 LB REEL | |
| 61151537 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 19202 LB | 795 KCMIL 1C 20S | 19202 LB REEL | |
| 61151547 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 2800 LB | 795 KCMIL 1C 20S | 2800 LB REEL | |
| 61151516 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 4098 FT | 795 KCMIL 1C 20S | 4098 FT REEL | |
| 61151532 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 5308 LB | 795 KCMIL 1C 20S | 5308 LB REEL | |
| 61151539 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 7000 FT | 795 KCMIL 1C 20S | 7000 FT REEL | |
| 61151542 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 8000 FT | 795 KCMIL 1C 20S | 8000 FT REEL | |
| 61151519 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 8718 FT | 795 KCMIL 1C 20S | 8718 FT REEL | |
| 61151538 | 795-20/7 TYPE 16 ACSS/TW/MA2/63% DRAKE 9219 LB | 795 KCMIL 1C 20S | 9219 LB REEL | |
| 61428126 | 795-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DRAKE 12000 FT | 795 KCMIL 1C 20S | 12000 FT REEL | |
| 61428122 | 795-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DRAKE 19500 FT | 795 KCMIL 1C 20S | 19500 FT REEL | |
| 61428121 | 795-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DRAKE 20365 FT | 795 KCMIL 1C 20S | 20365 FT REEL | |
| 61428124 | 795-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DRAKE 3750 FT | 795 KCMIL 1C 20S | 3750 FT REEL | |
| 61428125 | 795-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DRAKE 3800 FT | 795 KCMIL 1C 20S | 3800 FT REEL | |
| 61428123 | 795-20/7 TYPE 16 ACSS/TW/MA3 (HS)/63% DRAKE 8600 FT | 795 KCMIL 1C 20S | 8600 FT REEL | |
| 954 kcmil (22) | ||||
| 61040830 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 10000 FT | 954 KCMIL 1C 20S | 10000 FT REEL | |
| 61040819 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 10000 LB | 954 KCMIL 1C 20S | 10000 LB REEL | |
| 61040808 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 10560 FT | 954 KCMIL 1C 20S | 10560 FT REEL | |
| 61040853 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 11900 FT | 954 KCMIL 1C 20S | 11900 FT REEL | |
| 61040801 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 12260 LB | 954 KCMIL 1C 20S | 12260 LB REEL | |
| 61040851 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 14500 FT | 954 KCMIL 1C 20S | 14500 FT REEL | |
| 61040847 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 15800 FT | 954 KCMIL 1C 20S | 15800 FT REEL | |
| 61040852 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 17500 FT | 954 KCMIL 1C 20S | 17500 FT REEL | |
| 61040845 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 2000 FT | 954 KCMIL 1C 20S | 2000 FT REEL | |
| 61040849 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 3450 FT | 954 KCMIL 1C 20S | 3450 FT REEL | |
| 61040848 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 4600 FT | 954 KCMIL 1C 20S | 4600 FT REEL | |
| 61040803 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 6130 LB | 954 KCMIL 1C 20S | 6130 LB REEL | |
| 61040802 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 7356 LB | 954 KCMIL 1C 20S | 7356 LB REEL | |
| 61040815 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 7500 FT | 954 KCMIL 1C 20S | 7500 FT REEL | |
| 61040846 | 954-20/7 TYPE 13 ACSS/TW/MA2/63% CARDINAL 8000 FT | 954 KCMIL 1C 20S | 8000 FT REEL | |
| 32405339 | 954-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% CARDINAL 10863 LB | 954 KCMIL 1C 20S | 10863 LB REEL | |
| 32405344 | 954-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% CARDINAL 12270 LB | 954 KCMIL 1C 20S | 12270 LB REEL | |
| 32405316 | 954-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% CARDINAL 18037 LB | 954 KCMIL 1C 20S | 18037 LB REEL | |
| 32405317 | 954-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% CARDINAL 18098 LB | 954 KCMIL 1C 20S | 18098 LB REEL | |
| 32405318 | 954-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% CARDINAL 18160 LB | 954 KCMIL 1C 20S | 18160 LB REEL | |
| 32405358 | 954-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% CARDINAL 22639 LB | 954 KCMIL 1C 20S | 22639 LB REEL | |
| 32405315 | 954-20/7 TYPE 13 ACSS/TW/MA3 (HS)/63% CARDINAL 3951 LB | 954 KCMIL 1C 20S | 3951 LB REEL | |
| 959.6 kcmil (64) | ||||
| 61203918 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 10000 FT | 959.6 KCMIL 1C 22S | 10000 FT REEL | |
| 61203926 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 10000 FT | 959.6 KCMIL 1C 22S | 10000 FT REEL | |
| 61203931 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 10000 FT | 959.6 KCMIL 1C 22S | 10000 FT REEL | |
| 61203944 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 10200 FT | 959.6 KCMIL 1C 22S | 10200 FT REEL | |
| 61203928 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 10270 FT | 959.6 KCMIL 1C 22S | 10270 FT REEL | |
| 61203921 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 10600 FT | 959.6 KCMIL 1C 22S | 10600 FT REEL | |
| 61203904 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 10700 FT | 959.6 KCMIL 1C 22S | 10700 FT REEL | |
| 61203934 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 11100 FT | 959.6 KCMIL 1C 22S | 11100 FT REEL | |
| 61203958 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 11300 FT | 959.6 KCMIL 1C 22S | 11300 FT REEL | |
| 61203955 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 11400 FT | 959.6 KCMIL 1C 22S | 11400 FT REEL | |
| 61203957 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 11600 FT | 959.6 KCMIL 1C 22S | 11600 FT REEL | |
| 61203903 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 11800 FT | 959.6 KCMIL 1C 22S | 11800 FT REEL | |
| 61203953 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 12100 FT | 959.6 KCMIL 1C 22S | 12100 FT REEL | |
| 61203942 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 12700 FT | 959.6 KCMIL 1C 22S | 12700 FT REEL | |
| 61203951 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 12800 FT | 959.6 KCMIL 1C 22S | 12800 FT REEL | |
| 61203920 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 12900 FT | 959.6 KCMIL 1C 22S | 12900 FT REEL | |
| 61203932 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 13000 FT | 959.6 KCMIL 1C 22S | 13000 FT REEL | |
| 61203923 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 13300 FT | 959.6 KCMIL 1C 22S | 13300 FT REEL | |
| 61203916 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 13500 FT | 959.6 KCMIL 1C 22S | 13500 FT REEL | |
| 61203922 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 13600 FT | 959.6 KCMIL 1C 22S | 13600 FT REEL | |
| 61203936 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 13970 LB | 959.6 KCMIL 1C 22S | 13970 LB REEL | |
| 61203915 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 14600 FT | 959.6 KCMIL 1C 22S | 14600 FT REEL | |
| 61203902 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 16000 FT | 959.6 KCMIL 1C 22S | 16000 FT REEL | |
| 61203946 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 1800 FT | 959.6 KCMIL 1C 22S | 1800 FT REEL | |
| 61203952 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 2600 FT | 959.6 KCMIL 1C 22S | 2600 FT REEL | |
| 61203988 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 3000 FT | 959.6 KCMIL 1C 22S | 3000 FT REEL | |
| 61203956 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 3100 FT | 959.6 KCMIL 1C 22S | 3100 FT REEL | |
| 61203949 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 3145 FT | 959.6 KCMIL 1C 22S | 3145 FT REEL | |
| 61203963 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 3225 FT | 959.6 KCMIL 1C 22S | 3225 FT REEL | |
| 61203947 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 4500 FT | 959.6 KCMIL 1C 22S | 4500 FT REEL | |
| 61203933 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 4800 FT | 959.6 KCMIL 1C 22S | 4800 FT REEL | |
| 61203950 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 4855 FT | 959.6 KCMIL 1C 22S | 4855 FT REEL | |
| 61203939 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 5000 FT | 959.6 KCMIL 1C 22S | 5000 FT REEL | |
| 61203948 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 5100 FT | 959.6 KCMIL 1C 22S | 5100 FT REEL | |
| 61203913 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 5800 FT | 959.6 KCMIL 1C 22S | 5800 FT REEL | |
| 61203940 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 6000 FT | 959.6 KCMIL 1C 22S | 6000 FT REEL | |
| 61203961 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 6273 FT | 959.6 KCMIL 1C 22S | 6273 FT REEL | |
| 61203959 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 6600 FT | 959.6 KCMIL 1C 22S | 6600 FT REEL | |
| 61203960 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 6953 FT | 959.6 KCMIL 1C 22S | 6953 FT REEL | |
| 61203941 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 700 FT | 959.6 KCMIL 1C 22S | 700 FT REEL | |
| 61203962 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 7011 FT | 959.6 KCMIL 1C 22S | 7011 FT REEL | |
| 61203966 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 7208 FT | 959.6 KCMIL 1C 22S | 7208 FT REEL | |
| 61203919 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 8200 FT | 959.6 KCMIL 1C 22S | 8200 FT REEL | |
| 61203943 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 8200 FT | 959.6 KCMIL 1C 22S | 8200 FT REEL | |
| 61203930 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 8510 FT | 959.6 KCMIL 1C 22S | 8510 FT REEL | |
| 61203965 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 8619 FT | 959.6 KCMIL 1C 22S | 8619 FT REEL | |
| 61203964 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 8778 FT | 959.6 KCMIL 1C 22S | 8778 FT REEL | |
| 61203917 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 9000 FT | 959.6 KCMIL 1C 22S | 9000 FT REEL | |
| 61203938 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 9000 FT | 959.6 KCMIL 1C 22S | 9000 FT REEL | |
| 61203929 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 9430 FT | 959.6 KCMIL 1C 22S | 9430 FT REEL | |
| 61203945 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 9600 FT | 959.6 KCMIL 1C 22S | 9600 FT REEL | |
| 61203912 | 959.6-22/7 TYPE 16 ACSS/TW/MA2/63% SUWANNEE 9800 FT | 959.6 KCMIL 1C 22S | 9800 FT REEL | |
| 61002712 | 959.6-22/7 TYPE 16 ACSS/TW/MA3 (HS)/63% SUWANNEE 10400 FT | 959.6 KCMIL 1C 22S | 10400 FT REEL | |
| 61002729 | 959.6-22/7 TYPE 16 ACSS/TW/MA3 (HS)/63% SUWANNEE 10400 FT | 959.6 KCMIL 1C 22S | 10400 FT REEL | |
| 61002733 | 959.6-22/7 TYPE 16 ACSS/TW/MA3 (HS)/63% SUWANNEE 10425 FT | 959.6 KCMIL 1C 22S | 10425 FT REEL | |
| 61002717 | 959.6-22/7 TYPE 16 ACSS/TW/MA3 (HS)/63% SUWANNEE 10500 FT | 959.6 KCMIL 1C 22S | 10500 FT REEL | |
| 61002701 | 959.6-22/7 TYPE 16 ACSS/TW/MA3 (HS)/63% SUWANNEE 13970 LB | 959.6 KCMIL 1C 22S | 13970 LB REEL | |
| 61002727 | 959.6-22/7 TYPE 16 ACSS/TW/MA3 (HS)/63% SUWANNEE 13970 LB | 959.6 KCMIL 1C 22S | 13970 LB REEL | |
| 61002716 | 959.6-22/7 TYPE 16 ACSS/TW/MA3 (HS)/63% SUWANNEE 5000 FT | 959.6 KCMIL 1C 22S | 5000 FT REEL | |
| 61002732 | 959.6-22/7 TYPE 16 ACSS/TW/MA3 (HS)/63% SUWANNEE 5000 FT | 959.6 KCMIL 1C 22S | 5000 FT REEL | |
| 61002731 | 959.6-22/7 TYPE 16 ACSS/TW/MA3 (HS)/63% SUWANNEE 6512 FT | 959.6 KCMIL 1C 22S | 6512 FT REEL | |
| 61002728 | 959.6-22/7 TYPE 16 ACSS/TW/MA3 (HS)/63% SUWANNEE 8000 FT | 959.6 KCMIL 1C 22S | 8000 FT REEL | |
| 61002715 | 959.6-22/7 TYPE 16 ACSS/TW/MA3 (HS)/63% SUWANNEE 8600 FT | 959.6 KCMIL 1C 22S | 8600 FT REEL | |
| 61002730 | 959.6-22/7 TYPE 16 ACSS/TW/MA3 (HS)/63% SUWANNEE 9040 FT | 959.6 KCMIL 1C 22S | 9040 FT REEL | |
| 1033.5 kcmil (7) | ||||
| 61253737 | 1033.5-22/7 TYPE 13 ACSS/TW/MA2/63% CURLEW 2000 FT | 1033.5 KCMIL 1C 22S | 2000 FT REEL | |
| 61253729 | 1033.5-22/7 TYPE 13 ACSS/TW/MA2/63% CURLEW 4500 FT | 1033.5 KCMIL 1C 22S | 4500 FT REEL | |
| 61253741 | 1033.5-22/7 TYPE 13 ACSS/TW/MA2/63% CURLEW 6400 FT | 1033.5 KCMIL 1C 22S | 6400 FT REEL | |
| 61253730 | 1033.5-22/7 TYPE 13 ACSS/TW/MA2/63% CURLEW 6500 FT | 1033.5 KCMIL 1C 22S | 6500 FT REEL | |
| 61253740 | 1033.5-22/7 TYPE 13 ACSS/TW/MA2/63% CURLEW 6900 FT | 1033.5 KCMIL 1C 22S | 6900 FT REEL | |
| 61253731 | 1033.5-22/7 TYPE 13 ACSS/TW/MA2/63% CURLEW 7500 FT | 1033.5 KCMIL 1C 22S | 7500 FT REEL | |
| 61253742 | 1033.5-22/7 TYPE 13 ACSS/TW/MA2/63% CURLEW 7800 FT | 1033.5 KCMIL 1C 22S | 7800 FT REEL | |
| 1158.4 kcmil (11) | ||||
| 61505526 | 1158.4-24/7 TYPE 13 ACSS/TW/MA2/63% HUDSON 10000 FT | 1158.4 KCMIL 1C 24S | 10000 FT REEL | |
| 61505527 | 1158.4-24/7 TYPE 13 ACSS/TW/MA2/63% HUDSON 10000 FT | 1158.4 KCMIL 1C 24S | 10000 FT REEL | |
| 61505525 | 1158.4-24/7 TYPE 13 ACSS/TW/MA2/63% HUDSON 4000 FT | 1158.4 KCMIL 1C 24S | 4000 FT REEL | |
| 61505504 | 1158.4-24/7 TYPE 13 ACSS/TW/MA2/63% HUDSON 4824 FT | 1158.4 KCMIL 1C 24S | 4824 FT REEL | |
| 61505532 | 1158.4-24/7 TYPE 13 ACSS/TW/MA2/63% HUDSON 5225 FT | 1158.4 KCMIL 1C 24S | 5225 FT REEL | |
| 61505529 | 1158.4-24/7 TYPE 13 ACSS/TW/MA2/63% HUDSON 5660 FT | 1158.4 KCMIL 1C 24S | 5660 FT REEL | |
| 61505531 | 1158.4-24/7 TYPE 13 ACSS/TW/MA2/63% HUDSON 6325 FT | 1158.4 KCMIL 1C 24S | 6325 FT REEL | |
| 61505503 | 1158.4-24/7 TYPE 13 ACSS/TW/MA2/63% HUDSON 6742 FT | 1158.4 KCMIL 1C 24S | 6742 FT REEL | |
| 61505502 | 1158.4-24/7 TYPE 13 ACSS/TW/MA2/63% HUDSON 7200 FT | 1158.4 KCMIL 1C 24S | 7200 FT REEL | |
| 61505501 | 1158.4-24/7 TYPE 13 ACSS/TW/MA2/63% HUDSON 8200 FT | 1158.4 KCMIL 1C 24S | 8200 FT REEL | |
| 61505505 | 1158.4-24/7 TYPE 13 ACSS/TW/MA2/63% HUDSON 8600 FT | 1158.4 KCMIL 1C 24S | 8600 FT REEL | |
| 1192.5 kcmil (2) | ||||
| 61276503 | 1192.5-38/19 TYPE 13 ACSS/TW/MA2/63% GRACKLE 10200 FT | 1192.5 KCMIL 1C 38S | 10200 FT REEL | |
| 61276526 | 1192.5-38/19 TYPE 13 ACSS/TW/MA2/63% GRACKLE 10200 FT | 1192.5 KCMIL 1C 38S | 10200 FT REEL | |
| 1233.6 kcmil (1) | ||||
| 61707925 | 1233.6-38/19 TYPE 13 ACSS/TW/MA2/63% YUKON 10000 FT | 1233.6 KCMIL 1C 38S | 10000 FT REEL | |
| 1272 kcmil (110) | ||||
| 69377026 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 10000 FT | 1272 KCMIL 1C 39S | 10000 FT REEL | |
| 69377117 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 10350 LB | 1272 KCMIL 1C 39S | 10350 LB REEL | |
| 69377046 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 10608 LB | 1272 KCMIL 1C 39S | 10608 LB REEL | |
| 69377078 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 10866 LB | 1272 KCMIL 1C 39S | 10866 LB REEL | |
| 69377049 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 11998 LB | 1272 KCMIL 1C 39S | 11998 LB REEL | |
| 69377061 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 11998 LB | 1272 KCMIL 1C 39S | 11998 LB REEL | |
| 69377045 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 12240 LB | 1272 KCMIL 1C 39S | 12240 LB REEL | |
| 69377059 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 12333 LB | 1272 KCMIL 1C 39S | 12333 LB REEL | |
| 69377016 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 12714 LB | 1272 KCMIL 1C 39S | 12714 LB REEL | |
| 69377072 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 12765 LB | 1272 KCMIL 1C 39S | 12765 LB REEL | |
| 69377079 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 12827 LB | 1272 KCMIL 1C 39S | 12827 LB REEL | |
| 69377077 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 12941 LB | 1272 KCMIL 1C 39S | 12941 LB REEL | |
| 69377005 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 12949 LB | 1272 KCMIL 1C 39S | 12949 LB REEL | |
| 69377057 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 13366 LB | 1272 KCMIL 1C 39S | 13366 LB REEL | |
| 69377008 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 13700 LB | 1272 KCMIL 1C 39S | 13700 LB REEL | |
| 69377043 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 13889 LB | 1272 KCMIL 1C 39S | 13889 LB REEL | |
| 69377069 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 14000 LB | 1272 KCMIL 1C 39S | 14000 LB REEL | |
| 69377080 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 14020 LB | 1272 KCMIL 1C 39S | 14020 LB REEL | |
| 69377019 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 14257 LB | 1272 KCMIL 1C 39S | 14257 LB REEL | |
| 69377081 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 14445 LB | 1272 KCMIL 1C 39S | 14445 LB REEL | |
| 69377014 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 14802 LB | 1272 KCMIL 1C 39S | 14802 LB REEL | |
| 69377087 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 14869 LB | 1272 KCMIL 1C 39S | 14869 LB REEL | |
| 69377004 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 15000 FT | 1272 KCMIL 1C 39S | 15000 FT REEL | |
| 69377051 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 15185 LB | 1272 KCMIL 1C 39S | 15185 LB REEL | |
| 69377082 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 15703 LB | 1272 KCMIL 1C 39S | 15703 LB REEL | |
| 69377001 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 15768 LB | 1272 KCMIL 1C 39S | 15768 LB REEL | |
| 69377076 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 15800 LB | 1272 KCMIL 1C 39S | 15800 LB REEL | |
| 69377095 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 15900 LB | 1272 KCMIL 1C 39S | 15900 LB REEL | |
| 69377003 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 16000 FT | 1272 KCMIL 1C 39S | 16000 FT REEL | |
| 69377021 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 16013 LB | 1272 KCMIL 1C 39S | 16013 LB REEL | |
| 69377115 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 16114 LB | 1272 KCMIL 1C 39S | 16114 LB REEL | |
| 69377086 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 16994 LB | 1272 KCMIL 1C 39S | 16994 LB REEL | |
| 69377044 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 17136 LB | 1272 KCMIL 1C 39S | 17136 LB REEL | |
| 69377123 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 17500 LB | 1272 KCMIL 1C 39S | 17500 LB REEL | |
| 69377033 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 17600 LB | 1272 KCMIL 1C 39S | 17600 LB REEL | |
| 69377065 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 17600 LB | 1272 KCMIL 1C 39S | 17600 LB REEL | |
| 69377052 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 17624 LB | 1272 KCMIL 1C 39S | 17624 LB REEL | |
| 69377056 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 17930 LB | 1272 KCMIL 1C 39S | 17930 LB REEL | |
| 69377010 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 17933 LB | 1272 KCMIL 1C 39S | 17933 LB REEL | |
| 69377093 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 18000 LB | 1272 KCMIL 1C 39S | 18000 LB REEL | |
| 69377013 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 18006 LB | 1272 KCMIL 1C 39S | 18006 LB REEL | |
| 69377025 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 18020 LB | 1272 KCMIL 1C 39S | 18020 LB REEL | |
| 69377018 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 18090 LB | 1272 KCMIL 1C 39S | 18090 LB REEL | |
| 69377006 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 18342 LB | 1272 KCMIL 1C 39S | 18342 LB REEL | |
| 69377118 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 18791 LB | 1272 KCMIL 1C 39S | 18791 LB REEL | |
| 69377091 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 18836 LB | 1272 KCMIL 1C 39S | 18836 LB REEL | |
| 69377116 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 19501 LB | 1272 KCMIL 1C 39S | 19501 LB REEL | |
| 69377084 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 19608 LB | 1272 KCMIL 1C 39S | 19608 LB REEL | |
| 69377074 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 19690 LB | 1272 KCMIL 1C 39S | 19690 LB REEL | |
| 69377054 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 19976 LB | 1272 KCMIL 1C 39S | 19976 LB REEL | |
| 69377050 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 20406 LB | 1272 KCMIL 1C 39S | 20406 LB REEL | |
| 69377068 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 20500 LB | 1272 KCMIL 1C 39S | 20500 LB REEL | |
| 69377083 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 20784 LB | 1272 KCMIL 1C 39S | 20784 LB REEL | |
| 69377066 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 21670 LB | 1272 KCMIL 1C 39S | 21670 LB REEL | |
| 69377085 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 21822 LB | 1272 KCMIL 1C 39S | 21822 LB REEL | |
| 69377047 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 22243 LB | 1272 KCMIL 1C 39S | 22243 LB REEL | |
| 69377017 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 22664 LB | 1272 KCMIL 1C 39S | 22664 LB REEL | |
| 69377060 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 22664 LB | 1272 KCMIL 1C 39S | 22664 LB REEL | |
| 69377055 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 23051 LB | 1272 KCMIL 1C 39S | 23051 LB REEL | |
| 69377053 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 23838 LB | 1272 KCMIL 1C 39S | 23838 LB REEL | |
| 69377041 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 24510 LB | 1272 KCMIL 1C 39S | 24510 LB REEL | |
| 69377039 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 2500 FT | 1272 KCMIL 1C 39S | 2500 FT REEL | |
| 69377040 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 25327 LB | 1272 KCMIL 1C 39S | 25327 LB REEL | |
| 69377096 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 25800 LB | 1272 KCMIL 1C 39S | 25800 LB REEL | |
| 69377031 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 26144 LB | 1272 KCMIL 1C 39S | 26144 LB REEL | |
| 69377098 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 26308 LB | 1272 KCMIL 1C 39S | 26308 LB REEL | |
| 69377042 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 26961 LB | 1272 KCMIL 1C 39S | 26961 LB REEL | |
| 69377011 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 27308 LB | 1272 KCMIL 1C 39S | 27308 LB REEL | |
| 69377062 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 27778 LB | 1272 KCMIL 1C 39S | 27778 LB REEL | |
| 69377070 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 2778 LB | 1272 KCMIL 1C 39S | 2778 LB REEL | |
| 69377012 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 28209 LB | 1272 KCMIL 1C 39S | 28209 LB REEL | |
| 69377048 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 29350 LB | 1272 KCMIL 1C 39S | 29350 LB REEL | |
| 69377064 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 29412 LB | 1272 KCMIL 1C 39S | 29412 LB REEL | |
| 69377035 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 4500 FT | 1272 KCMIL 1C 39S | 4500 FT REEL | |
| 69377094 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 4564 LB | 1272 KCMIL 1C 39S | 4564 LB REEL | |
| 69377002 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 4700 FT | 1272 KCMIL 1C 39S | 4700 FT REEL | |
| 69377133 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 4896 LB | 1272 KCMIL 1C 39S | 4896 LB REEL | |
| 69377007 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 5053 LB | 1272 KCMIL 1C 39S | 5053 LB REEL | |
| 69377058 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 5216 LB | 1272 KCMIL 1C 39S | 5216 LB REEL | |
| 69377015 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 5300 LB | 1272 KCMIL 1C 39S | 5300 LB REEL | |
| 69377131 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 5386 LB | 1272 KCMIL 1C 39S | 5386 LB REEL | |
| 69377075 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 5392 LB | 1272 KCMIL 1C 39S | 5392 LB REEL | |
| 69377038 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 5500 FT | 1272 KCMIL 1C 39S | 5500 FT REEL | |
| 69377121 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 5600 LB | 1272 KCMIL 1C 39S | 5600 LB REEL | |
| 69377009 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 6049 LB | 1272 KCMIL 1C 39S | 6049 LB REEL | |
| 69377067 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 6327 LB | 1272 KCMIL 1C 39S | 6327 LB REEL | |
| 69377032 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 6536 LB | 1272 KCMIL 1C 39S | 6536 LB REEL | |
| 69377073 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 7600 LB | 1272 KCMIL 1C 39S | 7600 LB REEL | |
| 69377022 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 7624 LB | 1272 KCMIL 1C 39S | 7624 LB REEL | |
| 69377092 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 7800 LB | 1272 KCMIL 1C 39S | 7800 LB REEL | |
| 69377071 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 7925 LB | 1272 KCMIL 1C 39S | 7925 LB REEL | |
| 69377037 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 8000 FT | 1272 KCMIL 1C 39S | 8000 FT REEL | |
| 69377024 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 8100 FT | 1272 KCMIL 1C 39S | 8100 FT REEL | |
| 69377034 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 8121 LB | 1272 KCMIL 1C 39S | 8121 LB REEL | |
| 69377088 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 8824 LB | 1272 KCMIL 1C 39S | 8824 LB REEL | |
| 69377097 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 8903 LB | 1272 KCMIL 1C 39S | 8903 LB REEL | |
| 69377036 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 9000 FT | 1272 KCMIL 1C 39S | 9000 FT REEL | |
| 69377063 | 1272-39/19 TYPE 13 ACSS/TW/MA2/63% PHEASANT 9400 LB | 1272 KCMIL 1C 39S | 9400 LB REEL | |
| 69377129 | ACSS/TW 1272-39/19 TYPE 13 PHEASANT 11247 LB | 1272 KCMIL 1C | 11247 LB REEL | |
| 69377028 | ACSS/TW 1272-39/19 TYPE 13 PHEASANT 11438 LB | 1272 KCMIL 1C | 11438 LB REEL | |
| 69377122 | ACSS/TW 1272-39/19 TYPE 13 PHEASANT 15485 LB | 1272 KCMIL 1C | 15485 LB REEL | |
| 69377120 | ACSS/TW 1272-39/19 TYPE 13 PHEASANT 17700 LB | 1272 KCMIL 1C | 17700 LB REEL | |
| 69377027 | ACSS/TW 1272-39/19 TYPE 13 PHEASANT 19608 LB | 1272 KCMIL 1C | 19608 LB REEL | |
| 69377128 | ACSS/TW 1272-39/19 TYPE 13 PHEASANT 20049 LB | 1272 KCMIL 1C | 20049 LB REEL | |
| 69377125 | ACSS/TW 1272-39/19 TYPE 13 PHEASANT 20262 LB | 1272 KCMIL 1C | 20262 LB REEL | |
| 69377127 | ACSS/TW 1272-39/19 TYPE 13 PHEASANT 21569 LB | 1272 KCMIL 1C | 21569 LB REEL | |
| 69377023 | ACSS/TW 1272-39/19 TYPE 13 PHEASANT 22549 LB | 1272 KCMIL 1C | 22549 LB REEL | |
| 69377126 | ACSS/TW 1272-39/19 TYPE 13 PHEASANT 22713 LB | 1272 KCMIL 1C | 22713 LB REEL | |
| 69377029 | ACSS/TW 1272-39/19 TYPE 13 PHEASANT 24347 LB | 1272 KCMIL 1C | 24347 LB REEL | |
| 69377132 | ACSS/TW 1272-39/19 TYPE 13 PHEASANT 4085 LB | 1272 KCMIL 1C | 4085 LB REEL | |
| 1433.6 kcmil (5) | ||||
| 60713725 | 1433.6-39/19 TYPE 13 ACSS/TW/MA2/63% MERRIMACK 19505 LB | 1433.6 KCMIL 1C 39S | 19505 LB REEL | |
| 61123015 | 1433.6-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% MERRIMACK 10400 FT | 1433.6 KCMIL 1C 39S | 10400 FT REEL | |
| 61123025 | 1433.6-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% MERRIMACK 19505 LB | 1433.6 KCMIL 1C 39S | 19505 LB REEL | |
| 61123001 | 1433.6-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% MERRIMACK 22081 LB | 1433.6 KCMIL 1C 39S | 22081 LB REEL | |
| 61123024 | 1433.6-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% MERRIMACK 22706 LB | 1433.6 KCMIL 1C 39S | 22706 LB REEL | |
| 1590 kcmil (4) | ||||
| 61603226 | 1590-36/7 TYPE 7 ACSS/TW/MA3 (HS)/63% LAPWING 4400 FT | 1590 KCMIL 1C 36S | 4400 FT REEL | |
| 61603225 | 1590-36/7 TYPE 7 ACSS/TW/MA3 (HS)/63% LAPWING 5800 FT | 1590 KCMIL 1C 36S | 5800 FT REEL | |
| 61603203 | 1590-36/7 TYPE 7 ACSS/TW/MA3 (HS)/63% LAPWING 6700 FT | 1590 KCMIL 1C 36S | 6700 FT REEL | |
| 61603227 | 1590-36/7 TYPE 7 ACSS/TW/MA3 (HS)/63% LAPWING 7800 FT | 1590 KCMIL 1C 36S | 7800 FT REEL | |
| 1622 kcmil (31) | ||||
| 61060705 | 1622-39/19 T-13 PECOS ACSS/TW 6570 LB | 1622 KCMIL 1C | 6570 LB REEL | |
| 61060725 | 1622-39/19 TYPE 13 ACSS/TW/MA2/63% PECOS 12000 FT | 1622 KCMIL 1C 39S | 12000 FT REEL | |
| 61060726 | 1622-39/19 TYPE 13 ACSS/TW/MA2/63% PECOS 1500 FT | 1622 KCMIL 1C 39S | 1500 FT REEL | |
| 61060701 | 1622-39/19 TYPE 13 ACSS/TW/MA2/63% PECOS 21000 LB | 1622 KCMIL 1C 39S | 21000 LB REEL | |
| 61335937 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 10114 LB | 1622 KCMIL 1C 39S | 10114 LB REEL | |
| 61335931 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 10612 LB | 1622 KCMIL 1C 39S | 10612 LB REEL | |
| 61335923 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 10956 LB | 1622 KCMIL 1C 39S | 10956 LB REEL | |
| 61335927 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 11378 LB | 1622 KCMIL 1C 39S | 11378 LB REEL | |
| 61335935 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 13906 LB | 1622 KCMIL 1C 39S | 13906 LB REEL | |
| 61335943 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 14749 LB | 1622 KCMIL 1C 39S | 14749 LB REEL | |
| 61335938 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 16856 LB | 1622 KCMIL 1C 39S | 16856 LB REEL | |
| 61335940 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 17910 LB | 1622 KCMIL 1C 39S | 17910 LB REEL | |
| 61335924 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 18646 LB | 1622 KCMIL 1C 39S | 18646 LB REEL | |
| 61335932 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 18963 LB | 1622 KCMIL 1C 39S | 18963 LB REEL | |
| 61335936 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 18963 LB | 1622 KCMIL 1C 39S | 18963 LB REEL | |
| 61335933 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 21070 LB | 1622 KCMIL 1C 39S | 21070 LB REEL | |
| 61335930 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 22154 LB | 1622 KCMIL 1C 39S | 22154 LB REEL | |
| 61335934 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 22650 LB | 1622 KCMIL 1C 39S | 22650 LB REEL | |
| 61335916 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 23282 LB | 1622 KCMIL 1C 39S | 23282 LB REEL | |
| 61335941 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 23704 LB | 1622 KCMIL 1C 39S | 23704 LB REEL | |
| 61335939 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 27391 LB | 1622 KCMIL 1C 39S | 27391 LB REEL | |
| 61335942 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 27918 LB | 1622 KCMIL 1C 39S | 27918 LB REEL | |
| 61335929 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 29498 LB | 1622 KCMIL 1C 39S | 29498 LB REEL | |
| 61335926 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 5000 FT | 1622 KCMIL 1C 39S | 5000 FT REEL | |
| 61335925 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 6953 LB | 1622 KCMIL 1C 39S | 6953 LB REEL | |
| 61335917 | 1622-39/19 TYPE 13 ACSS/TW/MA3 (HS)/63% PECOS 8691 LB | 1622 KCMIL 1C 39S | 8691 LB REEL | |
| 61335920 | 1622-39/19 TYPE 13 PECOS/TW/HS/Galfan ACSS/TW 13485 LB | 1622 KCMIL 1C | 13485 LB REEL | |
| 61335922 | 1622-39/19 TYPE 13 PECOS/TW/HS/Galfan ACSS/TW 21070 LB | 1622 KCMIL 1C | 21070 LB REEL | |
| 61335921 | 1622-39/19 TYPE 13 PECOS/TW/HS/Galfan ACSS/TW 25284 LB | 1622 KCMIL 1C | 25284 LB REEL | |
| 61335918 | 1622-39/19 TYPE 13 PECOS/TW/HS/Galfan ACSS/TW 27180 LB | 1622 KCMIL 1C | 27180 LB REEL | |
| 61335919 | 1622-39/19 TYPE 13 PECOS/TW/HS/Galfan ACSS/TW 29077 LB | 1622 KCMIL 1C | 29077 LB REEL | |
| 1926.9 kcmil (7) | ||||
| 61231128 | 1926.9-42/19 TYPE 13 ACSS/TW/MA2/63% CUMBERLAND 20756 LB | 1926.9 KCMIL 1C 42S | 20756 LB REEL | |
| 61269620 | 1926.9-42/19 TYPE 13 ACSS/TW/MA3 (HS)/63% CUMBERLAND 1000 FT | 1926.9 KCMIL 1C 42S | 1000 FT REEL | |
| 61269637 | 1926.9-42/19 TYPE 13 ACSS/TW/MA3 (HS)/63% CUMBERLAND 10873 LB | 1926.9 KCMIL 1C 42S | 10873 LB REEL | |
| 61269639 | 1926.9-42/19 TYPE 13 ACSS/TW/MA3 (HS)/63% CUMBERLAND 20756 LB | 1926.9 KCMIL 1C 42S | 20756 LB REEL | |
| 61269633 | 1926.9-42/19 TYPE 13 ACSS/TW/MA3 (HS)/63% CUMBERLAND 21745 LB | 1926.9 KCMIL 1C 42S | 21745 LB REEL | |
| 61269638 | 1926.9-42/19 TYPE 13 ACSS/TW/MA3 (HS)/63% CUMBERLAND 4900 FT | 1926.9 KCMIL 1C 42S | 4900 FT REEL | |
| 61269622 | 1926.9-42/19 TYPE 13 ACSS/TW/MA3 (HS)/63% CUMBERLAND 8800 FT | 1926.9 KCMIL 1C 42S | 8800 FT REEL | |
| 2627.3 kcmil (21) | ||||
| 61420336 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 12500 LB | 2627.3 KCMIL 1C 64S | 12500 LB REEL | |
| 61420317 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 1340 FT | 2627.3 KCMIL 1C 64S | 1340 FT REEL | |
| 61420318 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 1340 FT | 2627.3 KCMIL 1C 64S | 1340 FT REEL | |
| 61420328 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 14150 LB | 2627.3 KCMIL 1C 64S | 14150 LB REEL | |
| 61420316 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 17405 LB | 2627.3 KCMIL 1C 64S | 17405 LB REEL | |
| 61420350 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 17769 LB | 2627.3 KCMIL 1C 64S | 17769 LB REEL | |
| 61420352 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 18288 LB | 2627.3 KCMIL 1C 64S | 18288 LB REEL | |
| 61420351 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 23470 LB | 2627.3 KCMIL 1C 64S | 23470 LB REEL | |
| 61420331 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 24000 LB | 2627.3 KCMIL 1C 64S | 24000 LB REEL | |
| 61420332 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 26000 LB | 2627.3 KCMIL 1C 64S | 26000 LB REEL | |
| 61420315 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 29860 LB | 2627.3 KCMIL 1C 64S | 29860 LB REEL | |
| 61420329 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 29860 LB | 2627.3 KCMIL 1C 64S | 29860 LB REEL | |
| 61420321 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 5300 FT | 2627.3 KCMIL 1C 64S | 5300 FT REEL | |
| 61420325 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 5802 FT | 2627.3 KCMIL 1C 64S | 5802 FT REEL | |
| 61420341 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 5900 FT | 2627.3 KCMIL 1C 64S | 5900 FT REEL | |
| 61420301 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 6400 FT | 2627.3 KCMIL 1C 64S | 6400 FT REEL | |
| 61420319 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 6700 FT | 2627.3 KCMIL 1C 64S | 6700 FT REEL | |
| 61420320 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 6850 FT | 2627.3 KCMIL 1C 64S | 6850 FT REEL | |
| 61420322 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 8300 FT | 2627.3 KCMIL 1C 64S | 8300 FT REEL | |
| 61420349 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 8384 LB | 2627.3 KCMIL 1C 64S | 8384 LB REEL | |
| 61420323 | 2627.3-64/19 TYPE 8 ACSS/TW/MA3 (HS)/63% SANTEE 8800 FT | 2627.3 KCMIL 1C 64S | 8800 FT REEL | |
| Other (16) | ||||
| 61060704 | 1622-39/19 T-13 PECOS ACSS/TW 29498 LB | null null 1C | 29498 LB REEL | |
| 61060703 | 1622-39/19 T-13 PECOS ACSS/TW 8428 LB | null null 1C | 8428 LB REEL | |
| 61420339 | 2627.3-64/19 TYPE 8 SANTEE/ACSS/HS/TW 10668 LB | null null 1C | 10668 LB REEL | |
| 61420340 | 2627.3-64/19 TYPE 8 SANTEE/ACSS/HS/TW 12802 LB | null null 1C | 12802 LB REEL | |
| 61420305 | 2627.3-64/19 TYPE 8 SANTEE/ACSS/HS/TW 15922 LB | null null 1C | 15922 LB REEL | |
| 61420338 | 2627.3-64/19 TYPE 8 SANTEE/ACSS/HS/TW 17069 LB | null null 1C | 17069 LB REEL | |
| 61420302 | 2627.3-64/19 TYPE 8 SANTEE/ACSS/HS/TW 17760 LB | null null 1C | 17760 LB REEL | |
| 61420337 | 2627.3-64/19 TYPE 8 SANTEE/ACSS/HS/TW 21336 LB | null null 1C | 21336 LB REEL | |
| 61420311 | 2627.3-64/19 TYPE 8 SANTEE/ACSS/HS/TW 23731 LB | null null 1C | 23731 LB REEL | |
| 61420309 | 2627.3-64/19 TYPE 8 SANTEE/ACSS/HS/TW 24190 LB | null null 1C | 24190 LB REEL | |
| 61420306 | 2627.3-64/19 TYPE 8 SANTEE/ACSS/HS/TW 25721 LB | null null 1C | 25721 LB REEL | |
| 61420303 | 2627.3-64/19 TYPE 8 SANTEE/ACSS/HS/TW 26639 LB | null null 1C | 26639 LB REEL | |
| 61420308 | 2627.3-64/19 TYPE 8 SANTEE/ACSS/HS/TW 26946 LB | null null 1C | 26946 LB REEL | |
| 61420304 | 2627.3-64/19 TYPE 8 SANTEE/ACSS/HS/TW 27558 LB | null null 1C | 27558 LB REEL | |
| 61420307 | 2627.3-64/19 TYPE 8 SANTEE/ACSS/HS/TW 29855 LB | null null 1C | 29855 LB REEL | |
| 69377124 | ACSS/TW 1272-39/19 TYPE 13 PHEASANT 28200 LB | null null 1C | 28200 LB REEL | |
Application & features
Southwire's ACSS/TW is designed for overhead distribution and transmission lines. It is designed to operate continuously at elevated temperatures up to 250°C without loss of strength, it sags less under emergency electrical loadings than ACSR/TW, excellent self-damping properties, and its final sags are not affected by long-term creep of aluminum. Southwire's ACSS/TW is available in equal area and equal diameter design. The equal area design allows equal ampacity in a smaller diameter conductor when compared with a standard ACSS conductor. The equal diameter design allows more ampacity in an equal diameter conductor when compared with a standard ACSS conductor. ACSS/TW also provides many design opportunities for new line construction: i.e., reduced tower cost, decreased sag, increased self-damping properties, increased operating temperature and improved corrosion resistance.
Standards & references
- B500 Metallic Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced.
- B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes
- B802 Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced.
- B803 High-Strength Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum and Aluminum-Alloy Conductors, Steel Reinforced.
- B857 Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Supported (ACSS/TW).
Documents
📎 Overhead Conductor Manual📎 Advantages of ACSS and ACSS/HS285 Conductors White Paper📎 Self-Damping Tests for Various Drake Conductors📎 CenterPointe Energy Project Profile📎 Western Area Power Administration Project Profile📎 ACSS & ACSS/TW Installation Guide📎 Galvanized vs. Mischmetal Coating📎 Batch Annealing vs. Bobbin Annealing📎 ACSS/TW Data Tables📎 Mischmetal Alloy-Coated (MA) Steel Core Sales Sheet
