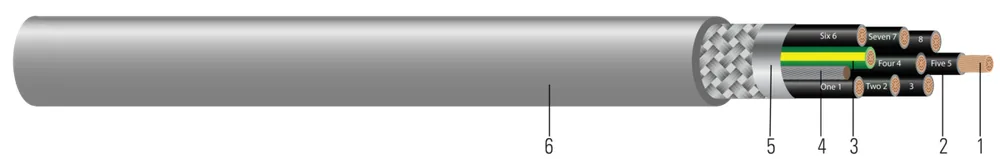

Southwire® Machine Flex® CU 600/1000V Aislamiento THHN Blindado Chaqueta TPE Gris. Libre de silicona
- Núm. Southwire
- SPEC45042
Cable de control blindado para charola tipo máquina (Machine Tray) Tipo TC-ER de 600/1000 voltios, conductores de cobre, aislamiento de policloruro de vinilo (PVC) con capa de nylon, chaqueta de elastómero termoplástico, 90 °C en seco, 75 °C en mojado, -40 °C impacto en frío, identificación por Método 4. Libre de silicona.
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (44) ↓Tamaños y construcciones disponibles
| Tamaño Cond. | Número de Conductor | Hebras del Conductor | Diámetro Sobre Conductor (in)(cm) | Espesor del Aislamiento (mils)(mm) | Espesor de Cubierta (mils)(mm) | D.E. Aprox. (inches)(cm) | Peso de Cobre (lbs/1000')(kgs/km) | Peso Aprox. (lbs/1000')(kgs/km) | Resistencia en CC a 25C (ohms/1000')(ohms/km) | Resistencia en CA a 75C (ohms/1000')(ohms/km) | Radio de Curvatura Mín. (in)(cm) | Amperaje permitido Canalización 75C | Amperaje permitido Canalización 90C | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18 AWG18 AWG | 22 | 1616 | 0.0440.11 | 150.38 | 451.14 | 0.2930.74 | 2436 | 5277 | 7.14810.64 | 8.61312.82 | 3.58.89 | -- | 1414 | 67708199 |
| 18 AWG18 AWG | 33 | 1616 | 0.0440.11 | 150.38 | 451.14 | 0.3200.81 | 3045 | 6394 | 7.14810.64 | 8.61312.82 | 3.89.65 | -- | 1414 | 58846099 |
| 18 AWG18 AWG | 44 | 1616 | 0.0440.11 | 150.38 | 451.14 | 0.3260.83 | 3654 | 70104 | 7.14810.64 | 8.61312.82 | 3.99.91 | -- | 1111 | 58846199 |
| 18 AWG18 AWG | 55 | 1616 | 0.0440.11 | 150.38 | 451.14 | 0.3530.90 | 4364 | 82122 | 7.14810.64 | 8.61312.82 | 4.210.67 | -- | 1111 | 58846299 |
| 18 AWG18 AWG | 77 | 1616 | 0.0440.11 | 150.38 | 451.14 | 0.3780.96 | 5582 | 100149 | 7.14810.64 | 8.61312.82 | 4.511.43 | -- | 99 | 58846399 |
| 18 AWG18 AWG | 99 | 1616 | 0.0440.11 | 150.38 | 451.14 | 0.4421.12 | 68101 | 129192 | 7.14810.64 | 8.61312.82 | 5.313.46 | -- | 99 | 63083799 |
| 18 AWG18 AWG | 1212 | 1616 | 0.0440.11 | 150.38 | 451.14 | 0.4781.21 | 86128 | 155231 | 7.14810.64 | 8.61312.82 | 5.714.48 | -- | 77 | 58846499 |
| 18 AWG18 AWG | 1818 | 1616 | 0.0440.11 | 150.38 | 601.52 | 0.5761.46 | 119177 | 222330 | 7.14810.64 | 8.61312.82 | 6.917.53 | -- | 77 | 59862599 |
| 18 AWG18 AWG | 2525 | 1616 | 0.0440.11 | 150.38 | 601.52 | 0.6581.67 | 161240 | 289430 | 7.14810.64 | 8.61312.82 | 7.819.81 | -- | 66 | 59862699 |
| 16 AWG16 AWG | 22 | 2626 | 0.0590.15 | 150.38 | 451.14 | 0.3210.82 | 3451 | 6698 | 4.4876.68 | 5.4068.05 | 3.89.65 | -- | 1818 | 67708205 |
| 16 AWG16 AWG | 33 | 2626 | 0.0590.15 | 150.38 | 451.14 | 0.3310.84 | 4364 | 78116 | 4.4876.68 | 5.4068.05 | 3.99.91 | -- | 1818 | 58846599 |
| 16 AWG16 AWG | 44 | 2626 | 0.0590.15 | 150.38 | 451.14 | 0.3600.91 | 5379 | 93138 | 4.4876.68 | 5.4068.05 | 4.310.92 | -- | 1414 | 58846699 |
| 16 AWG16 AWG | 55 | 2626 | 0.0590.15 | 150.38 | 451.14 | 0.3910.99 | 6394 | 110164 | 4.4876.68 | 5.4068.05 | 4.611.68 | -- | 1414 | 58846799 |
| 16 AWG16 AWG | 77 | 2626 | 0.0590.15 | 150.38 | 451.14 | 0.4271.08 | 80119 | 135201 | 4.4876.68 | 5.4068.05 | 5.112.95 | -- | 1212 | 58846899 |
| 16 AWG16 AWG | 99 | 2626 | 0.0590.15 | 150.38 | 451.14 | 0.4911.25 | 100149 | 171254 | 4.4876.68 | 5.4068.05 | 5.814.73 | -- | 1212 | 63083699 |
| 16 AWG16 AWG | 1212 | 2626 | 0.0590.15 | 150.38 | 601.52 | 0.5621.43 | 128190 | 220327 | 4.4876.68 | 5.4068.05 | 6.717.02 | -- | 99 | 58846999 |
| 16 AWG16 AWG | 1818 | 2626 | 0.0590.15 | 150.38 | 601.52 | 0.6461.64 | 185275 | 303451 | 4.4876.68 | 5.4068.05 | 7.719.56 | -- | 99 | 59862799 |
| 16 AWG16 AWG | 2525 | 2626 | 0.0590.15 | 150.38 | 601.52 | 0.7461.89 | 248369 | 398592 | 4.4876.68 | 5.4068.05 | 8.922.61 | -- | 88 | 59862899 |
| 14 AWG14 AWG | 22 | 4141 | 0.0730.19 | 150.38 | 451.14 | 0.3490.89 | 4871 | 84125 | 2.8144.19 | 3.3915.05 | 4.110.41 | 2020 | 2525 | 67708399 |
| 14 AWG14 AWG | 33 | 4141 | 0.0730.19 | 150.38 | 451.14 | 0.3630.92 | 6292 | 102152 | 2.8144.19 | 3.3915.05 | 4.310.92 | 2020 | 2525 | 58847099 |
| 14 AWG14 AWG | 44 | 4141 | 0.0730.19 | 150.38 | 451.14 | 0.4021.02 | 76113 | 125186 | 2.8144.19 | 3.3915.05 | 4.812.19 | 1616 | 2020 | 58847105 |
| 14 AWG14 AWG | 55 | 4141 | 0.0730.19 | 150.38 | 451.14 | 0.4311.09 | 91135 | 144214 | 2.8144.19 | 3.3915.05 | 5.112.95 | 1616 | 2020 | 58847299 |
| 14 AWG14 AWG | 77 | 4141 | 0.0730.19 | 150.38 | 451.14 | 0.4661.18 | 119177 | 178265 | 2.8144.19 | 3.3915.05 | 5.513.97 | 1414 | 1717 | 58847399 |
| 14 AWG14 AWG | 1212 | 4141 | 0.0730.19 | 150.38 | 601.52 | 0.6231.58 | 192286 | 297442 | 2.8144.19 | 3.3915.05 | 7.418.80 | 1010 | 1212 | 59862902 |
| 14 AWG14 AWG | 1818 | 4141 | 0.0730.19 | 150.38 | 601.52 | 0.7201.83 | 277412 | 412613 | 2.8144.19 | 3.3915.05 | 8.621.84 | 1010 | 1212 | 59863099 |
| 14 AWG14 AWG | 2525 | 4141 | 0.0730.19 | 150.38 | 802.03 | 0.8752.22 | 384571 | 582866 | 2.8144.19 | 3.3915.05 | 10.526.67 | 99 | 1111 | 59863199 |
| 12 AWG12 AWG | 22 | 6565 | 0.0940.24 | 150.38 | 451.14 | 0.3870.98 | 70104 | 112167 | 1.7742.64 | 2.1373.18 | 4.611.68 | 2525 | 3030 | 67708499 |
| 12 AWG12 AWG | 33 | 6565 | 0.0940.24 | 150.38 | 451.14 | 0.4161.06 | 91135 | 142211 | 1.7742.64 | 2.1373.18 | 4.912.45 | 2525 | 3030 | 67719499 |
| 12 AWG12 AWG | 44 | 6565 | 0.0940.24 | 150.38 | 451.14 | 0.4501.14 | 114170 | 172256 | 1.7742.64 | 2.1373.18 | 5.413.72 | 2020 | 2424 | 58847499 |
| 12 AWG12 AWG | 55 | 6565 | 0.0940.24 | 150.38 | 451.14 | 0.4891.24 | 138205 | 207308 | 1.7742.64 | 2.1373.18 | 5.814.73 | 2020 | 2424 | 58847699 |
| 12 AWG12 AWG | 77 | 6565 | 0.0940.24 | 150.38 | 601.52 | 0.5551.41 | 181269 | 268399 | 1.7742.64 | 2.1373.18 | 6.616.76 | 1717 | 2121 | 58847799 |
| 10 AWG10 AWG | 22 | 105105 | 0.1170.30 | 200.51 | 601.52 | 0.4551.16 | 102152 | 159237 | 1.1111.65 | 1.3391.99 | 5.413.72 | 3535 | 4040 | 67708599 |
| 10 AWG10 AWG | 33 | 105105 | 0.1170.30 | 200.51 | 601.52 | 0.5441.38 | 136202 | 218324 | 1.1111.65 | 1.3391.99 | 6.516.51 | 3535 | 4040 | 67719699 |
| 10 AWG10 AWG | 44 | 105105 | 0.1170.30 | 200.51 | 601.52 | 0.5741.46 | 177263 | 268399 | 1.1111.65 | 1.3391.99 | 6.817.27 | 2828 | 3232 | 58847899 |
| 10 AWG10 AWG | 55 | 105105 | 0.1170.30 | 200.51 | 601.52 | 0.6081.54 | 212315 | 316470 | 1.1111.65 | 1.3391.99 | 7.218.29 | 2828 | 3232 | 58847999 |
| 10 AWG10 AWG | 77 | 105105 | 0.1170.30 | 200.51 | 601.52 | 0.6581.67 | 280417 | 394586 | 1.1111.65 | 1.3391.99 | 7.819.81 | 2424 | 2828 | 58848005 |
| 8 AWG8 AWG | 44 | 168168 | 0.1530.39 | 300.76 | 601.52 | 0.7421.88 | 292435 | 438652 | 0.7151.06 | 0.8611.28 | 8.922.61 | 4040 | 4444 | 64335499 |
| 6 AWG6 AWG | 44 | 259259 | 0.1980.50 | 300.76 | 601.52 | 0.8852.25 | 463689 | 668994 | 0.4500.67 | 0.5410.81 | 10.626.92 | 5252 | 6060 | 64335699 |
| 4 AWG4 AWG | 44 | 420420 | 0.2350.60 | 401.02 | 802.03 | 1.0572.68 | 6741003 | 9971484 | 0.2820.42 | 0.3400.51 | 12.632.00 | 6868 | 7676 | 64335899 |
| 2 AWG2 AWG | 44 | 651651 | 0.3020.77 | 401.02 | 802.03 | 1.2373.14 | 10601577 | 14332133 | 0.1790.27 | 0.2160.32 | 14.837.59 | 9292 | 104104 | 64336099 |
Números de parte en esta familia (44)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Color del Conductor | Empaque | |
|---|---|---|---|---|---|
| 18 AWG · 2 conductores (1) | |||||
| 67708199 | 18-16 2 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE BLINDADO TIPO TC/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 18-16 2/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 18 AWG 2C 16 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 18 AWG · 3 conductores (1) | |||||
| 58846099 | 18-16 3 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 18-16 3/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 18 AWG 3C 16S | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 18 AWG · 4 conductores (1) | |||||
| 58846199 | 18-16 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 18-16 4/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 18 AWG 4C 16S | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 18 AWG · 5 conductores (1) | |||||
| 58846299 | 18-16 5 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 18-16 5/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 18 AWG 5C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE CORTE A LA MEDIDA | |
| 18 AWG · 7 conductores (1) | |||||
| 58846399 | 18-16 7 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 18-16 7/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 18 AWG 7C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE CORTE A LA MEDIDA | |
| 18 AWG · 9 conductores (1) | |||||
| 63083799 | 18-16 9 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 18-16 9/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 18 AWG 9C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO | CARRETE CORTE A LA MEDIDA | |
| 18 AWG · 12 conductores (1) | |||||
| 58846499 | 18-16 12 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 18-16 12/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 18 AWG 12C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE | CARRETE CORTE A LA MEDIDA | |
| 18 AWG · 18 conductores (1) | |||||
| 59862599 | 18-16 18 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 18-16 18/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 18 AWG 18C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE | CARRETE CORTE A LA MEDIDA | |
| 18 AWG · 25 conductores (1) | |||||
| 59862699 | 18-16 25 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 18-16 25/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 18 AWG 25C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE CORTE A LA MEDIDA | |
| 16 AWG · 2 conductores (2) | |||||
| 67708299 | 16-26 2 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE BLINDADO TIPO TC/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 16-26 2/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 16 AWG 2C 26 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 67708205 | 16-26 2 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE BLINDADO TIPO TC/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRIS 5000 FT 16-26 2/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY 5000 FT | 16 AWG 2C 26 STR | 1-UNO/2-DOS | CARRETE DE 5000 FT | |
| 16 AWG · 3 conductores (1) | |||||
| 58846599 | 16-26 3 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 16-26 3/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 16 AWG 3C 26S | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 16 AWG · 4 conductores (1) | |||||
| 58846699 | 16-26 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 16-26 4/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 16 AWG 4C 26 STR | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 16 AWG · 5 conductores (1) | |||||
| 58846799 | 16-26 5 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 16-26 5/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 16 AWG 5C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE CORTE A LA MEDIDA | |
| 16 AWG · 7 conductores (1) | |||||
| 58846899 | 16-26 7 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 16-26 7/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 16 AWG 7C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE CORTE A LA MEDIDA | |
| 16 AWG · 9 conductores (1) | |||||
| 63083699 | 16-26 9 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 16-26 9/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 16 AWG 9C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO | CARRETE CORTE A LA MEDIDA | |
| 16 AWG · 12 conductores (1) | |||||
| 58846999 | 16-26 12 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 16-26 12/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 16 AWG 12C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE | CARRETE CORTE A LA MEDIDA | |
| 16 AWG · 18 conductores (1) | |||||
| 59862799 | 16-26 18 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 16-26 18/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 16 AWG 18C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE | CARRETE CORTE A LA MEDIDA | |
| 16 AWG · 25 conductores (1) | |||||
| 59862899 | 16-26 25 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 16-26 25/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 16 AWG 25C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE CORTE A LA MEDIDA | |
| 14 AWG · 2 conductores (1) | |||||
| 67708399 | 14-41 2 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE BLINDADO TIPO TC/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 14-41 2/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 14 AWG 2C 41 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 14 AWG · 3 conductores (1) | |||||
| 58847099 | 14-41 3 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 14-41 3/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 14 AWG 3C 41 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 14 AWG · 4 conductores (2) | |||||
| 58847199 | 14-41 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 14-41 4/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 14 AWG 4C 41 STR | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 58847105 | 14-41 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRIS 5000 FT 14-41 4/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY 5000 FT | 14 AWG 4C 41 STR | 1-UNO/2-DOS/3-TRES | CARRETE DE 5000 FT | |
| 14 AWG · 5 conductores (1) | |||||
| 58847299 | 14-41 5 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 14-41 5/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 14 AWG 5C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE CORTE A LA MEDIDA | |
| 14 AWG · 7 conductores (1) | |||||
| 58847399 | 14-41 7 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 14-41 7/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 14 AWG 7C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE CORTE A LA MEDIDA | |
| 14 AWG · 12 conductores (2) | |||||
| 59862999 | 14-41 12 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 14-41 12/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 14 AWG 12C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE | CARRETE CORTE A LA MEDIDA | |
| 59862902 | 14-41 12 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRIS 1000 FT 14-41 12/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY 1000 FT | 14 AWG 12C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE | CARRETE DE 1000 FT | |
| 14 AWG · 18 conductores (1) | |||||
| 59863099 | 14-41 18 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 14-41 18/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 14 AWG 18C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE | CARRETE CORTE A LA MEDIDA | |
| 14 AWG · 25 conductores (1) | |||||
| 59863199 | 14-41 25 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 14-41 25/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 14 AWG 25C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE CORTE A LA MEDIDA | |
| 12 AWG · 2 conductores (1) | |||||
| 67708499 | 12-65 2 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE BLINDADO TIPO TC/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 12-65 2/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 12 AWG 2C 65 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 12 AWG · 3 conductores (1) | |||||
| 67719499 | 12-65 3 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 12-65 3/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 12 AWG 3C 65 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 12 AWG · 4 conductores (1) | |||||
| 58847499 | 12-65 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 12-65 4/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 12 AWG 4C 65S | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 12 AWG · 5 conductores (1) | |||||
| 58847699 | 12-65 5 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 12-65 5/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 12 AWG 5C 65S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE CORTE A LA MEDIDA | |
| 12 AWG · 7 conductores (1) | |||||
| 58847799 | 12-65 7 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 12-65 7/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING CSA AWM I/II A/B GRAY | 12 AWG 7C 65S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE CORTE A LA MEDIDA | |
| 10 AWG · 2 conductores (1) | |||||
| 67708599 | 10-105 2 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE BLINDADA TIPO TC/WTTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 10-105 2/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC/WTTC/MTW FLEXING CSA AWM I/II A/B GRAY | 10 AWG 2C 105 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 10 AWG · 3 conductores (1) | |||||
| 67719699 | 10-105 3/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/MTW FLEXING CSA AWM I/II A/B GRIS 10-105 3/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/MTW FLEXING CSA AWM I/II A/B GRAY | 10 AWG 3C 105 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 10 AWG · 4 conductores (1) | |||||
| 58847899 | 10-105 4 CONDUCTORES CU PVC/NILÓN COND/TPE IDENTIFICACIÓN DE FASE BLINDADO TIPO TC-ER/WTTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 10-105 4/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/MTW FLEXING CSA AWM I/II A/B GRAY | 10 AWG 4C 105S | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 10 AWG · 5 conductores (1) | |||||
| 58847999 | 10-105 5 CONDUCTORES CU PVC/NILÓN COND/TPE IDENTIFICACIÓN DE FASE BLINDADO TIPO TC-ER/WTTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 10-105 5/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/MTW FLEXING CSA AWM I/II A/B GRAY | 10 AWG 5C 105S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE CORTE A LA MEDIDA | |
| 10 AWG · 7 conductores (2) | |||||
| 58848099 | 10-105 7 CONDUCTORES CU PVC/NILÓN COND/TPE IDENTIFICACIÓN DE FASE BLINDADO TIPO TC-ER/WTTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 10-105 7/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/MTW FLEXING CSA AWM I/II A/B GRAY | 10 AWG 7C 105S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE CORTE A LA MEDIDA | |
| 58848005 | 10-105 7 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASES BLINDADO TIPO TC-ER/WTTC/MTW FLEXIÓN CSA AWM I/II A/B GRIS 5000 FT 10-105 7/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/MTW FLEXING CSA AWM I/II A/B GRAY 5000 FT | 10 AWG 7C 105S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE DE 5000 FT | |
| 8 AWG · 4 conductores (1) | |||||
| 64335499 | 8-168 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE BLINDADO TIPO TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 CSA AWM I/II A/B 600V GRIS 8-168 4/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 CSA AWM I/II A/B 600V GRAY | 8 AWG 4C 168S | 1-UNO/2-DOS/3-TRES/VERDE-BLANCO RAYADO | CARRETE CORTE A LA MEDIDA | |
| 6 AWG · 4 conductores (1) | |||||
| 64335699 | 6-259 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE BLINDADO TIPO TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 CSA AWM I/II A/B 600V GRIS 6-259 4/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 CSA AWM I/II A/B 600V GRAY | 6 AWG 4C 259S | 1-UNO/2-DOS/3-TRES/VERDE-BLANCO RAYADO | CARRETE CORTE A LA MEDIDA | |
| 4 AWG · 4 conductores (1) | |||||
| 64335899 | 4-420 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE BLINDADO TIPO TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 CSA AWM I/II A/B 600V GRIS 4-420 4/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 CSA AWM I/II A/B 600V GRAY | 4 AWG 4C 420S | 1-UNO/2-DOS/3-TRES/VERDE-BLANCO RAYADO/- | CARRETE CORTE A LA MEDIDA | |
| 2 AWG · 4 conductores (1) | |||||
| 64336099 | 2-651 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE BLINDADO TIPO TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 CSA AWM I/II A/B 600V GRIS 2-651 4/C CU PVC/NYLON CDRS/TPE PHASE ID SHIELDED TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 CSA AWM I/II A/B 600V GRAY | 2 AWG 4C 651S | 1-UNO/2-DOS/3-TRES/VERDE-BLANCO RAYADO/- | CARRETE CORTE A LA MEDIDA | |
Aplicación y características
Southwire’s shielded Machine Flex® tray control cables 600/1000 Volt conform to NFPA 79 and are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 75°C in wet locations and 90°C in dry locations, 130°C for emergency overload, and 150°C for short circuit conditions. For uses in Class I, II, Division 2 hazardous locations per NEC® Article 501 and 502. Constructions with 3 or more conductors are listed for exposed runs (TC-ER) per NEC® 336.10. Southwire’s shielded flexible machine tray cable is ideal for use in for use in CNC machines, grinding, cutting, metal forming, buffing, bottling equipment, conveyors, processing & packaging equipment, assembly lines, control panels, food and bever- age, oil sands, plant expansion, wind energy and data centers. Multiple approvals for multiple applications. Cable is rated for -40°C cold impact. Two conductor cables contain no green/yellow ground.
Normas y referencias
- ASTM B172 Standard Specification for Rope-Lay-Stranded Copper Conductors Having Bunch-Stranded Copper Conductors
- ASTM B174 Standard Specification for Bunch-Stranded Copper
- UL 13 Power-Limited Circuit Cables
- UL 66 Fixture Wire
- UL 83 Thermoplastic Insulated Wires and Cables
- UL 758 Standard for Appliance Wiring Material Style 2463 (80C, 600V)
- UL 758 AWM Style 2587
- UL 1063 Machine Tool Wiring (MTW)
- UL 1277 TC-ER
- UL 1690 Data Processing Cable (DP-1)
- UL 2250 Instrumentation Tray Cable
- UL 2277 Type WTTC
- CSA C22.2 No. 210 Appliance wiring material products I/II A/B (Sizes 16 - 8AWG)
- CSA C22.2 No.230 Tray Cables - Rated TC
- CSA C22.2 No. 239 Control and instrumentation cables
- ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
- Exceeds Ecolab PM-40-1 Material Resistance Test With 30-day Exposure, UL Verified V747862
- CE/RoHS-2 – The CE Marking has been applied solely to express the conformance to the material restrictions identified in the RoHS-2 (2011/65/EU) Directive
- NFPA 79 Electrical Standard for Industrial Machinery
- Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661
