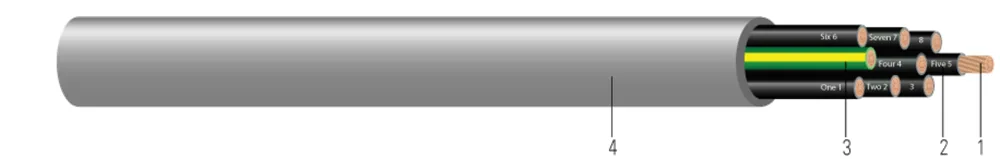

Southwire® Machine Flex® CU 600/1000V Aislamiento THHN Chaqueta TPE Gris. Libre de silicona
- Núm. Southwire
- SPEC45041
Cable de control para charola tipo máquina (Machine Tray) Tipo TC-ER de 600/1000 voltios, conductores de cobre, aislamiento de policloruro de vinilo (PVC) con capa de nylon, chaqueta de elastómero termoplástico, 90 °C en seco, 75 °C en mojado, -40 °C impacto en frío, identificación por Método 4. Libre de silicona.
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (93) ↓Tamaños y construcciones disponibles
| Tamaño Cond. | Número de Conductor | Hebras del Conductor | Diámetro Sobre Conductor (in)(cm) | Espesor del Aislamiento (mils)(mm) | Espesor de Cubierta (mils)(mm) | D.E. Aprox. (inches)(cm) | Peso de Cobre (lbs/1000')(kgs/km) | Peso Aprox. (lbs/1000')(kgs/km) | Resistencia en CC a 25C (ohms/1000')(ohms/km) | Resistencia en CA a 75C (ohms/1000')(ohms/km) | Radio de Curvatura Mín. (in)(cm) | Amperaje permitido Canalización 75C | Amperaje permitido Canalización 90C | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18 AWG18 AWG | 22 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.2660.68 | 1015 | 3552 | 8.61312.82 | 1.02.54 | -- | 1414 | 67707199 | |
| 18 AWG18 AWG | 33 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.2810.71 | 1522 | 4263 | 7.14810.64 | 8.61312.82 | 1.12.79 | -- | 1414 | 58151101 |
| 18 AWG18 AWG | 44 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.3060.78 | 2030 | 5480 | 7.14810.64 | 8.61312.82 | 1.23.05 | -- | 1111 | 58264205 |
| 18 AWG18 AWG | 55 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.3320.84 | 2537 | 6394 | 7.14810.64 | 8.61312.82 | 1.33.30 | -- | 1111 | 58264405 |
| 18 AWG18 AWG | 66 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.3480.88 | 3146 | 84125 | 7.14810.64 | 8.61312.82 | 1.43.56 | -- | 1111 | 13926599 |
| 18 AWG18 AWG | 77 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.3580.91 | 3552 | 79118 | 7.14810.64 | 8.61312.82 | 1.43.56 | -- | 99 | 58151305 |
| 18 AWG18 AWG | 99 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.4111.04 | 4567 | 101150 | 7.14810.64 | 8.61312.82 | 1.64.06 | -- | 99 | 58264505 |
| 18 AWG18 AWG | 1212 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.4561.16 | 6089 | 128190 | 7.14810.64 | 8.61312.82 | 1.84.57 | -- | 77 | 58264605 |
| 18 AWG18 AWG | 1818 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.5541.41 | 90134 | 225335 | 7.14810.64 | 8.61312.82 | 2.25.59 | -- | 77 | 58264705 |
| 18 AWG18 AWG | 1919 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.5601.42 | 95141 | 200298 | 7.14810.64 | 8.61312.82 | 2.25.59 | -- | 77 | 64626299 |
| 18 AWG18 AWG | 2525 | 1616 | 0.0440.11 | 200.51 | 601.52 | 0.6351.61 | 125186 | 253377 | 7.14810.64 | 8.61312.82 | 2.56.35 | -- | 66 | 58151405 |
| 16 AWG16 AWG | 22 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.2940.75 | 1624 | 4567 | 4.4876.68 | 5.4068.05 | 1.12.79 | -- | 1818 | 67707299 |
| 16 AWG16 AWG | 33 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.3110.79 | 2436 | 5886 | 4.4876.68 | 5.4068.05 | 1.23.05 | -- | 1818 | 58151505 |
| 16 AWG16 AWG | 44 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.3390.86 | 3248 | 71106 | 4.4876.68 | 5.4068.05 | 1.33.30 | -- | 1414 | 58264802 |
| 16 AWG16 AWG | 55 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.3700.94 | 4060 | 86128 | 4.4876.68 | 5.4068.05 | 1.43.56 | -- | 1414 | 58264902 |
| 16 AWG16 AWG | 66 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.4001.02 | 4770 | 116173 | 4.4876.68 | 5.4068.05 | 1.64.06 | -- | 1414 | 13920399 |
| 16 AWG16 AWG | 77 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.4001.02 | 5683 | 107159 | 4.4876.68 | 5.4068.05 | 1.64.06 | -- | 1212 | 58151605 |
| 16 AWG16 AWG | 88 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.4311.09 | 72107 | 142211 | 4.4876.68 | 5.4068.05 | 1.74.32 | -- | 1212 | 13920499 |
| 16 AWG16 AWG | 99 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.4621.17 | 72107 | 137204 | 4.4876.68 | 5.4068.05 | 1.84.57 | -- | 1212 | 58265105 |
| 16 AWG16 AWG | 1010 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.5001.27 | 81121 | 186277 | 4.4876.68 | 5.4068.05 | 2.05.08 | -- | 99 | 13920599 |
| 16 AWG16 AWG | 1212 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.5091.29 | 97144 | 174259 | 4.4876.68 | 5.4068.05 | 2.05.08 | -- | 99 | 58265202 |
| 16 AWG16 AWG | 1818 | 2626 | 0.0590.15 | 200.51 | 651.65 | 0.6231.58 | 145216 | 262390 | 4.4876.68 | 5.4068.05 | 2.46.10 | -- | 99 | 58265302 |
| 16 AWG16 AWG | 1919 | 2626 | 0.0590.15 | 200.51 | 651.65 | 0.6301.60 | 154229 | 272405 | 4.4876.68 | 5.4068.05 | 2.56.35 | -- | 99 | 64626399 |
| 16 AWG16 AWG | 2525 | 2626 | 0.0590.15 | 200.51 | 651.65 | 0.7171.82 | 202301 | 345513 | 4.4876.68 | 5.4068.05 | 2.87.11 | -- | 88 | 58151702 |
| 16 AWG16 AWG | 4141 | 2626 | 0.0590.15 | 200.51 | 902.29 | 0.9482.41 | 332494 | 590878 | 4.4876.68 | 5.4068.05 | 3.89.65 | -- | 66 | 58151805 |
| 14 AWG14 AWG | 22 | 4141 | 0.0730.19 | 200.51 | 501.27 | 0.3240.82 | 2537 | 5886 | 2.8144.19 | 3.3915.05 | 1.23.05 | 2020 | 2525 | 67707399 |
| 14 AWG14 AWG | 33 | 4141 | 0.0730.19 | 200.51 | 501.27 | 0.3420.87 | 3857 | 77115 | 2.8144.19 | 3.3915.05 | 1.33.30 | 2020 | 2525 | 58151905 |
| 14 AWG14 AWG | 44 | 4141 | 0.0730.19 | 200.51 | 501.27 | 0.3750.95 | 5176 | 96143 | 2.8144.19 | 3.3915.05 | 1.53.81 | 1616 | 2020 | 58265405 |
| 14 AWG14 AWG | 55 | 4141 | 0.0730.19 | 200.51 | 501.27 | 0.4111.04 | 6394 | 114170 | 2.8144.19 | 3.3915.05 | 1.64.06 | 1616 | 2020 | 58265502 |
| 14 AWG14 AWG | 77 | 4141 | 0.0730.19 | 200.51 | 501.27 | 0.4451.13 | 89132 | 149222 | 2.8144.19 | 3.3915.05 | 1.74.32 | 1414 | 1717 | 58152199 |
| 14 AWG14 AWG | 88 | 4141 | 0.0730.19 | 200.51 | 501.27 | 0.4951.26 | 102152 | 175260 | 2.8144.19 | 3.3915.05 | 1.94.83 | 1414 | 1717 | 67379599 |
| 14 AWG14 AWG | 99 | 4141 | 0.0730.19 | 200.51 | 501.27 | 0.5161.31 | 115171 | 188280 | 2.8144.19 | 3.3915.05 | 2.05.08 | 1414 | 1717 | 58265699 |
| 14 AWG14 AWG | 1212 | 4141 | 0.0730.19 | 200.51 | 651.65 | 0.6081.54 | 153228 | 257382 | 2.8144.19 | 3.3915.05 | 2.46.10 | 1010 | 1212 | 58265702 |
| 14 AWG14 AWG | 1818 | 4141 | 0.0730.19 | 200.51 | 651.65 | 0.6971.77 | 230342 | 363540 | 2.8144.19 | 3.3915.05 | 2.76.86 | 1010 | 1212 | 58265805 |
| 14 AWG14 AWG | 2525 | 4141 | 0.0730.19 | 200.51 | 651.65 | 0.8062.05 | 318473 | 486723 | 2.8144.19 | 3.3915.05 | 3.28.13 | 99 | 1111 | 58152299 |
| 12 AWG12 AWG | 22 | 6565 | 0.0940.24 | 200.51 | 501.27 | 0.3620.92 | 4060 | 80119 | 1.7742.64 | 2.1373.18 | 1.43.56 | 2525 | 3030 | 67707499 |
| 12 AWG12 AWG | 33 | 6565 | 0.0940.24 | 200.51 | 501.27 | 0.3890.99 | 6089 | 108161 | 1.7742.64 | 2.1373.18 | 1.53.81 | 2525 | 3030 | 67718899 |
| 12 AWG12 AWG | 44 | 6565 | 0.0940.24 | 200.51 | 501.27 | 0.4201.07 | 81121 | 136202 | 1.7742.64 | 2.1373.18 | 1.64.06 | 2020 | 2424 | 58265902 |
| 12 AWG12 AWG | 55 | 6565 | 0.0940.24 | 200.51 | 501.27 | 0.5021.28 | 101150 | 170253 | 1.7742.64 | 2.1373.18 | 2.05.08 | 2020 | 2424 | 58266099 |
| 12 AWG12 AWG | 66 | 6565 | 0.0940.24 | 200.51 | 501.27 | 0.5021.28 | 122182 | 194289 | 1.7742.64 | 2.1373.18 | 2.05.08 | 2020 | 2424 | 13926299 |
| 12 AWG12 AWG | 77 | 6565 | 0.0940.24 | 200.51 | 501.27 | 0.5021.28 | 141210 | 219326 | 1.7742.64 | 2.1373.18 | 2.05.08 | 1717 | 2121 | 58266199 |
| 12 AWG12 AWG | 88 | 6565 | 0.0940.24 | 200.51 | 651.65 | 0.5741.46 | 162241 | 260387 | 1.7742.64 | 2.1373.18 | 2.35.84 | 1717 | 2121 | 13926399 |
| 12 AWG12 AWG | 99 | 6565 | 0.0940.24 | 200.51 | 651.65 | 0.6151.56 | 182271 | 291433 | 1.7742.64 | 2.1373.18 | 2.56.35 | 1717 | 2121 | 13926499 |
| 10 AWG10 AWG | 22 | 105105 | 0.1170.30 | 250.64 | 501.27 | 0.4301.09 | 6495 | 119177 | 1.1111.65 | 1.3391.99 | 1.74.32 | 3535 | 4040 | 67707599 |
| 10 AWG10 AWG | 33 | 105105 | 0.1170.30 | 250.64 | 501.27 | 0.4621.17 | 97144 | 159237 | 1.1111.65 | 1.3391.99 | 1.84.57 | 3535 | 4040 | 67718999 |
| 10 AWG10 AWG | 44 | 105105 | 0.1170.30 | 250.64 | 501.27 | 0.5021.28 | 129192 | 201299 | 1.1111.65 | 1.3391.99 | 2.05.08 | 2828 | 3232 | 58152302 |
| 10 AWG10 AWG | 55 | 105105 | 0.1170.30 | 250.64 | 501.27 | 0.5791.47 | 161240 | 291433 | 1.1111.65 | 1.3391.99 | 2.35.84 | 2828 | 3232 | 58266299 |
| 10 AWG10 AWG | 77 | 105105 | 0.1170.30 | 250.64 | 651.65 | 0.6281.60 | 226336 | 336500 | 1.1111.65 | 1.3391.99 | 2.56.35 | 2424 | 2828 | 58266399 |
| 8 AWG8 AWG | 33 | 168168 | 0.1530.39 | 350.89 | 651.65 | 0.6261.59 | 157234 | 314467 | 0.7151.06 | 0.8611.28 | 2.56.35 | 5050 | 5555 | 67719099 |
| 8 AWG8 AWG | 44 | 168168 | 0.1530.39 | 350.89 | 651.65 | 0.6801.73 | 210313 | 361537 | 0.7151.06 | 0.8611.28 | 2.76.86 | 4040 | 4444 | 64336799 |
| 8 AWG8 AWG | 55 | 168168 | 0.1530.39 | 350.89 | 701.78 | 0.7661.95 | 263391 | 450670 | 0.7151.06 | 0.8611.28 | 3.07.62 | 4040 | 4444 | 67379799 |
| 6 AWG6 AWG | 33 | 259259 | 0.1980.50 | 350.89 | 701.78 | 0.7251.84 | 268399 | 440655 | 0.4500.67 | 0.5410.81 | 2.97.37 | 6565 | 7575 | 67719199 |
| 6 AWG6 AWG | 44 | 259259 | 0.1980.50 | 350.89 | 701.78 | 0.8172.08 | 358533 | 562836 | 0.4500.67 | 0.5410.81 | 3.28.13 | 5252 | 6060 | 64336999 |
| 6 AWG6 AWG | 55 | 259259 | 0.1980.50 | 350.89 | 802.03 | 0.9022.29 | 448667 | 671999 | 0.4500.67 | 0.5410.81 | 3.69.14 | 5252 | 6060 | 45864199 |
| 4 AWG4 AWG | 33 | 420420 | 0.2350.60 | 501.27 | 802.03 | 0.8892.26 | 399594 | 649966 | 0.2820.42 | 0.3400.51 | 3.58.89 | 8585 | 9595 | 67719299 |
| 4 AWG4 AWG | 44 | 420420 | 0.2350.60 | 501.27 | 802.03 | 0.9692.46 | 532792 | 8291234 | 0.2820.42 | 0.3400.51 | 3.89.65 | 6868 | 7676 | 64337199 |
| 2 AWG2 AWG | 33 | 651651 | 0.3020.77 | 501.27 | 1002.54 | 1.0702.72 | 637948 | 9881470 | 0.1790.27 | 0.2160.32 | 5.313.46 | 115115 | 130130 | 67719399 |
| 2 AWG2 AWG | 44 | 651651 | 0.3020.77 | 501.27 | 1002.54 | 1.1963.04 | 8491263 | 12621878 | 0.1790.27 | 0.2160.32 | 5.914.99 | 9292 | 104104 | 64337399 |
| 2 AWG2 AWG | 55 | 651651 | 0.3020.77 | 501.27 | 1002.54 | 1.2863.27 | 10621580 | 15642327 | 0.1790.27 | 0.2160.32 | 6.416.26 | 9292 | 104104 | 45877899 |
Números de parte en esta familia (93)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Color del Conductor | Empaque | |
|---|---|---|---|---|---|
| 18 AWG · 2 conductores (1) | |||||
| 67707199 | 18-16 2/C CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 18-16 2/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC/WTTC/ITC/PLTC/MTW FLEXING GRAY | 18 AWG 2C 16 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 18 AWG · 3 conductores (4) | |||||
| 58151199 | 18-16 3 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 18-16 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 18 AWG 3C 16S | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 58151101 | 18-16 3 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 500 FT 18-16 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 500 FT | 18 AWG 3C 16S | 1-UNO/2-DOS | CARRETE DE 500 FT | |
| 58151102 | 18-16 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 1030 FT 18-16 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 1030 FT | 18 AWG 3C 16S | 1-UNO/2-DOS | CARRETE DE 1030 FT | |
| 58151105 | 18-16 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 5000 FT 18-16 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 18 AWG 3C 16S | 1-UNO/2-DOS | CARRETE DE 5000 FT | |
| 18 AWG · 4 conductores (2) | |||||
| 58264299 | 18-16 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 18-16 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 18 AWG 4C 16S | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 58264205 | 18-16 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 5000 FT 18-16 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 18 AWG 4C 16S | 1-UNO/2-DOS/3-TRES | CARRETE DE 5000 FT | |
| 18 AWG · 5 conductores (2) | |||||
| 58264499 | 18-16 5 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 18-16 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 18 AWG 5C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE CORTE A LA MEDIDA | |
| 58264405 | 18-16 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 5000 FT 18-16 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 18 AWG 5C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE DE 5000 FT | |
| 18 AWG · 6 conductores (1) | |||||
| 13926599 | 18-16 6/C CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIBLE GRIS 18-16 6/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 18 AWG 6C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO | CARRETE CORTE A LA MEDIDA | |
| 18 AWG · 7 conductores (2) | |||||
| 58151399 | 18-16 7 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 18-16 7/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 18 AWG 7C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE CORTE A LA MEDIDA | |
| 58151305 | 18-16 7/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 5000 FT 18-16 7/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 18 AWG 7C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE DE 5000 FT | |
| 18 AWG · 9 conductores (2) | |||||
| 58264599 | 18-16 9 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 18-16 9/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 18 AWG 9C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO | CARRETE CORTE A LA MEDIDA | |
| 58264505 | 18-16 9/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 5000 FT 18-16 9/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 18 AWG 9C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO | CARRETE DE 5000 FT | |
| 18 AWG · 12 conductores (2) | |||||
| 58264699 | 18-16 12 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 18-16 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 18 AWG 12C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE | CARRETE CORTE A LA MEDIDA | |
| 58264605 | 18-16 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 5000 FT 18-16 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 18 AWG 12C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE | CARRETE DE 5000 FT | |
| 18 AWG · 18 conductores (2) | |||||
| 58264799 | 18-16 18 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 18-16 18/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 18 AWG 18C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE | CARRETE CORTE A LA MEDIDA | |
| 58264705 | 18-16 18/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 5000 FT 18-16 18/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 18 AWG 18C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE | CARRETE DE 5000 FT | |
| 18 AWG · 19 conductores (1) | |||||
| 64626299 | 18-16 19 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 18-16 19/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 18 AWG 19C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO | CARRETE CORTE A LA MEDIDA | |
| 18 AWG · 25 conductores (2) | |||||
| 58151499 | 18-16 25 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 18-16 25/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 18 AWG 25C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE CORTE A LA MEDIDA | |
| 58151405 | 18-16 25/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 5000 FT 18-16 25/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 18 AWG 25C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE DE 5000 FT | |
| 16 AWG · 2 conductores (1) | |||||
| 67707299 | 16-26 2/C CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 16-26 2/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC/WTTC/ITC/PLTC/MTW FLEXING GRAY | 16 AWG 2C 26 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 16 AWG · 3 conductores (2) | |||||
| 58151599 | 16-26 3 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 16-26 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 16 AWG 3C 26S | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 58151505 | 16-26 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 5000 FT 16-26 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 16 AWG 3C 26S | 1-UNO/2-DOS | CARRETE DE 5000 FT | |
| 16 AWG · 4 conductores (3) | |||||
| 58264899 | 16-26 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 16-26 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 16 AWG 4C 26 STR | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 58264802 | 16-26 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 1030 FT 16-26 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 1030 FT | 16 AWG 4C 26 STR | 1-UNO/2-DOS/3-TRES | CARRETE DE 1030 FT | |
| 58264805 | 16-26 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 5000 FT 16-26 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 16 AWG 4C 26 STR | 1-UNO/2-DOS/3-TRES | CARRETE DE 5000 FT | |
| 16 AWG · 5 conductores (3) | |||||
| 58264999 | 16-26 5 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 16-26 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 16 AWG 5C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE CORTE A LA MEDIDA | |
| 58264902 | 16-26 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 1030 FT 16-26 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 1030 FT | 16 AWG 5C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE DE 1030 FT | |
| 58264905 | 16-26 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 5000 FT 16-26 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 16 AWG 5C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE DE 5000 FT | |
| 16 AWG · 6 conductores (1) | |||||
| 13920399 | 16-26 6/C CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIBLE GRIS 16-26 6/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 16 AWG 6C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO | CARRETE CORTE A LA MEDIDA | |
| 16 AWG · 7 conductores (2) | |||||
| 58151699 | 16-26 7 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 16-26 7/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 16 AWG 7C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE CORTE A LA MEDIDA | |
| 58151605 | 16-26 7/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 5000 FT 16-26 7/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 16 AWG 7C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE DE 5000 FT | |
| 16 AWG · 8 conductores (1) | |||||
| 13920499 | 16-26 8/C CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIBLE GRIS 16-26 8/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 16 AWG 8C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE | CARRETE CORTE A LA MEDIDA | |
| 16 AWG · 9 conductores (2) | |||||
| 58265199 | 16-26 9 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 16-26 9/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 16 AWG 9C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO | CARRETE CORTE A LA MEDIDA | |
| 58265105 | 16-26 9/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 5000 FT 16-26 9/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 16 AWG 9C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO | CARRETE DE 5000 FT | |
| 16 AWG · 10 conductores (1) | |||||
| 13920599 | 16-26 10 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 16-26 10/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 16 AWG 10C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE | CARRETE CORTE A LA MEDIDA | |
| 16 AWG · 12 conductores (3) | |||||
| 58265299 | 16-26 12 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 16-26 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 16 AWG 12C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE | CARRETE CORTE A LA MEDIDA | |
| 58265202 | 16-26 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 1030 FT 16-26 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 1030 FT | 16 AWG 12C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE | CARRETE DE 1030 FT | |
| 58265205 | 16-26 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 5000 FT 16-26 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 16 AWG 12C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE | CARRETE DE 5000 FT | |
| 16 AWG · 18 conductores (3) | |||||
| 58265399 | 16-26 18 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 16-26 18/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 16 AWG 18C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE | CARRETE CORTE A LA MEDIDA | |
| 58265302 | 16-26 18/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 1030 FT 16-26 18/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 1030 FT | 16 AWG 18C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE | CARRETE DE 1030 FT | |
| 58265305 | 16-26 18/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 5000 FT 16-26 18/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 16 AWG 18C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE | CARRETE DE 5000 FT | |
| 16 AWG · 19 conductores (1) | |||||
| 64626399 | 16-26 19 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 16-26 19/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 16 AWG 19C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO | CARRETE CORTE A LA MEDIDA | |
| 16 AWG · 25 conductores (3) | |||||
| 58151799 | 16-26 25 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 16-26 25/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 16 AWG 25C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE CORTE A LA MEDIDA | |
| 58151702 | 16-26 25/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 2500 FT 16-26 25/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 2500 FT | 16 AWG 25C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE DE 2500 FT | |
| 58151705 | 16-26 25/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 5000 FT 16-26 25/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 16 AWG 25C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE DE 5000 FT | |
| 16 AWG · 41 conductores (2) | |||||
| 58151899 | 16-26 41/C CU PVCN/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 16-26 41/C CU PVCN/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 16 AWG 41C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE CORTE A LA MEDIDA | |
| 58151805 | 16-26 41/C CU PVCN/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIBLE GRIS 5000 FT 16-26 41/C CU PVCN/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 16 AWG 41C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE DE 5000 FT | |
| 14 AWG · 2 conductores (1) | |||||
| 67707399 | 14-41 2/C CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 14-41 2/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC/WTTC/ITC/PLTC/MTW FLEXING GRAY | 14 AWG 2C 41 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 14 AWG · 3 conductores (2) | |||||
| 58151999 | 14-41 3 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 14-41 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 14 AWG 3C 41 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 58151905 | 14-41 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 5000 FT 14-41 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 14 AWG 3C 41 STR | 1-UNO/2-DOS | CARRETE DE 5000 FT | |
| 14 AWG · 4 conductores (2) | |||||
| 58265499 | 14-41 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 14-41 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 14 AWG 4C 41 STR | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 58265405 | 14-41 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 5000 FT 14-41 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 14 AWG 4C 41 STR | 1-UNO/2-DOS/3-TRES | CARRETE DE 5000 FT | |
| 14 AWG · 5 conductores (3) | |||||
| 58265599 | 14-41 5 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 14-41 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 14 AWG 5C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE CORTE A LA MEDIDA | |
| 58265502 | 14-41 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 1030 FT 14-41 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 1030 FT | 14 AWG 5C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE DE 1030 FT | |
| 58265505 | 14-41 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 5000 FT 14-41 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 14 AWG 5C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE DE 5000 FT | |
| 14 AWG · 7 conductores (1) | |||||
| 58152199 | 14-41 7 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 14-41 7/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 14 AWG 7C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE CORTE A LA MEDIDA | |
| 14 AWG · 8 conductores (1) | |||||
| 67379599 | 14-41 8 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 14-41 8/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 14 AWG 8C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE | CARRETE CORTE A LA MEDIDA | |
| 14 AWG · 9 conductores (1) | |||||
| 58265699 | 14-41 9 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 14-41 9/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 14 AWG 9C 41S | LAYUP: (F + 1) + 8 | CARRETE CORTE A LA MEDIDA | |
| 14 AWG · 12 conductores (3) | |||||
| 58265799 | 14-41 12 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 0 FT 14-41 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 0 FT | 14 AWG 12C 41S | LAYUP: (0 + 3 + F) + 9 | CARRETE CORTE A LA MEDIDA | |
| 58265702 | 14-41 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 1030 FT 14-41 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 1030 FT | 14 AWG 12C 41S | LAYUP: (0 + 3 + F) + 9 | CARRETE DE 1030 FT | |
| 58265705 | 14-41 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 5000 FT 14-41 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 14 AWG 12C 41S | LAYUP: (0 + 3 + F) + 9 | CARRETE DE 5000 FT | |
| 14 AWG · 18 conductores (2) | |||||
| 58265899 | 14-41 18 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 14-41 18/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 14 AWG 18C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE | CARRETE CORTE A LA MEDIDA | |
| 58265805 | 14-41 18/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRIS 5000 FT 14-41 18/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 14 AWG 18C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE | CARRETE DE 5000 FT | |
| 14 AWG · 25 conductores (1) | |||||
| 58152299 | 14-41 25 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 14-41 25/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 14 AWG 25C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE CORTE A LA MEDIDA | |
| 12 AWG · 2 conductores (1) | |||||
| 67707499 | 12-65 2/C CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 12-65 2/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC/WTTC/ITC/PLTC/MTW FLEXING GRAY | 12 AWG 2C 65 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 12 AWG · 3 conductores (1) | |||||
| 67718899 | 12-65 3 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 12-65 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 12 AWG 3C 65 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 12 AWG · 4 conductores (3) | |||||
| 58265999 | 12-65 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 12-65 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 12 AWG 4C 65S | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 58265902 | 12-65 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 1030 FT 12-65 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 1030 FT | 12 AWG 4C 65S | 1-UNO/2-DOS/3-TRES | CARRETE DE 1030 FT | |
| 58265905 | 12-65 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 5000 FT 12-65 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY 5000 FT | 12 AWG 4C 65S | 1-UNO/2-DOS/3-TRES | CARRETE DE 5000 FT | |
| 12 AWG · 5 conductores (1) | |||||
| 58266099 | 12-65 5 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 12-65 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 12 AWG 5C 65S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE CORTE A LA MEDIDA | |
| 12 AWG · 6 conductores (1) | |||||
| 13926299 | 12-65 6/C CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIBLE GRIS 12-65 6/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 12 AWG 6C 65S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO | CARRETE CORTE A LA MEDIDA | |
| 12 AWG · 7 conductores (1) | |||||
| 58266199 | 12-65 7 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN GRIS 12-65 7/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 12 AWG 7C 65S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE CORTE A LA MEDIDA | |
| 12 AWG · 8 conductores (1) | |||||
| 13926399 | 12-65 8/C CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIBLE GRIS 12-65 8/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 12 AWG 8C 65S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE | CARRETE CORTE A LA MEDIDA | |
| 12 AWG · 9 conductores (1) | |||||
| 13926499 | 12-65 9/C CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIBLE GRIS 12-65 9/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING GRAY | 12 AWG 9C 65S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO | CARRETE CORTE A LA MEDIDA | |
| 10 AWG · 2 conductores (1) | |||||
| 67707599 | 10-105 2 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE TIPO TC/WTTC/MTW FLEXIÓN GRIS 10-105 2/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC/WTTC/MTW FLEXING GRAY | 10 AWG 2C 105 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 10 AWG · 3 conductores (1) | |||||
| 67718999 | 10 AWG 105 HILOS 3 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/MTW FLEXIÓN GRIS 10-105 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING GRAY | 10 AWG 3C 105 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 10 AWG · 4 conductores (2) | |||||
| 58152399 | 10 AWG 105 HILOS 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/MTW FLEXIÓN GRIS 10-105 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING GRAY | 10 AWG 4C 105S | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 58152302 | 10-105 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/MTW FLEXIÓN GRIS 1030 FT 10-105 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING GRAY 1030 FT | 10 AWG 4C 105S | 1-UNO/2-DOS/3-TRES | CARRETE DE 1030 FT | |
| 10 AWG · 5 conductores (1) | |||||
| 58266299 | 10 AWG 105 HILOS 5 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/MTW FLEXIÓN GRIS 10-105 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING GRAY | 10 AWG 5C 105S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE CORTE A LA MEDIDA | |
| 10 AWG · 7 conductores (1) | |||||
| 58266399 | 10 AWG 105 HILOS 7 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/MTW FLEXIÓN GRIS 10-105 7/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING GRAY | 10 AWG 7C 105S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE CORTE A LA MEDIDA | |
| 8 AWG · 3 conductores (1) | |||||
| 67719099 | 8-168 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRIS 8-168 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRAY | 8 AWG 3C 168 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 8 AWG · 4 conductores (1) | |||||
| 64336799 | 8-168 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRIS 8-168 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRAY | 8 AWG 4C 168S | 1-UNO/2-DOS/3-TRES/VERDE-BLANCO RAYADO | CARRETE CORTE A LA MEDIDA | |
| 8 AWG · 5 conductores (1) | |||||
| 67379799 | 8-168 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRIS 8-168 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRAY | 8 AWG 5C 168S | 1-UNO/2-DOS/3-TRES/4-CUATRO/FRANJA VERDE-AMARILLO | CARRETE CORTE A LA MEDIDA | |
| 6 AWG · 3 conductores (1) | |||||
| 67719199 | 6-259 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRIS 6-259 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRAY | 6 AWG 3C 259S | NEGRO/NEGRO/VERDE-BLANCO RAYADO/NEGRO- | CARRETE CORTE A LA MEDIDA | |
| 6 AWG · 4 conductores (1) | |||||
| 64336999 | 6-259 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRIS 6-259 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRAY | 6 AWG 4C 259S | NEGRO/NEGRO/NEGRO/VERDE-AMARILLO | CARRETE CORTE A LA MEDIDA | |
| 6 AWG · 5 conductores (1) | |||||
| 45864199 | 6-259 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRIS 6-259 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRAY | 6 AWG 5C 259S | 1-UNO/3-TRES/4-CUATRO/2-DOS/FRANJA VERDE-AMARILLO | CARRETE CORTE A LA MEDIDA | |
| 4 AWG · 3 conductores (1) | |||||
| 67719299 | 4-420 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRIS 4-420 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRAY | 4 AWG 3C 420S | NEGRO/NEGRO/VERDE-BLANCO RAYADO/NEGRO- | CARRETE CORTE A LA MEDIDA | |
| 4 AWG · 4 conductores (1) | |||||
| 64337199 | 4-420 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRIS 4-420 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRAY | 4 AWG 4C 420S | 1-UNO/2-DOS/3-TRES/VERDE-BLANCO RAYADO | CARRETE CORTE A LA MEDIDA | |
| 2 AWG · 3 conductores (1) | |||||
| 67719399 | 2-651 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRIS 2-651 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRAY | 2 AWG 3C 651S | 1-UNO/2-DOS/VERDE-AMARILLO FRANJAS/- | CARRETE CORTE A LA MEDIDA | |
| 2 AWG · 4 conductores (1) | |||||
| 64337399 | 2-651 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRIS 2-651 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRAY | 2 AWG 4C 651S | 1-UNO/2-DOS/3-TRES/VERDE-BLANCO RAYADO | CARRETE CORTE A LA MEDIDA | |
| 2 AWG · 5 conductores (1) | |||||
| 45877899 | 2-651 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRIS 2-651 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING/DP-1 AWM 2587 600V GRAY | 2 AWG 5C 651S | 1-UNO/2-DOS/3-TRES/4-CUATRO/FRANJA VERDE-AMARILLO | CARRETE CORTE A LA MEDIDA | |
Aplicación y características
Los cables de control para charola Machine Flex® 600/1000 Volt de Southwire cumplen con NFPA 79 y son adecuados para uso en áreas húmedas y secas, tubos conduit, conductos, canales, charolas, enterramiento directo y donde se desean propiedades eléctricas superiores. Estos cables son capaces de operar continuamente a temperaturas de conductor no superiores a 75°C en lugares húmedos y 90°C en lugares secos, 130°C para sobrecarga de emergencia y 150°C para condiciones de cortocircuito. Para usos en ubicaciones peligrosas Clase I, II, División 2 conforme al Artículo 501 y 502 del NEC®. Las construcciones con 3 o más conductores están listadas para recorridos expuestos (TC-ER) conforme al NEC® 336.10. El cable de charola para máquinas de Southwire es ideal para uso en máquinas CNC, rectificadoras, cortadoras, máquinas de formado en metal, pulidoras, equipos embotelladores, transportadores, equipos de procesamiento y empaque, líneas de ensamble, paneles de control, alimentos y bebidas, arenas de petróleo, expansión de plantas, energía eólica y centros de datos. Múltiples aprobaciones para múltiples aplicaciones. El cable está clasificado para impacto por frío de -40°C. Los cables de dos conductores no contienen tierra verde/amarilla.
Normas y referencias
- ASTM B172 Standard Specification for Rope-Lay-Stranded Copper Conductors Having Bunch-Stranded Copper Conductors
- ASTM B174 Standard Specification for Bunch-Stranded Copper
- UL 13 Power-Limited Circuit Cables
- UL 66 Fixture Wire Type TFFN (for sizes 18 and 16 AWG)
- UL 83 Thermoplastic Insulated Wire and Cables (sizes 14 AWG to 1000 kcmil)
- UL 758 AWM Style 2587
- UL 1063 Machine Tool Wiring (MTW)
- UL 1277 TC-ER
- UL 1690 Data Processing Cable (DP-1)
- UL 2250 Instrumentation Tray Cable
- UL 2277 Type WTTC
- CSA C22.2 No. 210 Appliance wiring material products I/II A/B (Sizes 16 - 8AWG)
- CSA C22.2 No.230 Tray Cables - Rated TC
- CSA C22.2 No. 239 Control and instrumentation cables
- ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
- Exceeds Ecolab PM-40-1 Material Resistance Test With 30-day Exposure, UL Verified V747862
- CE/RoHS-2 – The CE Marking has been applied solely to express the conformance to the material restrictions identified in the RoHS-2 (2011/65/EU) Directive
- NFPA 79 Electrical Standard for Industrial Machinery
- Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661
