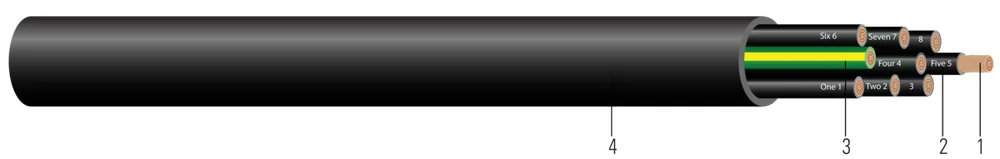

Southwire® Machine Flex® CU 600/1000V Aislamiento PVC-Nylon THHN Chaqueta TPE Negra. Libre de silicona
- Núm. Southwire
- SPEC45043
Tipo TC-ER Cable de Potencia para Charola de Máquinas 600/1000 Voltios Conductores de Cobre, Aislamiento de Cloruro de Povinilo (PVC) con capa de nylon Cubierta Elastómero Termoplástico, 90°C Seco 75°C Húmedo -40°C Impacto en Frío Método de Identificación 4. Libre de Silicona
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (49) ↓Tamaños y construcciones disponibles
| Tamaño Cond. | Número de Conductor | Hebras del Conductor | Diámetro Sobre Conductor (in)(cm) | Espesor del Aislamiento (mils)(mm) | Espesor de Cubierta (mils)(mm) | D.E. Aprox. (inches)(cm) | Peso de Cobre (lbs/1000')(kgs/km) | Peso Aprox. (lbs/1000')(kgs/km) | Resistencia en CA a 75C (ohms/1000')(ohms/km) | Radio de Curvatura Mín. (in)(cm) | Amperaje permitido Canalización 75C | Amperaje permitido Canalización 90C | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18 AWG18 AWG | 33 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.2810.71 | 1522 | 4364 | 8.61312.82 | 1.12.79 | -- | 1414 | 67731599 |
| 18 AWG18 AWG | 44 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.3060.78 | 2030 | 5480 | 8.61312.82 | 1.23.05 | -- | 1111 | 67753099 |
| 18 AWG18 AWG | 55 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.3320.84 | 2537 | 6394 | 8.61312.82 | 1.33.30 | -- | 1111 | 67731699 |
| 18 AWG18 AWG | 66 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.3480.88 | 3045 | 84125 | 8.61312.82 | 1.43.56 | -- | 1111 | 66509099 |
| 18 AWG18 AWG | 77 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.3580.91 | 3552 | 80119 | 8.61312.82 | 1.43.56 | -- | 99 | 67753199 |
| 18 AWG18 AWG | 88 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.4011.02 | 4060 | 111165 | 8.61312.82 | 1.64.06 | -- | 99 | 66508999 |
| 18 AWG18 AWG | 99 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.4111.04 | 4567 | 102152 | 8.61312.82 | 1.64.06 | -- | 99 | 67753299 |
| 18 AWG18 AWG | 1010 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.4381.11 | 5074 | 137204 | 8.61312.82 | 1.84.57 | -- | 77 | 66509199 |
| 18 AWG18 AWG | 1212 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.4561.16 | 6089 | 132196 | 8.61312.82 | 1.84.57 | -- | 77 | 67753399 |
| 18 AWG18 AWG | 1414 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.4691.19 | 70104 | 140208 | 8.61312.82 | 1.94.83 | -- | 77 | 66509299 |
| 18 AWG18 AWG | 1616 | 1616 | 0.0440.11 | 200.51 | 451.14 | 0.4951.26 | 80119 | 165246 | 8.61312.82 | 2.05.08 | -- | 77 | 66509399 |
| 18 AWG18 AWG | 1919 | 1616 | 0.0440.11 | 200.51 | 651.65 | 0.5601.42 | 95141 | 236351 | 8.61312.82 | 2.25.59 | -- | 77 | 66509499 |
| 18 AWG18 AWG | 2525 | 1616 | 0.0440.11 | 200.51 | 651.65 | 0.6351.61 | 125186 | 254378 | 8.61312.82 | 1.33.30 | -- | 66 | 67731799 |
| 18 AWG18 AWG | 3737 | 1616 | 0.0440.11 | 200.51 | 651.65 | 0.7321.86 | 186277 | 422628 | 8.61312.82 | 2.97.37 | -- | 55 | 66509599 |
| 16 AWG16 AWG | 22 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.3110.79 | 1624 | 4871 | 5.4068.05 | 1.23.05 | -- | 1818 | 66509699 |
| 16 AWG16 AWG | 33 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.3110.79 | 2436 | 5886 | 5.4068.05 | 1.23.05 | -- | 1818 | 67753599 |
| 16 AWG16 AWG | 44 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.3390.86 | 3248 | 71106 | 5.4068.05 | 1.43.56 | -- | 1414 | 67753699 |
| 16 AWG16 AWG | 55 | 2626 | 0.0590.15 | 200.51 | 451.14 | 0.3700.94 | 4060 | 86128 | 5.4068.05 | 1.53.81 | -- | 1414 | 67731899 |
| 16 AWG16 AWG | 66 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.4621.17 | 4871 | 140208 | 5.4068.05 | 1.94.83 | -- | 1414 | 66509799 |
| 16 AWG16 AWG | 77 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.4001.02 | 5683 | 122182 | 5.4068.05 | 1.64.06 | -- | 1212 | 66509899 |
| 16 AWG16 AWG | 88 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.4311.09 | 6495 | 142211 | 5.4068.05 | 1.74.32 | -- | 1212 | 66509999 |
| 16 AWG16 AWG | 99 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.4621.17 | 72107 | 138205 | 5.4068.05 | 1.94.83 | -- | 1212 | 67732099 |
| 16 AWG16 AWG | 1010 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.5091.29 | 81121 | 153228 | 5.4068.05 | 2.05.08 | -- | 99 | 66510099 |
| 16 AWG16 AWG | 1212 | 2626 | 0.0590.15 | 200.51 | 501.27 | 0.5091.29 | 97144 | 175260 | 5.4068.05 | 2.05.08 | -- | 99 | 67732199 |
| 16 AWG16 AWG | 1616 | 2626 | 0.0590.15 | 200.51 | 651.65 | 0.6011.53 | 129192 | 241359 | 5.4068.05 | 2.46.10 | -- | 99 | 66510199 |
| 16 AWG16 AWG | 1919 | 2626 | 0.0590.15 | 200.51 | 651.65 | 0.6301.60 | 154229 | 315469 | 5.4068.05 | 2.56.35 | -- | 99 | 66510299 |
| 16 AWG16 AWG | 2424 | 2626 | 0.0590.15 | 200.51 | 651.65 | 0.7161.82 | 194289 | 340506 | 5.4068.05 | 2.97.37 | -- | 88 | 66510399 |
| 16 AWG16 AWG | 3030 | 2626 | 0.0590.15 | 200.51 | 852.16 | 0.8112.06 | 243362 | 439653 | 5.4068.05 | 3.28.13 | -- | 88 | 66510499 |
| 16 AWG16 AWG | 3737 | 2626 | 0.0590.15 | 200.51 | 852.16 | 0.8702.21 | 299445 | 527784 | 5.4068.05 | 3.58.89 | -- | 77 | 66510599 |
| 14 AWG14 AWG | 33 | 4141 | 0.0730.19 | 200.51 | 501.27 | 0.3420.87 | 3857 | 77115 | 3.3915.05 | 1.43.56 | 2020 | 2525 | 67725899 |
| 14 AWG14 AWG | 44 | 4141 | 0.0730.19 | 200.51 | 501.27 | 0.3750.95 | 5176 | 97144 | 3.3915.05 | 1.53.81 | 1616 | 2020 | 67725999 |
| 14 AWG14 AWG | 66 | 4141 | 0.0730.19 | 200.51 | 501.27 | 0.4451.13 | 76113 | 134199 | 3.3915.05 | 1.84.57 | 1616 | 2020 | 66510699 |
| 14 AWG14 AWG | 88 | 4141 | 0.0730.19 | 200.51 | 501.27 | 0.4951.26 | 102152 | 175260 | 3.3915.05 | 1.94.83 | 1414 | 1717 | 65300599 |
| 14 AWG14 AWG | 99 | 4141 | 0.0730.19 | 200.51 | 501.27 | 0.5161.31 | 115171 | 189281 | 3.3915.05 | 2.15.33 | 1414 | 1717 | 67726199 |
| 14 AWG14 AWG | 1010 | 4141 | 0.0730.19 | 200.51 | 651.65 | 0.6011.53 | 127189 | 226336 | 3.3915.05 | 2.46.10 | 1010 | 1212 | 66510799 |
| 14 AWG14 AWG | 1212 | 4141 | 0.0730.19 | 200.51 | 651.65 | 0.6081.54 | 153228 | 258384 | 3.3915.05 | 2.56.35 | 1010 | 1212 | 67732299 |
| 14 AWG14 AWG | 1616 | 4141 | 0.0730.19 | 200.51 | 651.65 | 0.6661.69 | 204304 | 332494 | 3.3915.05 | 2.76.86 | 1010 | 1212 | 66510899 |
| 14 AWG14 AWG | 1818 | 4141 | 0.0730.19 | 200.51 | 651.65 | 0.6971.77 | 230342 | 419624 | 3.3915.05 | 2.87.11 | 1010 | 1212 | 67726299 |
| 14 AWG14 AWG | 2525 | 4141 | 0.0730.19 | 200.51 | 651.65 | 0.8062.05 | 318473 | 488726 | 3.3915.05 | 3.28.13 | 99 | 1111 | 67726399 |
| 12 AWG12 AWG | 33 | 6565 | 0.0940.24 | 200.51 | 501.27 | 0.3890.99 | 6089 | 108161 | 2.1373.18 | 1.64.06 | 2525 | 3030 | 67725699 |
| 12 AWG12 AWG | 44 | 6565 | 0.0940.24 | 200.51 | 501.27 | 0.4201.07 | 81121 | 137204 | 2.1373.18 | 1.74.32 | 2020 | 2424 | 67753799 |
| 12 AWG12 AWG | 55 | 6565 | 0.0940.24 | 200.51 | 501.27 | 0.4621.17 | 101150 | 165246 | 2.1373.18 | 1.94.83 | 2020 | 2424 | 67753899 |
| 12 AWG12 AWG | 66 | 6565 | 0.0940.24 | 200.51 | 501.27 | 0.5021.28 | 142211 | 194289 | 2.1373.18 | 2.05.08 | 2020 | 2424 | 66510999 |
| 12 AWG12 AWG | 77 | 6565 | 0.0940.24 | 200.51 | 501.27 | 0.5021.28 | 141210 | 219326 | 2.1373.18 | 2.05.08 | 1717 | 2121 | 67725799 |
| 12 AWG12 AWG | 1212 | 6565 | 0.0940.24 | 200.51 | 651.65 | 0.6871.74 | 243362 | 425632 | 2.1373.18 | 2.87.11 | 1212 | 1515 | 66511199 |
| 10 AWG10 AWG | 33 | 105105 | 0.1170.30 | 250.64 | 501.27 | 0.4621.17 | 97144 | 160238 | 1.3391.99 | 2.05.08 | 3535 | 4040 | 65300999 |
| 10 AWG10 AWG | 44 | 105105 | 0.1170.30 | 250.64 | 501.27 | 0.5021.28 | 129192 | 202301 | 1.3391.99 | 2.05.08 | 2828 | 3232 | 67753999 |
| 10 AWG10 AWG | 55 | 105105 | 0.1170.30 | 250.64 | 501.27 | 0.5791.47 | 161240 | 257382 | 1.3391.99 | 2.05.08 | 2828 | 3232 | 67725499 |
| 10 AWG10 AWG | 1212 | 105105 | 0.1170.30 | 250.64 | 802.03 | 0.8672.20 | 389579 | 671999 | 1.3391.99 | 3.58.89 | 1818 | 2020 | 45593299 |
Números de parte en esta familia (49)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Color del Conductor | Empaque | |
|---|---|---|---|---|---|
| 67731599 | 18-16 3 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 18-16 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 18 AWG 3C 16S | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 67753099 | 18-16 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 18-16 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 18 AWG 4C 16S | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 67731699 | 18-16 5 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 18-16 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 18 AWG 5C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE CORTE A LA MEDIDA | |
| 66509099 | 18-16 6 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 18-16 6/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 18 AWG 6C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO | CARRETE CORTE A LA MEDIDA | |
| 67753199 | 18-16 7 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 18-16 7/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 18 AWG 7C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE CORTE A LA MEDIDA | |
| 66508999 | 18-16 8 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 18-16 8/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 18 AWG 8C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE | CARRETE CORTE A LA MEDIDA | |
| 67753299 | 18-16 9 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 18-16 9/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 18 AWG 9C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO | CARRETE CORTE A LA MEDIDA | |
| 66509199 | 18-16 10 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 18-16 10/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 18 AWG 10C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE | CARRETE CORTE A LA MEDIDA | |
| 67753399 | 18-16 12 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 18-16 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 18 AWG 12C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE | CARRETE CORTE A LA MEDIDA | |
| 66509299 | 18-16 14 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 18-16 14/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 18 AWG 14C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE | CARRETE CORTE A LA MEDIDA | |
| 66509399 | 18-16 16 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 18-16 16/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 18 AWG 16C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE | CARRETE CORTE A LA MEDIDA | |
| 66509499 | 18-16 19 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 18-16 19/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 18 AWG 19C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO | CARRETE CORTE A LA MEDIDA | |
| 67731799 | 18-16 25 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 18-16 25/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 18 AWG 25C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE CORTE A LA MEDIDA | |
| 66509599 | 18-16 37 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 18-16 37/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 18 AWG 37C 16S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE CORTE A LA MEDIDA | |
| 66509699 | 16-26 2/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC/WTTC NEGRO 16-26 2/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC/WTTC BLACK | 16 AWG 2C 26 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 67753599 | 16-26 3 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 16-26 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 16 AWG 3C 26S | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 67753699 | 16-26 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 16-26 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 16 AWG 4C 26 STR | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 67731899 | 16-26 5 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 16-26 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 16 AWG 5C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE CORTE A LA MEDIDA | |
| 66509799 | 16-26 6 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 16-26 6/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 16 AWG 6C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO | CARRETE CORTE A LA MEDIDA | |
| 66509899 | 16-26 7 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 16-26 7/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 16 AWG 7C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE CORTE A LA MEDIDA | |
| 66509999 | 16-26 8 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 16-26 8/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 16 AWG 8C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE | CARRETE CORTE A LA MEDIDA | |
| 67732099 | 16-26 9 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 16-26 9/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 16 AWG 9C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO | CARRETE CORTE A LA MEDIDA | |
| 66510099 | 16-26 10 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 16-26 10/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 16 AWG 10C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE | CARRETE CORTE A LA MEDIDA | |
| 67732199 | 16-26 12 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 16-26 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 16 AWG 12C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE | CARRETE CORTE A LA MEDIDA | |
| 66510199 | 16-26 16 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 16-26 16/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 16 AWG 16C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE | CARRETE CORTE A LA MEDIDA | |
| 66510299 | 16-26 19 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 16-26 19/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 16 AWG 19C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO | CARRETE CORTE A LA MEDIDA | |
| 66510399 | 16-26 24 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 16-26 24/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 16 AWG 24C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE CORTE A LA MEDIDA | |
| 66510499 | 16-26 30 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 16-26 30/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 16 AWG 30C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE CORTE A LA MEDIDA | |
| 66510599 | 16-26 37 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 16-26 37/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 16 AWG 37C 26S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE CORTE A LA MEDIDA | |
| 67725899 | 14-41 3 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 14-41 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 14 AWG 3C 41 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 67725999 | 14-41 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 14-41 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 14 AWG 4C 41 STR | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 66510699 | 14-41 6 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 14-41 6/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 14 AWG 6C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO | CARRETE CORTE A LA MEDIDA | |
| 65300599 | 14-41 8 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 14-41 8/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 14 AWG 8C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE | CARRETE CORTE A LA MEDIDA | |
| 67726199 | 14-41 9 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 14-41 9/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 14 AWG 9C 41S | LAYUP: (F + 1) + 8 | CARRETE CORTE A LA MEDIDA | |
| 66510799 | 14-41 10 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 14-41 10/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 14 AWG 10C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE | CARRETE CORTE A LA MEDIDA | |
| 67732299 | 14-41 12 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 14-41 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 14 AWG 12C 41S | LAYUP: (0 + 3 + F) + 9 | CARRETE CORTE A LA MEDIDA | |
| 66510899 | 14-41 16 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 14-41 16/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 14 AWG 16C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE | CARRETE CORTE A LA MEDIDA | |
| 67726299 | 14-41 18 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 14-41 18/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 14 AWG 18C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE | CARRETE CORTE A LA MEDIDA | |
| 67726399 | 14-41 25 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 14-41 25/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 14 AWG 25C 41S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE/12-DOCE/13-TRECE/14-CATORCE/15-QUINCE/16-DIECISÉIS/17-DIECISIETE/18-DIECIOCHO/19-DIECINUEVE/20-VEINTE | CARRETE CORTE A LA MEDIDA | |
| 67725699 | 12-65 3 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 12-65 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 12 AWG 3C 65 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 67753799 | 12-65 4 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 12-65 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 12 AWG 4C 65S | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 67753899 | 12-65 5 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICADOR DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 12-65 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 12 AWG 5C 65S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE CORTE A LA MEDIDA | |
| 66510999 | 12-65 6 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 12-65 6/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 12 AWG 6C 65S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO | CARRETE CORTE A LA MEDIDA | |
| 67725799 | 12-65 7 CONDUCTORES CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/ITC/PLTC/MTW FLEXIÓN NEGRO 12-65 7/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 12 AWG 7C 65S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS | CARRETE CORTE A LA MEDIDA | |
| 66511199 | 12-65 12 CONDUCTORES CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING NEGRO 12-65 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/ITC/PLTC/MTW FLEXING BLACK | 12 AWG 12C 65S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE | CARRETE CORTE A LA MEDIDA | |
| 65300999 | 10-105 3 CONDUCTORES CU PVC/NYLON CONDUCTORES/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/MTW FLEXIÓN NEGRO 10-105 3/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING BLACK | 10 AWG 3C 105 STR | 1-UNO/2-DOS | CARRETE CORTE A LA MEDIDA | |
| 67753999 | 10-105 4/C CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/MTW FLEXIÓN NEGRO 10-105 4/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING BLACK | 10 AWG 4C 105S | 1-UNO/2-DOS/3-TRES | CARRETE CORTE A LA MEDIDA | |
| 67725499 | 10-105 5/C CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/MTW FLEXIÓN NEGRO 10-105 5/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING BLACK | 10 AWG 5C 105S | 1-UNO/2-DOS/3-TRES/4-CUATRO | CARRETE CORTE A LA MEDIDA | |
| 45593299 | 10-105 12/C CU PVC/NYLON CDRS/TPE IDENTIFICACIÓN DE FASE TIPO TC-ER/WTTC/MTW FLEXIÓN NEGRO 10-105 12/C CU PVC/NYLON CDRS/TPE PHASE ID TYPE TC-ER/WTTC/MTW FLEXING BLACK | 10 AWG 12C 105S | 1-UNO/2-DOS/3-TRES/4-CUATRO/5-CINCO/6-SEIS/7-SIETE/8-OCHO/9-NUEVE/10-DIEZ/11-ONCE | CARRETE CORTE A LA MEDIDA |
Aplicación y características
Los cables de potencia para charola Machine Flex® 600/1000 Volt de Southwire cumplen con NFPA 79 y son adecuados para uso en áreas húmedas y secas, tubos conduit, conductos, canales, charolas, enterramiento directo y donde se desean propiedades eléctricas superiores. Las construcciones con 3 o más conductores están listadas para recorridos expuestos (TC-ER) conforme al NEC® 336.10. Estos cables son capaces de operar continuamente a temperaturas de conductor no superiores a 75°C en lugares húmedos y 90°C en lugares secos, 130°C para sobrecarga de emergencia y 150°C para condiciones de cortocircuito. Para usos en ubicaciones peligrosas Clase I, II, División 2 conforme al Artículo 501 y 502 del NEC®. El cable de charola para máquinas de Southwire es ideal para alimentar máquinas CNC, rectificadoras, cortadoras, máquinas de formado en metal, pulidoras, equipos embotelladores, transportadores, equipos de procesamiento y empaque, líneas de ensamble, paneles de control, alimentos y bebidas, arenas de petróleo, expansión de plantas, energía eólica y centros de datos. Múltiples aprobaciones para múltiples aplicaciones. El cable está clasificado para impacto por frío de -40°C. Los cables de dos conductores no contienen tierra verde/amarilla.
Normas y referencias
- ASTM B172 Standard Specification for Rope-Lay-Stranded Copper Conductors Having Bunch-Stranded Copper Conductors
- ASTM B174 Standard Specification for Bunch-Stranded Copper
- UL 13 Power-Limited Circuit Cables
- UL 66 Fixture Wire
- UL 83 Thermoplastic Insulated Wires and Cables
- UL 758 AWM Style 2587
- UL 1277 TC-ER
- UL 1690 Data Processing Cable (DP-1)
- UL 2250 Instrumentation Tray Cable
- UL 2277 Type WTTC
- CSA C22.2 No. 210 Appliance wiring material products I/II A/B (Sizes 16 - 8AWG)
- CSA C22.2 No.230 Tray Cables - Rated TC
- CSA C22.2 No. 239 Control and instrumentation cables
- ICEA S-58-679 Control Cable Conductor Identification Method 4
- ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
- Exceeds Ecolab PM-40-1 Material Resistance Test With 30-day Exposure, UL Verified V747862
- CE/RoHS-2 – The CE Marking has been applied solely to express the conformance to the material restrictions identified in the RoHS-2 (2011/65/EU) Directive
- NFPA 79 Electrical Standard for Industrial Machinery
- Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661
