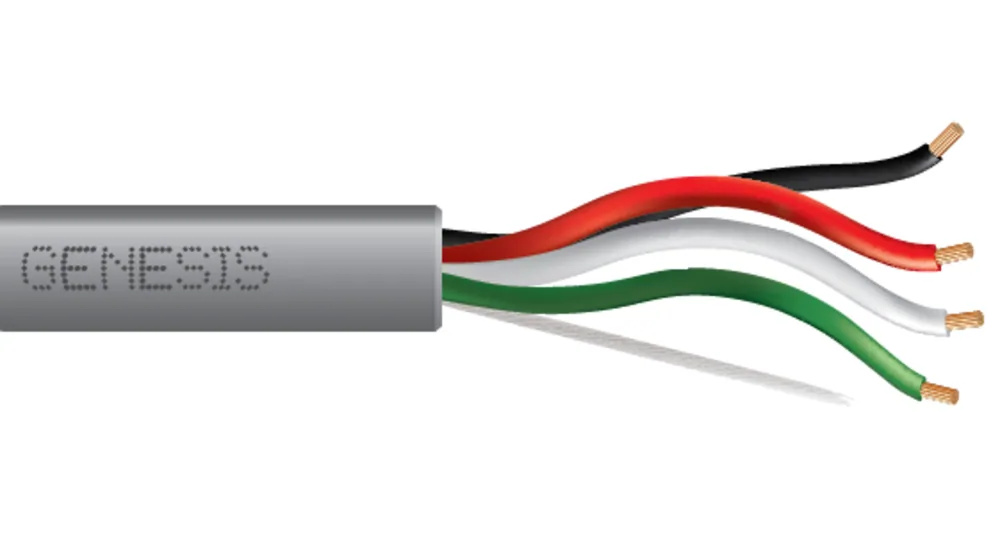

Cable Multiconductor No Blindado, Riser
- Núm. Southwire
- GEN46
Los cables multiconductores no blindados Genesis® ofrecen una solución versátil para diversas aplicaciones de transmisión de señales y de potencia limitada.
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (96) ↓Tamaños y construcciones disponibles
| Tamaño (AWG or kcmil)(mm2) | Número de Conductores | Cableado | Blindaje | Peso Total Nominal (lbs/1000')(kgs/km) | |
|---|---|---|---|---|---|
| 22 AWG22 AWG | 22 | SolidSolid | UnshieldedUnshielded | 812 | 21011101 |
| 22 AWG22 AWG | 22 | StrandedStranded | UnshieldedUnshielded | 1014 | 21021101 |
| 22 AWG22 AWG | 44 | SolidSolid | UnshieldedUnshielded | 1218 | 21031101 |
| 22 AWG22 AWG | 44 | StrandedStranded | UnshieldedUnshielded | 1522 | 21041101 |
| 22 AWG22 AWG | 66 | SolidSolid | UnshieldedUnshielded | 1725 | 21051101 |
| 22 AWG22 AWG | 66 | StrandedStranded | UnshieldedUnshielded | 1929 | 21061101 |
| 22 AWG22 AWG | 88 | StrandedStranded | UnshieldedUnshielded | 2537 | 21071101 |
| 22 AWG22 AWG | 1010 | StrandedStranded | UnshieldedUnshielded | 3146 | 21085501 |
| 22 AWG22 AWG | 1212 | SolidSolid | UnshieldedUnshielded | 3045 | 21115509 |
| 22 AWG22 AWG | 1212 | StrandedStranded | UnshieldedUnshielded | 3654 | 21091009 |
| 18 AWG18 AWG | 22 | StrandedStranded | UnshieldedUnshielded | 1523 | 21141009 |
| 18 AWG18 AWG | 33 | StrandedStranded | UnshieldedUnshielded | 2131 | 21291109 |
| 18 AWG18 AWG | 44 | StrandedStranded | UnshieldedUnshielded | 2741 | 21151101 |
| 18 AWG18 AWG | 66 | StrandedStranded | UnshieldedUnshielded | 4059 | 21161009 |
| 18 AWG18 AWG | 88 | StrandedStranded | UnshieldedUnshielded | 5278 | 21171009 |
| 18 AWG18 AWG | 1010 | StrandedStranded | UnshieldedUnshielded | 6495 | 21181009 |
| 16 AWG16 AWG | 22 | StrandedStranded | UnshieldedUnshielded | 2334 | 21211009 |
| 16 AWG16 AWG | 44 | StrandedStranded | UnshieldedUnshielded | 4262 | 21221009 |
| 14 AWG14 AWG | 22 | StrandedStranded | UnshieldedUnshielded | 3552 | 21231009 |
| 14 AWG14 AWG | 44 | StrandedStranded | UnshieldedUnshielded | 6496 | 21241009 |
| 12 AWG12 AWG | 22 | StrandedStranded | UnshieldedUnshielded | 5379 | 21251009 |
Números de parte en esta familia (96)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Color del Conductor | Empaque | |
|---|---|---|---|---|---|
| 22 AWG · 2 conductores (19) | |||||
| 21015801 | 22 SÓLIDO 2 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 500 FT 22 SOL 2/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 22 AWG 2C SOL | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21015802 | 22 SOL 2/C CU CL2R/FPLR/CMR AMARILLO GEN 500 FT 22 SOL 2/C CU CL2R/FPLR/CMR YELLOW GEN 500 FT | 22 AWG 2C SOL | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21015805 | 22 SÓLIDO 2 CONDUCTORES CU CL2R/FPLR/CMR VERDE GEN 500 FT 22 SOL 2/C CU CL2R/FPLR/CMR GREEN GEN 500 FT | 22 AWG 2C SOL | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21015806 | 22 SOL 2 CONDUCTORES CU CL2R/FPLR/CMR AZUL GEN 500 FT 22 SOL 2/C CU CL2R/FPLR/CMR BLUE GEN 500 FT | 22 AWG 2C SOL | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21015807 | 22 SÓLIDO 2 CONDUCTORES CU CL2R/FPLR/CMR CAFÉ GEN 500 FT 22 SOL 2/C CU CL2R/FPLR/CMR BROWN GEN 500 FT | 22 AWG 2C SOL | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21015809 | 22 SOL 2 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 22 SOL 2/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 22 AWG 2C SOL | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21025501 | 22-7 2 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 500 FT 22-7 2/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 22 AWG 2C 7 CABLEADO | ROJO/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21025801 | 22-7 2 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 500 FT 22-7 2/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 22 AWG 2C 7 CABLEADO | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21025802 | 22-7 2 CONDUCTORES CU CL2R/FPLR/CMR AMARILLO GEN 500 FT 22-7 2/C CU CL2R/FPLR/CMR YELLOW GEN 500 FT | 22 AWG 2C 7 CABLEADO | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21025803 | 22-7 2 CONDUCTORES CU CL2R/FPLR/CMR NARANJA GEN 500 FT 22-7 2/C CU CL2R/FPLR/CMR ORANGE GEN 500 FT | 22 AWG 2C 7 CABLEADO | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21025805 | 22-7 2 CONDUCTORES CU CL2R/FPLR/CMR VERDE GEN 500 FT 22-7 2/C CU CL2R/FPLR/CMR GREEN GEN 500 FT | 22 AWG 2C 7 CABLEADO | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21025806 | 22-7 2 CONDUCTORES CU CL2R/FPLR/CMR AZUL GEN 500 FT 22-7 2/C CU CL2R/FPLR/CMR BLUE GEN 500 FT | 22 AWG 2C 7 CABLEADO | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21025807 | 22-7 2 CONDUCTORES CU CL2R/FPLR/CMR CAFÉ GEN 500 FT 22-7 2/C CU CL2R/FPLR/CMR BROWN GEN 500 FT | 22 AWG 2C 7 CABLEADO | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21025808 | 22-7 2 CONDUCTORES CU CL2R/FPLR/CMR NEGRO GEN 500 FT 22-7 2/C CU CL2R/FPLR/CMR BLACK GEN 500 FT | 22 AWG 2C 7 CABLEADO | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21025809 | 22-7 2 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 22-7 2/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 22 AWG 2C 7 CABLEADO | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21011101 | 22 SOL 2/C CU CL2R/FPLR/CMR BLANCO GEN 1000 FT 22 SOL 2/C CU CL2R/FPLR/CMR WHITE GEN 1000 FT | 22 AWG 2C SOL | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21021101 | 22-7 2 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 1000 FT 22-7 2/C CU CL2R/FPLR/CMR WHITE GEN 1000 FT | 22 AWG 2C 7 CABLEADO | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21021102 | 22-7 2 CONDUCTORES CU CL2R/FPLR/CMR AMARILLO GEN 1000 FT 22-7 2/C CU CL2R/FPLR/CMR YELLOW GEN 1000 FT | 22 AWG 2C 7 CABLEADO | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21021109 | 22-7 2 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 1000 FT 22-7 2/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 22 AWG 2C 7 CABLEADO | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 22 AWG · 4 conductores (33) | |||||
| 21045501 | 22-7 4 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 500 FT 22-7 4/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21045509 | 22-7 4 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 22-7 4/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21045801 | 22-7 4 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 500 FT 22-7 4/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21045802 | 22-7 4 CONDUCTORES CU CL2R/FPLR/CMR AMARILLO GEN 500 FT 22-7 4/C CU CL2R/FPLR/CMR YELLOW GEN 500 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21045803 | 22-7 4 CONDUCTORES CU CL2R/FPLR/CMR NARANJA GEN 500 FT 22-7 4/C CU CL2R/FPLR/CMR ORANGE GEN 500 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21045805 | 22-7 4 CONDUCTORES CU CL2R/FPLR/CMR VERDE GEN 500 FT 22-7 4/C CU CL2R/FPLR/CMR GREEN GEN 500 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21045806 | 22-7 4 CONDUCTORES CU CL2R/FPLR/CMR AZUL GEN 500 FT 22-7 4/C CU CL2R/FPLR/CMR BLUE GEN 500 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21045807 | 22-7 4 CONDUCTORES CU CL2R/FPLR/CMR CAFÉ GEN 500 FT 22-7 4/C CU CL2R/FPLR/CMR BROWN GEN 500 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21045808 | 22-7 4 CONDUCTORES CU CL2R/FPLR/CMR NEGRO GEN 500 FT 22-7 4/C CU CL2R/FPLR/CMR BLACK GEN 500 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21045809 | 22-7 4 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 22-7 4/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21045813 | 22-7 4 CONDUCTORES CU CL2R/FPLR/CMR BEIGE GEN 500 FT 22-7 4/C CU CL2R/FPLR/CMR BEIGE GEN 500 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21041101 | 22-7 4 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 1000 FT 22-7 4/C CU CL2R/FPLR/CMR WHITE GEN 1000 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21041109 | 22-7 4 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 1000 FT 22-7 4/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21035501 | 22 SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 500 FT 22 SOL 4/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21035801 | 22 SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 500 FT 22 SOL 4/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21035802 | 22 SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR AMARILLO GEN 500 FT 22 SOL 4/C CU CL2R/FPLR/CMR YELLOW GEN 500 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21035803 | 22 SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR NARANJA GEN 500 FT 22 SOL 4/C CU CL2R/FPLR/CMR ORANGE GEN 500 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21035805 | 22 SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR VERDE GEN 500 FT 22 SOL 4/C CU CL2R/FPLR/CMR GREEN GEN 500 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21035806 | 22 SOL 4 CONDUCTORES CU CL2R/FPLR/CMR AZUL GEN 500 FT 22 SOL 4/C CU CL2R/FPLR/CMR BLUE GEN 500 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21035807 | 22 SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR CAFÉ GEN 500 FT 22 SOL 4/C CU CL2R/FPLR/CMR BROWN GEN 500 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21035808 | 22 SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR NEGRO GEN 500 FT 22 SOL 4/C CU CL2R/FPLR/CMR BLACK GEN 500 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21035809 | 22 SOL 4 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 22 SOL 4/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21035813 | 22 SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR BEIGE GEN 500 FT 22 SOL 4/C CU CL2R/FPLR/CMR BEIGE GEN 500 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 21031101 | 22 SOL 4/C CU CL2R/FPLR/CMR BLANCO GEN 1000 FT 22 SOL 4/C CU CL2R/FPLR/CMR WHITE GEN 1000 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21031102 | 22 AWG SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR AMARILLO GEN 1000 FT 22 SOL 4/C CU CL2R/FPLR/CMR YELLOW GEN 1000 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21031103 | 22 AWG SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR NARANJA GEN 1000 FT 22 SOL 4/C CU CL2R/FPLR/CMR ORANGE GEN 1000 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21031104 | 22 SOL 4 CONDUCTORES CU CL2R/FPLR/CMR ROJO GEN 1000 FT 22 SOL 4/C CU CL2R/FPLR/CMR RED GEN 1000 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21031105 | 22 SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR VERDE GEN 1000 FT 22 SOL 4/C CU CL2R/FPLR/CMR GREEN GEN 1000 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21031106 | 22 SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR AZUL GEN 1000 FT 22 SOL 4/C CU CL2R/FPLR/CMR BLUE GEN 1000 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21031107 | 22 SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR CAFÉ GEN 1000 FT 22 SOL 4/C CU CL2R/FPLR/CMR BROWN GEN 1000 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21031108 | 22 SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR NEGRO GEN 1000 FT 22 SOL 4/C CU CL2R/FPLR/CMR BLACK GEN 1000 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21031109 | 22 SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 1000 FT 22 SOL 4/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21031113 | 22 SÓLIDO 4 CONDUCTORES CU CL2R/FPLR/CMR BEIGE GEN 1000 FT 22 SOL 4/C CU CL2R/FPLR/CMR BEIGE GEN 1000 FT | 22 AWG 4C SOL | AMARILLO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 22 AWG · 6 conductores (5) | |||||
| 21065501 | 22-7 6 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 500 FT 22-7 6/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 22 AWG 6C 7 STR | BLANCO/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21065509 | 22-7 6 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 22-7 6/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 22 AWG 6C 7 STR | BLANCO/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21051101 | 22 SÓLIDO 6 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 1000 FT 22 SOL 6/C CU CL2R/FPLR/CMR WHITE GEN 1000 FT | 22 AWG 6C | BLANCO/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21061101 | 22-7 6 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 1000 FT 22-7 6/C CU CL2R/FPLR/CMR WHITE GEN 1000 FT | 22 AWG 6C 7 STR | BLANCO/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21061109 | 22-7 6 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 1000 FT 22-7 6/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 22 AWG 6C 7 STR | BLANCO/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA JALABLE DE 1000 FT | |
| 22 AWG · 8 conductores (4) | |||||
| 21075501 | 22-7 8 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 500 FT 22-7 8/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 22 AWG 8C 7 STR | BLANCO/AMARILLO/NARANJA/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21075509 | 22-7 8 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 22-7 8/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 22 AWG 8C 7 STR | BLANCO/AMARILLO/NARANJA/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21071101 | 22-7 8 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 1000 FT 22-7 8/C CU CL2R/FPLR/CMR WHITE GEN 1000 FT | 22 AWG 8C 7 STR | BLANCO/AMARILLO/NARANJA/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21071109 | 22-7 8 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 1000 FT 22-7 8/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 22 AWG 8C 7 STR | BLANCO/AMARILLO/NARANJA/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA JALABLE DE 1000 FT | |
| 22 AWG · 10 conductores (2) | |||||
| 21085509 | 22-7 10 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 22-7 10/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 22 AWG 10C 7 STR | CAJA DE EXTRACCIÓN DE 500 FT | ||
| 21085501 | 22-7 10 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 500 FT 22-7 10/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 22 AWG 10C 7 STR | CAJA DE EXTRACCIÓN DE 500 FT | ||
| 22 AWG · 12 conductores (4) | |||||
| 21115509 | 22 SÓLIDO 12 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 22 SOL 12/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 22 AWG 12C | CAJA DE EXTRACCIÓN DE 500 FT | ||
| 21091009 | 22-7 12/C CU CL2R/FPLR/CMR GRIS GEN 1000 FT 22-7 12/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 22 AWG 12C 7 STR | CARRETE DE 1000 FT | ||
| 21095509 | 22-7 12 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 22-7 12/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 22 AWG 12C 7 STR | CAJA DE EXTRACCIÓN DE 500 FT | ||
| 21095501 | 22-7 12/C CU CL2R/FPLR/CMR BLANCO GEN 500 FT 22-7 12/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 22 AWG 12C 7 STR | CAJA DE EXTRACCIÓN DE 500 FT | ||
| 18 AWG · 2 conductores (7) | |||||
| 21145501 | 18-19 2/C CU CL2R/FPLR/CMR BLANCO GEN 500 FT 18-19 2/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21145509 | 18-19 2 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 18-19 2/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21145801 | 18-19 2/C CU CL2R/FPLR/CMR BLANCO GEN 500 FT 18-19 2/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 18 AWG 2C 19S | ROJO/NEGRO | ROLLO DE 500 FT | |
| 21141009 | 18-19 2/C CU CL2R/FPLR/CMR GRIS GEN 1000 FT 18-19 2/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CARRETE DE 1000 FT | |
| 21141101 | 18-19 2 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 1000 FT 18-19 2/C CU CL2R/FPLR/CMR WHITE GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21141108 | 18-19 2 CONDUCTORES CU CL2R/FPLR/CMR NEGRO GEN 1000 FT 18-19 2/C CU CL2R/FPLR/CMR BLACK GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21141109 | 18-19 2/C CU CL2R/FPLR/CMR GRIS GEN 1000 FT 18-19 2/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 18 AWG · 3 conductores (1) | |||||
| 21291109 | 18-19 3/C CU CL2R/FPLR/CMR GRIS GEN 1000 FT 18-19 3/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 18 AWG 3C 19S | BLANCO/ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 18 AWG · 4 conductores (4) | |||||
| 21155501 | 18-19 4/C CU CL2R/FPLR/CMR BLANCO GEN 500 FT 18-19 4/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 18 AWG 4C 19S | BLANCO/ROJO/VERDE/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21155509 | 18-19 4 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 18-19 4/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 18 AWG 4C 19S | BLANCO/ROJO/VERDE/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21151101 | 18-19 4 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 1000 FT 18-19 4/C CU CL2R/FPLR/CMR WHITE GEN 1000 FT | 18 AWG 4C 19S | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21151109 | 18-19 4/C CU CL2R/FPLR/CMR GRIS GEN 1000 FT 18-19 4/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 18 AWG 4C 19S | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 18 AWG · 6 conductores (2) | |||||
| 21165509 | 18-19 6 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 18-19 6/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 18 AWG 6C 19S | BLANCO/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21161009 | 18-19 6/C CU CL2R/FPLR/CMR GRIS GEN 1000 FT 18-19 6/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 18 AWG 6C 19S | BLANCO/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CARRETE DE 1000 FT | |
| 18 AWG · 8 conductores (2) | |||||
| 21175509 | 18-19 8 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 18-19 8/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 18 AWG 8C 19S | BLANCO/AMARILLO/NARANJA/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21171009 | 18-19 8/C CU CL2R/FPLR/CMR GRIS GEN 1000 FT 18-19 8/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 18 AWG 8C 19S | BLANCO/AMARILLO/NARANJA/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CARRETE DE 1000 FT | |
| 18 AWG · 10 conductores (1) | |||||
| 21181009 | 18-19 10 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 1000 FT 18-19 10/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 18 AWG 10C 19S | CARRETE DE 1000 FT | ||
| 16 AWG · 2 conductores (7) | |||||
| 21213909 | 16-19 2/C CU CL2R/FPLR/CMR GRIS GEN 50 FT 16-19 2/C CU CL2R/FPLR/CMR GRAY GEN 50 FT | 16 AWG 2C 19 STR | ROJO/NEGRO | 50 FT ROLLO | |
| 21215501 | 16-19 2/C CU CL2R/FPLR/CMR BLANCO GEN 500 FT 16-19 2/C CU CL2R/FPLR/CMR WHITE GEN 500 FT | 16 AWG 2C 19 STR | ROJO/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21215509 | 16-19 2 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 16-19 2/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 16 AWG 2C 19 STR | ROJO/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21211009 | 16-19 2/C CU CL2R/FPLR/CMR GRIS GEN 1000 FT 16-19 2/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 16 AWG 2C 19 STR | ROJO/NEGRO | CARRETE DE 1000 FT | |
| 21211101 | 16-19 2 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 1000 FT 16-19 2/C CU CL2R/FPLR/CMR WHITE GEN 1000 FT | 16 AWG 2C 19 STR | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21211109 | 16-19 2/C CU CL2R/FPLR/CMR GRIS GEN 1000 FT 16-19 2/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 16 AWG 2C 19 STR | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 21212501 | 16-19 2 CONDUCTORES CU CL2R/FPLR/CMR BLANCO GEN 2500 FT 16-19 2/C CU CL2R/FPLR/CMR WHITE GEN 2500 FT | 16 AWG 2C 19 STR | ROJO/NEGRO | CARRETE DE 2500 FT | |
| 16 AWG · 4 conductores (2) | |||||
| 21225509 | 16-19 4 CONDUCTORES CU CL2R/FPLR/CMR GRIS GEN 500 FT 16-19 4/C CU CL2R/FPLR/CMR GRAY GEN 500 FT | 16 AWG 4C 19 STR | BLANCO/ROJO/VERDE/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 21221009 | 16-19 4/C CU CL2R/FPLR/CMR GRIS GEN 1000 FT 16-19 4/C CU CL2R/FPLR/CMR GRAY GEN 1000 FT | 16 AWG 4C 19 STR | BLANCO/ROJO/VERDE/NEGRO | CARRETE DE 1000 FT | |
| 14 AWG · 2 conductores (1) | |||||
| 21231009 | 14-19 2 CONDUCTORES CU CL2R/FPLR GRIS GEN 1000 FT 14-19 2/C CU CL2R/FPLR GRAY GEN 1000 FT | 14 AWG 2C 19 STR | ROJO/NEGRO | CARRETE DE 1000 FT | |
| 14 AWG · 4 conductores (1) | |||||
| 21241009 | 14-19 4 CONDUCTORES CU CL2R/FPLR GRIS GEN 1000 FT 14-19 4/C CU CL2R/FPLR GRAY GEN 1000 FT | 14 AWG 4C 19 STR | BLANCO/ROJO/VERDE/NEGRO | CARRETE DE 1000 FT | |
| 12 AWG · 2 conductores (1) | |||||
| 21251009 | 12-65 2/C OFHC CL2R/FPLR GRIS GEN 1000 FT 12-65 2/C OFHC CL2R/FPLR GRAY GEN 1000 FT | 12 AWG 2C 65 STR | ROJO/NEGRO | CARRETE DE 1000 FT | |
Aplicación y características
El cable multiconductor sin blindaje Genesis® Riser Rated es adecuado para instalación de la siguiente manera:
- Instalado en una canalización metálica que cumple con 300.22(B).
- Soportado por charolas portacables metálicas de fondo sólido con cubiertas metálicas sólidas.
- En montantes.
- Dentro de edificios en lugares distintos a espacios de manejo de aire y montantes.
- Expuesto a la luz solar.
Normas y referencias
- UL 1666 - Riser Rated
- CSA C22.2 No. 2556 - FT4 Rated
- UL 444 - Communication Cables, Type CMR (22 AWG - 16 AWG)
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLR
- UL 13 - Power-Limited Circuit Cables, Type CL3R
- Sunlight Resistant Rated
- REACH/RoHS Compliant
