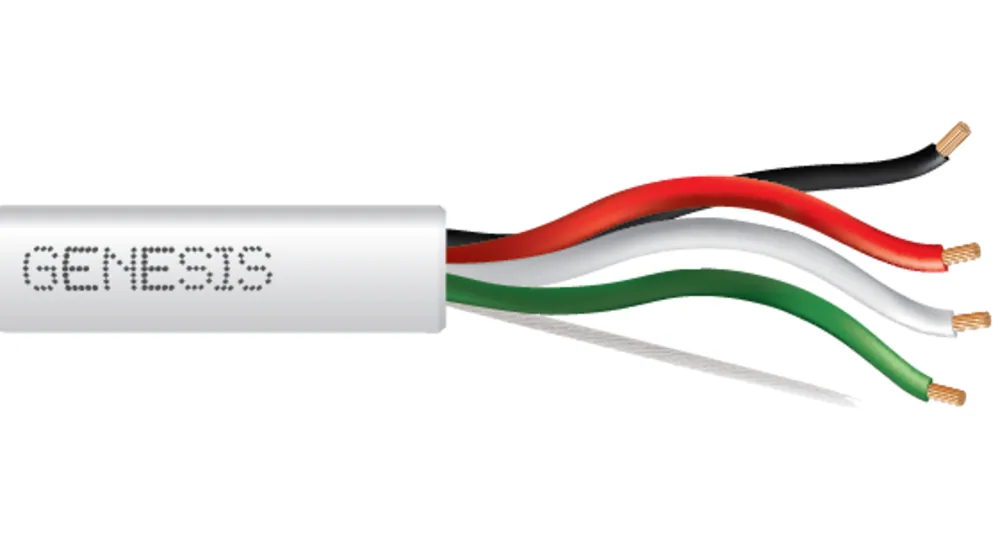

Cable Multiconductor No Blindado, Plenum
- Núm. Southwire
- GEN45
Los cables multiconductores no blindados Genesis® ofrecen una solución versátil para diversas aplicaciones de transmisión de señales y de potencia limitada.
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (67) ↓Tamaños y construcciones disponibles
| Tamaño (AWG or kcmil)(mm2) | Número de Conductores | Cableado | Blindaje | Peso Total Nominal (lbs/1000')(kgs/km) | |
|---|---|---|---|---|---|
| 22 AWG22 AWG | 22 | StrandedStranded | UnshieldedUnshielded | 913 | 31021112 |
| 22 AWG22 AWG | 44 | SolidSolid | UnshieldedUnshielded | 1319 | 31031110 |
| 22 AWG22 AWG | 44 | StrandedStranded | UnshieldedUnshielded | 1522 | 31041101 |
| 22 AWG22 AWG | 66 | StrandedStranded | UnshieldedUnshielded | 2132 | 31061112 |
| 22 AWG22 AWG | 88 | StrandedStranded | UnshieldedUnshielded | 2741 | 31071112 |
| 22 AWG22 AWG | 1010 | StrandedStranded | UnshieldedUnshielded | 3350 | 31081112 |
| 22 AWG22 AWG | 1212 | StrandedStranded | UnshieldedUnshielded | 4060 | 31091012 |
| 18 AWG18 AWG | 22 | SolidSolid | UnshieldedUnshielded | 1523 | 31341112 |
| 18 AWG18 AWG | 22 | StrandedStranded | UnshieldedUnshielded | 1624 | 31141012 |
| 18 AWG18 AWG | 33 | StrandedStranded | UnshieldedUnshielded | 2334 | 31261012 |
| 18 AWG18 AWG | 44 | StrandedStranded | UnshieldedUnshielded | 2943 | 31151012 |
| 18 AWG18 AWG | 66 | StrandedStranded | UnshieldedUnshielded | 4262 | 31161012 |
| 18 AWG18 AWG | 88 | StrandedStranded | UnshieldedUnshielded | 5481 | 31170112 |
| 18 AWG18 AWG | 1010 | StrandedStranded | UnshieldedUnshielded | 6799 | 31181012 |
| 16 AWG16 AWG | 22 | StrandedStranded | UnshieldedUnshielded | 2335 | 31211012 |
| 16 AWG16 AWG | 33 | StrandedStranded | UnshieldedUnshielded | 3349 | 31291012 |
| 16 AWG16 AWG | 44 | StrandedStranded | UnshieldedUnshielded | 4263 | 31221012 |
| 14 AWG14 AWG | 22 | StrandedStranded | UnshieldedUnshielded | 3552 | 31231012 |
| 14 AWG14 AWG | 44 | StrandedStranded | UnshieldedUnshielded | 6597 | 31241012 |
| 12 AWG12 AWG | 22 | StrandedStranded | UnshieldedUnshielded | 5277 | 31251012 |
Números de parte en esta familia (67)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Color del Conductor | Empaque | |
|---|---|---|---|---|---|
| 22 AWG · 2 conductores (2) | |||||
| 31025512 | 22-7 2 CONDUCTORES CU CMP/FT6 NATURAL GEN 500 FT 22-7 2/C CU CMP/FT6 NATURAL GEN 500 FT | 22 AWG 2C 7 CABLEADO | ROJO/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 31021112 | 22-7 2/C CU CMP/FT6 NATURAL GEN 1000 FT 22-7 2/C CU CMP/FT6 NATURAL GEN 1000 FT | 22 AWG 2C 7 CABLEADO | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 22 AWG · 4 conductores (12) | |||||
| 31035512 | 22 SÓLIDO 4 CONDUCTORES CU CMP/FT6 NATURAL GEN 500 FT 22 SOL 4/C CU CMP/FT6 NATURAL GEN 500 FT | 22 AWG 4C SOL | BLANCO/ROJO/VERDE/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 31035812 | 22 SÓLIDO 4 CONDUCTORES CU CMP/FT6 NATURAL GEN 500 FT 22 SOL 4/C CU CMP/FT6 NATURAL GEN 500 FT | 22 AWG 4C SOL | BLANCO/ROJO/VERDE/NEGRO | ROLLO DE 500 FT | |
| 31045501 | 22 AWG-7 HILOS 4 CONDUCTORES CU CMP/FT6 BLANCO GEN 500 FT 22-7 4/C CU CMP/FT6 WHITE GEN 500 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 31045508 | 22 AWG-7 HILOS 4 CONDUCTORES CU CMP/FT6 NEGRO GEN 500 FT 22-7 4/C CU CMP/FT6 BLACK GEN 500 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 31045512 | 22-7 4 CONDUCTORES CU CMP/FT6 NATURAL GEN 500 FT 22-7 4/C CU CMP/FT6 NATURAL GEN 500 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 31031110 | 22 SÓLIDO 4 CONDUCTORES CU CMP/FT6 MORADO GEN 1000 FT 22 SOL 4/C CU CMP/FT6 PURPLE GEN 1000 FT | 22 AWG 4C SOL | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31031112 | 22 SÓLIDO 4/C CU CMP/FT6 NATURAL GEN 1000 FT 22 SOL 4/C CU CMP/FT6 NATURAL GEN 1000 FT | 22 AWG 4C SOL | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31041101 | CABLE 22-7 4/C CU CMP/FT6 BLANCO GEN 1000 FT 22-7 4/C CU CMP/FT6 WHITE GEN 1000 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31041102 | 22-7 4 CONDUCTORES CU CMP/FT6 AMARILLO GEN 1000 FT 22-7 4/C CU CMP/FT6 YELLOW GEN 1000 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31041105 | CABLE 22-7 4/C CU CMP/FT6 VERDE GEN 1000 FT 22-7 4/C CU CMP/FT6 GREEN GEN 1000 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31041108 | CABLE 22-7 4/C CU CMP/FT6 NEGRO GEN 1000 FT 22-7 4/C CU CMP/FT6 BLACK GEN 1000 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31041112 | 22-7 4/C CU CMP/FT6 NATURAL GEN 1000 FT 22-7 4/C CU CMP/FT6 NATURAL GEN 1000 FT | 22 AWG 4C 7 STR | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 22 AWG · 6 conductores (2) | |||||
| 31065512 | 22-7 6 CONDUCTORES CU CMP/FT6 NATURAL GEN 500 FT 22-7 6/C CU CMP/FT6 NATURAL GEN 500 FT | 22 AWG 6C 7 STR | BLANCO/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 31061112 | 22-7 6/C CU CMP/FT6 NATURAL GEN 1000 FT 22-7 6/C CU CMP/FT6 NATURAL GEN 1000 FT | 22 AWG 6C 7 STR | BLANCO/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA JALABLE DE 1000 FT | |
| 22 AWG · 8 conductores (2) | |||||
| 31075512 | 22-7 8 CONDUCTORES CU CMP/FT6 NATURAL GEN 500 FT 22-7 8/C CU CMP/FT6 NATURAL GEN 500 FT | 22 AWG 8C 7 STR | BLANCO/AMARILLO/NARANJA/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 31071112 | 22-7 8/C CU CMP/FT6 NATURAL GEN 1000 FT 22-7 8/C CU CMP/FT6 NATURAL GEN 1000 FT | 22 AWG 8C 7 STR | BLANCO/AMARILLO/NARANJA/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA JALABLE DE 1000 FT | |
| 22 AWG · 10 conductores (2) | |||||
| 31081112 | 22-7 10 CONDUCTORES CU CMP/FT6 NATURAL GEN 1000 FT 22-7 10/C CU CMP/FT6 NATURAL GEN 1000 FT | 22 AWG 10C 7 STR | CAJA JALABLE DE 1000 FT | ||
| 31085512 | 22-7 10/C CU CMP/FT6 NATURAL GEN 500 FT 22-7 10/C CU CMP/FT6 NATURAL GEN 500 FT | 22 AWG 10C 7 STR | CAJA DE EXTRACCIÓN DE 500 FT | ||
| 22 AWG · 12 conductores (2) | |||||
| 31091012 | 22-7 12 CONDUCTORES CU CMP/FT6 NATURAL GEN 1000 FT 22-7 12/C CU CMP/FT6 NATURAL GEN 1000 FT | 22 AWG 12C 7 STR | CARRETE DE 1000 FT | ||
| 31095012 | 22-7 12/C CU CMP/FT6 NATURAL GEN 500 FT 22-7 12/C CU CMP/FT6 NATURAL GEN 500 FT | 22 AWG 12C 7 STR | CARRETE DE 500 FT | ||
| 18 AWG · 2 conductores (15) | |||||
| 31145012 | 18-19 2/C CU CMP/FT6 NATURAL GEN 500 FT 18-19 2/C CU CMP/FT6 NATURAL GEN 500 FT | 18 AWG 2C 19S | ROJO/NEGRO | CARRETE DE 500 FT | |
| 31145512 | 18-19 2/C CU CMP/FT6 NATURAL GEN 500 FT 18-19 2/C CU CMP/FT6 NATURAL GEN 500 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 31141012 | 18-19 2 CONDUCTORES CU CMP/FT6 NATURAL GEN 1000 FT 18-19 2/C CU CMP/FT6 NATURAL GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CARRETE DE 1000 FT | |
| 31141102 | 18-19 2/C CU CMP/FT6 AMARILLO GEN 1000 FT 18-19 2/C CU CMP/FT6 YELLOW GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31141103 | 18-19 2/C CU CMP/FT6 NARANJA GEN 1000 FT 18-19 2/C CU CMP/FT6 ORANGE GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31141105 | 18-19 2 CONDUCTORES CU CMP/FT6 VERDE GEN 1000 FT 18-19 2/C CU CMP/FT6 GREEN GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31141106 | CABLE 18-19 2/C CU CMP/FT6 AZUL GEN 1000 FT 18-19 2/C CU CMP/FT6 BLUE GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31141108 | 18-19 2 CONDUCTORES CU CMP/FT6 NEGRO GEN 1000 FT 18-19 2/C CU CMP/FT6 BLACK GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31141109 | CABLE 18-19 2/C CU CMP/FT6 GRIS GEN 1000 FT 18-19 2/C CU CMP/FT6 GRAY GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31141112 | 18-19 2 CONDUCTORES CU CMP/FT6 NATURAL GEN 1000 FT 18-19 2/C CU CMP/FT6 NATURAL GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 3114111B | 18-19 2/C CU CMP/FT6 BLANCO-RAYA AZUL GEN 1000 FT 18-19 2/C CU CMP/FT6 WHITE-BLUE STRIPE GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 3114111R | 18-19 2/C CU CMP/FT6 BLANCO-ROJO RAYA GEN 1000 FT 18-19 2/C CU CMP/FT6 WHITE-RED STRIPE GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31142105 | 18-19 2 CONDUCTORES CU CMP/FT6 VERDE GEN 1000 FT 18-19 2/C CU CMP/FT6 GREEN GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CARRETE DE 1000 FT EN CAJA | |
| 31142106 | CABLE 18-19 2/C CU CMP/FT6 AZUL GEN 1000 FT 18-19 2/C CU CMP/FT6 BLUE GEN 1000 FT | 18 AWG 2C 19S | ROJO/NEGRO | CARRETE DE 1000 FT EN CAJA | |
| 31341112 | 18 SÓLIDO 2/C CU CMP/FT6 NATURAL GEN 1000 FT 18 SOL 2/C CU CMP/FT6 NATURAL GEN 1000 FT | 18 AWG 2C SOL | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 18 AWG · 3 conductores (3) | |||||
| 31261012 | 18-19 3 CONDUCTORES CU CMP/FT6 NATURAL GEN 1000 FT 18-19 3/C CU CMP/FT6 NATURAL GEN 1000 FT | 18 AWG 3C 19S | BLANCO/ROJO/NEGRO | CARRETE DE 1000 FT | |
| 31261103 | 18-19 3/C CU CMP/FT6 NARANJA GEN 1000 FT 18-19 3/C CU CMP/FT6 ORANGE GEN 1000 FT | 18 AWG 3C 19S | BLANCO/ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31261112 | 18-19 3 CONDUCTORES CU CMP/FT6 NATURAL GEN 1000 FT 18-19 3/C CU CMP/FT6 NATURAL GEN 1000 FT | 18 AWG 3C 19S | BLANCO/ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 18 AWG · 4 conductores (10) | |||||
| 31155512 | 18-19 4/C CU CMP/FT6 NATURAL GEN 500 FT 18-19 4/C CU CMP/FT6 NATURAL GEN 500 FT | 18 AWG 4C 19S | BLANCO/ROJO/VERDE/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 31151012 | 18-19 4 CONDUCTORES CU CMP/FT6 NATURAL GEN 1000 FT 18-19 4/C CU CMP/FT6 NATURAL GEN 1000 FT | 18 AWG 4C 19S | BLANCO/ROJO/VERDE/NEGRO | CARRETE DE 1000 FT | |
| 31151102 | 18-19 4/C CU CMP/FT6 AMARILLO GEN 1000 FT 18-19 4/C CU CMP/FT6 YELLOW GEN 1000 FT | 18 AWG 4C 19S | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31151103 | 18-19 4/C CU CMP/FT6 NARANJA GEN 1000 FT 18-19 4/C CU CMP/FT6 ORANGE GEN 1000 FT | 18 AWG 4C 19S | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31151105 | 18-19 4 CONDUCTORES CU CMP/FT6 VERDE GEN 1000 FT 18-19 4/C CU CMP/FT6 GREEN GEN 1000 FT | 18 AWG 4C 19S | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31151108 | 18-19 4 CONDUCTORES CU CMP/FT6 NEGRO GEN 1000 FT 18-19 4/C CU CMP/FT6 BLACK GEN 1000 FT | 18 AWG 4C 19S | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31151110 | 18-19 4/C CU CMP/FT6 MORADO GEN 1000 FT 18-19 4/C CU CMP/FT6 PURPLE GEN 1000 FT | 18 AWG 4C 19S | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31151112 | 18-19 4 CONDUCTORES CU CMP/FT6 NATURAL GEN 1000 FT 18-19 4/C CU CMP/FT6 NATURAL GEN 1000 FT | 18 AWG 4C 19S | BLANCO/ROJO/VERDE/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31152103 | 18-19 4/C CU CMP/FT6 NARANJA GEN 1000 FT 18-19 4/C CU CMP/FT6 ORANGE GEN 1000 FT | 18 AWG 4C 19S | BLANCO/ROJO/VERDE/NEGRO | CARRETE DE 1000 FT EN CAJA | |
| 31152105 | 18-19 4 CONDUCTORES CU CMP/FT6 VERDE GEN 1000 FT 18-19 4/C CU CMP/FT6 GREEN GEN 1000 FT | 18 AWG 4C 19S | BLANCO/ROJO/VERDE/NEGRO | CARRETE DE 1000 FT EN CAJA | |
| 18 AWG · 6 conductores (2) | |||||
| 31165512 | 18-19 6/C CU CMP/FT6 NATURAL GEN 500 FT 18-19 6/C CU CMP/FT6 NATURAL GEN 500 FT | 18 AWG 6C 19S | BLANCO/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 31161012 | 18-19 6 CONDUCTORES CU CMP/FT6 NATURAL GEN 1000 FT 18-19 6/C CU CMP/FT6 NATURAL GEN 1000 FT | 18 AWG 6C 19S | BLANCO/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CARRETE DE 1000 FT | |
| 18 AWG · 8 conductores (2) | |||||
| 31170112 | 18-19 8/C CU CMP/FT6 NATURAL GEN 250 FT 18-19 8/C CU CMP/FT6 NATURAL GEN 250 FT | 18 AWG 8C 19S | BLANCO/AMARILLO/NARANJA/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CARRETE DE 250 FT | |
| 31171012 | 18-19 8 CONDUCTORES CU CMP/FT6 NATURAL GEN 1000 FT 18-19 8/C CU CMP/FT6 NATURAL GEN 1000 FT | 18 AWG 8C 19S | BLANCO/AMARILLO/NARANJA/ROJO/VERDE/AZUL/CAFÉ/NEGRO | CARRETE DE 1000 FT | |
| 18 AWG · 10 conductores (1) | |||||
| 31181012 | 18-19 10/C CU CMP/FT6 NATURAL GEN 1000 FT 18-19 10/C CU CMP/FT6 NATURAL GEN 1000 FT | 18 AWG 10C 19S | CARRETE DE 1000 FT | ||
| 16 AWG · 2 conductores (5) | |||||
| 31215512 | 16-19 2/C CU CMP/FT6 NATURAL GEN 500 FT 16-19 2/C CU CMP/FT6 NATURAL GEN 500 FT | 16 AWG 2C 19 STR | ROJO/NEGRO | CAJA DE EXTRACCIÓN DE 500 FT | |
| 31211012 | 16-19 2 CONDUCTORES CU CMP/FT6 NATURAL GEN 1000 FT 16-19 2/C CU CMP/FT6 NATURAL GEN 1000 FT | 16 AWG 2C 19 STR | ROJO/NEGRO | CARRETE DE 1000 FT | |
| 31211102 | 16-19 2/C CU CMP/FT6 AMARILLO GEN 1000 FT 16-19 2/C CU CMP/FT6 YELLOW GEN 1000 FT | 16 AWG 2C 19 STR | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31211103 | 16-19 2/C CU CMP/FT6 NARANJA GEN 1000 FT 16-19 2/C CU CMP/FT6 ORANGE GEN 1000 FT | 16 AWG 2C 19 STR | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 31211112 | 16-19 2 CONDUCTORES CU CMP/FT6 NATURAL GEN 1000 FT 16-19 2/C CU CMP/FT6 NATURAL GEN 1000 FT | 16 AWG 2C 19 STR | ROJO/NEGRO | CAJA JALABLE DE 1000 FT | |
| 16 AWG · 3 conductores (1) | |||||
| 31291012 | 16-19 3 CONDUCTORES CU CMP/FT6 NATURAL GEN 1000 FT 16-19 3/C CU CMP/FT6 NATURAL GEN 1000 FT | 16 AWG 3C 19 STR | BLANCO/ROJO/NEGRO | CARRETE DE 1000 FT | |
| 16 AWG · 4 conductores (2) | |||||
| 31225012 | 16-19 4/C CU CMP/FT6 NATURAL GEN 500 FT 16-19 4/C CU CMP/FT6 NATURAL GEN 500 FT | 16 AWG 4C 19 STR | BLANCO/ROJO/VERDE/NEGRO | CARRETE DE 500 FT | |
| 31221012 | 16-19 4 CONDUCTORES CU CMP/FT6 NATURAL GEN 1000 FT 16-19 4/C CU CMP/FT6 NATURAL GEN 1000 FT | 16 AWG 4C 19 STR | BLANCO/ROJO/VERDE/NEGRO | CARRETE DE 1000 FT | |
| 14 AWG · 2 conductores (1) | |||||
| 31231012 | CABLE 14-19 2/C CU CL3P NATURAL GEN 1000 FT 14-19 2/C CU CL3P NATURAL GEN 1000 FT | 14 AWG 2C 19 STR | ROJO/NEGRO | CARRETE DE 1000 FT | |
| 14 AWG · 4 conductores (1) | |||||
| 31241012 | CABLE 14-19 4/C CU CL3P NATURAL GEN 1000 FT 14-19 4/C CU CL3P NATURAL GEN 1000 FT | 14 AWG 4C 19 STR | BLANCO/ROJO/VERDE/NEGRO | CARRETE DE 1000 FT | |
| 12 AWG · 2 conductores (2) | |||||
| 31255012 | 12-65 2 CONDUCTORES OFHC CL3P NATURAL GEN 500 FT 12-65 2/C OFHC CL3P NATURAL GEN 500 FT | 12 AWG 2C 65 STR | ROJO/NEGRO | CARRETE DE 500 FT | |
| 31251012 | 12-65 2/C OFHC CL3P NATURAL GEN 1000 FT 12-65 2/C OFHC CL3P NATURAL GEN 1000 FT | 12 AWG 2C 65 STR | ROJO/NEGRO | CARRETE DE 1000 FT | |
Aplicación y características
El cable multiconductor sin blindaje clasificado como plenum Genesis® es adecuado para la instalación de la siguiente manera:
- En conductos fabricados según lo descrito en NEC 300.22(B).
- En otros espacios utilizados para aire ambiental según lo descrito en NEC 300.22(C).
- En bajantes.
- Dentro de edificios en espacios distintos de manejo de aire y bajantes.
Normas y referencias
- NFPA 262 - Plenum Rated
- CSA C22.2 No. 2556 - FT6 Rated
- UL 444 - Communication Cables, Type CMP (22 AWG - 16 AWG)
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLP
- UL 13 - Power-Limited Circuit Cables, Type CL3P
- REACH/RoHS Compliant
