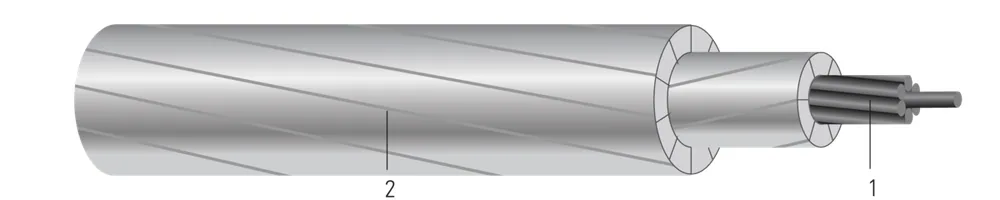

Conductor ACSS TW HS285® de resistencia ultraalta
- Núm. Southwire
- ALBARE14
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (105) ↓
📄 Ficha técnica (PDF)📎 Overhead Conductor Manual📎 Advantages of ACSS and ACSS/HS285 Conductors White Paper📎 Galvanized vs. Mischmetal Coating📎 Batch Annealing vs. Bobbin Annealing📎 Merrimak ACSS/TW/HS285 Conductor Tensile & Elongation Tests📎 Cumberland ACSS/TW HS285 Conductor Tensile & Elongation Tests
Tamaños y construcciones disponibles
| Palabra clave | Tamaño (AWG or kcmil)(mm2) | Número de Alambres | Diámetro Nom. (mils)(mm) | Peso Total Nominal (lbs/1000')(kgs/km) | |
|---|---|---|---|---|---|
| HAWKHAWK | 477 KCMIL477 KCMIL | 1818 | 79020.07 | 656976 | 60452226 |
| HENHEN | 477 KCMIL477 KCMIL | 2020 | 82020.83 | 7461111 | 66287901 |
| CALUMETCALUMET | 565.3 KCMIL565.3 KCMIL | 2020 | 86021.84 | 7761154 | 61964525 |
| MYSTICMYSTIC | 666.6 KCMIL666.6 KCMIL | 2020 | 91323.19 | 8561274 | 66308501 |
| 768.2 KCMIL768.2 KCMIL | 00 | 97724.82 | 9871469 | 61438230 | |
| MAUMEEMAUMEE | 768.2 KCMIL768.2 KCMIL | 2020 | 97724.82 | 9871469 | 61438201 |
| DRAKEDRAKE | 795 KCMIL795 KCMIL | 2020 | 101025.65 | 10911624 | 61387015 |
| 900 KCMIL900 KCMIL | 00 | 105526.80 | 11851763 | 61606821 | |
| CANARYCANARY | 900 KCMIL900 KCMIL | 2020 | 105526.80 | 11851763 | 61606803 |
| 954 KCMIL954 KCMIL | 2020 | 108027.43 | 12241822 | 61343102 | |
| SUWANNEESUWANNEE | 959.6 KCMIL959.6 KCMIL | 2222 | 111028.19 | 13171959 | 61469129 |
| CURLEWCURLEW | 1033.5 KCMIL1033.5 KCMIL | 2222 | 113028.72 | 13261974 | 61998515 |
| GRACKLEGRACKLE | 1192.5 KCMIL1192.5 KCMIL | 3838 | 122531.12 | 15312278 | 61999518 |
| YUKONYUKON | 1233.6 KCMIL1233.6 KCMIL | 3838 | 124531.62 | 15832357 | 61386824 |
| MARTINMARTIN | 1351.5 KCMIL1351.5 KCMIL | 4242 | 130033.02 | 17322577 | 61661025 |
| FALCONFALCON | 1590 KCMIL1590 KCMIL | 4242 | 141035.81 | 20383033 | 66283725 |
| SANTEESANTEE | 2627.3 KCMIL2627.3 KCMIL | 6464 | 176044.71 | 30624557 | 66191901 |
Números de parte en esta familia (105)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Empaque | |
|---|---|---|---|---|
| 477 kcmil (3) | ||||
| 60452226 | 477-18/7 TIPO 16 ACSS/TW/MA5 (HS285)/63% HAWK 18000 FT 477-18/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% HAWK 18000 FT | 477 KCMIL 1C 18S | CARRETE DE 18000 FT | |
| 66287902 | 477-20/7 TIPO 23 ACSS/TW/MA5 (HS285)/63% HEN 16500 FT 477-20/7 TYPE 23 ACSS/TW/MA5 (HS285)/63% HEN 16500 FT | 477 KCMIL 1C 20S | CARRETE DE 16500 FT | |
| 66287901 | 477-20/7 TIPO 23 ACSS/TW/MA5 (HS285)/63% HEN 23500 FT 477-20/7 TYPE 23 ACSS/TW/MA5 (HS285)/63% HEN 23500 FT | 477 KCMIL 1C 20S | CARRETE DE 23500 FT | |
| 565.3 kcmil (1) | ||||
| 61964525 | 565.3-20/7 TIPO 16 ACSS/TW/MA5 (HS285)/63% CALUMET 10000 LB 565.3-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% CALUMET 10000 LB | 565.3 KCMIL 1C 20S | CARRETE DE 10000 LB | |
| 666.6 kcmil (1) | ||||
| 66308501 | 666.6-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MYSTIC 17500 FT 666.6-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MYSTIC 17500 FT | 666.6 KCMIL 1C 20S | CARRETE DE 17500 FT | |
| 768.2 kcmil (14) | ||||
| 61438202 | 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 11400 FT 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 11400 FT | 768.2 KCMIL 1C 20S | CARRETE DE 11400 FT | |
| 61438206 | 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 11700 FT 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 11700 FT | 768.2 KCMIL 1C 20S | CARRETE 11700 FT | |
| 61438203 | 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 12700 FT 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 12700 FT | 768.2 KCMIL 1C 20S | CARRETE DE 12700 FT | |
| 61438229 | 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 14015 LB 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 14015 LB | 768.2 KCMIL 1C 20S | CARRETE 14015 LB | |
| 61438201 | 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 14700 FT 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 14700 FT | 768.2 KCMIL 1C 20S | CARRETE DE 14700 FT | |
| 61438204 | 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 15400 FT 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 15400 FT | 768.2 KCMIL 1C 20S | CARRETE 15400 FT | |
| 61438228 | 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 15929 LB 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 15929 LB | 768.2 KCMIL 1C 20S | CARRETE 15929 LB | |
| 61438227 | 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 16140 FT 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 16140 FT | 768.2 KCMIL 1C 20S | CARRETE 16140 FT | |
| 61438207 | 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 16700 FT 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 16700 FT | 768.2 KCMIL 1C 20S | CARRETE 16700 FT | |
| 61438205 | 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 17000 FT 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 17000 FT | 768.2 KCMIL 1C 20S | CARRETE DE 17000 FT | |
| 61438232 | 768.2-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 5800 FT 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 5800 FT | 768.2 KCMIL 1C 20S | CARRETE DE 5800 FT | |
| 61438226 | 768.2-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 8392 LB 768.2-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% MAUMEE 8392 LB | 768.2 KCMIL 1C 20S | CARRETE DE 8392 LB | |
| 61438230 | 768.2-20/7 TYPE 13 MAUMEE/TW/HS285/Galfan ACSS/TW 14900 LB 768.2-20/7 TYPE 13 MAUMEE/TW/HS285/Galfan ACSS/TW 14900 LB | 768.2 KCMIL 1C | CARRETE 14900 LB | |
| 61438231 | 768.2-20/7 TIPO 13 MAUMEE/TW/HS285/Galfan ACSS/TW 7500 LB 768.2-20/7 TYPE 13 MAUMEE/TW/HS285/Galfan ACSS/TW 7500 LB | 768.2 KCMIL 1C | CARRETE DE 7500 LB | |
| 795 kcmil (12) | ||||
| 61387034 | 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 10000 FT 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 10000 FT | 795 KCMIL 1C 20S | CARRETE DE 10000 FT | |
| 61387028 | 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 11500 FT 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 11500 FT | 795 KCMIL 1C 20S | CARRETE DE 11500 FT | |
| 61387029 | 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 12000 FT 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 12000 FT | 795 KCMIL 1C 20S | CARRETE DE 12000 FT | |
| 61387027 | 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 14000 FT 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 14000 FT | 795 KCMIL 1C 20S | CARRETE DE 14000 FT | |
| 61387025 | 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 14196 LB 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 14196 LB | 795 KCMIL 1C 20S | CARRETE 14196 LB | |
| 61387033 | 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 18000 FT 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 18000 FT | 795 KCMIL 1C 20S | CARRETE DE 18000 FT | |
| 61387015 | 795-20/7 TIPO 16 ACSS/TW/MA5 (HS285)/63% DRAKE 3140 FT 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 3140 FT | 795 KCMIL 1C 20S | CARRETE DE 3140 FT | |
| 61387036 | 795-20/7 TIPO 16 ACSS/TW/MA5 (HS285)/63% DRAKE 3140 FT 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 3140 FT | 795 KCMIL 1C 20S | CARRETE DE 3140 FT | |
| 61387035 | 795-20/7 TIPO 16 ACSS/TW/MA5 (HS285)/63% DRAKE 3470 FT 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 3470 FT | 795 KCMIL 1C 20S | CARRETE DE 3470 FT | |
| 61387030 | 795-20/7 TIPO 16 ACSS/TW/MA5 (HS285)/63% DRAKE 8000 FT 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 8000 FT | 795 KCMIL 1C 20S | CARRETE DE 8000 FT | |
| 61387032 | 795-20/7 TIPO 16 ACSS/TW/MA5 (HS285)/63% DRAKE 9000 FT 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 9000 FT | 795 KCMIL 1C 20S | CARRETE DE 9000 FT | |
| 61387031 | 795-20/7 TIPO 16 ACSS/TW/MA5 (HS285)/63% DRAKE 9333 FT 795-20/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% DRAKE 9333 FT | 795 KCMIL 1C 20S | CARRETE DE 9333 FT | |
| 900 kcmil (18) | ||||
| 61606811 | 900-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CANARY 10251 LB 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 10251 LB | 900 KCMIL 1C 20S | CARRETE 10251 LB | |
| 61606810 | 900-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CANARY 10441 LB 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 10441 LB | 900 KCMIL 1C 20S | CARRETE 10441 LB | |
| 61606809 | 900-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CANARY 10934 LB 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 10934 LB | 900 KCMIL 1C 20S | CARRETE 10934 LB | |
| 61606808 | 900-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CANARY 12141 LB 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 12141 LB | 900 KCMIL 1C 20S | CARRETE 12141 LB | |
| 61606803 | 900-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CANARY 12243 LB 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 12243 LB | 900 KCMIL 1C 20S | CARRETE 12243 LB | |
| 61606812 | 900-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CANARY 14238 LB 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 14238 LB | 900 KCMIL 1C 20S | CARRETE DE 14238 LB | |
| 61606815 | 900-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CANARY 15833 LB 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 15833 LB | 900 KCMIL 1C 20S | CARRETE 15833 LB | |
| 61606814 | 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 5040 LB 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 5040 LB | 900 KCMIL 1C 20S | CARRETE DE 5040 LB | |
| 61606816 | 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 5297 FT 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 5297 FT | 900 KCMIL 1C 20S | CARRETE DE 5297 FT | |
| 61606822 | 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 5355 LB 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 5355 LB | 900 KCMIL 1C 20S | CARRETE DE 5355 LB | |
| 61606823 | 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 5363 LB 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 5363 LB | 900 KCMIL 1C 20S | CARRETE DE 5363 LB | |
| 61606817 | 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 7731 FT 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 7731 FT | 900 KCMIL 1C 20S | CARRETE DE 7731 FT | |
| 61606819 | 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 7955 LB 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 7955 LB | 900 KCMIL 1C 20S | CARRETE DE 7955 LB | |
| 61606813 | 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 8202 FT 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 8202 FT | 900 KCMIL 1C 20S | 8202 FT ROLLO | |
| 61606818 | 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 8349 LB 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 8349 LB | 900 KCMIL 1C 20S | CARRETE DE 8349 LB | |
| 61606807 | 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 8477 LB 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 8477 LB | 900 KCMIL 1C 20S | CARRETE DE 8477 LB | |
| 61606820 | 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 9583 LB 900-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CANARY 9583 LB | 900 KCMIL 1C 20S | CARRETE DE 9583 LB | |
| 61606821 | 900-20/7 TYPE 13 CANARY/TW/HS285/Galfan ACSS/TW 6229 LB 900-20/7 TYPE 13 CANARY/TW/HS285/Galfan ACSS/TW 6229 LB | 900 KCMIL 1C | CARRETE DE 6229 LB | |
| 954 kcmil (14) | ||||
| 61343120 | 954-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 10000 FT 954-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 10000 FT | 954 KCMIL 1C 20S | CARRETE DE 10000 FT | |
| 61343108 | 954-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 10000 LB 954-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 10000 LB | 954 KCMIL 1C 20S | CARRETE DE 10000 LB | |
| 61343129 | 954-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 10750 FT 954-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 10750 FT | 954 KCMIL 1C 20S | CARRETE DE 10750 FT | |
| 61343117 | 954-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 11200 FT 954-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 11200 FT | 954 KCMIL 1C 20S | CARRETE DE 11200 FT | |
| 61343130 | 954-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 12400 FT 954-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 12400 FT | 954 KCMIL 1C 20S | CARRETE DE 12400 FT | |
| 61343115 | 954-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 12500 FT 954-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 12500 FT | 954 KCMIL 1C 20S | CARRETE DE 12500 FT | |
| 61343131 | 954-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 12850 FT 954-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 12850 FT | 954 KCMIL 1C 20S | CARRETE DE 12850 FT | |
| 61343132 | 954-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 13530 LB 954-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 13530 LB | 954 KCMIL 1C 20S | CARRETE DE 13530 LB | |
| 61343111 | 954-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 14000 LB 954-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 14000 LB | 954 KCMIL 1C 20S | CARRETE DE 14000 LB | |
| 61343116 | 954-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 14700 FT 954-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 14700 FT | 954 KCMIL 1C 20S | CARRETE DE 14700 FT | |
| 61343102 | 954-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 3580 LB 954-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 3580 LB | 954 KCMIL 1C 20S | CARRETE DE 3580 LB | |
| 61343119 | 954-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 7500 FT 954-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 7500 FT | 954 KCMIL 1C 20S | CARRETE DE 7500 FT | |
| 61343114 | 954-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 8750 LB 954-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 8750 LB | 954 KCMIL 1C 20S | CARRETE DE 8750 LB | |
| 61343112 | 954-20/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 9200 LB 954-20/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CARDINAL 9200 LB | 954 KCMIL 1C 20S | CARRETE DE 9200 LB | |
| 959.6 kcmil (5) | ||||
| 61469130 | 959.6-22/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% SUWANNEE 11500 FT 959.6-22/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% SUWANNEE 11500 FT | 959.6 KCMIL 1C 22S | CARRETE DE 11500 FT | |
| 61469133 | 959.6-22/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% SUWANNEE 13960 LB 959.6-22/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% SUWANNEE 13960 LB | 959.6 KCMIL 1C 22S | CARRETE 13960 LB | |
| 61469132 | 959.6-22/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% SUWANNEE 14000 FT 959.6-22/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% SUWANNEE 14000 FT | 959.6 KCMIL 1C 22S | CARRETE DE 14000 FT | |
| 61469131 | 959.6-22/7 TIPO 16 ACSS/TW/MA5 (HS285)/63% SUWANNEE 6585 LB 959.6-22/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% SUWANNEE 6585 LB | 959.6 KCMIL 1C 22S | CARRETE DE 6585 LB | |
| 61469129 | 959.6-22/7 TIPO 16 ACSS/TW/MA5 (HS285)/63% SUWANNEE 7320 FT 959.6-22/7 TYPE 16 ACSS/TW/MA5 (HS285)/63% SUWANNEE 7320 FT | 959.6 KCMIL 1C 22S | CARRETE DE 7320 FT | |
| 1033.5 kcmil (18) | ||||
| 61998530 | 1033.5-22/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CURLEW 10579 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 10579 FT | 1033.5 KCMIL 1C 22S | CARRETE 10579 FT | |
| 61998529 | 1033.5-22/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CURLEW 10633 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 10633 FT | 1033.5 KCMIL 1C 22S | CARRETE 10633 FT | |
| 61998534 | 1033.5-22/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CURLEW 10898 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 10898 FT | 1033.5 KCMIL 1C 22S | CARRETE 10898 FT | |
| 61998533 | 1033.5-22/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CURLEW 11061 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 11061 FT | 1033.5 KCMIL 1C 22S | CARRETE 11061 FT | |
| 61998526 | 1033.5-22/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CURLEW 11105 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 11105 FT | 1033.5 KCMIL 1C 22S | CARRETE 11105 FT | |
| 61998532 | 1033.5-22/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CURLEW 11237 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 11237 FT | 1033.5 KCMIL 1C 22S | CARRETE 11237 FT | |
| 61998531 | 1033.5-22/7 TIPO 13 ACSS/TW/MA5 (HS285)/63% CURLEW 11489 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 11489 FT | 1033.5 KCMIL 1C 22S | CARRETE 11489 FT | |
| 61998536 | 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 3600 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 3600 FT | 1033.5 KCMIL 1C 22S | CARRETE DE 3600 FT | |
| 61998537 | 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 5000 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 5000 FT | 1033.5 KCMIL 1C 22S | CARRETE DE 5000 FT | |
| 61998528 | 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 6863 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 6863 FT | 1033.5 KCMIL 1C 22S | CARRETE DE 6863 FT | |
| 61998539 | 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 7000 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 7000 FT | 1033.5 KCMIL 1C 22S | CARRETE DE 7000 FT | |
| 61998527 | 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 7014 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 7014 FT | 1033.5 KCMIL 1C 22S | CARRETE DE 7014 FT | |
| 61998535 | 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 7466 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 7466 FT | 1033.5 KCMIL 1C 22S | CARRETE DE 7466 FT | |
| 61998525 | 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 7617 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 7617 FT | 1033.5 KCMIL 1C 22S | CARRETE DE 7617 FT | |
| 61998518 | 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 7666 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 7666 FT | 1033.5 KCMIL 1C 22S | CARRETE DE 7666 FT | |
| 61998516 | 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 8296 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 8296 FT | 1033.5 KCMIL 1C 22S | CARRETE DE 8296 FT | |
| 61998538 | 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 8500 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 8500 FT | 1033.5 KCMIL 1C 22S | CARRETE DE 8500 FT | |
| 61998515 | 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 8873 FT 1033.5-22/7 TYPE 13 ACSS/TW/MA5 (HS285)/63% CURLEW 8873 FT | 1033.5 KCMIL 1C 22S | CARRETE DE 8873 FT | |
| 1192.5 kcmil (2) | ||||
| 61999519 | 1192.5-38/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% GRACKLE 6700 FT 1192.5-38/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% GRACKLE 6700 FT | 1192.5 KCMIL 1C 38S | CARRETE 6700 FT | |
| 61999518 | 1192.5-38/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% GRACKLE 7218 FT 1192.5-38/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% GRACKLE 7218 FT | 1192.5 KCMIL 1C 38S | CARRETE DE 7218 FT | |
| 1233.6 kcmil (5) | ||||
| 61386827 | 1233.6-38/19 TIPO 13 ACSS/TW/MA5 (HS285)/63% YUKON 10309 LB 1233.6-38/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% YUKON 10309 LB | 1233.6 KCMIL 1C 38S | CARRETE 10309 LB | |
| 61386829 | 1233.6-38/19 TIPO 13 ACSS/TW/MA5 (HS285)/63% YUKON 11895 LB 1233.6-38/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% YUKON 11895 LB | 1233.6 KCMIL 1C 38S | CARRETE 11895 LB | |
| 61386830 | 1233.6-38/19 TIPO 13 ACSS/TW/MA5 (HS285)/63% YUKON 14000 FT 1233.6-38/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% YUKON 14000 FT | 1233.6 KCMIL 1C 38S | CARRETE DE 14000 FT | |
| 61386828 | 1233.6-38/19 TIPO 13 ACSS/TW/MA5 (HS285)/63% YUKON 22521 LB 1233.6-38/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% YUKON 22521 LB | 1233.6 KCMIL 1C 38S | CARRETE 22521 LB | |
| 61386824 | 1233.6-38/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% YUKON 5000 FT 1233.6-38/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% YUKON 5000 FT | 1233.6 KCMIL 1C 38S | CARRETE DE 5000 FT | |
| 1351.5 kcmil (8) | ||||
| 61661029 | 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 11969 LB 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 11969 LB | 1351.5 KCMIL 1C 42S | CARRETE 11969 LB | |
| 61661028 | 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 12558 LB 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 12558 LB | 1351.5 KCMIL 1C 42S | CARRETE 12558 LB | |
| 61661027 | 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 23901 LB 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 23901 LB | 1351.5 KCMIL 1C 42S | CARRETE 23901 LB | |
| 61661026 | 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 25115 LB 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 25115 LB | 1351.5 KCMIL 1C 42S | CARRETE 25115 LB | |
| 61661031 | 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 25633 LB 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 25633 LB | 1351.5 KCMIL 1C 42S | CARRETE 25633 LB | |
| 61661025 | 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 25981 LB 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 25981 LB | 1351.5 KCMIL 1C 42S | CARRETE 25981 LB | |
| 61661032 | 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 26845 LB 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 26845 LB | 1351.5 KCMIL 1C 42S | CARRETE 26845 LB | |
| 61661033 | 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 27885 LB 1351.5-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% MARTIN 27885 LB | 1351.5 KCMIL 1C 42S | CARRETE 27885 LB | |
| 1590 kcmil (1) | ||||
| 66283725 | 1590-42/19 TIPO 13 ACSS/TW/MA5 (HS285)/63% FALCON 8000 FT 1590-42/19 TYPE 13 ACSS/TW/MA5 (HS285)/63% FALCON 8000 FT | 1590 KCMIL 1C 42S | CARRETE DE 8000 FT | |
| 2627.3 kcmil (3) | ||||
| 66191902 | 2627.3-64/19 TYPE 8 ACSS/TW/MA5 (HS285)/63% SANTEE 5900 FT 2627.3-64/19 TYPE 8 ACSS/TW/MA5 (HS285)/63% SANTEE 5900 FT | 2627.3 KCMIL 1C 64S | CARRETE 5900 FT | |
| 66191901 | 2627.3-64/19 TYPE 8 ACSS/TW/MA5 (HS285)/63% SANTEE 6400 FT 2627.3-64/19 TYPE 8 ACSS/TW/MA5 (HS285)/63% SANTEE 6400 FT | 2627.3 KCMIL 1C 64S | CARRETE DE 6400 FT | |
| 66191903 | 2627.3-64/19 TYPE 8 ACSS/TW/MA5 (HS285)/63% SANTEE 7400 FT 2627.3-64/19 TYPE 8 ACSS/TW/MA5 (HS285)/63% SANTEE 7400 FT | 2627.3 KCMIL 1C 64S | CARRETE DE 7400 FT | |
Aplicación y características
HS285 es el conductor de alta temperatura y bajo pandeo (HTLS) más popular en uso hoy en día debido a su versatilidad y resistencia. El conductor multipropósito es hasta 21 por ciento más fuerte que el ACSS estándar, reduciendo el pandeo mientras permite mayor capacidad de línea. Desarrollado en el Centro de Tecnología D.B. Cofer de Southwire, HS285 ha sido probado en campo para capacidad hasta 95 por ciento superior al ACSR, reduciendo costos de reconfiguración. HS285 puede tenderse más apretado para operar con mayor distancia de seguridad a temperaturas más altas. También permite instalación fácil utilizando derechos de vía, estructuras y métodos existentes.
