CU Comprimido 15kV Aislamiento NLEPR Nivel de Aislamiento 133% Cubierta Negra SIM-PVC. MV 105 - Clasificado para Charola - Resistente a la Luz Solar - Para Enterramiento Directo
- Núm. Southwire
- SPEC46302

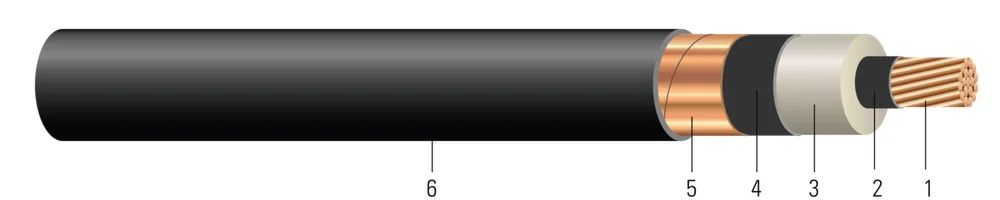

Tipo MV-105 Conductor Sencillo Cobre, 220 Mil Caucho de Etileno Propileno Libre de Plomo (NL-EPR) EAM Libre de Plomo Nivel de Aislamiento 133%, Pantalla de Cinta, Cubierta de Cloruro de Polivinilo (PVC) SIMpull, Clasificación Dual UL/CSA
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (24) ↓Tamaños y construcciones disponibles
| Tamaño Cond. | Hebras del Conductor | Diámetro Sobre Conductor (in)(cm) | Diámetro Sobre Aislamiento (in)(cm) | Espesor del Aislamiento (mils)(mm) | Diámetro Sobre Blindaje (in)(cm) | Espesor de Cubierta (mils)(mm) | D.E. Aprox. (inches)(cm) | Peso Aprox. (lbs/1000')(kgs/km) | Tensión de Jalado Máximo (lbs)(kg) | Radio de Curvatura Mín. (in)(cm) | Tamaño de Tubo Conduit (in)(cm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 AWG2 AWG | 77 | 0.2820.72 | 0.7551.92 | 2205.59 | 0.8152.07 | 802.03 | 0.9952.53 | 640952 | 530240.40 | 11.930.23 | 3.07.62 | 95363899 |
| 1 AWG1 AWG | 1919 | 0.3220.82 | 0.8002.03 | 2205.59 | 0.8602.18 | 802.03 | 1.0402.64 | 7221074 | 669303.45 | 12.431.50 | 3.07.62 | 95510499 |
| 1/0 AWG1/0 AWG | 1919 | 0.3610.92 | 0.8402.13 | 2205.59 | 0.9002.29 | 802.03 | 1.0802.74 | 8161214 | 844382.83 | 12.932.77 | 3.07.62 | 95598999 |
| 2/0 AWG2/0 AWG | 1919 | 0.4051.03 | 0.8842.25 | 2205.59 | 0.9442.40 | 802.03 | 1.1242.85 | 9291383 | 1064482.62 | 13.434.04 | 3.58.89 | 95599755 |
| 3/0 AWG3/0 AWG | 1919 | 0.4561.16 | 0.9342.37 | 2205.59 | 0.9942.52 | 802.03 | 1.1742.98 | 10691591 | 1342608.72 | 14.035.56 | 3.58.89 | 95600399 |
| 4/0 AWG4/0 AWG | 1919 | 0.5121.30 | 0.9902.51 | 2205.59 | 1.0502.67 | 802.03 | 1.2303.12 | 12421848 | 1692767.48 | 14.737.34 | 3.58.89 | 95601155 |
| 250 KCMIL250 KCMIL | 3737 | 0.5581.42 | 1.0442.65 | 2205.59 | 1.1042.80 | 802.03 | 1.2843.26 | 13982080 | 2000907.18 | 15.439.12 | 4.010.16 | 95602999 |
| 350 KCMIL350 KCMIL | 3737 | 0.6611.68 | 1.1472.91 | 2205.59 | 1.2073.07 | 802.03 | 1.3873.52 | 17752641 | 28001270.06 | 16.642.16 | 4.010.16 | 95603701 |
| 500 KCMIL500 KCMIL | 3737 | 0.7892.00 | 1.2753.24 | 2205.59 | 1.3353.39 | 802.03 | 1.5153.85 | 23223456 | 40001814.37 | 18.246.23 | 4.511.43 | 13963199 |
| 600 KCMIL600 KCMIL | 6161 | 0.8652.20 | 1.3623.46 | 2205.59 | 1.4223.61 | 802.03 | 1.6024.07 | 26944009 | 48002177.24 | 19.248.77 | 4.511.43 | 64375599 |
| 750 KCMIL750 KCMIL | 6161 | 0.9682.46 | 1.4643.72 | 2205.59 | 1.5243.87 | 1102.79 | 1.7644.48 | 33234945 | 60002721.55 | 21.153.59 | 5.012.70 | 95605255 |
| 1000 KCMIL1000 KCMIL | 6161 | 1.1172.84 | 1.6134.10 | 2205.59 | 1.6734.25 | 1102.79 | 1.9134.86 | 42026253 | 80003628.74 | 22.958.17 | 5.513.97 | 95606099 |
| 1250 KCMIL1250 KCMIL | 9191 | 1.2503.18 | 1.7804.52 | 2205.59 | 1.8404.67 | 1102.79 | 2.0805.28 | 51187616 | 100004535.92 | 24.963.25 | 6.015.24 | 58188601 |
| 1500 KCMIL1500 KCMIL | 9191 | 1.3703.48 | 1.9304.90 | 2205.59 | 1.9905.05 | 1102.79 | 2.2305.66 | 60068938 | 120005443.10 | 26.767.82 | 56744399 | |
| 2000 KCMIL2000 KCMIL | 127127 | 1.5834.02 | 2.1435.44 | 2205.59 | 2.2035.60 | 1102.79 | 2.4436.21 | 771611483 | 160007257.47 | 29.374.42 | 55081199 | |
| 2 AWG2 AWG | 0.1620.24 | 0.2040.30 | 0.0510.08 | 0.0510.08 | 0.346 + j0.2340.346 + j0.234 | 0.024 + j0.0370.024 + j0.037 | 25712571 | 155155 | 165165 | 195195 | 215215 | 95363899 |
| 1 AWG1 AWG | 0.1280.19 | 0.1620.24 | 0.0470.07 | 0.0490.07 | 0.353 + j0.2480.353 + j0.248 | 0.024 + j0.0360.024 + j0.036 | 26952695 | 175175 | 185185 | 225225 | 250250 | 95510499 |
| 1/0 AWG1/0 AWG | 0.1020.15 | 0.1280.19 | 0.0430.06 | 0.0470.07 | 0.353 + j0.2480.353 + j0.248 | 0.024 + j0.0360.024 + j0.036 | 28162816 | 200200 | 215215 | 260260 | 290290 | 95598999 |
| 2/0 AWG2/0 AWG | 0.0810.12 | 0.1020.15 | 0.0400.06 | 0.0450.07 | 0.353 + j0.2480.353 + j0.248 | 0.024 + j0.0360.024 + j0.036 | 29522952 | 230230 | 245245 | 300300 | 335335 | 95599755 |
| 3/0 AWG3/0 AWG | 0.0640.10 | 0.0810.12 | 0.0370.06 | 0.0430.06 | 0.353 + j0.2480.353 + j0.248 | 0.024 + j0.0360.024 + j0.036 | 31103110 | 260260 | 275275 | 345345 | 385385 | 95600399 |
| 4/0 AWG4/0 AWG | 0.0510.08 | 0.0650.10 | 0.0340.05 | 0.0420.06 | 0.353 + j0.2480.353 + j0.248 | 0.024 + j0.0360.024 + j0.036 | 32843284 | 295295 | 315315 | 400400 | 445445 | 95601155 |
| 250 KCMIL250 KCMIL | 0.0430.06 | 0.0560.08 | 0.0320.05 | 0.0410.06 | 0.354 + j0.2550.354 + j0.255 | 0.020 + j0.0310.020 + j0.031 | 34513451 | 325325 | 345345 | 445445 | 495495 | 95602999 |
| 350 KCMIL350 KCMIL | 0.0310.05 | 0.0410.06 | 0.0280.04 | 0.0390.06 | 0.354 + j0.2550.354 + j0.255 | 0.020 + j0.0310.020 + j0.031 | 37703770 | 390390 | 415415 | 550550 | 610610 | 95603701 |
| 500 KCMIL500 KCMIL | 0.0220.03 | 0.0300.04 | 0.0250.04 | 0.0370.06 | 0.354 + j0.2550.354 + j0.255 | 0.020 + j0.0310.020 + j0.031 | 41674167 | 465465 | 500500 | 685685 | 765765 | 13963199 |
| 600 KCMIL600 KCMIL | 0.0180.03 | 0.0260.04 | 0.0230.03 | 0.0360.05 | 0.365 + j0.2690.365 + j0.269 | 0.027 + j0.0360.027 + j0.036 | 44334433 | 505505 | 544544 | 765765 | 855855 | 64375599 |
| 750 KCMIL750 KCMIL | 0.0140.02 | 0.0230.03 | 0.0210.03 | 0.0350.05 | 0.355 + j0.2420.355 + j0.242 | 0.031 + j0.0410.031 + j0.041 | 47524752 | 565565 | 610610 | 885885 | 990990 | 95605255 |
| 1000 KCMIL1000 KCMIL | 0.0110.02 | 0.0190.03 | 0.0190.03 | 0.0340.05 | 0.355 + j0.2420.355 + j0.242 | 0.031 + j0.0420.031 + j0.042 | 52145214 | 640640 | 690690 | 10601060 | 11851185 | 95606099 |
| 1250 KCMIL1250 KCMIL | 0.0090.01 | 0.0180.03 | 0.0170.03 | 0.0330.05 | 0.449 + j0.3020.449 + j0.302 | 0.102 + j0.050.102 + j0.05 | 56385638 | 715715 | 770770 | 12101210 | 13501350 | 58188601 |
| 1500 KCMIL1500 KCMIL | 0.0070.01 | 0.0170.03 | 0.0160.02 | 0.0320.05 | 0.498 + j0.4630.498 + j0.463 | 0.128 + j0.0410.128 + j0.041 | 60106010 | 815815 | 880880 | 13451345 | 15001500 | 56744399 |
| 2000 KCMIL2000 KCMIL | 0.0050.01 | 0.0170.03 | 0.0140.02 | 0.0310.05 | 0.458 + j0.3370.458 + j0.337 | 0.103 + j0.050.103 + j0.05 | 66706670 | 940940 | 10101010 | 15751575 | 17551755 | 55081199 |
Números de parte en esta familia (24)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Empaque | |
|---|---|---|---|---|
| 2 AWG (1) | ||||
| 95363899 | 2-7 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA DE PVC UL/CSA 2-7 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA | 2 AWG 1C 7S | CARRETE CORTE A LA MEDIDA | |
| 1 AWG (1) | ||||
| 95510499 | 1-19 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA PVC UL/CSA 0FT 1-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA 0FT | 1 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 1/0 AWG (1) | ||||
| 95598999 | 1/0-19 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull PVC JACKET UL/CSA 1/0-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA | 1/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 2/0 AWG (2) | ||||
| 95599799 | 2/0-19 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull PVC JACKET UL/CSA 2/0-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA | 2/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 95599755 | 2/0-19 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA PVC UL/CSA0 FT 2/0-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA0 FT | 2/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 3/0 AWG (1) | ||||
| 95600399 | 3/0-19 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull PVC JACKET UL/CSA 3/0-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA | 3/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 4/0 AWG (2) | ||||
| 95601199 | 4/0-19 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull PVC JACKET UL/CSA 4/0-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 95601155 | 4/0-19 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA PVC UL/CSA0 FT 4/0-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA0 FT | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 250 kcmil (1) | ||||
| 95602999 | 250-37 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull PVC JACKET UL/CSA 250-37 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA | 250 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 350 kcmil (3) | ||||
| 95603799 | 350-37 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull PVC JACKET UL/CSA 350-37 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA | 350 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 95603755 | 350-37 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA PVC UL/CSA0 FT 350-37 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA0 FT | 350 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 95603701 | 350-37 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA PVC UL/CSA 1300 FT 350-37 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA1300 FT | 350 KCMIL 1C 37S | CARRETE DE 1300 FT | |
| 500 kcmil (4) | ||||
| 95604599 | 500-37 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull PVC JACKET UL/CSA 500-37 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA | 500 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 95604555 | 500-37 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA PVC UL/CSA0 FT 500-37 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA0 FT | 500 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 95604525 | 500-37 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA PVC UL/CSA 1250 FT 500-37 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA1250 FT | 500 KCMIL 1C 37S | 1250 FT ROLLO | |
| 13963199 | 500-37 ESTAÑO CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA PVC UL/CSA 500-37 TINNED CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKETUL/CSA | 500 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 600 kcmil (1) | ||||
| 64375599 | 600-61 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA PVC UL/CSA 600-61 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA | 600 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 750 kcmil (3) | ||||
| 95605299 | 750-61 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull PVC JACKET UL/CSA 750-61 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA | 750 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 95605255 | 750-61 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA PVC UL/CSA0 FT 750-61 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA0 FT | 750 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 95605277 | 750-61 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA PVC UL/CSA0 FT 750-61 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA0 FT | 750 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 1000 kcmil (1) | ||||
| 95606099 | 1000-61 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA PVC UL/CSA 1000-61 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA | 1000 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 1250 kcmil (1) | ||||
| 58188601 | 1250 kcmil 91 HILOS CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA PVC UL/CSA 1000 FT 1250-91 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA 1000 FT | 1250 KCMIL 1C 91S | CARRETE DE 1000 FT | |
| 1500 kcmil (1) | ||||
| 56744399 | 1500-91 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull FORRO PVC UL/CSA 1500-91 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA | 1500 KCMIL 1C 91S | CARRETE CORTE A LA MEDIDA | |
| 2000 kcmil (1) | ||||
| 55081199 | 2000-127 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO SIMpull CUBIERTA PVC UL/CSA 2000-127 CU 220 MILS NL-EPR 15KV 133% T/S BLACK SIMpull PVC JACKET UL/CSA | 2000 KCMIL 1C 127S | CARRETE CORTE A LA MEDIDA | |
Aplicación y características
Los cables de 15kV de Southwire son adecuados para uso en áreas húmedas y secas, conductos, ductos, bandejas, charolas, enterramiento directo cuando se instalan con un conductor de puesta a tierra en proximidad cercana que se ajuste a la sección 311.36 del NEC y 250.4(A)(5), soportados aéreamente por un mensajero y donde se desean propiedades eléctricas superiores. Estos cables son capaces de operar continuamente a una temperatura de conductor no superior a 105°C para operación normal, 140°C para sobrecarga de emergencia y 250°C para condiciones de cortocircuito. Clasificados a -25°C para flexión en frío e impacto en frío y marcados con "LTGG" cuando están listados por CSA. La cubierta PVC está fabricada con tecnología SIM y tiene un coeficiente de fricción COF de 0.2. El cable se puede instalar en tubo conduit sin la ayuda de lubricante. Clasificado para una presión de pared lateral máxima de 1000 lb/ft. Estos cables presentan resistencia al sol y la humedad, resistencia excepcional a la corona, resistencia a la mayoría de químicos, aceites y ácidos y son retardantes a la flama. Cable Tray CT clasificado 1/0 AWG y superior.
Normas y referencias
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
- UL 1072 Medium-Voltage Power Cables
- UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test (1/0 and Larger)
- CSA C22.2 No.230 Tray Cables - Rated TC-ER (1/0 AWG and Larger)
- CSA C22.2 No. 2556 / UL 2556 Cable Test Methods
- CSA C68.10 Shielded Power Cables for Commercial and Industrial Applications - 5 to 46 KV
- ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
- ICEA S-97-682 Standard for Shielded Utility Cable Rated for 5 - 46kV
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test (1/0 and Larger)
- AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV (Qualification Test Requirements)
- Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661
