Cobre comprimido 15kV con aislamiento NLEPR 133% IL, cubierta CPE-TP negra. MV 105 - Apto para charola - Resistente a la luz solar - Para enterramiento directo
- Núm. Southwire
- SPEC46304

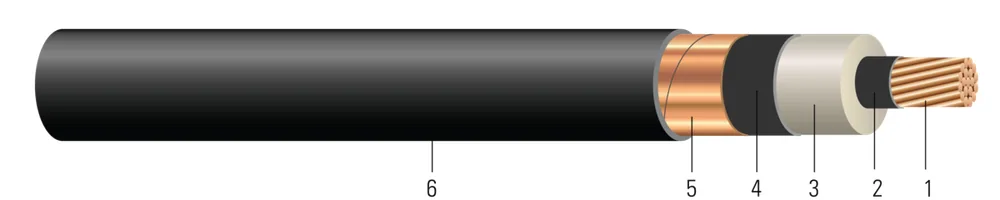

Conductor Individual Tipo MV-105 Cobre, 220 Mils Caucho de Etileno Propileno Sin Plomo (NL-EPR) Nivel de Aislamiento 133%, Blindaje de Cinta, Cubierta de Polietileno Clorado Termoplástico (CPE-TP), Clasificado Dual UL/CSA. Libre de Silicona
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (12) ↓Tamaños y construcciones disponibles
| Tamaño Cond. | Hebras del Conductor | Diámetro Sobre Conductor (in)(cm) | Diámetro Sobre Aislamiento (in)(cm) | Espesor del Aislamiento (mils)(mm) | Diámetro Sobre Blindaje (in)(cm) | Espesor de Cubierta (mils)(mm) | D.E. Aprox. (inches)(cm) | Peso Aprox. (lbs/1000')(kgs/km) | Tensión de Jalado Máximo (lbs)(kg) | Radio de Curvatura Mín. (in)(cm) | Tamaño de Tubo Conduit (in)(cm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 AWG2 AWG | 77 | 0.2820.72 | 0.7551.92 | 2205.59 | 0.8152.07 | 802.03 | 0.9952.53 | 647963 | 530240.40 | 11.930.23 | 3.07.62 | 55050299 |
| 1/0 AWG1/0 AWG | 1919 | 0.3610.92 | 0.8402.13 | 2205.59 | 0.9002.29 | 802.03 | 1.0802.74 | 8231225 | 844382.83 | 12.932.77 | 3.07.62 | 55050399 |
| 2/0 AWG2/0 AWG | 1919 | 0.4051.03 | 0.8842.25 | 2205.59 | 0.9442.40 | 802.03 | 1.1242.85 | 9371394 | 1064482.62 | 13.434.04 | 3.58.89 | 55050499 |
| 3/0 AWG3/0 AWG | 1919 | 0.4561.16 | 0.9342.37 | 2205.59 | 0.9942.52 | 802.03 | 1.1742.98 | 10771603 | 1342608.72 | 14.035.56 | 3.58.89 | 57093599 |
| 4/0 AWG4/0 AWG | 1919 | 0.5121.30 | 0.9902.51 | 2205.59 | 1.0502.67 | 802.03 | 1.2303.12 | 12511862 | 1692767.48 | 14.737.34 | 3.58.89 | 55050599 |
| 250 KCMIL250 KCMIL | 3737 | 0.5581.42 | 1.0282.61 | 2205.59 | 1.0882.76 | 802.03 | 1.2683.22 | 13972079 | 2000907.18 | 15.238.61 | 3.58.89 | 55050699 |
| 350 KCMIL350 KCMIL | 3737 | 0.6611.68 | 1.1472.91 | 2205.59 | 1.2073.07 | 802.03 | 1.3873.52 | 17842655 | 28001270.06 | 16.642.16 | 4.010.16 | 55050799 |
| 500 KCMIL500 KCMIL | 3737 | 0.7892.00 | 1.2523.18 | 2205.59 | 1.3123.33 | 802.03 | 1.4923.79 | 23173448 | 40001814.37 | 17.945.47 | 4.511.43 | 55050899 |
| 750 KCMIL750 KCMIL | 6161 | 0.9682.46 | 1.4643.72 | 2205.59 | 1.5243.87 | 1102.79 | 1.7644.48 | 33394969 | 60002721.55 | 21.153.59 | 5.012.70 | 55051099 |
| 1000 KCMIL1000 KCMIL | 6161 | 1.1172.84 | 1.6134.10 | 2205.59 | 1.6734.25 | 1102.79 | 1.9134.86 | 42206280 | 80003628.74 | 22.958.17 | 5.513.97 | 55051199 |
| 2000 KCMIL2000 KCMIL | 127127 | 1.5834.02 | 2.1435.44 | 2205.59 | 2.2035.60 | 1102.79 | 2.4436.21 | 773911517 | 160007257.47 | 29.374.42 | 59351901 | |
| 2 AWG2 AWG | 0.1620.24 | 0.2040.30 | 0.0510.08 | 0.0510.08 | 0.376 + j0.2890.376 + j0.289 | 0.031 + j0.0370.031 + j0.037 | 25712571 | 155155 | 165165 | 195195 | 215215 | 55050299 |
| 1/0 AWG1/0 AWG | 0.1020.15 | 0.1280.19 | 0.0430.06 | 0.0470.07 | 0.377 + j0.2680.377 + j0.268 | 0.042 + j0.0430.042 + j0.043 | 28162816 | 200200 | 215215 | 260260 | 290290 | 55050399 |
| 2/0 AWG2/0 AWG | 0.0810.12 | 0.1020.15 | 0.0400.06 | 0.0450.07 | 0.377 + j0.2680.377 + j0.268 | 0.042 + j0.0430.042 + j0.043 | 29522952 | 230230 | 245245 | 300300 | 335335 | 55050499 |
| 3/0 AWG3/0 AWG | 0.0640.10 | 0.0810.12 | 0.0370.06 | 0.0430.06 | 0.378 + j0.2680.378 + j0.268 | 0.041 + j0.0410.041 + j0.041 | 31103110 | 260260 | 275275 | 345345 | 385385 | 57093599 |
| 4/0 AWG4/0 AWG | 0.0510.08 | 0.0650.10 | 0.0340.05 | 0.0420.06 | 0.378 + j0.2680.378 + j0.268 | 0.041 + j0.0410.041 + j0.041 | 32843284 | 295295 | 315315 | 400400 | 445445 | 55050599 |
| 250 KCMIL250 KCMIL | 0.0430.06 | 0.0560.08 | 0.0320.05 | 0.0410.06 | 0.378 + j0.2890.378 + j0.289 | 0.030 + j0.0350.030 + j0.035 | 34513451 | 325325 | 345345 | 445445 | 495495 | 55050699 |
| 350 KCMIL350 KCMIL | 0.0310.05 | 0.0410.06 | 0.0280.04 | 0.0390.06 | 0.378 + j0.2890.378 + j0.289 | 0.030 + j0.0350.030 + j0.035 | 37703770 | 390390 | 415415 | 550550 | 610610 | 55050799 |
| 500 KCMIL500 KCMIL | 0.0220.03 | 0.0300.04 | 0.0250.04 | 0.0370.06 | 0.378 + j0.2890.378 + j0.289 | 0.030 + j0.0350.030 + j0.035 | 41674167 | 465465 | 500500 | 685685 | 765765 | 55050899 |
| 750 KCMIL750 KCMIL | 0.0140.02 | 0.0230.03 | 0.0210.03 | 0.0350.05 | 0.378 + j0.2890.378 + j0.289 | 0.030 + j0.0350.030 + j0.035 | 47524752 | 565565 | 610610 | 885885 | 990990 | 55051099 |
| 1000 KCMIL1000 KCMIL | 0.0110.02 | 0.0190.03 | 0.0190.03 | 0.0340.05 | 0.378 + j0.2890.378 + j0.289 | 0.030 + j0.0350.030 + j0.035 | 52145214 | 640640 | 690690 | 10601060 | 11851185 | 55051199 |
| 2000 KCMIL2000 KCMIL | 0.0050.01 | 0.0170.03 | 0.0140.02 | 0.0310.05 | 0.491 + j0.4900.491 + j0.490 | 0.128 + j0.0440.128 + j0.044 | 66706670 | 940940 | 10101010 | 15751575 | 17551755 | 59351901 |
Números de parte en esta familia (12)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Empaque | |
|---|---|---|---|---|
| 2 AWG (1) | ||||
| 55050299 | 2-7 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO CPE-TP UL/CSA 0 FT 2-7 CU 220 MILS NL-EPR 15KV 133% T/S BLACK CPE-TP UL/CSA 0 FT | 2 AWG 1C 7S | CARRETE CORTE A LA MEDIDA | |
| 1/0 AWG (1) | ||||
| 55050399 | 1/0 AWG 19 HILOS CU 220 MILS NL-EPR 15KV 133% T/S NEGRO CPE-TP UL/CSA 0 FT 1/0-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK CPE-TP UL/CSA 0 FT | 1/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 2/0 AWG (1) | ||||
| 55050499 | 2/0-19 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO CPE-TP UL 2/0-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK CPE-TP UL | 2/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 3/0 AWG (1) | ||||
| 57093599 | 3/0-19 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO CPE-TP UL/CSA 3/0-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK CPE-TP UL/CSA | 3/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 4/0 AWG (1) | ||||
| 55050599 | 4/0-19 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO CPE-TP UL/CSA 4/0-19 CU 220 MILS NL-EPR 15KV 133% T/S BLACK CPE-TP UL/CSA | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 250 kcmil (1) | ||||
| 55050699 | 250-37 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO CPE-TP UL/CSA 250-37 CU 220 MILS NL-EPR 15KV 133% T/S BLACK CPE-TP UL/CSA | 250 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 350 kcmil (1) | ||||
| 55050799 | 350-37 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO CPE-TP UL/CSA 350-37 CU 220 MILS NL-EPR 15KV 133% T/S BLACK CPE-TP UL/CSA | 350 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 500 kcmil (1) | ||||
| 55050899 | 500-37 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO CPE-TP UL/CSA 500-37 CU 220 MILS NL-EPR 15KV 133% T/S BLACK CPE-TP UL/CSA | 500 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 750 kcmil (1) | ||||
| 55051099 | 750-61 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO CPE-TP UL/CSA 750-61 CU 220 MILS NL-EPR 15KV 133% T/S BLACK CPE-TP UL/CSA | 750 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 1000 kcmil (1) | ||||
| 55051199 | 1000-61 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO CPE-TP UL/CSA 1000-61 CU 220 MILS NL-EPR 15KV 133% T/S BLACK CPE-TP UL/CSA | 1000 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 2000 kcmil (2) | ||||
| 59351999 | 2000-127 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO CPE-TP UL/CSA 2000-127 CU 220 MILS NL-EPR 15KV 133% T/S BLACK CPE-TP UL/CSA | 2000 KCMIL 1C 127S | CARRETE CORTE A LA MEDIDA | |
| 59351901 | 2000-127 CU 220 MILS NL-EPR 15KV 133% T/S NEGRO CPE-TP UL/CSA 1000 FT 2000-127 CU 220 MILS NL-EPR 15KV 133% T/S BLACK CPE-TP UL/CSA 1000 FT | 2000 KCMIL 1C 127S | CARRETE DE 1000 FT | |
Aplicación y características
Los cables 15KV de Southwire están libres de silicona y son apropiados para uso en áreas húmedas y secas, conductos, ductos, canales, charolas portacables, enterramiento directo cuando se instalan con un conductor de puesta a tierra en proximidad cercana que cumpla con la sección 311.36 y 250.4(A)(5) de la NEC, y donde se desean propiedades eléctricas superiores. Estos cables son capaces de operar continuamente a una temperatura de conductor no mayor de 105°C para operación normal, 140°C para sobrecarga de emergencia, y 250°C para condiciones de cortocircuito. Clasificados a -35°C para doblado en frío cuando están listados por UL. Clasificados a -40°C para doblado en frío e impacto en frío y marcados con "LTGG" cuando están listados por CSA o con listado dual UL/CSA. Clasificados para una presión máxima de pared lateral de 1000 lbs./FT. CT clasificados 1/0 y mayores.
Normas y referencias
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
- UL 1072 Medium-Voltage Power Cables
- UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test (1/0 and Larger)
- CSA C22.2 No.230 Tray Cables - Rated TC
- CSA C22.2 No. 2556 / UL 2556 Cable Test Methods
- CSA C68.10 Shielded Power Cables for Commercial and Industrial Applications - 5 to 46 KV
- ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
- ICEA S-97-682 Standard for Shielded Utility Cable Rated for 5 - 46kV
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test (1/0 and Larger)
- AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV (Qualification Test Requirements)
- Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661
