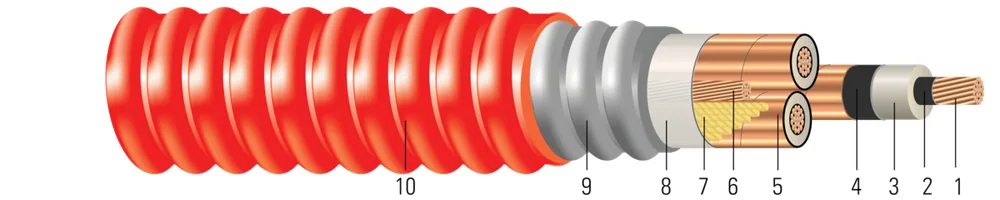

Cobre comprimido 15kV con aislamiento NLEPR 133% IL, armadura ARMOR-X®, cubierta PVC roja. MV 105 - Apto para charola - Resistente a la luz solar - Para enterramiento directo
- Núm. Southwire
- SPEC46454
Cable tipo MV-105, tres conductores de cobre, 220 mils, aislamiento de caucho etilenopropileno sin plomo (NL-EPR) nivel de aislamiento del 133%, pantalla de cinta, armadura de aluminio corrugada soldada continua - ARMOR-X®, cubierta de policloruro de vinilo (PVC). Libre de silicona
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (13) ↓Tamaños y construcciones disponibles
| Tamaño Cond. | Hebras del Conductor | Diámetro Sobre Conductor (in)(cm) | Diámetro Sobre Aislamiento (in)(cm) | Espesor del Aislamiento (mils)(mm) | Diámetro Sobre Blindaje (in)(cm) | Tamaño de Tierra | Diámetro Sobre Armadura (in)(cm) | Espesor de Cubierta (mils)(mm) | D.E. Aprox. (inches)(cm) | Peso Aprox. (lbs/1000')(kgs/km) | Tensión de Jalado Máximo (lbs)(kg) | Radio de Curvatura Mín. (in)(cm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 AWG2 AWG | 77 | 0.2820.72 | 0.7551.92 | 2205.59 | 0.8152.07 | 1x61x6 | 2.2905.82 | 852.16 | 2.4606.25 | 26743979 | 1592722.12 | 17.243.69 | 89066389 |
| 1/0 AWG1/0 AWG | 1919 | 0.3610.92 | 0.8402.13 | 2205.59 | 0.9002.29 | 1x41x4 | 2.5506.48 | 751.91 | 2.7006.86 | 33574996 | 25341149.40 | 18.948.01 | 89066499 |
| 2/0 AWG2/0 AWG | 1919 | 0.4051.03 | 0.8842.25 | 2205.59 | 0.9442.40 | 1x41x4 | 2.5506.48 | 751.91 | 2.7006.86 | 36395415 | 31941448.77 | 18.948.01 | 89066589 |
| 4/0 AWG4/0 AWG | 1919 | 0.5121.30 | 0.9762.48 | 2205.59 | 1.0362.63 | 1x31x3 | 2.7506.99 | 751.91 | 2.9007.37 | 47697097 | 50782303.34 | 20.351.56 | 89066689 |
| 250 KCMIL250 KCMIL | 3737 | 0.5581.42 | 1.0282.61 | 2205.59 | 1.0882.76 | 1x21x2 | 2.8807.32 | 751.91 | 3.0307.70 | 53327935 | 60002721.55 | 21.253.85 | 89066799 |
| 350 KCMIL350 KCMIL | 3737 | 0.6611.68 | 1.1272.86 | 2205.59 | 1.1873.01 | 1x21x2 | 3.2208.18 | 852.16 | 3.3908.61 | 740611021 | 84003810.17 | 23.760.20 | 89066889 |
| 500 KCMIL500 KCMIL | 3737 | 0.7892.00 | 1.2753.24 | 2205.59 | 1.3353.39 | 1x4/01x4/0 | 3.5408.99 | 852.16 | 3.7109.42 | 917713657 | 120005443.10 | 25.965.79 | 59121999 |
| 750 KCMIL750 KCMIL | 6161 | 0.9682.46 | 1.4643.72 | 2205.59 | 1.5243.87 | 1x1/01x1/0 | 3.8509.78 | 852.16 | 4.02810.23 | 1211518029 | 180008164.66 | 28.271.63 | 45737999 |
| 2 AWG2 AWG | 0.1620.24 | 0.2040.30 | 0.0510.08 | 0.0470.07 | 0.341 + j0.2300.341 + j0.230 | 0.020 + j0.0350.020 + j0.035 | 25712571 | 150150 | 160160 | 165165 | 185185 | 89066389 | |
| 1/0 AWG1/0 AWG | 0.1020.15 | 0.1280.19 | 0.0430.06 | 0.0430.06 | 0.342 + j0.2200.342 + j0.220 | 0.031 + j0.0430.031 + j0.043 | 28162816 | 195195 | 210210 | 215215 | 240240 | 89066499 | |
| 2/0 AWG2/0 AWG | 0.0810.12 | 0.1020.15 | 0.0400.06 | 0.0420.06 | 0.342 + j0.2200.342 + j0.220 | 0.031 + j0.0430.031 + j0.043 | 29522952 | 220220 | 235235 | 245245 | 275275 | 89066589 | |
| 4/0 AWG4/0 AWG | 0.0510.08 | 0.0650.10 | 0.0340.05 | 0.0390.06 | 0.342 + j0.2200.342 + j0.220 | 0.031 + j0.0430.031 + j0.043 | 32843284 | 285285 | 305305 | 325325 | 360360 | 89066689 | |
| 250 KCMIL250 KCMIL | 0.0430.06 | 0.0560.08 | 0.0320.05 | 0.0380.06 | 0.342 + j0.2200.342 + j0.220 | 0.031 + j0.0430.031 + j0.043 | 34513451 | 310310 | 335335 | 360360 | 400400 | 89066799 | |
| 350 KCMIL350 KCMIL | 0.0310.05 | 0.0410.06 | 0.0280.04 | 0.0360.05 | 0.344 + j0.2340.344 + j0.234 | 0.020 + j0.0340.020 + j0.034 | 37703770 | 375375 | 400400 | 435435 | 490490 | 89066889 | |
| 500 KCMIL500 KCMIL | 0.0220.03 | 0.0300.04 | 0.0250.04 | 0.0340.05 | 0.512 + j0.5540.512 + j0.554 | 0.162 + j0.0420.162 + j0.042 | 41674167 | 450450 | 485485 | 535535 | 600600 | 59121999 | |
| 750 KCMIL750 KCMIL | 0.0140.02 | 0.0230.03 | 0.0210.03 | 0.0320.05 | 0.292 + j0.1580.292 + j0.158 | 0.019 + j0.0380.019 + j0.038 | 47524752 | 545545 | 585585 | 670670 | 745745 | 45737999 |
Números de parte en esta familia (13)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Color del Conductor | Empaque | |
|---|---|---|---|---|---|
| 2 AWG (2) | |||||
| 89066399 | 2-7 3 CONDUCTORES CPRESS CU NL-EPR 25% T/S 1X#6 CU GW ARMOR-X MC-HL O MV-105 15KV 133% CUBIERTA PVC ROJA 2-7 3/C CPRESS CU NL-EPR 25% T/S 1X#6 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% RED PVC JACKET | 2 AWG 3C 7 STR | 1-NEGRO/NEGRO-/NEGRO-/6 AWG TIERRA DESNUDA | CARRETE CORTE A LA MEDIDA | |
| 89066389 | 2-7 3/C CPRESS CU NL-EPR 25% T/S 1X#6 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% ROJO PVC JACKET 3000 FT 2-7 3/C CPRESS CU NL-EPR 25% T/S 1X#6 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% RED PVC JACKET 3000 FT | 2 AWG 3C 7 STR | 1-NEGRO/NEGRO-/NEGRO-/6 AWG TIERRA DESNUDA | CARRETE DE 3000 FT | |
| 1/0 AWG (1) | |||||
| 89066499 | 1/0-19 3 CONDUCTORES CPRESS CU NL-EPR 25% T/S 1X#4 CU GW ARMOR-X MC-HL O MV-105 15KV 133% CUBIERTA PVC ROJO 1/0-19 3/C CPRESS CU NL-EPR 25% T/S 1X#4 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% RED PVC JACKET | 1/0 AWG 3C 19 STR | 1-NEGRO/NEGRO-/NEGRO-/4 AWG TIERRA DESNUDA | CARRETE CORTE A LA MEDIDA | |
| 2/0 AWG (2) | |||||
| 89066599 | 2/0-19 3 CONDUCTORES CPRESS CU NL-EPR 25% T/S 1X#4 CU GW ARMOR-X MC-HL O MV-105 15KV 133% CUBIERTA PVC ROJO 2/0-19 3/C CPRESS CU NL-EPR 25% T/S 1X#4 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% RED PVC JACKET | 2/0 AWG 3C 19 STR | 1-NEGRO/NEGRO-/NEGRO-/4 AWG TIERRA DESNUDA | CARRETE CORTE A LA MEDIDA | |
| 89066589 | 2/0-19 3/C CPRESS CU NL-EPR 25% T/S 1X#4 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% ROJO PVC JACKET 2000 FT 2/0-19 3/C CPRESS CU NL-EPR 25% T/S 1X#4 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% RED PVC JACKET 2000 FT | 2/0 AWG 3C 19 STR | 1-NEGRO/NEGRO-/NEGRO-/4 AWG TIERRA DESNUDA | CARRETE DE 2000 FT | |
| 4/0 AWG (2) | |||||
| 89066699 | 4/0-19 3 CONDUCTORES CPRESS CU NL-EPR 25% T/S 1X#3 CU GW ARMOR-X MC-HL O MV-105 15KV 133% CUBIERTA PVC ROJO 4/0-19 3/C CPRESS CU NL-EPR 25% T/S 1X#3 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% RED PVC JACKET | 4/0 AWG 3C 19 STR | 1-NEGRO/NEGRO-/NEGRO-/3 AWG TIERRA DESNUDA | CARRETE CORTE A LA MEDIDA | |
| 89066689 | 4/0-19 3/C CPRESS CU NL-EPR 25% T/S 1X#3 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% ROJO PVC JACKET 2000 FT 4/0-19 3/C CPRESS CU NL-EPR 25% T/S 1X#3 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% RED PVC JACKET 2000 FT | 4/0 AWG 3C 19 STR | 1-NEGRO/NEGRO-/NEGRO-/3 AWG TIERRA DESNUDA | CARRETE DE 2000 FT | |
| 250 kcmil (1) | |||||
| 89066799 | 250-37 3 CONDUCTORES CPRESS CU NL-EPR 25% T/S 1X#2 CU GW ARMOR-X MC-HL O MV-105 15KV 133% CUBIERTA PVC ROJO 250-37 3/C CPRESS CU NL-EPR 25% T/S 1X#2 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% RED PVC JACKET | 250 KCMIL 3C 37S | 1-NEGRO/NEGRO-/NEGRO-/2 AWG TIERRA DESNUDA | CARRETE CORTE A LA MEDIDA | |
| 350 kcmil (2) | |||||
| 89066899 | 350-37 3 CONDUCTORES CPRESS CU NL-EPR 25% T/S 1X#2 CU GW ARMOR-X MC-HL O MV-105 15KV 133% CUBIERTA PVC ROJO 350-37 3/C CPRESS CU NL-EPR 25% T/S 1X#2 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% RED PVC JACKET | 350 KCMIL 3C 37 STR | 1-NEGRO/NEGRO-/NEGRO-/2 AWG TIERRA DESNUDA | CARRETE CORTE A LA MEDIDA | |
| 89066889 | 350-37 3/C CPRESS CU NL-EPR 25% T/S 1X#2 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% ROJO PVC JACKET 1500 FT 350-37 3/C CPRESS CU NL-EPR 25% T/S 1X#2 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% RED PVC JACKET 1500 FT | 350 KCMIL 3C 37 STR | 1-NEGRO/NEGRO-/NEGRO-/2 AWG TIERRA DESNUDA | CARRETE DE 1500 FT | |
| 500 kcmil (2) | |||||
| 89066999 | 500-37 3 CONDUCTORES CPRESS CU NL-EPR 25% T/S 1X#1 CU GW ARMOR-X MC-HL O MV-105 15KV 133% CUBIERTA PVC ROJO 500-37 3/C CPRESS CU NL-EPR 25% T/S 1X#1 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% RED PVC JACKET | 500 KCMIL 3C 37S | 1-NEGRO/NEGRO-/NEGRO-/1 AWG TIERRA DESNUDA | CARRETE CORTE A LA MEDIDA | |
| 59121999 | 500-37 3 CONDUCTORES CPRESS CU NL-EPR 25% T/S 1X#4/0 CU GW ARMOR-X MC-HL O MV-105 15KV 133% CUBIERTA PVC ROJA 500-37 3/C CPRESS CU NL-EPR 25% T/S 1X#4/0 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% RED PVC JACKET | 500 KCMIL 3C 37S | 1-NEGRO/NEGRO-/NEGRO-/4/0 AWG TIERRA DESNUDA | CARRETE CORTE A LA MEDIDA | |
| 750 kcmil (1) | |||||
| 45737999 | 750-61 3/C CPRESS CU NL-EPR 25% T/S 1X#1/0 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% ROJO PVC JACKET 0 FT 750-61 3/C CPRESS CU NL-EPR 25% T/S 1X#1/0 CU GW ARMOR-X MC-HL OR MV-105 15KV 133% RED PVC JACKET 0 FT | 750 KCMIL 3C 61S | 1-NEGRO/NEGRO-/NEGRO-/1/0 AWG TIERRA DESNUDA | CARRETE CORTE A LA MEDIDA | |
Aplicación y características
Los cables armados 15KV ARMOR-X® de Southwire son cables armados para su uso en áreas húmedas y secas, tubos conduit, ductos, canaletas, charolas portacables, enterramiento directo, y donde se desean propiedades eléctricas superiores. Estos cables son capaces de operar continuamente a una temperatura del conductor que no exceda 105°C para operación normal, 140°C para sobrecarga de emergencia, 250°C para condiciones de cortocircuito, y -50°C para flexión en frío. Para usar en lugares peligrosos Clase I, II y III, División 1 y 2 conforme al Artículo NEC 501, 502 y 503. Clasificados para presión lateral máxima de pared de 1000 lbs./FT.
Normas y referencias
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
- ASTM B496 Compact Round Concentric-lay-standard copper
- UL 1072 Medium-Voltage Power Cables
- UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
- UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test
- UL 2225 Cables and Cable-Fittings For Use In Hazardous (Classified) Locations
- ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
- ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
- AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV (Qualification Test Requirements)
- Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661
