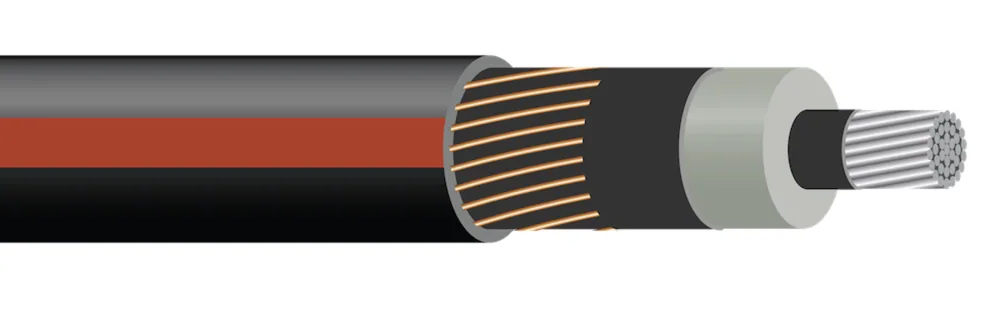

Aluminio 35KV XLP MV con cubierta de LLDPE
- Núm. Southwire
- MVDIST4
Conductor de aluminio. Aislamiento TRXLP. Neutros concéntricos de cobre desnudo. Cubierta de polietileno de baja densidad.
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (110) ↓Tamaños y construcciones disponibles
| Número de Conductores | Tamaño (AWG or kcmil)(mm2) | Número de Alambres | Espesor del Aislamiento (mils)(mm) | Diámetro Nom. (mils)(mm) | Peso Total Nominal (lbs/1000')(kgs/km) | |
|---|---|---|---|---|---|---|
| 11 | 1/0 AWG1/0 AWG | 11 | 3458.76 | 138335.13 | 8741300 | 66269901 |
| 11 | 1/0 AWG1/0 AWG | 1919 | 3458.76 | 141035.82 | 8461259 | 61463126 |
| 11 | 2/0 AWG2/0 AWG | 1919 | 3458.76 | 145336.91 | 8551272 | 62787999 |
| 11 | 4/0 AWG4/0 AWG | 1919 | 3458.76 | 155639.53 | 10521565 | 25481501 |
| 11 | 250 KCMIL250 KCMIL | 3737 | 42010.67 | 183046.49 | 13972079 | 61914025 |
| 11 | 350 KCMIL350 KCMIL | 3737 | 3458.76 | 178345.29 | 14632178 | 58452406 |
| 11 | 500 KCMIL500 KCMIL | 3737 | 3458.76 | 194449.39 | 18372734 | 61463301 |
| 11 | 750 KCMIL750 KCMIL | 6161 | 3458.76 | 216354.96 | 24433635 | 25772499 |
| 11 | 1000 KCMIL1000 KCMIL | 6161 | 3458.76 | 231258.74 | 26463938 | 61405103 |
| 11 | 1250 KCMIL1250 KCMIL | 6161 | 3458.76 | 245562.37 | 31164637 | |
| 11 | 1250 KCMIL1250 KCMIL | 9191 | 3458.76 | 250063.51 | 35625301 | 61736825 |
Números de parte en esta familia (110)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Empaque | |
|---|---|---|---|---|
| 1/0 AWG (20) | ||||
| 66269999 | 1/0 SÓLIDO AL 35KV 345 mils 100% TRXLP 90C 16x14CN CUBIERTA POLY/RAYA ROJA 1/0 SOL AL 35KV 345 mils 100% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C | CARRETE CORTE A LA MEDIDA | |
| 66269901 | 1/0 SÓLIDO AL 35KV 345 mils 100% TRXLP 90C 16x14CN CUBIERTA POLY/RAYA ROJA 1/0 SOL AL 35KV 345 mils 100% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C | CARRETE DE 2500 FT | |
| 62627999 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN HiDri Plus CUBIERTA POLÍMERO/FRANJA ROJA 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN HiDri Plus POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 62627901 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN HiDri Plus CUBIERTA POLÍMERO/FRANJA ROJA 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN HiDri Plus POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 62627902 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN HiDri Plus CUBIERTA POLÍMERO/FRANJA ROJA 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN HiDri Plus POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 7000 FT | |
| 61463126 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN CUBIERTA DE POLIETILENO/RAYA ROJA 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 4900 FT | |
| 62626499 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN HiDri Plus CUBIERTA POLY/FRANJA ROJA UL MV-90 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 62626401 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN HiDri Plus CUBIERTA POLY/FRANJA ROJA UL MV-90 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 62626402 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN HiDri Plus CUBIERTA POLY/FRANJA ROJA UL MV-90 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1/0 AWG 1C 19S | CARRETE DE 7000 FT | |
| 61478526 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN CUBIERTA POLY/RAYA ROJA 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 61478508 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN CUBIERTA POLY/RAYA ROJA 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 5000 FT | |
| 62623099 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 6x14CN HiDri Plus CUBIERTA POLY/FRANJA ROJA UL MV-90 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 6x14CN HiDri Plus POLYJACKET/RED STRIPE UL MV-90 | 1/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 66196801 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 6x14CN HiDri Plus CUBIERTA POLY/FRANJA ROJA UL MV-90 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 6x14CN HiDri Plus POLYJACKET/RED STRIPE UL MV-90 | 1/0 AWG 1C 19S | CARRETE DE 1000 FT | |
| 62623001 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 6x14CN HiDri Plus CUBIERTA POLY/FRANJA ROJA UL MV-90 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 6x14CN HiDri Plus POLYJACKET/RED STRIPE UL MV-90 | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 62623002 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 6x14CN HiDri Plus CUBIERTA POLY/FRANJA ROJA UL MV-90 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 6x14CN HiDri Plus POLYJACKET/RED STRIPE UL MV-90 | 1/0 AWG 1C 19S | CARRETE DE 7000 FT | |
| 62072627 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 6x14CN FORRO POLY/RAYA ROJA 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 6x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 2000 FT | |
| 62072626 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 6x14CN FORRO POLY/RAYA ROJA 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 6x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 62072625 | 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 6x14CN FORRO POLY/RAYA ROJA 1/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 6x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 2600 FT | |
| 66062699 | 1/0-19 MB CPRESS AL 35KV 420 mils 133% EPR 105C 16x14CN HiDri Plus POLYJACKET/RAYA ROJA 1/0-19 MB CPRESS AL 35KV 420 mils 133% EPR 105C 16x14CN HiDri Plus POLYJACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 66062601 | 1/0-19 MB CPRESS AL 35KV 420 mils 133% EPR 105C 16x14CN HiDri Plus POLYJACKET/RAYA ROJA 1/0-19 MB CPRESS AL 35KV 420 mils 133% EPR 105C 16x14CN HiDri Plus POLYJACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 3000 FT | |
| 2/0 AWG (3) | ||||
| 66305799 | 2/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 2/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 2/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 62793399 | 2/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x12CN CUBIERTA POLY/RAYA ROJA 2/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x12CN POLY JACKET/RED STRIPE | 2/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 62787999 | 2/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 7x14CN CUBIERTA POLY/RAYA ROJA 2/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 7x14CN POLY JACKET/RED STRIPE | 2/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 4/0 AWG (17) | ||||
| 62630399 | 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 10x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 10x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 62630301 | 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 10x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 10x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 62630302 | 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 10x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 10x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 4/0 AWG 1C 19S | CARRETE DE 5000 FT | |
| 62629699 | 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN HiDri Plus CUBIERTA POLY/FRANJA ROJA UL MV-90 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 62629601 | 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN HiDri Plus CUBIERTA POLY/FRANJA ROJA UL MV-90 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 62629602 | 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN HiDri Plus CUBIERTA POLY/FRANJA ROJA UL MV-90 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 4/0 AWG 1C 19S | CARRETE DE 5000 FT | |
| 25481599 | 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN CUBIERTA POLI/RAYA ROJA 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 25481524 | 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN CUBIERTA POLI/RAYA ROJA 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 1700 FT | |
| 25481501 | 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN CUBIERTA POLI/RAYA ROJA 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 62793999 | 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x10CN CUBIERTA POLY/RAYA ROJA 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x10CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 62629899 | 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 62629801 | 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus CUBIERTA POLY/FRANJA ROJA UL MV-90 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 62629802 | 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 4/0 AWG 1C 19S | CARRETE DE 5000 FT | |
| 66305599 | 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 21x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 4/0-19 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 21x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 61858999 | 4/0-19 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 11x14CN CUBIERTA POLY/RAYA ROJA 4/0-19 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 61858925 | 4/0-19 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 11x14CN CUBIERTA POLY/RAYA ROJA 4/0-19 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE 3100 FT | |
| 61858902 | 4/0-19 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 11x14CN CUBIERTA POLY/RAYA ROJA 4/0-19 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 5100 FT | |
| 250 kcmil (2) | ||||
| 66196901 | 250-37 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 13x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 250-37 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 13x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 250 KCMIL 1C 37S | CARRETE DE 2500 FT | |
| 61914025 | 250-37 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 13x14CN CUBIERTA POLY 250-37 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 13x14CN POLY JACKET | 250 KCMIL 1C 37S | CARRETE DE 2500 FT | |
| 350 kcmil (13) | ||||
| 66100199 | 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x12CN CUBIERTA POLY/FRANJA ROJA 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x12CN POLY JACKET/RED STRIPE | 350 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 66100102 | 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x12CN CUBIERTA POLY/FRANJA ROJA 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x12CN POLY JACKET/RED STRIPE | 350 KCMIL 1C 37S | CARRETE DE 1200 FT | |
| 66100101 | 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x12CN CUBIERTA POLY/FRANJA ROJA 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x12CN POLY JACKET/RED STRIPE | 350 KCMIL 1C 37S | CARRETE DE 2500 FT | |
| 66303599 | 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x12CN POLY JACKET/RAYA ROJA UL MV-90 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 11x12CN POLY JACKET/RED STRIPE UL MV-90 | 350 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 58452425 | 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 18x14CN HiDri Plus CUBIERTA POLI 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 18x14CN HiDri Plus POLY JACKET | 350 KCMIL 1C 37S | CARRETE DE 2500 FT | |
| 58452406 | 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 18x14CN HiDri Plus CUBIERTA POLI 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 18x14CN HiDri Plus POLY JACKET | 350 KCMIL 1C 37S | CARRETE DE 5800 FT | |
| 61932299 | 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 18x14CN CUBIERTA POLY/RAYA ROJA 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 18x14CN POLY JACKET/RED STRIPE | 350 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 61932201 | 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 18x14CN CUBIERTA POLY/RAYA ROJA 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 18x14CN POLY JACKET/RED STRIPE | 350 KCMIL 1C 37S | CARRETE DE 2065 FT | |
| 61932202 | 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 18x14CN CUBIERTA POLY/RAYA ROJA 350-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 18x14CN POLY JACKET/RED STRIPE | 350 KCMIL 1C 37S | CARRETE DE 2500 FT | |
| 62847001 | 350-37 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 18x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 350-37 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 18x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 350 KCMIL 1C 37S | CARRETE DE 4000 FT | |
| 61859099 | 350-37 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 18x14CN CUBIERTA POLY/RAYA ROJA 350-37 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 18x14CN POLY JACKET/RED STRIPE | 350 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 61859028 | 350-37 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 18x14CN CUBIERTA POLY/RAYA ROJA 350-37 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 18x14CN POLY JACKET/RED STRIPE | 350 KCMIL 1C 37S | CARRETE DE 2450 FT | |
| 61859026 | 350-37 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 18x14CN CUBIERTA POLY/RAYA ROJA 350-37 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 18x14CN POLY JACKET/RED STRIPE | 350 KCMIL 1C 37S | CARRETE DE 3200 FT | |
| 500 kcmil (13) | ||||
| 62631399 | 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 500 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 62631301 | 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 500 KCMIL 1C 37S | CARRETE DE 2000 FT | |
| 62631302 | 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 500 KCMIL 1C 37S | CARRETE DE 4500 FT | |
| 62632299 | 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 500 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 62632201 | 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 500 KCMIL 1C 37S | CARRETE DE 2000 FT | |
| 62632202 | 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 500 KCMIL 1C 37S | CARRETE DE 4500 FT | |
| 61463399 | 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN CUBIERTA DE POLIETILENO/RAYA ROJA 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN POLY JACKET/RED STRIPE | 500 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 61463302 | 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN CUBIERTA DE POLIETILENO/RAYA ROJA 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN POLY JACKET/RED STRIPE | 500 KCMIL 1C 37S | CARRETE DE 1941 FT | |
| 61463301 | 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN CUBIERTA DE POLIETILENO/RAYA ROJA 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN POLY JACKET/RED STRIPE | 500 KCMIL 1C 37S | CARRETE DE 2343 FT | |
| 61463328 | 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN CUBIERTA DE POLIETILENO/RAYA ROJA 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN POLY JACKET/RED STRIPE | 500 KCMIL 1C 37S | CARRETE DE 3500 FT | |
| 61463326 | 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN CUBIERTA DE POLIETILENO/RAYA ROJA 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN POLY JACKET/RED STRIPE | 500 KCMIL 1C 37S | CARRETE DE 5100 FT | |
| 62522215 | 500 kcmil 37 HILOS MB CPRESS AL 35KV 345 mils 100% TRXLP ICEA 25x14CN CUBIERTA POLY/BANDA ROJA 500-37 MB CPRESS AL 35KV 345 mils 100% TRXLP ICEA 25x14CN POLY JACKET/RED STRIPE | 500 KCMIL 1C 37S | CARRETE DE 1000 FT | |
| 61859125 | 500-37 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 16x12CN CUBIERTA POLY/RAYA ROJA 500-37 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 16x12CN POLY JACKET/RED STRIPE | 500 KCMIL 1C 37S | CARRETE DE 2600 FT | |
| 750 kcmil (16) | ||||
| 62633499 | 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 10x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 10x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 750 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 62633401 | 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 10x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 10x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 750 KCMIL 1C 61S | CARRETE DE 2000 FT | |
| 62633402 | 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 10x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 10x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 750 KCMIL 1C 61S | CARRETE DE 4250 FT | |
| 62290305 | 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus CUBIERTA POLÍMERO/FRANJA ROJA 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE DE 2900 FT | |
| 62290304 | 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus CUBIERTA POLÍMERO/FRANJA ROJA 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE DE 3000 FT | |
| 62290306 | 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus CUBIERTA POLÍMERO/FRANJA ROJA 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE 3100 FT | |
| 62290303 | 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus CUBIERTA POLÍMERO/FRANJA ROJA 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE DE 3400 FT | |
| 62290302 | 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus CUBIERTA POLÍMERO/FRANJA ROJA 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE DE 4000 FT | |
| 62290301 | 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus CUBIERTA POLÍMERO/FRANJA ROJA 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE DE 4250 FT | |
| 62633099 | 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 750 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 62633001 | 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 750 KCMIL 1C 61S | CARRETE DE 2000 FT | |
| 62633002 | 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 12x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 750 KCMIL 1C 61S | CARRETE DE 4250 FT | |
| 25772499 | 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 24x12CN CUBIERTA POLI/RAYA ROJA 750-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 24x12CN POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 61859225 | 750-61 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 15x10CN CUBIERTA POLY/RAYA ROJA 750-61 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 15x10CN POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE DE 2100 FT | |
| 62788801 | 750-61 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 24x12CN CUBIERTA POLY HiDri Plus 750-61 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 24x12CN HiDri Plus POLY JACKET | 750 KCMIL 1C 61S | CARRETE DE 2500 FT | |
| 62857301 | 750-61 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 24x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 750-61 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 24x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 750 KCMIL 1C 61S | CARRETE DE 2500 FT | |
| 1000 kcmil (10) | ||||
| 62634399 | 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1000 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 62634301 | 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1000 KCMIL 1C 61S | CARRETE DE 1000 FT | |
| 62634302 | 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 13x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1000 KCMIL 1C 61S | CARRETE DE 3750 FT | |
| 62634099 | 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1000 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 62634001 | 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1000 KCMIL 1C 61S | CARRETE DE 1000 FT | |
| 62634002 | 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1000 KCMIL 1C 61S | CARRETE DE 3750 FT | |
| 61405105 | 1000 kcmil 61 HILOS MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN CUBIERTA POLY/BANDA ROJA 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN POLY JACKET/RED STRIPE | 1000 KCMIL 1C 61S | CARRETE DE 1000 FT | |
| 61405103 | 1000 kcmil 61 HILOS MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN CUBIERTA POLY/BANDA ROJA 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x12CN POLY JACKET/RED STRIPE | 1000 KCMIL 1C 61S | CARRETE 3800 FT | |
| 61463499 | 1000 kcmil 61 HILOS MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x10CN CUBIERTA POLY/BANDA ROJA 1000-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x10CN POLY JACKET/RED STRIPE | 1000 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 61859325 | 1000 kcmil 61 HILOS MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 20x10CN CUBIERTA POLY/BANDA ROJA 1000-61 MB CPRESS AL 35KV 420 mils 133% TRXLP 90C 20x10CN POLY JACKET/RED STRIPE | 1000 KCMIL 1C 61S | CARRETE DE 3200 FT | |
| 1250 kcmil (16) | ||||
| 62634999 | 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1250 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 62634901 | 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1250 KCMIL 1C 61S | CARRETE DE 1000 FT | |
| 62634902 | 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 16x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1250 KCMIL 1C 61S | CARRETE DE 3200 FT | |
| 62290407 | 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE | 1250 KCMIL 1C 61S | CARRETE 1600 FT | |
| 62290406 | 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE | 1250 KCMIL 1C 61S | CARRETE DE 2200 FT | |
| 62290405 | 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE | 1250 KCMIL 1C 61S | CARRETE DE 2600 FT | |
| 62290404 | 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE | 1250 KCMIL 1C 61S | CARRETE DE 2700 FT | |
| 62290403 | 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE | 1250 KCMIL 1C 61S | CARRETE DE 3000 FT | |
| 62290402 | 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE | 1250 KCMIL 1C 61S | CARRETE 3100 FT | |
| 62290401 | 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE | 1250 KCMIL 1C 61S | CARRETE DE 3200 FT | |
| 62634799 | 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1250 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 62634701 | 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1250 KCMIL 1C 61S | CARRETE DE 1000 FT | |
| 62634702 | 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 20x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1250 KCMIL 1C 61S | CARRETE DE 3200 FT | |
| 66305299 | 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 21x14CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 1250-61 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 21x14CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 1250 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 61736899 | 1250 kcmil 91 HILOS MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 25x10CN CUBIERTA POLY/BANDA ROJA 1250-91 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 25x10CN POLY JACKET/RED STRIPE | 1250 KCMIL 1C 91S | CARRETE CORTE A LA MEDIDA | |
| 61736825 | 1250 kcmil 91 HILOS MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 25x10CN CUBIERTA POLY/BANDA ROJA 1250-91 MB CPRESS AL 35KV 345 mils 100% TRXLP 90C 25x10CN POLY JACKET/RED STRIPE | 1250 KCMIL 1C 91S | CARRETE 3100 FT | |
Aplicación y características
Se usa predominantemente para distribución primaria subterránea en sistemas de tubo conduit, adecuado para uso en lugares húmedos o secos, enterramiento directo, ducto subterráneo, y donde esté expuesto a la luz solar. Para ser usado a 35,000 voltios o menos y a temperaturas de conductor que no excedan 90°C para operación normal.
Normas y referencias
- B231: Aluminum 1350 Conductors, Concentric-Lay-Stranded
- B609: Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes
- B3: Soft Annealed Copper Wire
- ICEA S-94-649
- AEIC CS-8
- RUS U-1
