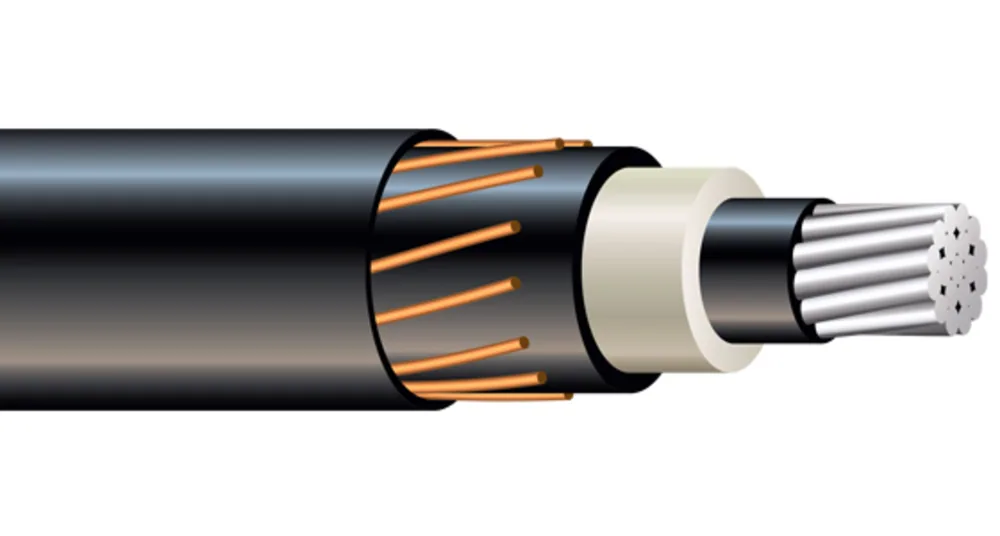

Aluminio 15KV XLP MV con Chaqueta LLDPE
- Núm. Southwire
- MVDIST1
Conductor de aluminio. Aislamiento TRXLP. Neutros concéntricos de cobre desnudo. Cubierta de polietileno de baja densidad.
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (73) ↓Tamaños y construcciones disponibles
| Número de Conductores | Tamaño (AWG or kcmil)(mm2) | Número de Alambres | Espesor del Aislamiento (mils)(mm) | Diámetro Nom. (mils)(mm) | Peso Total Nominal (lbs/1000')(kgs/km) | |
|---|---|---|---|---|---|---|
| 11 | 2 AWG2 AWG | 11 | 2205.59 | 104626.57 | 517770 | 61237101 |
| 11 | 2 AWG2 AWG | 77 | 1754.45 | 98124.92 | 476709 | 11963602 |
| 11 | 1 AWG1 AWG | 11 | 2205.59 | 109827.89 | 600892 | 61908325 |
| 11 | 1/0 AWG1/0 AWG | 11 | 2205.59 | 111328.28 | 659981 | 61235901 |
| 11 | 1/0 AWG1/0 AWG | 1919 | 1754.45 | 105026.68 | 619920 | 30466726 |
| 33 | 1/0 AWG1/0 AWG | 1919 | 1754.45 | 14982230 | 66129015 | |
| 11 | 2/0 AWG2/0 AWG | 1919 | 2205.59 | 118330.05 | 7791160 | 60697899 |
| 11 | 3/0 AWG3/0 AWG | 1919 | 2205.59 | 123131.27 | 8991338 | 60697999 |
| 11 | 4/0 AWG4/0 AWG | 1919 | 1754.45 | 122931.23 | 10051496 | 11557901 |
| 11 | 350 KCMIL350 KCMIL | 3737 | 1754.45 | 138935.29 | 10641583 | 61630425 |
| 11 | 500 KCMIL500 KCMIL | 3737 | 2205.59 | 164041.67 | 14902217 | 11562402 |
| 11 | 750 KCMIL750 KCMIL | 6161 | 2205.59 | 188347.84 | 20743086 | 61368328 |
| 11 | 1000 KCMIL1000 KCMIL | 6161 | 2205.59 | 206252.39 | 23123440 | 61229601 |
Números de parte en esta familia (73)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Empaque | |
|---|---|---|---|---|
| 2 AWG · 1 conductores (16) | ||||
| 61341821 | 2 SOL AL 15KV 220 mils 133% TRXLP 90C 10x14CN HiDri Plus CUBIERTA DE POLIETILENO/RAYA ROJA 2 SOL AL 15KV 220 mils 133% TRXLP 90C 10x14CN HiDri Plus POLY JACKET/RED STRIPE | 2 AWG 1C | CARRETE DE 10000 FT | |
| 61237101 | 2 SOL AL 15KV 220 mils 133% TRXLP 90C 10x14CN CUBIERTA POLY/LÍNEA ROJA 2 SOL AL 15KV 220 mils 133% TRXLP 90C 10x14CN POLY JACKET/RED STRIPE | 2 AWG 1C | CARRETE DE 2500 FT | |
| 11963602 | 2-7 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 10x14CN CUBIERTA POLY 2-7 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 10x14CN POLY JACKET | 2 AWG 1C 7S | CARRETE DE 2500 FT | |
| 61266225 | 2 AWG 7 HILOS CPRESS AL 15KV 175 MILS 100% TRXLP 90C 10x14CN CUBIERTA POLI 2-7 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 10x14CN POLY JACKET | 2 AWG 1C 7S | CARRETE DE 2500 FT | |
| 61479228 | 2-7 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 10x14CN CUBIERTA POLY/RAYA ROJA 2-7 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 10x14CN POLY JACKET/RED STRIPE | 2 AWG 1C 7S | CARRETE DE 2500 FT | |
| 62146816 | 2-7 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 10x14CN CUBIERTA POLY/RAYA ROJA 2-7 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 10x14CN POLY JACKET/RED STRIPE | 2 AWG 1C 7S | CARRETE DE 3000 FT | |
| 62146815 | 2-7 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 10x14CN CUBIERTA POLY/RAYA ROJA 2-7 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 10x14CN POLY JACKET/RED STRIPE | 2 AWG 1C 7S | CARRETE DE 5000 FT | |
| 62789099 | 2-7 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 6x14CN CUBIERTA DE POLÍMERO/RAYA ROJA 2-7 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 6x14CN POLY JACKET/RED STRIPE | 2 AWG 1C 7S | CARRETE CORTE A LA MEDIDA | |
| 47693701 | 2-7 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 10x14CN HiDri Plus CUBIERTA POLY/RAYA ROJA 2-7 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 10x14CN HiDri Plus POLY JACKET/RED STRIPE | 2 AWG 1C 7S | CARRETE DE 2500 FT | |
| 61030699 | 2-7 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 10x14CN CUBIERTA POLY/RAYA ROJA 2-7 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 10x14CN POLY JACKET/RED STRIPE | 2 AWG 1C 7S | CARRETE CORTE A LA MEDIDA | |
| 61253899 | 2-7 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 10x14CN CUBIERTA POLY/RAYA ROJA 2-7 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 10x14CN POLY JACKET/RED STRIPE | 2 AWG 1C 7S | CARRETE CORTE A LA MEDIDA | |
| 61030601 | 2-7 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 10x14CN CUBIERTA POLY/RAYA ROJA 2-7 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 10x14CN POLY JACKET/RED STRIPE | 2 AWG 1C 7S | CARRETE DE 2500 FT | |
| 61030625 | 2-7 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 10x14CN CUBIERTA POLY/RAYA ROJA 2-7 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 10x14CN POLY JACKET/RED STRIPE | 2 AWG 1C 7S | CARRETE DE 2500 FT | |
| 61030626 | 2-7 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 10x14CN CUBIERTA POLY/RAYA ROJA 2-7 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 10x14CN POLY JACKET/RED STRIPE | 2 AWG 1C 7S | CARRETE DE 2700 FT | |
| 61030602 | 2-7 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 10x14CN CUBIERTA POLY/RAYA ROJA 2-7 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 10x14CN POLY JACKET/RED STRIPE | 2 AWG 1C 7S | CARRETE DE 5000 FT | |
| 62144515 | 2-7 MB CPRESS AL SUPER SMOOTH 15KV 175 mils 100% TRXLP 90C 10x14CN POLY JACKET/RAYA ROJA 2-7 MB CPRESS AL SUPER SMOOTH 15KV 175 mils 100% TRXLP 90C 10x14CN POLY JACKET/RED STRIPE | 2 AWG 1C 7S | CARRETE DE 3000 FT | |
| 1 AWG · 1 conductores (1) | ||||
| 61908325 | 1 SÓLIDO AL SUPER SMOOTH 15KV 220 mils 133% TRXLP 90C 13x14CN CUBIERTA POLY/FRANJA ROJA 1 SOL AL SUPER SMOOTH 15KV 220 mils 133% TRXLP 90C 13x14CN POLY JACKET/RED STRIPE | 1 AWG 1C | CARRETE DE 4000 FT | |
| 1/0 AWG · 1 conductores (23) | ||||
| 61344728 | 1/0 SÓLIDO AL 15KV 220 mils 133% TRXLP 90C 16x14CN HiDri Plus CUBIERTA POLY/FRANJA ROJA 1/0 SOL AL 15KV 220 mils 133% TRXLP 90C 16x14CN HiDri Plus POLY JACKET/RED STRIPE | 1/0 AWG 1C | CARRETE DE 5500 FT | |
| 61235901 | 1/0 SÓLIDO AL 15KV 220 mils 133% TRXLP 90C 16x14CN CUBIERTA POLY/RAYA ROJA 1/0 SOL AL 15KV 220 mils 133% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C | CARRETE DE 2500 FT | |
| 61235925 | 1/0 SÓLIDO AL 15KV 220 mils 133% TRXLP 90C 16x14CN CUBIERTA POLY/RAYA ROJA 1/0 SOL AL 15KV 220 mils 133% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C | CARRETE DE 4000 FT | |
| 61235903 | 1/0 SÓLIDO AL 15KV 220 mils 133% TRXLP 90C 16x14CN CUBIERTA POLY/RAYA ROJA 1/0 SOL AL 15KV 220 mils 133% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C | CARRETE DE 5000 FT | |
| 66128616 | 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90°C 16x14CN HiDri Plus CUBIERTA POLY/RAYA ROJA - NEVADA ENERGY 230214 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN HiDri Plus POLY JACKET/RED STRIPE - NEVADA ENERGY 230214 | 1/0 AWG 1C 19S | CARRETE DE 3000 FT | |
| 66128615 | 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90°C 16x14CN HiDri Plus CUBIERTA POLY/RAYA ROJA - NEVADA ENERGY 230214 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN HiDri Plus POLY JACKET/RED STRIPE - NEVADA ENERGY 230214 | 1/0 AWG 1C 19S | CARRETE DE 4000 FT | |
| 30560725 | 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN CUBIERTA POLY 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN POLY JACKET | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 30466726 | 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN CUBIERTA POLY 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN POLY JACKET | 1/0 AWG 1C 19S | CARRETE DE 3500 FT | |
| 47690310 | 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN CUBIERTA POLY 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN POLY JACKET | 1/0 AWG 1C 19S | CARRETE DE 5000 FT | |
| 61180825 | 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN CUBIERTA DE POLIETILENO/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 61180835 | 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN CUBIERTA DE POLIETILENO/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 61180809 | 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN CUBIERTA DE POLIETILENO/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 3000 FT | |
| 61180808 | 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN CUBIERTA DE POLIETILENO/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 5000 FT | |
| 61180802 | 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN CUBIERTA DE POLIETILENO/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 6300 FT | |
| 66196501 | 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 6x14CN HiDri Plus CUBIERTA POLY/FRANJA ROJA UL MV-90 1/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 6x14CN HiDri Plus POLYJACKET/RED STRIPE UL MV-90 | 1/0 AWG 1C 19S | CARRETE DE 2000 FT | |
| 47696014 | 1/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 16x14CN CUBIERTA POLY 1/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 16x14CN POLY JACKET | 1/0 AWG 1C 19S | 1250 FT ROLLO | |
| 47696001 | 1/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 16x14CN CUBIERTA POLY 1/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 16x14CN POLY JACKET | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 61030799 | 1/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 16x14CN CUBIERTA DE POLIETILENO/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 61030701 | 1/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 16x14CN CUBIERTA DE POLIETILENO/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 61178299 | 1/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 6x14CN FORRO POLY/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 6x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 58835001 | 1/0-19 MB CPRESS AL SUPER SMOOTH 15KV 175 mils 100% TRXLP 90C 16x14CN POLY JACKET - ONCOR (TXU ) 398859 1/0-19 MB CPRESS AL SUPER SMOOTH 15KV 175 mils 100% TRXLP 90C 16x14CN POLY JACKET - ONCOR (TXU ) 398859 | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 61338205 | 1/0-19 MB CPRESS AL SUPER SMOOTH 15KV 175 mils 100% TRXLP 90C 16x14CN CUBIERTA POLY/BANDA ROJA 1/0-19 MB CPRESS AL SUPER SMOOTH 15KV 175 mils 100% TRXLP 90C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 66131425 | 1/0-19 MB CPRESS AL SUPER SMOOTH 15KV 220 mils 133% TRXLP 90C 16x14CN CUBIERTA POLY 1/0-19 MB CPRESS AL SUPER SMOOTH 15KV 220 mils 133% TRXLP 90C 16x14CN POLY JACKET | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 1/0 AWG · 3 conductores (1) | ||||
| 66129015 | 1/0-19 MB AL 3 CONDUCTORES PARALELOS 15KV 175 mils 100% TRXLP 90°C 6x14CN HiDri Plus CUBIERTA POLY/RAYA ROJA - NEVADA ENERGY 230397 1/0-19 MB AL 3/C PARALLEL 15KV 175 mils 100% TRXLP 90C 6x14CN HiDri Plus POLY JACKET/RED STRIPE - NEVADA ENERGY 230397 | 1/0 AWG 3C 19 STR | CARRETE DE 2000 FT | |
| 2/0 AWG · 1 conductores (1) | ||||
| 60697899 | 2/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 20x14CN HiDri Plus CUBIERTA POLÍMERO/FRANJA ROJA 2/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 20x14CN HiDri Plus POLY JACKET/RED STRIPE | 2/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 3/0 AWG · 1 conductores (1) | ||||
| 60697999 | 3/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 25x14CN HiDri Plus CUBIERTA POLÍMERO/FRANJA ROJA 3/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 25x14CN HiDri Plus POLY JACKET/RED STRIPE | 3/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 4/0 AWG · 1 conductores (17) | ||||
| 61318126 | 4/0-19 CPRESS AL 15KV 175 mils 100% TRXLP 90C 11x14CN CUBIERTA POLY/RAYA ROJA 4/0-19 CPRESS AL 15KV 175 mils 100% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 67440808 | 4/0-19 CPRESS AL 15KV 175 mils 100% TRXLP 90C 20x12CN CUBIERTA POLY/RAYA ROJA 4/0-19 CPRESS AL 15KV 175 mils 100% TRXLP 90C 20x12CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 1650 FT | |
| 68031401 | 4/0 AWG 19 HILOS CPRESS AL 15KV 220 MILS 133% TRXLP 90C 11x14 NEUTRO CUBIERTA POLI 4/0-19 CPRESS AL 15KV 220 mils 133% TRXLP 90C 11x14CN POLY JACKET | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 58435401 | 4/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 11x14CN CUBIERTA POLI/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 67824325 | 4/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 20x12CN CUBIERTA DE POLIETILENO 4/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 20x12CN POLY JACKET | 4/0 AWG 1C 19S | CARRETE DE 3500 FT | |
| 58155308 | 4/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 20x12CN CUBIERTA POLI/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 20x12CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2000 FT | |
| 11557901 | 4/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 20x12CN CUBIERTA POLI/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 20x12CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 61344925 | 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 11x14CN HiDri Plus CUBIERTA POLÍMERO/FRANJA ROJA 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 11x14CN HiDri Plus POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2750 FT | |
| 61336599 | 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 11x14CN CUBIERTA DE POLIETILENO/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 61263505 | 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 11x14CN CUBIERTA DE POLIETILENO/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 61336501 | 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 11x14CN CUBIERTA DE POLIETILENO/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 61336525 | 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 11x14CN CUBIERTA DE POLIETILENO/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2750 FT | |
| 61336528 | 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 11x14CN CUBIERTA DE POLIETILENO/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE 3700 FT | |
| 61040699 | 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 20x12CN CUBIERTA DE POLIETILENO/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 20x12CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 61040602 | 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 20x12CN CUBIERTA DE POLIETILENO/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 20x12CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 61887401 | 4/0-19 MB CPRESS AL SUPER SUAVE 15KV 175 mils 100% TRXLP 90°C 10x12CN CUBIERTA POLY/RAYA ROJA - DUKE ENERGY 1461008 4/0-19 MB CPRESS AL SUPER SMOOTH 15KV 175 mils 100% TRXLP 90C 10x12CN POLY JACKET/RED STRIPE - DUKE ENERGY 1461008 | 4/0 AWG 1C 19S | CARRETE DE 5000 FT | |
| 61908425 | 4/0-19 MB CPRESS AL SUPER SMOOTH 15KV 175 mils 100% TRXLP 90C 11x14CN CUBIERTA POLY/BANDA ROJA 4/0-19 MB CPRESS AL SUPER SMOOTH 15KV 175 mils 100% TRXLP 90C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 350 kcmil · 1 conductores (1) | ||||
| 61630425 | 350-37 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 18x14CN CUBIERTA POLY/RAYA ROJA 350-37 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 18x14CN POLY JACKET/RED STRIPE | 350 KCMIL 1C 37S | CARRETE DE 2000 FT | |
| 500 kcmil · 1 conductores (3) | ||||
| 11562402 | 500-37 MB AL 15KV 133% XLP 16X12 RESJKT COSTO 500-37 MB AL 15KV 133% XLP 16X12 RESJKT COST | 500 KCMIL 1C 37S | CARRETE DE 2000 FT | |
| 62864201 | 500-37 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 500-37 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 16x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 500 KCMIL 1C 37S | CARRETE DE 3333 FT | |
| 68384716 | 500-37 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 16x12CN CUBIERTA POLY/FRANJA ROJA 500-37 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 16x12CN POLY JACKET/RED STRIPE | 500 KCMIL 1C 37S | CARRETE DE 2500 FT | |
| 750 kcmil · 1 conductores (2) | ||||
| 62857401 | 750-61 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 24x12CN HiDri Plus CUBIERTA DE POLIÉSTER/RAYA ROJA UL MV-90 750-61 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 24x12CN HiDri Plus POLY JACKET/RED STRIPE UL MV-90 | 750 KCMIL 1C 61S | CARRETE DE 3450 FT | |
| 61368328 | 750-61 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 24x12CN CUBIERTA DE POLIETILENO/RAYA ROJA 750-61 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 24x12CN POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE DE 1500 FT | |
| 1000 kcmil · 1 conductores (7) | ||||
| 61238226 | 1000-61 CPRESS AL 15KV 220 mils 133% TRXLP 90C 20x10CN CUBIERTA POLY/RAYA ROJA 1000-61 CPRESS AL 15KV 220 mils 133% TRXLP 90C 20x10CN POLY JACKET/REDSTRIPE | 1000 KCMIL 1C 61S | CARRETE DE 1000 FT | |
| 62147899 | 1000 kcmil 61 HILOS MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 20x10CN CUBIERTA POLY/BANDA ROJA 1000-61 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 20x10CN POLY JACKET/RED STRIPE | 1000 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 62147815 | 1000 kcmil 61 HILOS MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 20x10CN CUBIERTA POLY/BANDA ROJA 1000-61 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 20x10CN POLY JACKET/RED STRIPE | 1000 KCMIL 1C 61S | CARRETE DE 1500 FT | |
| 62147801 | 1000 kcmil 61 HILOS MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 20x10CN CUBIERTA POLY/BANDA ROJA 1000-61 MB CPRESS AL 15KV 175 mils 100% TRXLP 90C 20x10CN POLY JACKET/RED STRIPE | 1000 KCMIL 1C 61S | CARRETE DE 2500 FT | |
| 61229601 | 1000-61 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 16x12CN CUBIERTA POLY 1000-61 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 16x12CN POLY JACKET | 1000 KCMIL 1C 61S | CARRETE DE 1000 FT | |
| 61229606 | 1000-61 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 16x12CN CUBIERTA POLY 1000-61 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 16x12CN POLY JACKET | 1000 KCMIL 1C 61S | 1250 FT ROLLO | |
| 61249499 | 1000 kcmil 61 HILOS MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 20x10CN CUBIERTA POLY/BANDA ROJA 1000-61 MB CPRESS AL 15KV 220 mils 133% TRXLP 90C 20x10CN POLY JACKET/RED STRIPE | 1000 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
Aplicación y características
Se usa predominantemente para distribución primaria subterránea en sistemas de tubo conduit, adecuado para uso en lugares húmedos o secos, enterramiento directo, ducto subterráneo, y donde esté expuesto a la luz solar. Para ser usado a 15,000 voltios o menos y a temperaturas de conductor que no excedan 90°C para operación normal.
Normas y referencias
- B231: Aluminum 1350 Conductors, Concentric-Lay-Stranded
- B609: Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes
- B3: Soft Annealed Copper Wire
- ICEA S-94-649
- AEIC CS-8
- RUS U-1
