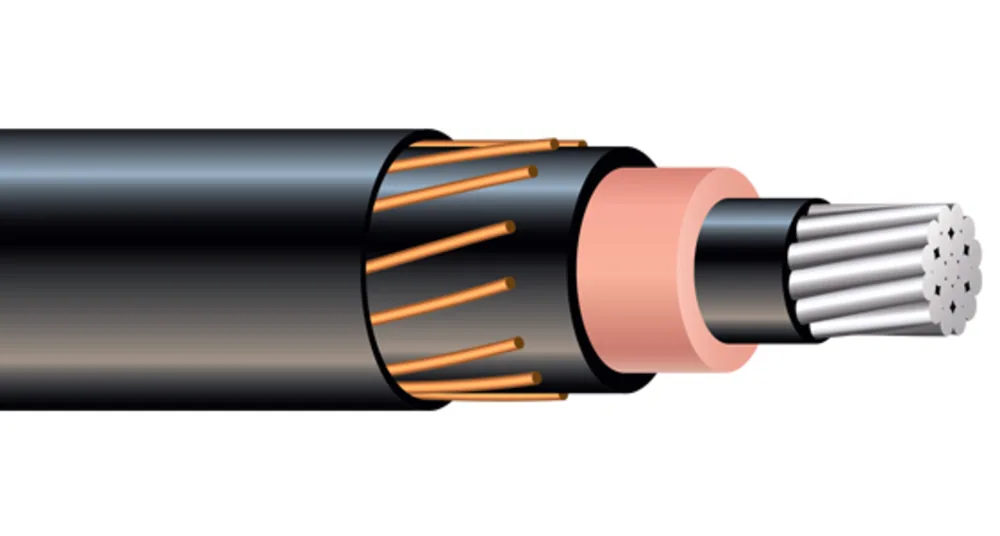

Aluminio 15KV EPR MV con Chaqueta LLDPE
- Núm. Southwire
- MVDIST17
Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.
Números de parte en esta familia (45) ↓Tamaños y construcciones disponibles
| Número de Conductores | Tamaño (AWG or kcmil)(mm2) | Número de Alambres | Espesor del Aislamiento (mils)(mm) | Diámetro Nom. (mils)(mm) | Peso Total Nominal (lbs/1000')(kgs/km) | |
|---|---|---|---|---|---|---|
| 11 | 2 AWG2 AWG | 11 | 2205.59 | 104626.57 | 561834 | 61612901 |
| 11 | 2 AWG2 AWG | 77 | 2205.59 | 107127.21 | 581865 | 61613106 |
| 11 | 1/0 AWG1/0 AWG | 11 | 2606.60 | 119330.31 | 7801161 | 61613302 |
| 11 | 1/0 AWG1/0 AWG | 1919 | 2205.59 | 114028.96 | 7341092 | 61613201 |
| 11 | 2/0 AWG2/0 AWG | 1919 | 2205.59 | 118330.05 | 8351242 | 62530901 |
| 11 | 4/0 AWG4/0 AWG | 1919 | 2205.59 | 128632.67 | 8671290 | 60404025 |
| 11 | 250 KCMIL250 KCMIL | 3737 | 2205.59 | 137634.96 | 9281381 | 62138615 |
| 11 | 350 KCMIL350 KCMIL | 3737 | 1754.45 | 138935.29 | 11231672 | 62202601 |
| 11 | 500 KCMIL500 KCMIL | 3737 | 2205.59 | 164041.67 | 15792350 | 61618601 |
| 11 | 750 KCMIL750 KCMIL | 6161 | 2205.59 | 188347.84 | 21793243 | 61710408 |
| 11 | 1000 KCMIL1000 KCMIL | 6161 | 2205.59 | 210453.46 | 27874147 | 61683701 |
| 11 | 1100 KCMIL1100 KCMIL | 5858 | 2205.59 | 207352.67 | 25453787 | 60406026 |
Números de parte en esta familia (45)
Por calibre:
| Núm. Southwire | Descripción | Construcción | Empaque | |
|---|---|---|---|---|
| 2 AWG (4) | ||||
| 61612901 | 2 SOL AL 15KV 220 mils 133% EPR 105C 10x14CN HiDri Plus CUBIERTA POLIÉSTER/FRANJA ROJA 2 SOL AL 15KV 220 mils 133% EPR 105C 10x14CN HiDri Plus POLY JACKET/REDSTRIPE | 2 AWG 1C | CARRETE DE 2500 FT | |
| 62148815 | 2 AWG 7 HILOS MB CPRESS AL 15KV 220 mils 133% EPR 105°C 10x14CN CUBIERTA POLIÉSTER 2-7 MB CPRESS AL 15KV 220 mils 133% EPR 105C 10x14CN POLY JACKET | 2 AWG 1C 7S | CARRETE DE 2500 FT | |
| 61613199 | 2-7 MB CPRESS AL 15KV 220 mils 133% EPR 105C 10x14CN CUBIERTA POLIÉSTER/RAYA ROJA 2-7 MB CPRESS AL 15KV 220 mils 133% EPR 105C 10x14CN POLY JACKET/RED STRIPE | 2 AWG 1C 7S | CARRETE CORTE A LA MEDIDA | |
| 61613106 | 2-7 MB CPRESS AL 15KV 220 mils 133% EPR 105C 10x14CN CUBIERTA POLIÉSTER/RAYA ROJA 2-7 MB CPRESS AL 15KV 220 mils 133% EPR 105C 10x14CN POLY JACKET/RED STRIPE | 2 AWG 1C 7S | CARRETE DE 2500 FT | |
| 1/0 AWG (12) | ||||
| 61750401 | 1/0 SÓLIDO AL 15KV 220 mils 133% EPR 105C 16x14CN CUBIERTA POLY/RAYA ROJA 1/0 SOL AL 15KV 220 mils 133% EPR 105C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C | CARRETE DE 2500 FT | |
| 61750427 | 1/0 SÓLIDO AL 15KV 220 mils 133% EPR 105C 16x14CN CUBIERTA POLY/RAYA ROJA 1/0 SOL AL 15KV 220 mils 133% EPR 105C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C | CARRETE DE 2750 FT | |
| 61613302 | 1/0 SÓLIDO AL 25KV 260 mils 100% EPR 105C 16x14CN CUBIERTA POLY/RAYA ROJA 1/0 SOL AL 25KV 260 mils 100% EPR 105C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C | CARRETE DE 2500 FT | |
| 62626116 | CABLE 1/0-19 CPRESS AL 15KV 175 mils 100% EPR 105C 16x14CN CUBIERTA POLY 1/0-19 MB CPRESS AL 15KV 175 mils 100% EPR 105C 16x14CN POLY JACKET | 1/0 AWG 1C 19S | CARRETE DE 1500 FT | |
| 62149015 | CABLE 1/0-19 CPRESS AL 15KV 220 mils 133% EPR 105C 16x14CN CUBIERTA POLY 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x14CN POLY JACKET | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 61613299 | 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x14CN FORRO POLY/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE CORTE A LA MEDIDA | |
| 61613201 | 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x14CN FORRO POLY/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 61613225 | 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x14CN FORRO POLY/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 61613237 | 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x14CN FORRO POLY/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 3150 FT | |
| 61613232 | 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x14CN FORRO POLY/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 3260 FT | |
| 61613211 | 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x14CN FORRO POLY/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x14CN POLY JACKET/RED STRIPE | 1/0 AWG 1C 19S | CARRETE DE 5000 FT | |
| 61787501 | 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 6x14CN CUBIERTA POLY/RAYA ROJA 1/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 6x14CN POLY JACKET/REDSTRIPE | 1/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 2/0 AWG (1) | ||||
| 62530901 | 2/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 20x14CN CORDÓN RASGADOR CUBIERTA POLY/RAYA ROJA 2/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 20x14CN RIP CORD POLY JACKET/RED STRIPE | 2/0 AWG 1C 19S | CARRETE DE 5200 FT | |
| 4/0 AWG (6) | ||||
| 60404025 | 4/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 11x14CN HiDri Plus POLYJACKET/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 11x14CN HiDri Plus POLYJACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 4000 FT | |
| 61613501 | 4/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 11x14CN FORRO POLY/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 66031501 | 4/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 11x14CN CUBIERTA POLY/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 61613517 | 4/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 11x14CN FORRO POLY/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2750 FT | |
| 61613508 | 4/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 11x14CN FORRO POLY/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 11x14CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 5000 FT | |
| 61613701 | 4/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 20x12CN FORRO POLY/RAYA ROJA 4/0-19 MB CPRESS AL 15KV 220 mils 133% EPR 105C 20x12CN POLY JACKET/RED STRIPE | 4/0 AWG 1C 19S | CARRETE DE 2500 FT | |
| 250 kcmil (1) | ||||
| 62138615 | 250 kcmil 37 HILOS MB CPRESS AL 15KV 220 MILS 133% EPR 105C 7x14CN CUBIERTA POLY 250-37 MB CPRESS AL 15KV 220 mils 133% EPR 105C 7x14CN POLY JACKET | 250 KCMIL 1C 37S | CARRETE DE 2500 FT | |
| 350 kcmil (2) | ||||
| 62202601 | CABLE 350-37 CPRESS AL 15KV 175 mils 100% EPR 105C 18x14CN CUBIERTA POLY 350-37 MB CPRESS AL 15KV 175 mils 100% EPR 105C 18x14CN POLY JACKET | 350 KCMIL 1C 37S | CARRETE DE 3000 FT | |
| 62947001 | 350-37 MB CPRESS AL 15KV 175 mils 100% EPR 105C 18x14CN CUBIERTA POLY/RAYA ROJA 350-37 MB CPRESS AL 15KV 175 mils 100% EPR 105C 18x14CN POLY JACKET/RED STRIPE | 350 KCMIL 1C 37S | CARRETE DE 3000 FT | |
| 500 kcmil (8) | ||||
| 62245426 | 500-37 MB CPRESS AL 15KV 175 mils 100% EPR 105C 16x12CN CUBIERTA POLY/RAYA ROJA 500-37 MB CPRESS AL 15KV 175 mils 100% EPR 105C 16x12CN POLY JACKET/RED STRIPE | 500 KCMIL 1C 37S | CARRETE DE 1000 FT | |
| 62245425 | 500-37 MB CPRESS AL 15KV 175 mils 100% EPR 105C 16x12CN CUBIERTA POLY/RAYA ROJA 500-37 MB CPRESS AL 15KV 175 mils 100% EPR 105C 16x12CN POLY JACKET/RED STRIPE | 500 KCMIL 1C 37S | CARRETE DE 2500 FT | |
| 61618699 | 500-37 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x12CN FORRO POLY/RAYA ROJA 500-37 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x12CN POLY JACKET/RED STRIPE | 500 KCMIL 1C 37S | CARRETE CORTE A LA MEDIDA | |
| 61618618 | 500-37 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x12CN FORRO POLY/RAYA ROJA 500-37 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x12CN POLY JACKET/RED STRIPE | 500 KCMIL 1C 37S | CARRETE DE 1500 FT | |
| 61618619 | 500-37 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x12CN FORRO POLY/RAYA ROJA 500-37 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x12CN POLY JACKET/RED STRIPE | 500 KCMIL 1C 37S | CARRETE DE 2200 FT | |
| 61618601 | 500-37 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x12CN FORRO POLY/RAYA ROJA 500-37 MB CPRESS AL 15KV 220 mils 133% EPR 105C 16x12CN POLY JACKET/RED STRIPE | 500 KCMIL 1C 37S | CARRETE DE 2500 FT | |
| 62149615 | 500 kcmil 37 HILOS MB CPRESS AL 15KV 220 MILS 133% EPR 105C 7x14CN CUBIERTA POLY 500-37 MB CPRESS AL 15KV 220 mils 133% EPR 105C 7x14CN POLY JACKET | 500 KCMIL 1C 37S | CARRETE DE 1035 FT | |
| 62193403 | CABLE 500-37 CPRESS CU 15KV 220 mils 133% EPR 105C 26x12CN CUBIERTA POLY 500-37 MB CPRESS CU 15KV 220 mils 133% EPR 105C 26x12CN POLY JACKET | 500 KCMIL 1C 37S | CARRETE DE 2500 FT | |
| 750 kcmil (6) | ||||
| 66000299 | 750-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 15x10CN CUBIERTA POLY/RAYA ROJA 750-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 15x10CN POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 66000215 | 750-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 15x10CN CUBIERTA POLY/RAYA ROJA 750-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 15x10CN POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE DE 1200 FT | |
| 61710499 | 750-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 24x12CN FORRO POLY/RAYA ROJA 750-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 24x12CN POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE CORTE A LA MEDIDA | |
| 61710428 | 750-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 24x12CN FORRO POLY/RAYA ROJA 750-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 24x12CN POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE DE 1500 FT | |
| 61710426 | 750-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 24x12CN FORRO POLY/RAYA ROJA 750-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 24x12CN POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE DE 2635 FT | |
| 61710408 | 750-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 24x12CN FORRO POLY/RAYA ROJA 750-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 24x12CN POLY JACKET/RED STRIPE | 750 KCMIL 1C 61S | CARRETE DE 5000 FT | |
| 1000 kcmil (4) | ||||
| 62284625 | 1000-61 MB CPRESS AL 15KV 175 mils 100% EPR 105C 16x12CN CUBIERTA POLY/RAYA ROJA 1000-61 MB CPRESS AL 15KV 175 mils 100% EPR 105C 16x12CN POLY JACKET/RED STRIPE | 1000 KCMIL 1C 61S | CARRETE DE 1000 FT | |
| 62182816 | 1000-61 MB CPRESS AL 15KV 175 mils 100% EPR 105C 20x10CN CUBIERTA POLY 1000-61 MB CPRESS AL 15KV 175 mils 100% EPR 105C 20x10CN POLY JACKET | 1000 KCMIL 1C 61S | CARRETE 1900 FT | |
| 61683701 | 1000-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 20x10CN CUBIERTA POLY/RAYA ROJA 1000-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 20x10CN POLY JACKET/RED STRIPE | 1000 KCMIL 1C 61S | CARRETE DE 1100 FT | |
| 61683702 | 1000-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 20x10CN CUBIERTA POLY/RAYA ROJA 1000-61 MB CPRESS AL 15KV 220 mils 133% EPR 105C 20x10CN POLY JACKET/RED STRIPE | 1000 KCMIL 1C 61S | CARRETE DE 2500 FT | |
| 1100 kcmil (1) | ||||
| 60406026 | 1100-58 MB CPTAL 15KV 220 mils 133% EPR 105C 18x12CN CUBIERTA POLIÉSTER/RAYA ROJA 1100-58 MB CPTAL 15KV 220 mils 133% EPR 105C 18x12CN POLY JACKET/RED STRIPE | 1100 KCMIL 1C 58S | CARRETE DE 2000 FT | |
Aplicación y características
Se usa predominantemente para distribución primaria subterránea en sistemas de tubo conduit, adecuado para uso en lugares húmedos o secos, enterramiento directo, ducto subterráneo, y donde esté expuesto a la luz solar. Para ser usado a 15,000 voltios o menos y a temperaturas de conductor que no excedan 105°C para operación normal.
Normas y referencias
- B609: Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes
- B231: Aluminum 1350 Conductors, Concentric-Lay-Stranded
- B3: Soft Annealed Copper Wire
- ICEA S-94-649
- AEIC CS-8
- RUS U-1
