Cable de Potencia XLPE Corrugado 138 kV

Southwire

Cable de Potencia XLPE Corrugado 138 kV

Núm. Southwire
HVUD18

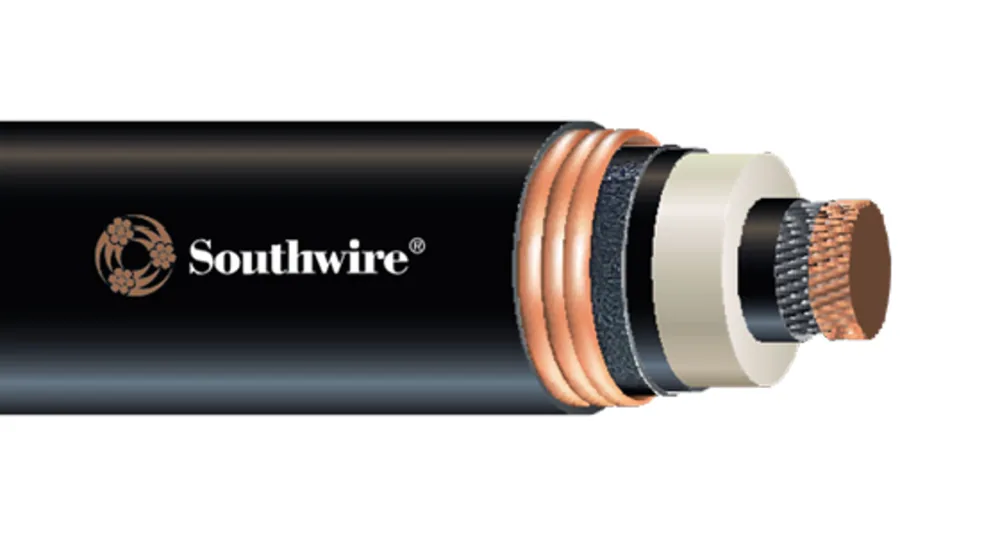

Cable SW de pared estándar con conductor de cobre XLPE y cubierta corrugada, disponible hasta 6,000 kcmil.

Precio bajo cotización — el cobre cambia a diario (COMEX), por eso cotizamos con el precio vigente.

Cotizar por WhatsApp
📎 HV Underground Installation Ratings

Tamaños y construcciones disponibles

Tamaño (kcmil¹)(mm^2)Diámetro del Conductor (inches)(mm)Espesor del Aislamiento (inch)(cm)Diámetro Sobre Aislamiento (inch)(cm)Diámetro de Cubierta General (inch)(cm)Radio de Curvatura Mín. (inch)(inch)CapacitanciaCorriente de Carga (A/kft)Peso del Cable² (lbs/ft)Forro de 30 mil Cortocircuito @ 0.5s (kA)Peso del Cable² (lbs/ft)Forro de 30 mil Cortocircuito @ 0.5s (kA)
50012.700.741.886691699.262.195.562.937.4459/4459/4443.1043.101.301.304.704.7032.0032.000000
75019.050.912.315911501.142.185.542.977.5454/3654/3652.2052.201.571.575.495.4933.9033.900000
100025.401.062.695911501.142.355.973.178.0558/3958/3958.1058.101.751.756.566.5636.2036.200000
125031.751.193.025911501.142.486.303.328.4360/4060/4062.7162.711.881.887.507.5038.0038.000000
150038.101.323.355911501.142.616.633.478.8163/4263/4267.3367.332.022.028.498.4939.7039.700000
175044.451.433.635911501.142.746.963.639.2266/4466/4471.9371.932.162.169.529.5241.6041.600000
200050.801.503.815911501.142.817.143.729.4568/4568/4574.8974.892.252.2510.4310.4342.7042.700000
250063.501.734.395911501.143.107.874.0610.3174/4974/4984.8784.872.552.5512.5612.5646.7046.700000
300076.201.894.805911501.143.338.464.3311.0078/5278/5292.8692.862.792.7914.5014.5049.8049.800000
350088.902.075.265911501.143.448.744.4511.3081/5481/5496.5896.582.902.9016.2416.2451.3051.300000
4000101.602.175.515911501.143.548.994.5711.6183/5583/55100.01100.013.003.0017.9517.9552.6052.600000
5000127.002.486.305911501.143.859.784.9312.5289/6089/60110.83110.833.333.3322.2922.2956.9056.900000
6000152.402.676.785911501.144.0410.265.1613.1193/6293/62117.58117.583.533.5325.0425.0459.5059.500000
50012.70750750179179630630151151590590141141500500120120
75019.05860860206206730730174174690690165165580580139139
100025.40960960229229810810194194770770184184650650155155
125031.7510501050251251880880210210850850203203710710170170
150038.1011101110265265930930222222920920220220770770184184
175044.4511801180282282990990237237980980234234810810194194
200050.80142014203393391170117028028011251125269269930930222222
250063.5015501550370370127012703043041240124029629610201020244244
300076.2016501650394394135013503233231340134032032011001100263263
350088.9017501750418418140014003353351430143034234211601160277277
4000101.6018601860445445149014903563561610161038538513001300311311
5000127.0019601960468468156015603733731740174041641613901390332332
6000152.40

Aplicación y características

Se utiliza predominantemente para transmisión subterránea en sistemas de tubo conduit, adecuado para uso en lugares húmedos o secos, enterramiento directo, ductos subterráneos y donde esté expuesto a la luz solar. Debe utilizarse a 138,000 voltios o menos y a temperaturas del conductor que no excedan 90°C para operación normal.

Normas y referencias

  • Max Voltage Rating: 145 kV
  • BIL Rating: 650 kV
  • Nominal Conductor: 90 °C
  • Max. Emergency Conductor: 105 °C
  • Short Circuit Conductor: 250 °C
  • Minimum Installation: -10 °C
  • Design Standards: AEIC, ICEA, IEC
  • Factory Test Voltages: 160 kV / 60 min.
  • XLPE Loss Factor: 0.0005
  • Relative Permittivity: 2.3
