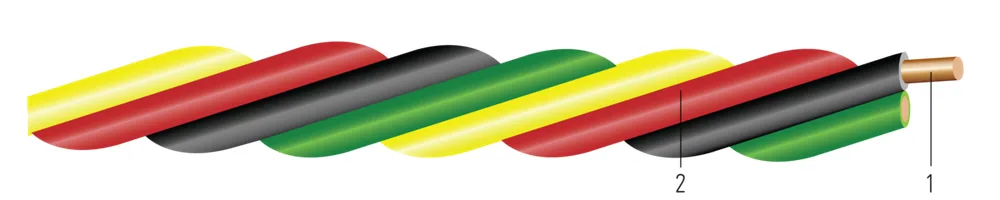

Twisted Pump 600 Volt Cable Type THW

Southwire #: SPEC10100

600 Volts, Solid or Stranded Copper Conductors. Polyvinyl Chloride (PVC) Insulation. Water Well Cable, Moisture Resistant, Twisted Configuration. Rated 75°C,

Priced by quote — copper moves daily (COMEX), so we quote at the current price.

Part numbers in this family (26) ↓

📄 Spec sheet (PDF)📎 Pump and Irrigation Catalog

Available sizes & constructions

Cond. Size	Conductor Number	Cond. Strands	Diameter Over Conductor (in)(cm)	Insulation Thickness (mils)(mm)	Ground Size	Approx. OD (inches)(cm)	Copper Weight (lbs/1000')(kgs/km)	Approx. Weight (lbs/1000')(kgs/km)
14 AWG14 AWG	22	SolidSolid	0.0640.16	451.14	1 X 141 X 14	0.3340.85	3755	6698	56370301
14 AWG14 AWG	33	SolidSolid	0.0640.16	451.14	1 X 141 X 14	0.3730.95	5074	88131	56370401
12 AWG12 AWG	22	SolidSolid	0.0800.20	451.14	1 X 121 X 12	0.3450.88	5988	92137	56370501
12 AWG12 AWG	33	SolidSolid	0.0800.20	451.14	1 X 121 X 12	0.4141.05	79118	122182	56370601
10 AWG10 AWG	22	SolidSolid	0.1010.26	451.14	1 X 101 X 10	0.4141.05	95141	131195	56370701
10 AWG10 AWG	33	SolidSolid	0.1010.26	451.14	1 X 101 X 10	0.4621.17	126188	176262	56370801
8 AWG8 AWG	22	1919	0.1430.36	451.14	1 X 101 X 10	0.5741.46	135201	195290	56370901
8 AWG8 AWG	33	1919	0.1430.36	451.14	1 X 101 X 10	0.6101.55	186277	274408	56371001
6 AWG6 AWG	33	1919	0.1790.45	601.52	1 X 81 X 8	0.7001.78	296440	402598	56371101
4 AWG4 AWG	33	1919	0.2260.57	601.52	1 X 81 X 8	0.7922.01	442658	564839	56371299
14 AWG14 AWG	22	2.6313.92	3.1704.72	0.0580.09	6529.48	1.33.30	2020
14 AWG14 AWG	33	2.6313.92	3.1704.72	0.0580.09	9844.45	1.53.81	2020
12 AWG12 AWG	22	1.6622.47	2.0022.98	0.0540.08	10447.17	1.43.56	2525
12 AWG12 AWG	33	1.6622.47	2.0022.98	0.0540.08	15670.76	1.74.32	2525
10 AWG10 AWG	22	1.0401.55	1.2531.86	0.0500.07	16675.30	1.74.32	3535
10 AWG10 AWG	33	1.0401.55	1.2531.86	0.0500.07	249112.94	1.84.57	3535
8 AWG8 AWG	22	0.6530.97	0.7861.17	0.0520.08	264119.75	2.35.84	5050
8 AWG8 AWG	33	0.6530.97	0.7861.17	0.0520.08	396179.62	2.46.10	5050
6 AWG6 AWG	33	0.4110.61	0.4950.74	0.0510.08	629285.31	2.87.11	6565
4 AWG4 AWG	33	0.2580.38	0.3100.46	0.0480.07	1001454.05	3.28.13	8585

Part numbers in this family (26)

By size:

Southwire #	Description	Construction	Packaging
14 AWG · 2 conductors (2)
56370301	14-2 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 14G 1000 FT	14 AWG 2C SOL	1000 FT REEL
56370302	14-2 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 14G 500 FT	14 AWG 2C SOL	500 FT SPOOL
14 AWG · 3 conductors (2)
56370401	14-3 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 14G 1000 FT	14 AWG 3C SOL	1000 FT REEL
56370402	14-3 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 14G 500 FT	14 AWG 3C SOL	500 FT SPOOL
12 AWG · 2 conductors (3)
56370599	12-2 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 12G	12 AWG 2C SOL	CUT TO LENGTH REEL
56370501	12-2 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 12G 1000 FT	12 AWG 2C SOL	1000 FT REEL
56370502	12-2 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 12G 500 FT	12 AWG 2C SOL	500 FT SPOOL
12 AWG · 3 conductors (4)
56370699	12-3 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 12G	12 AWG 3C SOL	CUT TO LENGTH REEL
56370601	12-3 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 12G 1000 FT	12 AWG 3C SOL	1000 FT REEL
56370604	12-3 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 12G 150 FT	12 AWG 3C SOL	150 FT CARTON
56370602	12-3 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 12G 500 FT	12 AWG 3C SOL	500 FT REEL
10 AWG · 2 conductors (3)
56370799	10-2 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 10G	10 AWG 2C SOL	CUT TO LENGTH REEL
56370701	10-2 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 10G 1000 FT	10 AWG 2C SOL	1000 FT REEL
56370702	10-2 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 10G 500 FT	10 AWG 2C SOL	500 FT REEL
10 AWG · 3 conductors (2)
56370801	10-3 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 10C 1000 FT	10 AWG 3C SOL	1000 FT REEL
56370802	10-3 SOL CU THW TWIST SUBMERSIBLE PUMP CABLE 10C 500 FT	10 AWG 3C SOL	500 FT REEL
8 AWG · 2 conductors (3)
56370999	8-2 STR CU THW TWIST SUBMERSIBLE PUMP CABLE 10C	8 AWG 2C 19 STR	CUT TO LENGTH REEL
56370901	8-2 STR CU THW TWIST SUBMERSIBLE PUMP CABLE 10C 1000 FT	8 AWG 2C 19 STR	1000 FT REEL
56370902	8-2 STR CU THW TWIST SUBMERSIBLE PUMP CABLE 10C 500 FT	8 AWG 2C 19 STR	500 FT REEL
8 AWG · 3 conductors (3)
56371099	8-3 STR CU THW TWIST CABLE W/G	8 AWG 3C 19 STR	CUT TO LENGTH REEL
56371001	8-3 STR CU THW TWIST CABLE W/G 1000 FT	8 AWG 3C 19 STR	1000 FT REEL
56371002	8-3 STR CU THW TWIST CABLE W/G 500 FT	8 AWG 3C 19 STR	500 FT REEL
6 AWG · 3 conductors (3)
56371199	6-3 STR CU THW TWIST SUBMERSIBLE PUMP CABLE 8G	6 AWG 3C 19 STR	CUT TO LENGTH REEL
56371101	6-3 STR CU THW TWIST SUBMERSIBLE PUMP CABLE 8G 1000 FT	6 AWG 3C 19 STR	1000 FT REEL
56371102	6-3 STR CU THW TWIST SUBMERSIBLE PUMP CABLE 8G 500 FT	6 AWG 3C 19 STR	500 FT REEL
4 AWG · 3 conductors (1)
56371299	4-3 STR CU THW TWIST SUBMERSIBLE PUMP CABLE 8G	4 AWG 3C 19 STR	CUT TO LENGTH REEL

Application & features

For use in residential, farm and industrial water well applications where the cable is not subject to repeated handling caused by frequent servicing of the pump units. Grounded and ungrounded water well cable systems. Conductors are twisted and colored black, red, and yellow when supplied with three conductors and green ground. Cable is supplied without an overall jacket. For use within well casings.

Standards & references

ASTM B3 Soft or Annealed Copper Wire
ASTM B8 Concentric-Lay-Stranded Copper Conductors
UL 83 Thermoplastic Insulated Wires and Cables
