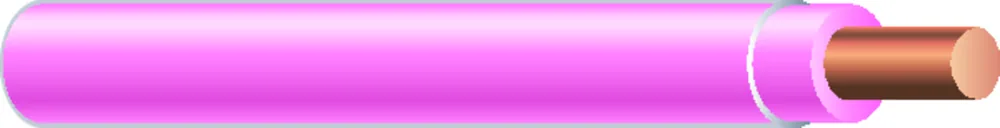

10 SOL SD CU THHN-THWN-AWM PINK 2500 FT

Southwire

10 SOL SD CU THHN-THWN-AWM PINK 2500 FT

Southwire #
25838401

600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated AWM.

Part of the family: THHN/THWN Copper Silicone-Free

Priced by quote — copper moves daily (COMEX), so we quote at the current price.

Quote on WhatsApp
📄 Spec sheet (PDF)📎 Building Wire & Cable Overview and Amperage📎 Building Wire Cable Selector Flyer📎 Building Wire Selection Guide📎 For technical references, whitepapers, and installation resources please refer to: https://www.southwire.com/services/cabletech-support-services

Application & features

THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.

  • THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil

Specifications

Cond. Size10 AWG10 AWG
Conductor Number11
Cond. StrandsSolidSolid
Diameter Over Conductor0.101 inch0.26 cm
Insulation Thickness20 mils0.51 mm
Jacket Thickness5 mils0.13 mm
Approx. OD0.153 inch0.39 cm
Copper Weight30 lbs/1000'45 kgs/km
Approx. Weight36 lbs/1000'54 kgs/km

Standards & references

  • ASTM - B3
  • UL Standards 83 and 758
  • CSA C22.2 No. 75
  • NOM-ANCE 90° C
  • Federal Specification A-A-59544
  • National Electrical Code, NFPA 70
  • VW-1
  • FT1
  • RoHS/REACH Compliant
