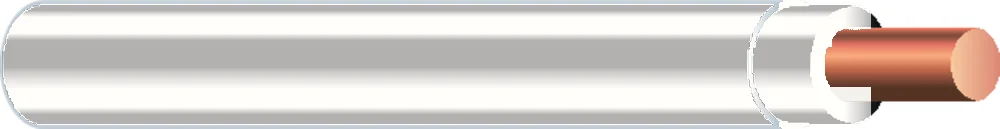

14 SOL SD CU THHN-THWN-AWM WHITE 25 FT
- Southwire #
- 11580854
600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated AWM.
Part of the family: THHN/THWN Copper Silicone-Free
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.
- THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil.
Specifications
| Cond. Size | 14 AWG14 AWG |
|---|---|
| Conductor Number | 11 |
| Cond. Strands | SolidSolid |
| Diameter Over Conductor | 0.064 inch0.16 cm |
| Insulation Thickness | 16 mils0.41 mm |
| Jacket Thickness | 5 mils0.13 mm |
| Approx. OD | 0.106 inch0.27 cm |
| Copper Weight | 12 lbs/1000'18 kgs/km |
| Approx. Weight | 16 lbs/1000'24 kgs/km |
Standards & references
- ASTM - B3
- UL Standards 83 and 758
- CSA C22.2 No. 75
- NOM-ANCE 90° C
- Federal Specification A-A-59544
- National Electrical Code, NFPA 70
- VW-1
- FT1
- RoHS/REACH Compliant
