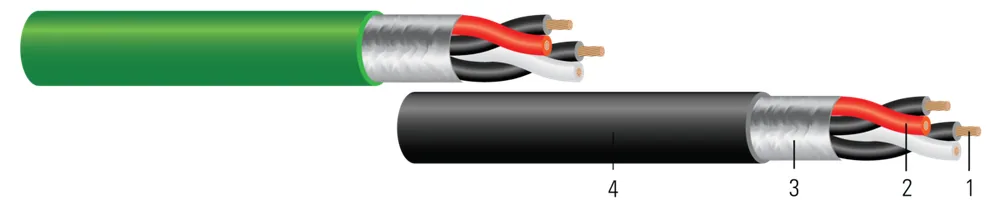

Southwire CL4SS™ Class 4 Shielded Outdoor / General Purpose
- Southwire #
- SPEC13008
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Part numbers in this family (27) ↓Available sizes & constructions
| Cond. Size | Conductor Number | Cond. Strands | Diameter Over Conductor (in)(cm) | Insulation Thickness (mils)(mm) | Jacket Thickness (mils)(mm) | Approx. OD (inches)(cm) | Approx. Weight (lbs/1000')(kgs/km) | DC Resistance at 25C (ohms/1000')(ohms/km) | Min. Bend Radius (in)(cm) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 14 AWG14 AWG | 22 | 77 | 0.0700.18 | 220.56 | 320.81 | 0.4671.19 | 112167 | 2.6313.92 | 1.94.83 | CL4Z142S0601 |
| 1818 | <30<30 | |||||||||
| 1616 | <30<30 | |||||||||
| 1414 | <30<30 | |||||||||
| 2 Black & White2 Black & White | 2 Black & White2 Black & White | 2 Black & White2 Black & White | ||||||||
| 3 Black & Green3 Black & Green | 3 Black & Green3 Black & Green | |||||||||
| 4 Black & Blue4 Black & Blue | 4 Black & Blue4 Black & Blue | |||||||||
| 5 Black & Yellow5 Black & Yellow | ||||||||||
| 6 Black & Brown6 Black & Brown | ||||||||||
| 7 Black & Orange7 Black & Orange | ||||||||||
| 8 Black & White8 Black & White | ||||||||||
| 1818 | 22 | |||||||||
| 1818 | 44 | |||||||||
| 1818 | 88 | |||||||||
| 1616 | 22 | |||||||||
| 1616 | 44 | |||||||||
| 1616 | 88 | |||||||||
| 1414 | 22 | |||||||||
| 1414 | 44 | |||||||||
| 1414 | 88 |
Part numbers in this family (27)
| Southwire # | Description | Construction | Packaging | |
|---|---|---|---|---|
| CL4Z142S0608 | CL4SS 14/2 PAIR STR CU OAS CL4Z/CMG PVC-LS BLACK 1000 FT | null null | null null | |
| CL4Z142S0605 | CL4SS 14/2 PAIR STR CU OAS CL4Z/CMG PVC-LS GREEN 1000 FT | null null | null null | |
| CL4Z142S0601 | CL4SS 14/2 PAIR STR CU OAS CL4Z/CMG PVC-LS WHITE 1000 FT | null null | null null | |
| CL4Z144S0608 | CL4SS 14/4 PAIR STR CU OAS CL4Z/CMG PVC-LS BLACK 1000 FT | null null | null null | |
| CL4Z144S0605 | CL4SS 14/4 PAIR STR CU OAS CL4Z/CMG PVC-LS GREEN 1000 FT | null null | null null | |
| CL4Z144S0601 | CL4SS 14/4 PAIR STR CU OAS CL4Z/CMG PVC-LS WHITE 1000 FT | null null | null null | |
| CL4Z148S0608 | CL4SS 14/8 PAIR STR CU OAS CL4Z/CMG PVC-LS BLACK 1000 FT | null null | null null | |
| CL4Z148S0605 | CL4SS 14/8 PAIR STR CU OAS CL4Z/CMG PVC-LS GREEN 1000 FT | null null | null null | |
| CL4Z148S0601 | CL4SS 14/8 PAIR STR CU OAS CL4Z/CMG PVC-LS WHITE 1000 FT | null null | null null | |
| CL4Z162S0608 | CL4SS 16/2 PAIR STR CU OAS CL4Z/CMG PVC-LS BLACK 1000 FT | null null | null null | |
| CL4Z162S0605 | CL4SS 16/2 PAIR STR CU OAS CL4Z/CMG PVC-LS GREEN 1000 FT | null null | null null | |
| CL4Z162S0601 | CL4SS 16/2 PAIR STR CU OAS CL4Z/CMG PVC-LS WHITE 1000 FT | null null | null null | |
| CL4Z164S0608 | CL4SS 16/4 PAIR STR CU OAS CL4Z/CMG PVC-LS BLACK 1000 FT | null null | null null | |
| CL4Z164S0605 | CL4SS 16/4 PAIR STR CU OAS CL4Z/CMG PVC-LS GREEN 1000 FT | null null | null null | |
| CL4Z164S0601 | CL4SS 16/4 PAIR STR CU OAS CL4Z/CMG PVC-LS WHITE 1000 FT | null null | null null | |
| CL4Z168S0608 | CL4SS 16/8 PAIR STR CU OAS CL4Z/CMG PVC-LS BLACK 1000 FT | null null | null null | |
| CL4Z168S0605 | CL4SS 16/8 PAIR STR CU OAS CL4Z/CMG PVC-LS GREEN 1000 FT | null null | null null | |
| CL4Z168S0601 | CL4SS 16/8 PAIR STR CU OAS CL4Z/CMG PVC-LS WHITE 1000 FT | null null | null null | |
| CL4Z182S0608 | CL4SS 18/2 PAIR STR CU OAS CL4Z/CMG PVC-LS BLACK 1000 FT | null null | null null | |
| CL4Z182S0605 | CL4SS 18/2 PAIR STR CU OAS CL4Z/CMG PVC-LS GREEN 1000 FT | null null | null null | |
| CL4Z182S0601 | CL4SS 18/2 PAIR STR CU OAS CL4Z/CMG PVC-LS WHITE 1000 FT | null null | null null | |
| CL4Z184S0608 | CL4SS 18/4 PAIR STR CU OAS CL4Z/CMG PVC-LS BLACK 1000 FT | null null | null null | |
| CL4Z184S0605 | CL4SS 18/4 PAIR STR CU OAS CL4Z/CMG PVC-LS GREEN 1000 FT | null null | null null | |
| CL4Z184S0601 | CL4SS 18/4 PAIR STR CU OAS CL4Z/CMG PVC-LS WHITE 1000 FT | null null | null null | |
| CL4Z188S0608 | CL4SS 18/8 PAIR STR CU OAS CL4Z/CMG PVC-LS BLACK 1000 FT | null null | null null | |
| CL4Z188S0605 | CL4SS 18/8 PAIR STR CU OAS CL4Z/CMG PVC-LS GREEN 1000 FT | null null | null null | |
| CL4Z188S0601 | CL4SS 18/8 PAIR STR CU OAS CL4Z/CMG PVC-LS WHITE 1000 FT | null null | null null |
Application & features
Intended for use in Fault Managed Power Systems (FMPS), remote powering, indoor Class 4 circuits per 2023 National Electrical Code (NEC) article 726. For use, primarily, in Agriculture, Intelligent Buildings, and Wireless Densification. The power source (transmitter) for Class 4 circuits shall be supplied from a power source that has a voltage output of 450 volts (peak or DC) or less. The CL4Z cables are considered for outdoor use only and are not to be attached to or used within a building structure. Type CL4Z cables comply with the applicable requirements for CL4. The CMG cables can be installed in buildings according to NEC article 722.135 and table 722.135(B).
Ratings:
Normal operating temperature: 90°C
Temperature Range: -40°C to 90°C
Rated Use: Dry or wet locations
Standards & references
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- UL 1400-2 Fault-Managed Power Systems - Part 2: Requirements for Cables
- UL 444 Communications Cables
