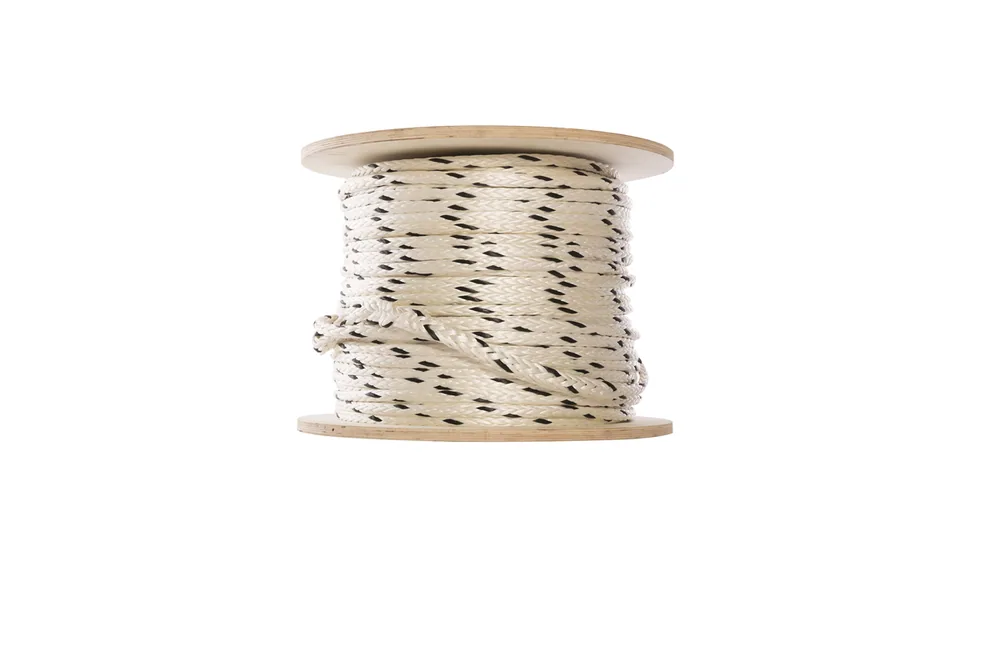

ROPE, QWIK 9/16IN X 600FT SPR-966 1 EA
- Southwire #
- 58305701
- Model #
- SPR966
- UPC
- 032886907586
An innovative new high performance pulling rope that is UV resistant, lightweight and ultra low stretch.
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
- High performance pulling rope made from ultra high molecular weight polyethylene fibers
- Ultra low stretch, UV resistant, lightweight pulling rope
- 24% reduction in the coefficient of friction, as compared to traditional pulling ropes
- Dual factory installed pulling eyes
- Does not absorb water, no rope rot
- 12 Strand single braided 9/16” pulling rope with a breaking strength of 32,000 lbs., pound for pound stronger than steel
- 2 sizes for all your circuit wire pulls: 1/8” pulling rope with a breaking strength of 1,100 lbs., and a 1/4” pulling rope with a breaking strength of 7,500 lbs.
- Need only one size rope (9/16”) for feeder conductor pulls up to 10,000 lbs
- 1/8” QWIKrope® can easily be vaccumed into any conduit run up to 290 ft.
Specifications
| Product Height | 15.0 inch38.10 cm |
|---|---|
| Depth | 15.0 inch38.10 cm |
| Product Weight | 52.0 lbs23.59 kg |
| Rated Capacity | 6,500 LBS +6,500 LBS + |
