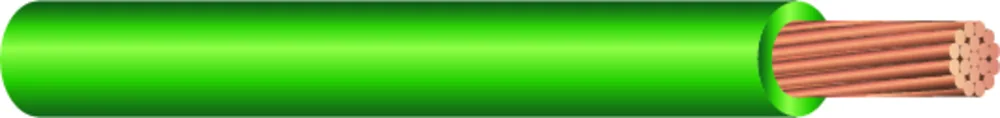

12 SOL CU USE-2 RHH-RHW-2 1KV GREEN 1000 FT
- Southwire #
- 65043203
Underground Service Entrance Cable. 600 Volt. Copper Conductors. Cross-Linked Polyethylene (XLP) Insulation. High-Heat, Moisture, and Sunlight Resistant.
Part of the family: RHH/RHW-2/USE-2 Copper Silicone-Free.
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
Southwire® Type USE-2 conductors are used with conduit as specified in the 2011 National Electrical Code. When used as Type USE-2, conductor is suitable for use as underground service entrance cable for direct burial at conductor temperatures not to exceed 90° C. When used as RHH, conductor temperatures shall not exceed 90°C in dry locations. When used as RHW-2 or USE-2, conductor temperatures shall not exceed 90°C in wet or dry locations. Voltage rating for USE-2 conductors is 600 volts.
Specifications
| Cond. Size | 12 AWG12 AWG |
|---|---|
| Conductor Number | 11 |
| Cond. Strands | SolidSolid |
| Diameter Over Conductor | 0.080 inch0.20 cm |
| Insulation Thickness | 45 mils1.14 mm |
| Approx. OD | 0.174 inch0.44 cm |
| Copper Weight | 19 lbs/1000'28 kgs/km |
| Approx. Weight | 28 lbs/1000'42 kgs/km |
Standards & references
- ASTM - B3, B8 (7, 19, 37, 61 Strands), B787 (19 Wire Combination Unilay Strand)
- UL Standard 854 for USE-2
- Federal Specification A-A-59544
- National Electrical Code, NFPA 70 - 2011 Edition
- NEMA WC 70 Construction Requirements
- RoHS/REACH Compliant
