DistributorSouthwire

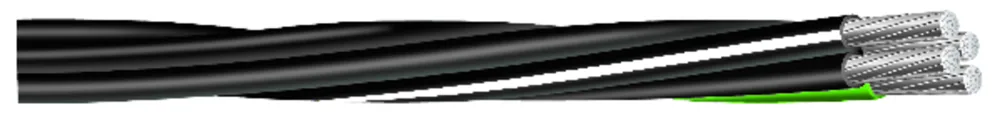

2/0-2/0-1-4 3E AL USE-2 RHH RHW-2 MOBILE HOME FEEDER 1000 FT

Southwire

2/0-2/0-1-4 3E AL USE-2 RHH RHW-2 MOBILE HOME FEEDER 1000 FT

Southwire #
30162202

Underground Service Entrance Cable. 600 Volt. Alumaflex® Brand Aluminum Alloy (AA-8176) Conductor. Cross-linked Polyethylene (XLP) Insulation. Sunlight Resistant.

Part of the family: RHH/RHW-2 or USE-2 Aluminum Mobile Home Feeder (MHF)

Priced by quote — copper moves daily (COMEX), so we quote at the current price.

Quote on WhatsApp
📄 Spec sheet (PDF)📎 Building Wire Selection Guide📎 For technical references, whitepapers, and installation resources please refer to: https://www.southwire.com/services/cabletech-support-services

Application & features

Southwire® Type mobile home feeder is intended for the connection of mobile homes to a supply of electricity where permanent wiring is required as specified in the 2011 National Electrical Code. Suitable for direct burial in earth at conductor temperatures not to exceed 90°C. Voltage rating is 600 volts.

Specifications

Cond. Size2/0 AWG2/0 AWG
Conductor Number22
Cond. Strands1919
Diameter Over Conductor0.376 inch0.96 cm
Insulation Thickness80 mils2.03 mm
Ground Size1x41x4
Approx. OD1.313 inch3.34 cm
Aluminum Weight368 lbs/1000'548 kgs/km
Approx. Weight561 lbs/1000'835 kgs/km

Standards & references

  • ASTM B800, B801, and B836
  • UL Standard 44
  • UL Standard 854
  • Federal Specification A-A-59544
  • National Electrical Code, NFPA 70
  • NEMA WC-70 Construction Requirements
  • RoHS/Reach Compliant
