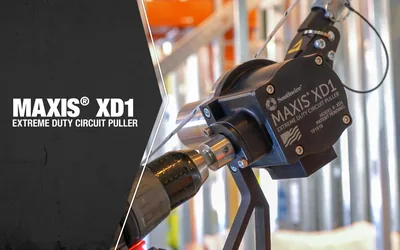

PULLER, EXTREME DUTY, 1,000LB XD-1
- Southwire #
- 65090901
- Model #
- XD1
- UPC
- 032886707469
Safer, faster, and more efficient way to pull low voltage, branch home runs, lighting cables, and small circuit sized wires.
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features

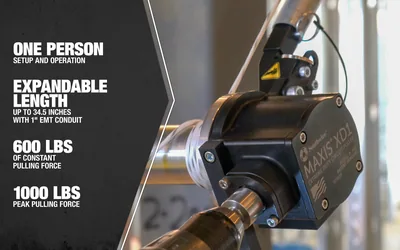

- Continuous pulling up to 600 lbs.
- Lightweight and portable
- One person setup and operation

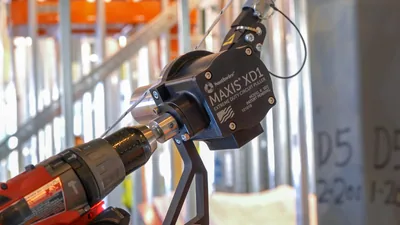

- Accepts most commercial 18V cordless drills

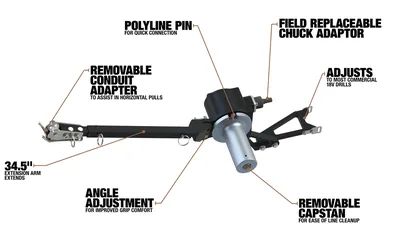

- Removable capstan to facilitate polyline removal
- Expandable length up to 34.5 inches
- Polyline pin on capstan to prevent slippage during the pull
- Anodized for corrosion resistance
- Field replaceable chuck adapter
- 600 lbs of constant pulling force with 1000 lbs peak pulling force
Specifications
| Product Height | 8.75 inch22.23 cm |
|---|---|
| Product Width | 8.0 inch20.32 cm |
| Product Weight | 8.8 lbs3.99 kg |
| Rated Capacity | Up to 1,000 LBSUp to 1,000 LBS |
