DistributorSouthwire

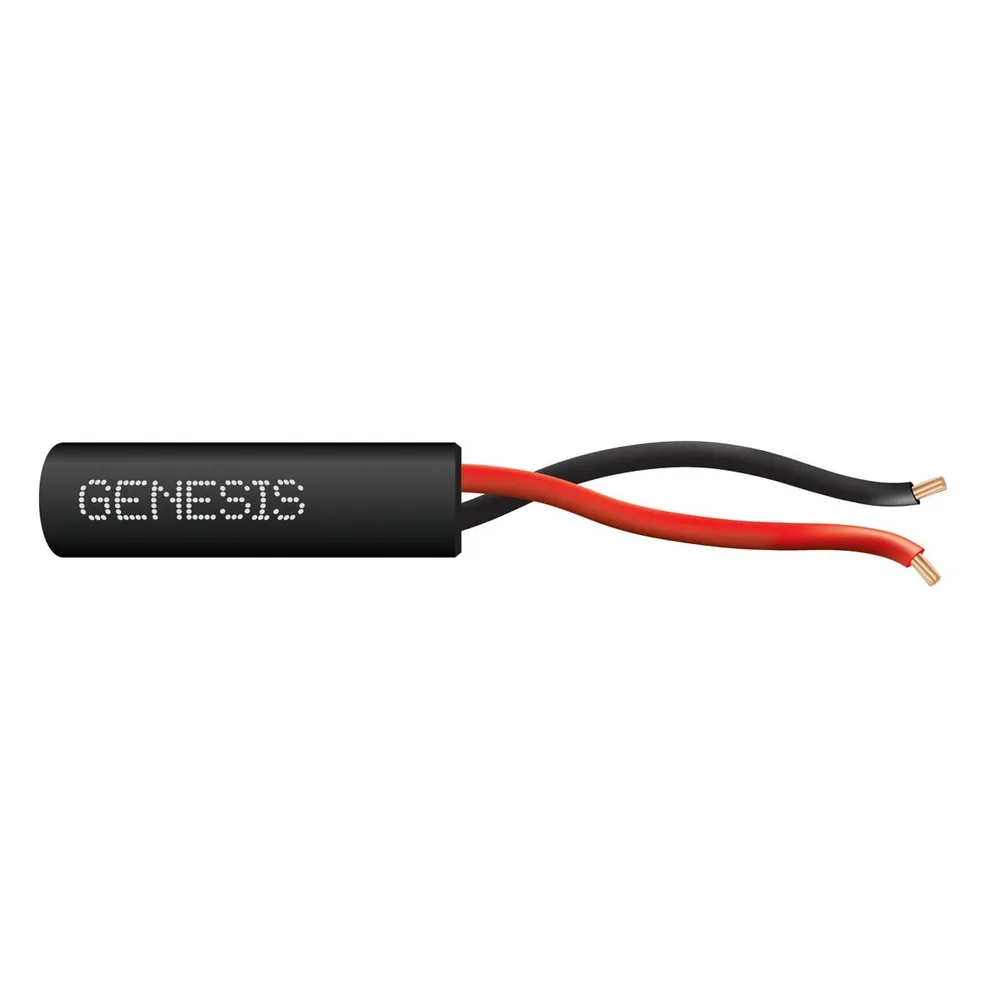

22-7 2/C CU CL2R/FPLR/CMR BLACK GEN 500 FT

Southwire

22-7 2/C CU CL2R/FPLR/CMR BLACK GEN 500 FT

Southwire #
21025808

Genesis® Unshielded Multiconductor Cables offer a versatile solution for various signal and limited-power transmission applications.

Part of the family: Multiconductor Unshielded Cable, Riser

Priced by quote — copper moves daily (COMEX), so we quote at the current price.

Quote on WhatsApp
📄 Spec sheet (PDF)📎 Genesis Security Cables Brochure📎 Genesis Security Cable Speed Bag Sell Sheet

Application & features

Genesis® Riser Rated Unshielded Multiconductor Cable is suitable for installation as follows:

  • Installed in a metal raceway that complies with 300.22(B).
  • Supported by solid bottom metal cable trays with solid metal covers.
  • In risers.
  • Within buildings in other than air-handling spaces and risers.
  • Exposed to sunlight.

Specifications

Size22 AWG22 AWG
No. of Conductors22
StrandingStrandedStranded
ShieldingUnshieldedUnshielded
Nominal Total Weight10 lbs/1000'14 kgs/km

Standards & references

  • UL 1666 - Riser Rated
  • CSA C22.2 No. 2556 - FT4 Rated
  • UL 444 - Communication Cables, Type CMR (22 AWG - 16 AWG)
  • UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLR
  • UL 13 - Power-Limited Circuit Cables, Type CL3R
  • Sunlight Resistant Rated
  • REACH/RoHS Compliant
