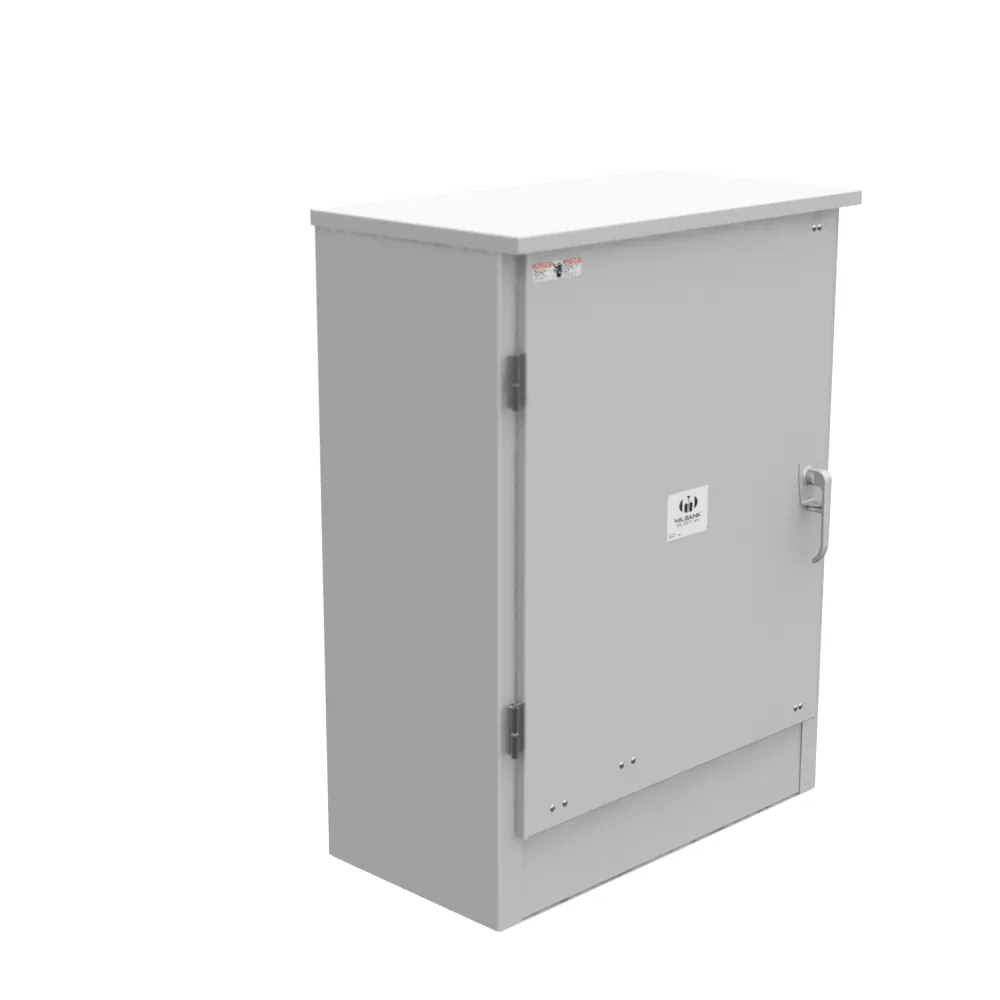

ALUM PAINTED SHELL 22 POS PER PHASE BAR 500 KCMIL
- Milbank #
- UAP6095-O
- UPC
- 784572759626
Aluminum Painted Shell 22 Position Per Phase Bar 500 Kcmil
List price
$104,768.53 MXN + VAT
| Price before IVA | $104,768.53 MXN |
|---|---|
| Total incl. 16% IVA | $121,531.49 MXN |
| Total incl. 8% IVA (border region) | $113,150.01 MXN |
Converted from USD $5,816.37 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Application | Terminate ConductorsTerminate Conductors |
|---|---|
| Cable Entry | No KnockoutsNo Knockouts |
| Color | ANSI 61 GrayANSI 61 Gray |
| Construction | WeldedWelded |
| Door | Hinged CoverHinged Cover |
| Hinge Type | Lift Off HingesLift Off Hinges |
| Insulation | Stand Off'sStand Off's |
| Latch | Padlocking Handle with 3 Point Latch AssemblyPadlocking Handle with 3 Point Latch Assembly |
| Material | AluminumAluminum |
| Mounting | Pad Mount or Wall MountPad Mount or Wall Mount |
| NEMA Rating | Type 3RType 3R |
| Number Of Outlet | 00 |
| Size | 16L x 32.375W x 43H16L x 32.375W x 43H |
| Special Features | 4000 Ampere; Three Phase Four WIre; Penta Bolt; 10;000 Short Circuit Current Rating4000 Ampere; Three Phase Four WIre; Penta Bolt; 10;000 Short Circuit Current Rating |
| Standard | UL ListedUL Listed |
| Top | Plain TopPlain Top |
| Type | Hinge CoverHinge Cover |
| Height | 43 in109.2 cm |
| Length | 16 in40.6 cm |
| Width | 32.375 in82.2 cm |
