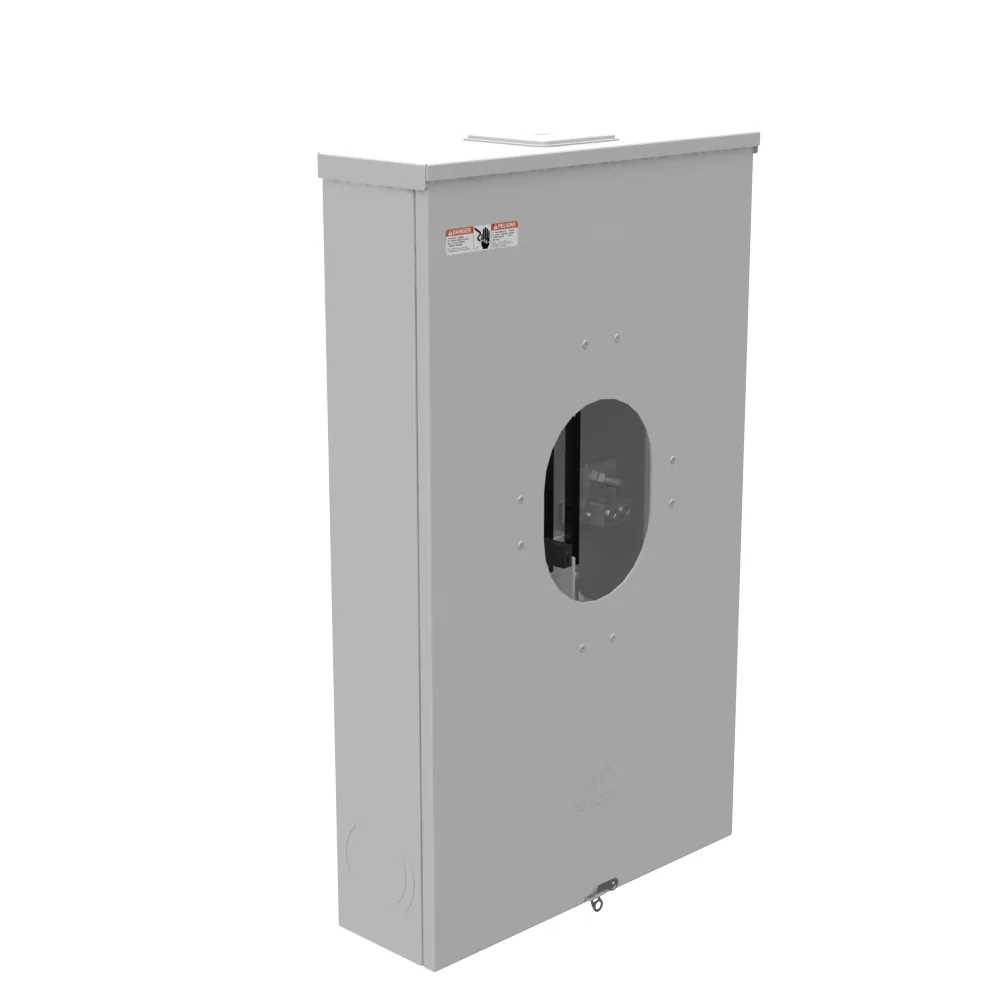

480A Bolt-In Meter Socket
7 TERM BOLT-IN LRG CLS PLT LINK BYPS UNPNTD ALUM CONFIG 8062
- Milbank #
- UA4667-X-8062
- UPC
- 784572273115
Milbank UA4667-X-8062 is a bolt-in meter socket from the Milbank KSER product family, listed under enclosures and meter sockets. It is rated 480 amps continuous, built with 7 terminals on a large closing plate, an unpainted aluminum enclosure, and a link bypass, and is configured for 3-phase service. Unlike the lay-in or lever-clamp terminals used on smaller residential sockets, a bolt-in socket like this terminates conductors on a half-inch stud on the line side, which is typical of larger commercial and industrial metering where heavier conductors and higher fault currents are involved. The link bypass lets the meter be removed for testing while a physical link keeps the circuit closed. The enclosure measures 6 inches by 20.25 inches by 34 inches, is UL Listed and rated Type 3R for outdoor use, carries a 600 volt AC insulation rating, and accepts overhead or underground cable entry with a triplex ground configuration.
$24,234.65 MXN + VAT
| Price before IVA | $24,234.65 MXN |
|---|---|
| Total incl. 16% IVA | $28,112.19 MXN |
| Total incl. 8% IVA (border region) | $26,173.42 MXN |
Converted from USD $1,345.42 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 480 Continuous Ampere480 Continuous Ampere |
|---|---|
| Application | Meter SocketMeter Socket |
| Bypass Provision | Link BypassLink Bypass |
| Cable Entry | Overhead or UndergroundOverhead or Underground |
| Main Breaker Size | No Main BreakerNo Main Breaker |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | Triplex GroundTriplex Ground |
| Frequency Rating | 60 Hertz60 Hertz |
| Hub/Closing Plate | Large Closing PlateLarge Closing Plate |
| Insulation | Glass PolyesterGlass Polyester |
| Number of Jaws | 7 Terminal7 Terminal |
| Knockouts | TrueTrue |
| Mounting | Surface MountSurface Mount |
| Number of Main Breakers | 00 |
| Number of Meter Positions | 1 Position1 Position |
| Number Of Receptacles | 00 |
| Phase | 3 Phase3 Phase |
| Size | 6L x 20.25W x 34H6L x 20.25W x 34H |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Terminal | 1/2 Inch Stud Line Side1/2 Inch Stud Line Side |
| Type | Bolt On Meter SocketBolt On Meter Socket |
| Voltage Rating | 600 Volts Alternating Current600 Volts Alternating Current |
| Height | 34 in86.4 cm |
| Length | 6 in15.2 cm |
| Width | 20.25 in51.4 cm |
