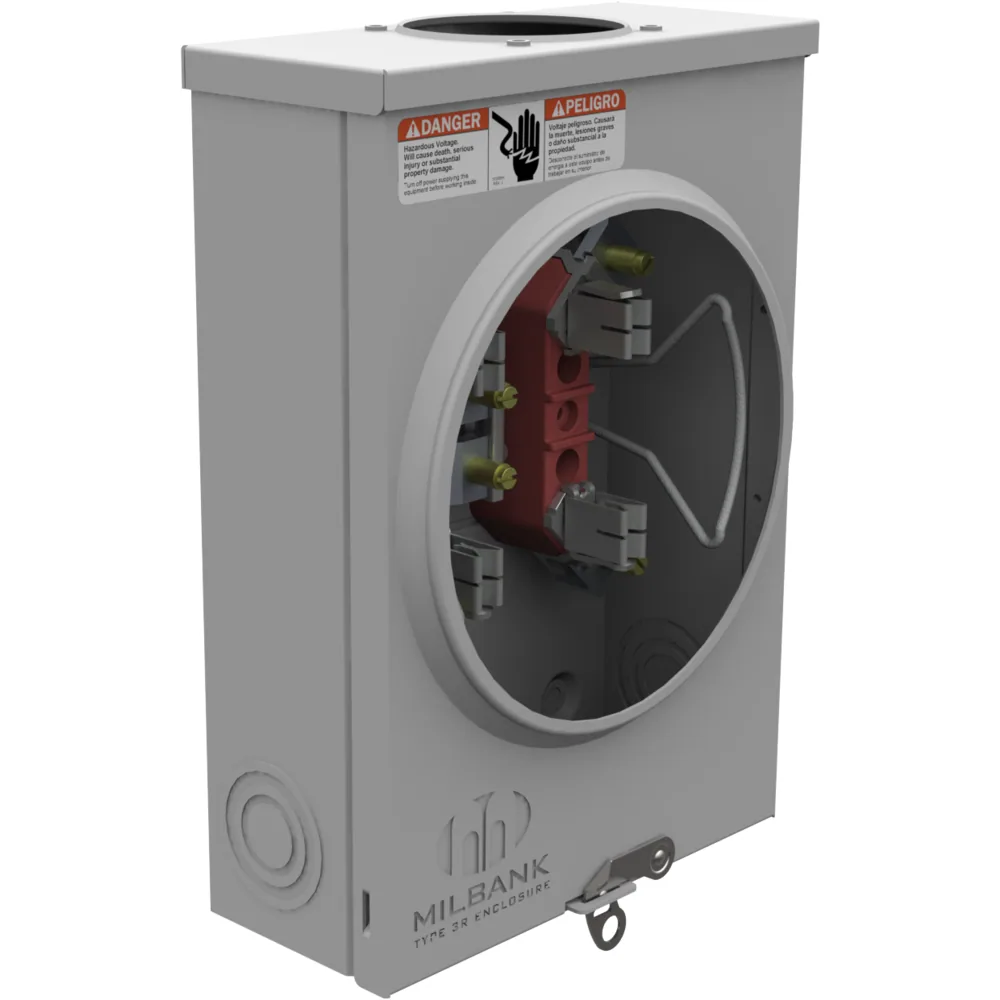

4 TERM RNGLS SML HUB OPEN TRIPLEX GND 125 AMP
- Milbank #
- U7487-RL-TG
- UPC
- 784572141179
4 Terminal Ringless Small Hub Open Triplex Ground 125 Ampere
List price
$1,443.18 MXN + VAT
| Price before IVA | $1,443.18 MXN |
|---|---|
| Total incl. 16% IVA | $1,674.09 MXN |
| Total incl. 8% IVA (border region) | $1,558.63 MXN |
Converted from USD $80.12 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 125 Continuous Ampere125 Continuous Ampere |
|---|---|
| Application | Meter SocketMeter Socket |
| Bypass Provision | No BypassNo Bypass |
| Cable Entry | Overhead or UndergroundOverhead or Underground |
| Main Breaker Size | No Main BreakerNo Main Breaker |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | Triplex GroundTriplex Ground |
| Frequency Rating | 60 Hertz60 Hertz |
| Hub/Closing Plate | Small Hub OpeningSmall Hub Opening |
| Insulation | Glass PolyesterGlass Polyester |
| Number of Jaws | 4 Terminal4 Terminal |
| Knockouts | TrueTrue |
| Line Side Wire Range | 6 - 2/0 AWG6 - 2/0 AWG |
| Load Side Wire Range | 6 - 2/0 AWG6 - 2/0 AWG |
| Mounting | Surface MountSurface Mount |
| Number of Main Breakers | 00 |
| Number of Meter Positions | 1 Position1 Position |
| Number Of Receptacles | 00 |
| Phase | 1 Phase1 Phase |
| Size | 3.313L x 8W x 11.5H3.313L x 8W x 11.5H |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Terminal | Lay inLay in |
| Type | Ringless Meter SocketRingless Meter Socket |
| Voltage Rating | 600 Volts Alternating Current600 Volts Alternating Current |
| Height | 11.5 in29.2 cm |
| Length | 3.313 in8.4 cm |
| Width | 8 in20.3 cm |
