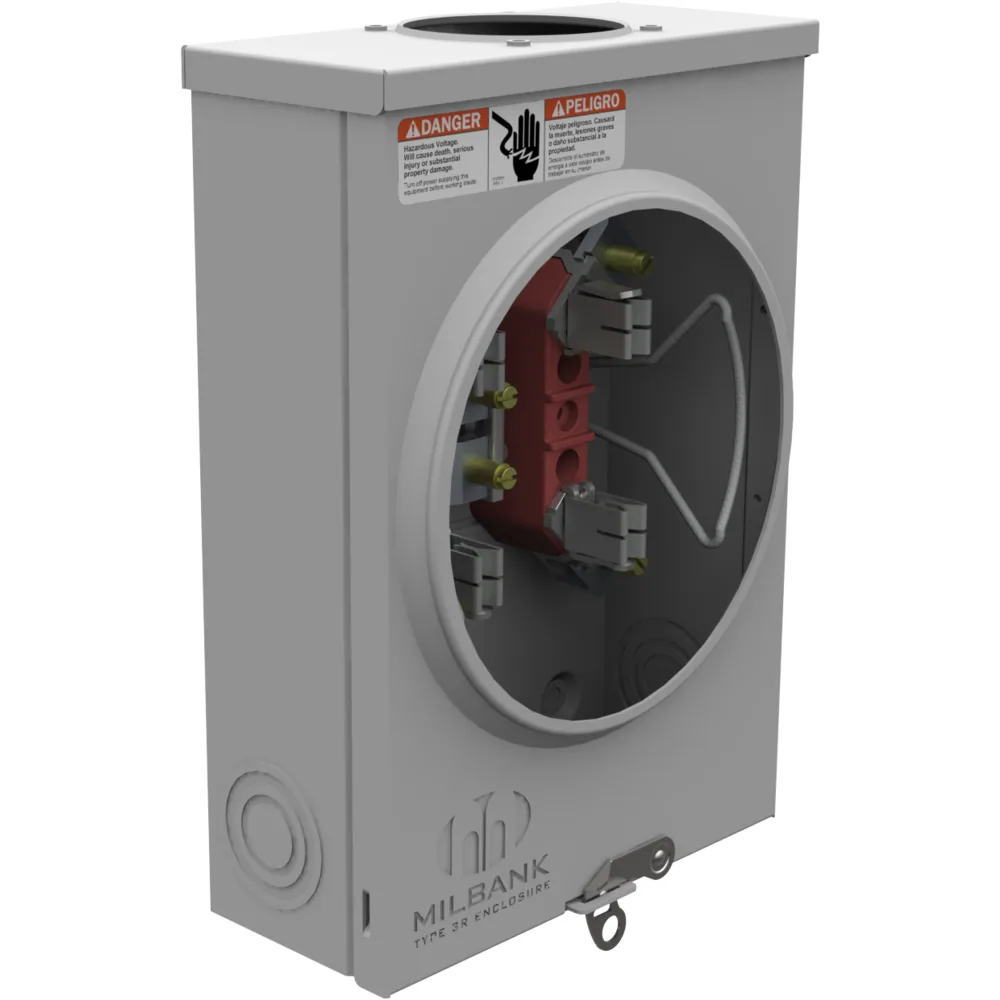

Ringless Meter Socket, 2in Hub

5 TERM RNGLS 2 IN HUB TRIPLEX GND

Milbank #

U7021-DL-TG-5T

UPC

784572139770

Milbank U7021-DL-TG-5T is a ringless meter socket from the Milbank 4T20 product family, listed under enclosures and meter sockets. It is built with a 5-terminal ringless design, a 2-inch hub for conduit entry, and a triplex ground configuration. The 2-inch hub gives an electrician a fixed conduit entry sized for the service-entrance raceway rather than a knockout that has to be reamed to size, which speeds installation where the conduit size is known ahead of time. The triplex ground arrangement is used on services that combine two ungrounded conductors with a shared neutral and ground path in a single termination. As a ringless socket, the meter is held in place by a separate closing ring fitted over the meter after it is set, rather than a sealing ring built into the socket body, which is the configuration some electric utilities specify for their service territory.
