RV Power Meter Sockets
4 TERM RNGTP PLAIN TOP DBL PED DIR BURY
- Milbank #
- U5320-O
- UPC
- 784572259577

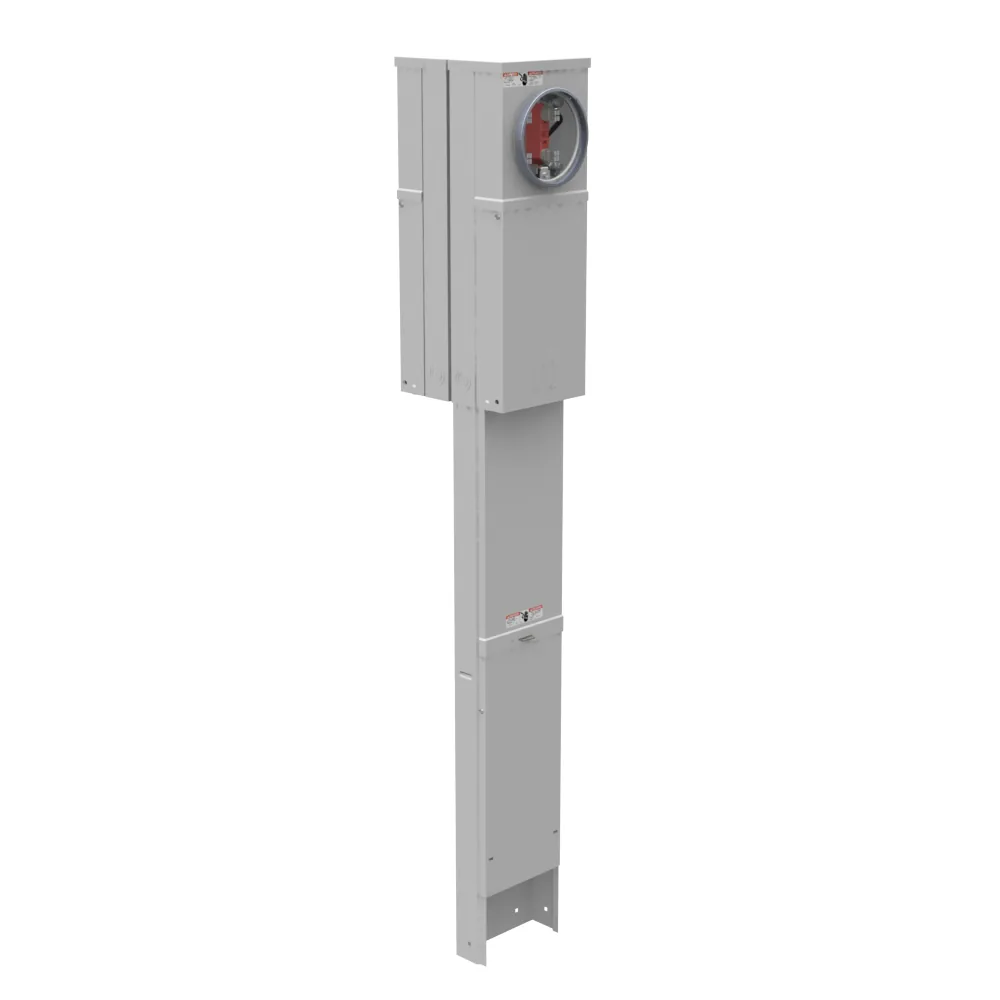

The Milbank U5320-O is a meter socket, pedestal-mounted, for direct-bury installation. It is built for recreational vehicle (RV) power service, and is intended for installation by a licensed electrician or utility crew rather than as a do-it-yourself device. The unit carries a 125A continuous rating, a voltage rating of Up to 240 VAC, single-phase service, and a 60 hertz frequency rating. It ships with a breaker provision, so a main breaker can be field-installed as required. The enclosure provides for 12 branch circuits. It is configured for double power head. Cable entry is designed for underground (direct-bury) service entrance conductors. The line-side terminals accept conductor sizes from 6 AWG - 350 kcmil. It is built with 4 jaws. Terminals are of the double mechanical type. Equipment grounding is provided by 2 barrel ground lug. The enclosure is constructed of g90 galvanized steel with powder coat finish. It is UL Listed. Overall enclosure dimensions are 11.188L x 8.884W x 70.25H. It is fitted with a plain top.
$18,100.42 MXN + VAT
| Price before IVA | $18,100.42 MXN |
|---|---|
| Total incl. 16% IVA | $20,996.49 MXN |
| Total incl. 8% IVA (border region) | $19,548.45 MXN |
Converted from USD $1,004.87 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 125 Continuous Ampere125 Continuous Ampere |
|---|---|
| Application | RV PowerRV Power |
| Bypass Provision | No BypassNo Bypass |
| Cable Entry | UndergroundUnderground |
| Main Breaker Size | Breaker ProvisionBreaker Provision |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | 2 Barrel Ground Lug2 Barrel Ground Lug |
| Frequency Rating | 60 Hertz60 Hertz |
| Hub/Closing Plate | Plain TopPlain Top |
| Insulation | Glass PolyesterGlass Polyester |
| Number of Jaws | 4 Terminal4 Terminal |
| Knockouts | TrueTrue |
| Line Side Wire Range | 6 AWG - 350 kcmil6 AWG - 350 kcmil |
| Mounting | PedestalPedestal |
| Number Branch Circuits | 1212 |
| Number of Main Breakers | 00 |
| Number of Meter Positions | Double Power HeadDouble Power Head |
| Number Of Receptacles | 00 |
| Phase | 1 Phase1 Phase |
| Size | 11.188L x 8.884W x 70.25H11.188L x 8.884W x 70.25H |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Terminal | Double MechanicalDouble Mechanical |
| Type | Ring Type Meter SocketRing Type Meter Socket |
| Voltage Rating | Up to 240 Volts Alternating CurrentUp to 240 Volts Alternating Current |
| Height | 70.25 in178.4 cm |
| Length | 11.188 in28.4 cm |
| Width | 8.884 in22.6 cm |
