RV Power Meter Sockets
4 TERM RNGTP PLAIN TOP SGL PED DIR BURY
- Milbank #
- U5300-O
- UPC
- 784572258402

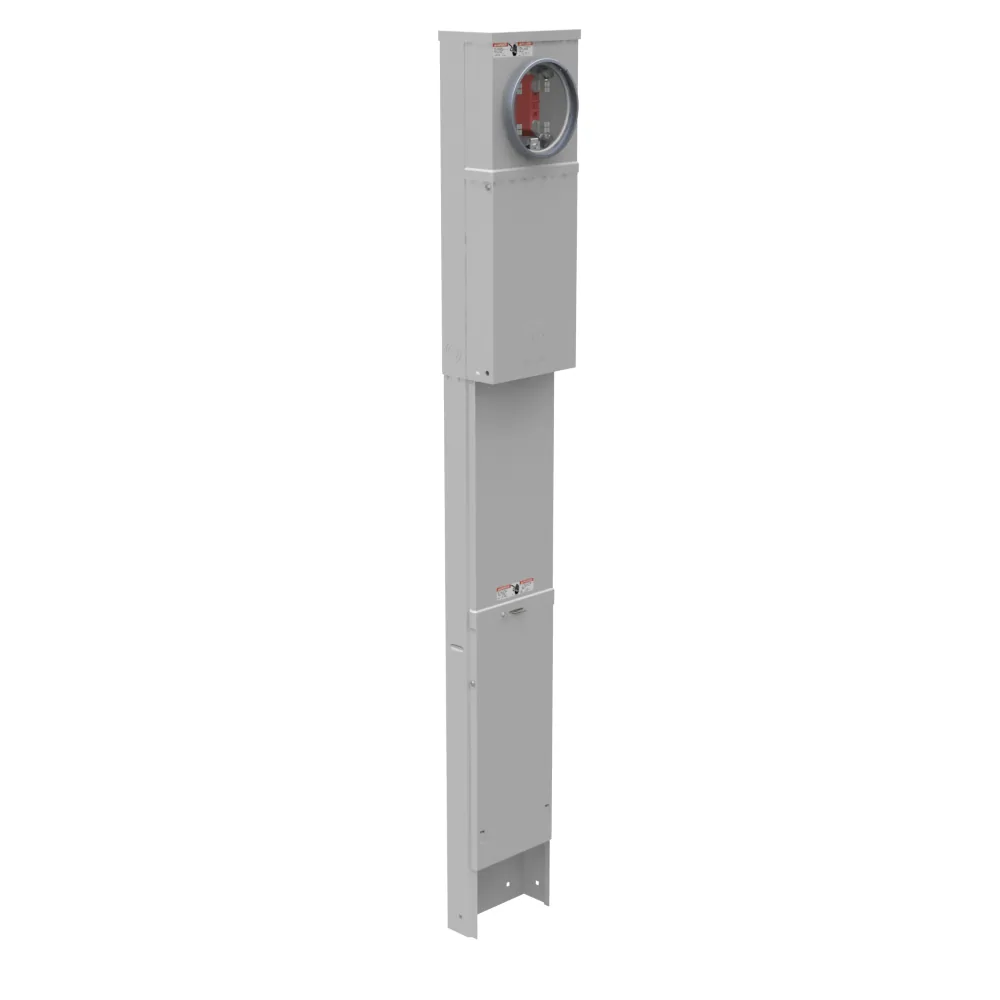

The Milbank U5300-O is a meter socket, pedestal-mounted, for direct-bury installation. It is built for recreational vehicle (RV) power service, and is intended for installation by a licensed electrician or utility crew rather than as a do-it-yourself device. The unit carries a 125A continuous rating, a voltage rating of Up to 240 VAC, single-phase service, and a 60 hertz frequency rating. It ships with a breaker provision, so a main breaker can be field-installed as required. The enclosure provides for 6 branch circuits. It is configured for single power head. Cable entry is designed for underground (direct-bury) service entrance conductors. The line-side terminals accept conductor sizes from 6 AWG - 350 kcmil. It is built with 4 jaws. Terminals are of the double mechanical type. Equipment grounding is provided by 2 barrel ground lug and ground bar. The enclosure is constructed of g90 galvanized steel with powder coat finish. It is UL Listed. Overall enclosure dimensions are 5.313L x 8.688W x 70.25H. It is fitted with a plain top.
$10,649.83 MXN + VAT
| Price before IVA | $10,649.83 MXN |
|---|---|
| Total incl. 16% IVA | $12,353.80 MXN |
| Total incl. 8% IVA (border region) | $11,501.82 MXN |
Converted from USD $591.24 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 125 Continuous Ampere125 Continuous Ampere |
|---|---|
| Application | RV PowerRV Power |
| Bypass Provision | No BypassNo Bypass |
| Cable Entry | UndergroundUnderground |
| Main Breaker Size | Breaker ProvisionBreaker Provision |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | 2 Barrel Ground Lug and Ground Bar2 Barrel Ground Lug and Ground Bar |
| Frequency Rating | 60 Hertz60 Hertz |
| Hub/Closing Plate | Plain TopPlain Top |
| Insulation | Glass PolyesterGlass Polyester |
| Number of Jaws | 4 Terminal4 Terminal |
| Knockouts | TrueTrue |
| Line Side Wire Range | 6 AWG - 350 kcmil6 AWG - 350 kcmil |
| Mounting | PedestalPedestal |
| Number Branch Circuits | 66 |
| Number of Main Breakers | 00 |
| Number of Meter Positions | Single Power HeadSingle Power Head |
| Number Of Receptacles | 00 |
| Phase | 1 Phase1 Phase |
| Size | 5.313L x 8.688W x 70.25H5.313L x 8.688W x 70.25H |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Terminal | Double MechanicalDouble Mechanical |
| Type | Ring Type Meter SocketRing Type Meter Socket |
| Voltage Rating | Up to 240 Volts Alternating CurrentUp to 240 Volts Alternating Current |
| Height | 70.25 in178.4 cm |
| Length | 5.313 in13.5 cm |
| Width | 8.688 in22.1 cm |
