UNMTR SML CLS PLT 520GR TT30 TT30 SGL PED DIR BURY PED
- Milbank #
- U5200-XL-332
- UPC
- 784572265103

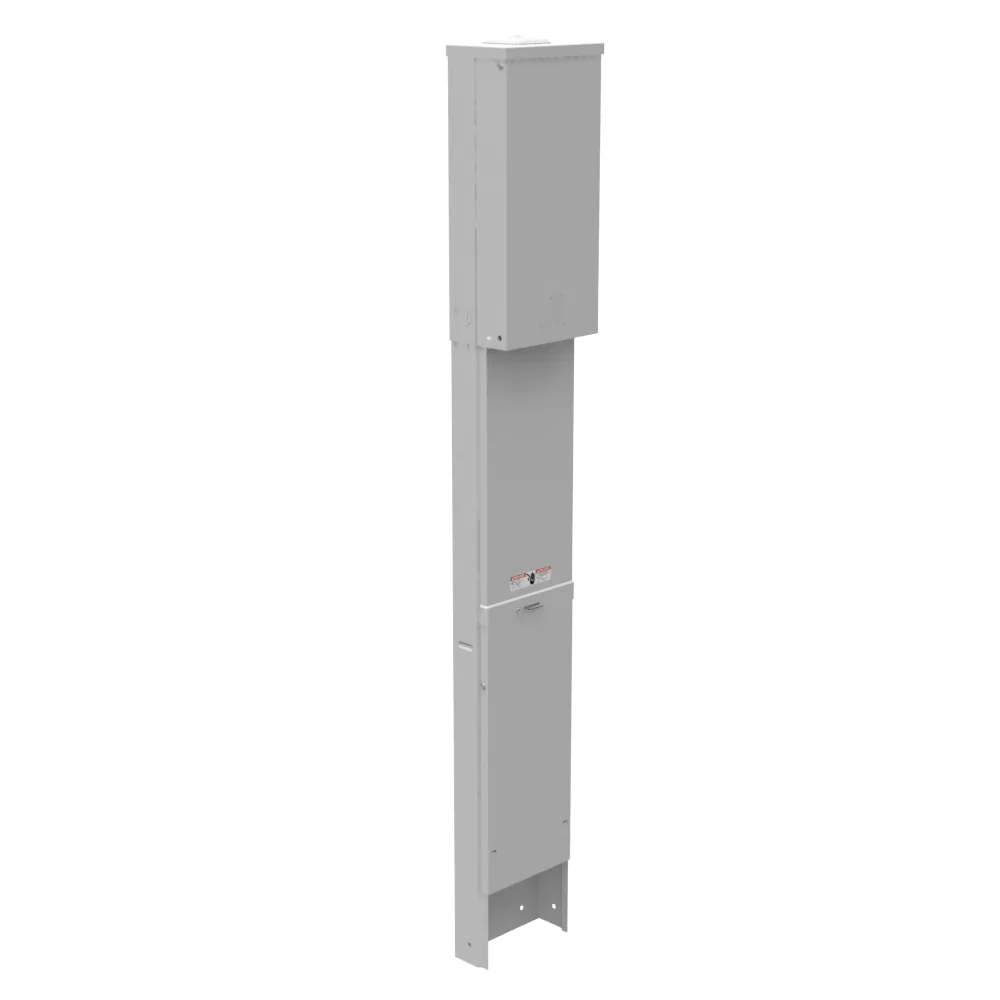

Unmetered Small Closing Plate 520GR TT30 TT30 Single Pedestal Direct Bury Pedestal
List price
$11,087.36 MXN + VAT
| Price before IVA | $11,087.36 MXN |
|---|---|
| Total incl. 16% IVA | $12,861.34 MXN |
| Total incl. 8% IVA (border region) | $11,974.35 MXN |
Converted from USD $615.53 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 125 Continuous Ampere125 Continuous Ampere |
|---|---|
| Application | RV PowerRV Power |
| Bypass Provision | No BypassNo Bypass |
| Cable Entry | UndergroundUnderground |
| Main Breaker Size | Two Single Pole 30 Ampere Breakers and One Single Pole 20 Ampere BreakerTwo Single Pole 30 Ampere Breakers and One Single Pole 20 Ampere Breaker |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | 2 Barrel Ground Lug and Ground Bar2 Barrel Ground Lug and Ground Bar |
| Frequency Rating | 60 Hertz60 Hertz |
| Hub/Closing Plate | Small Closing PlateSmall Closing Plate |
| Insulation | Glass PolyesterGlass Polyester |
| Number of Jaws | 0 Terminals0 Terminals |
| Knockouts | TrueTrue |
| Line Side Wire Range | 6 AWG - 350 kcmil6 AWG - 350 kcmil |
| Mounting | PedestalPedestal |
| Number Branch Circuits | 33 |
| Number of Main Breakers | 33 |
| Number of Meter Positions | Single Power HeadSingle Power Head |
| Number Of Receptacles | 33 |
| Phase | 1 Phase1 Phase |
| Receptacle Configuration | Two NEMA TT30 and One NEMA 5-20 Ground FaultTwo NEMA TT30 and One NEMA 5-20 Ground Fault |
| Size | 5.188L x 8.688W x 64.5H5.188L x 8.688W x 64.5H |
| Special Features | Two Single Pole 30 Ampere Breakers and Single Pole 20 Ampere BreakerTwo Single Pole 30 Ampere Breakers and Single Pole 20 Ampere Breaker |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Terminal | Double MechanicalDouble Mechanical |
| Type | Unmetered Power SupplyUnmetered Power Supply |
| Voltage Rating | Up to 240 Volts Alternating CurrentUp to 240 Volts Alternating Current |
| Height | 64.5 in163.8 cm |
| Length | 5.188 in13.2 cm |
| Width | 8.688 in22.1 cm |
