4 TERM RNGLS PLAIN TOP HRN BYPS 100 AMP SERIES WRD MN BRKR SGL PED DIR BURY
- Milbank #
- U5136-O-100S
- UPC
- 784572289765

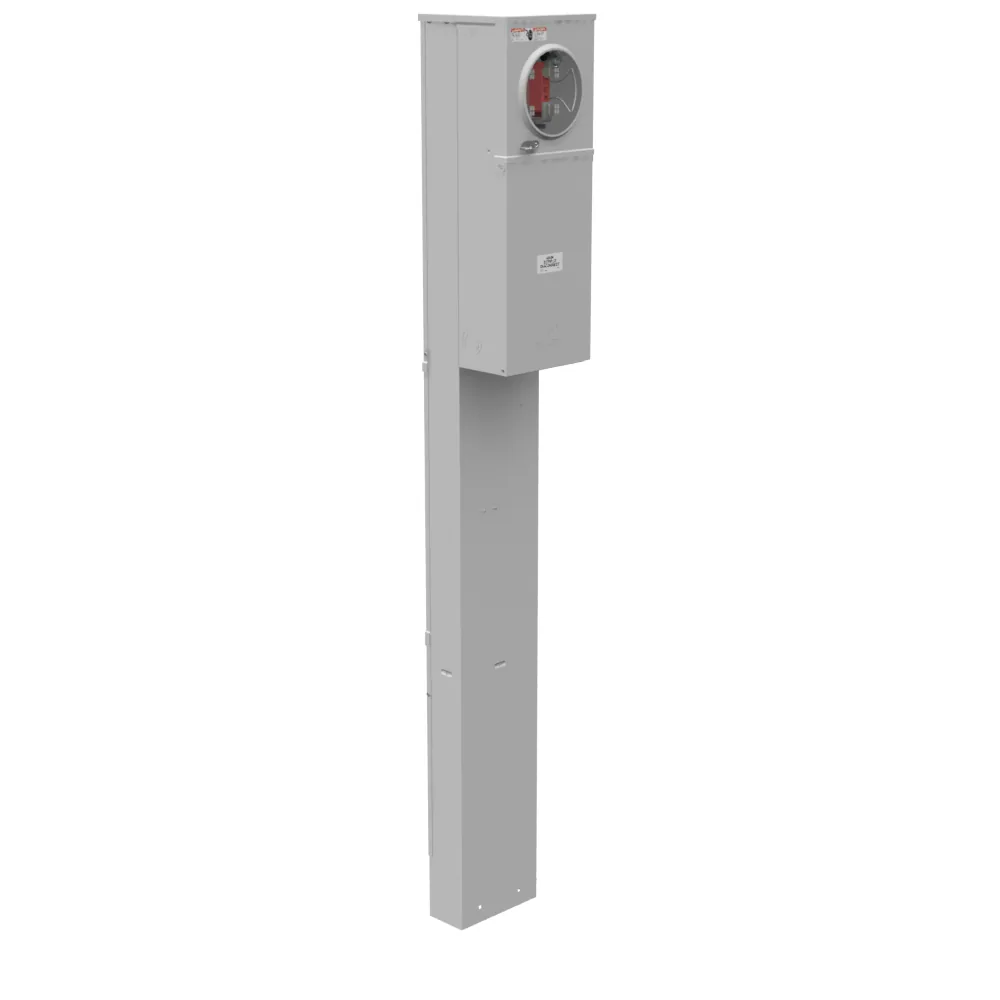

4 Terminal Ringless Plain Top Horn Bypass 1-100 Ampere Main Breaker Single Pedestal Direct Bury
List price
$17,192.40 MXN + VAT
| Price before IVA | $17,192.40 MXN |
|---|---|
| Total incl. 16% IVA | $19,943.18 MXN |
| Total incl. 8% IVA (border region) | $18,567.79 MXN |
Converted from USD $954.46 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 200 Continuous Ampere200 Continuous Ampere |
|---|---|
| Application | Mobile Home PowerMobile Home Power |
| Bypass Provision | Horn BypassHorn Bypass |
| Cable Entry | UndergroundUnderground |
| Main Breaker Size | One 100 Ampere Main BreakerOne 100 Ampere Main Breaker |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | Ground BarGround Bar |
| Frequency Rating | 60 Hertz60 Hertz |
| Hub/Closing Plate | Plain TopPlain Top |
| Insulation | Glass PolyesterGlass Polyester |
| Number of Jaws | 4 Terminal4 Terminal |
| Knockouts | TrueTrue |
| Line Side Wire Range | 6 AWG - 350 kcmil6 AWG - 350 kcmil |
| Load Side Wire Range | 1 - 3 AWG1 - 3 AWG |
| Mounting | PedestalPedestal |
| Number Branch Circuits | 44 |
| Number of Main Breakers | 11 |
| Number of Meter Positions | Single Power HeadSingle Power Head |
| Number Of Receptacles | 00 |
| Phase | 1 Phase1 Phase |
| Size | 10.25L x 9.688W x 80H10.25L x 9.688W x 80H |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Terminal | Double MechanicalDouble Mechanical |
| Type | Ringless Meter SocketRingless Meter Socket |
| Voltage Rating | Up to 240 Volts Alternating CurrentUp to 240 Volts Alternating Current |
| Height | 80 in203.2 cm |
| Length | 10.25 in26.0 cm |
| Width | 9.688 in24.6 cm |
