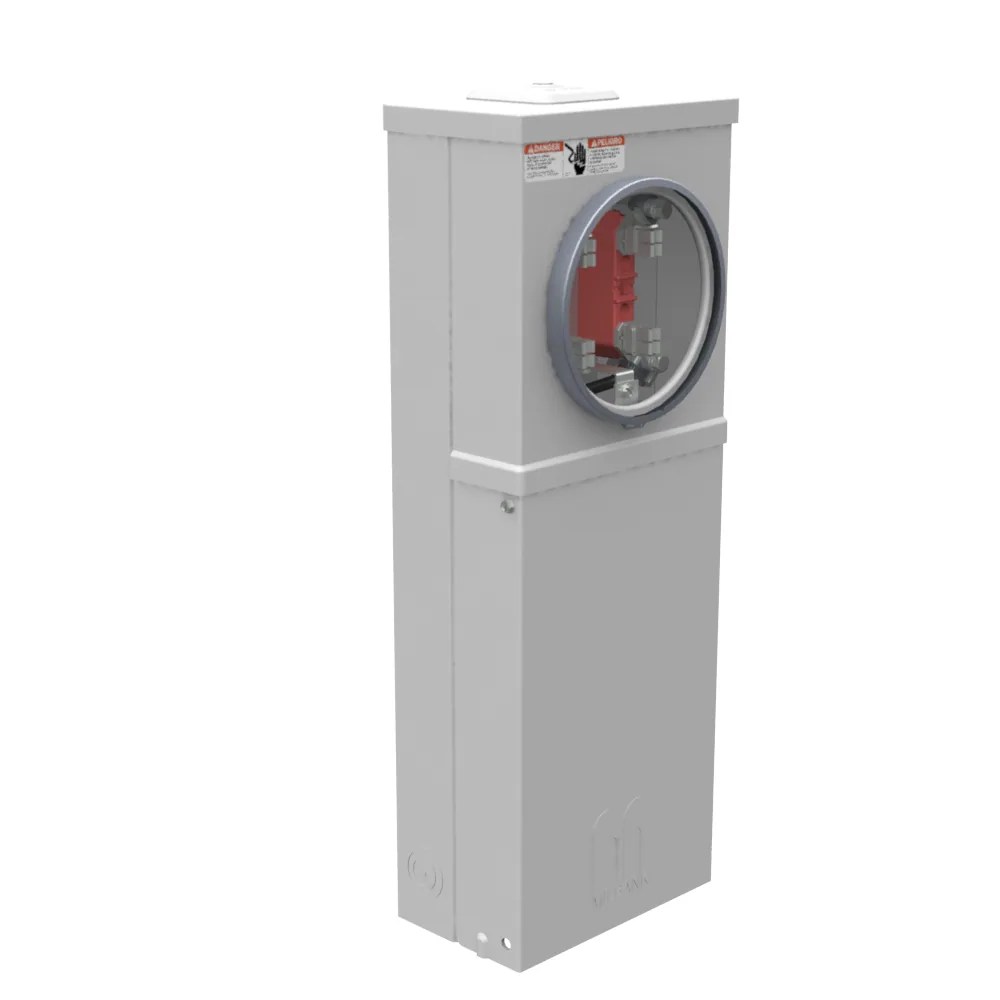

RV Power Outlet Panel
4 TERM RNGTP SML CLS PLT 520GR 520GR SURF MNT
- Milbank #
- U5100-XL-11GR
- UPC
- 784572265509
Milbank U5100-XL-11GR is an unmetered power outlet panel built for RV and temporary-power applications, supplying one or more receptacle circuits from a single feed rather than metering a permanent service. According to the manufacturer specifications, it provides an amperage rating of 125 continuous ampere, two single pole 20 ampere breakers, 4 branch circuit positions, 2 receptacles. It also lists a receptacle configuration of Two NEMA 5-20 Ground Fault, a ground bar for equipment grounding, surface mount mounting, a UL Listed;Type 3R listing. This panel is part of the POMT product family and is sold by the each. Electricians and campground or event installers use it to provide RV shore power or temporary power at a single location without a dedicated utility meter at that point.
$7,400.34 MXN + VAT
| Price before IVA | $7,400.34 MXN |
|---|---|
| Total incl. 16% IVA | $8,584.39 MXN |
| Total incl. 8% IVA (border region) | $7,992.37 MXN |
Converted from USD $410.84 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 125 Continuous Ampere125 Continuous Ampere |
|---|---|
| Application | RV PowerRV Power |
| Bypass Provision | No BypassNo Bypass |
| Cable Entry | Overhead or UndergroundOverhead or Underground |
| Main Breaker Size | Two Single Pole 20 Ampere BreakersTwo Single Pole 20 Ampere Breakers |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | Ground BarGround Bar |
| Frequency Rating | 60 Hertz60 Hertz |
| Hub/Closing Plate | Small Closing PlateSmall Closing Plate |
| Insulation | Glass PolyesterGlass Polyester |
| Number of Jaws | 4 Terminal4 Terminal |
| Knockouts | TrueTrue |
| Line Side Wire Range | 6 AWG - 350 kcmil6 AWG - 350 kcmil |
| Mounting | Surface MountSurface Mount |
| Number Branch Circuits | 44 |
| Number of Main Breakers | 22 |
| Number of Meter Positions | Single Power HeadSingle Power Head |
| Number Of Receptacles | 22 |
| Phase | 1 Phase1 Phase |
| Receptacle Configuration | Two NEMA 5-20 Ground FaultTwo NEMA 5-20 Ground Fault |
| Size | 5.188L x 8.875W x 25H5.188L x 8.875W x 25H |
| Special Features | Two Single Pole 20 Ampere BreakersTwo Single Pole 20 Ampere Breakers |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Terminal | Lay inLay in |
| Type | Ring Type Meter SocketRing Type Meter Socket |
| Voltage Rating | Up to 240 Volts Alternating CurrentUp to 240 Volts Alternating Current |
| Height | 25 in63.5 cm |
| Length | 5.188 in13.2 cm |
| Width | 8.875 in22.5 cm |
