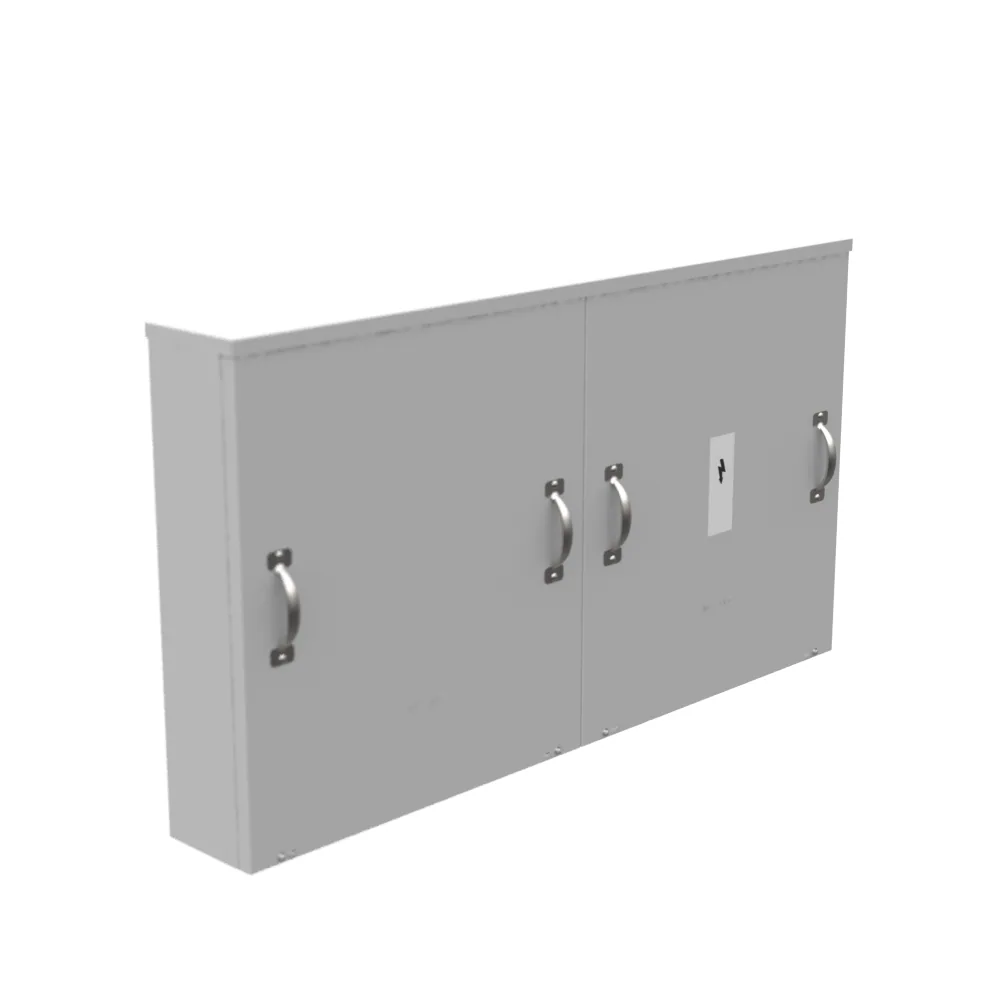

800A Bus Gutter

800 AMP 3 PH 600 VOLT 48INX26INX6IN MULT POS GND ASSY PNTD STL LIFT OFF SCR FRONTS 3 LUGS PER LND - 4-600KCMIL 65K AIC

Milbank #

U3464-O

UPC

784572152601

Milbank U3464-O is a bus gutter, rated up to 800 ampere for three-phase service, used to distribute line-side conductors between metering equipment and downstream panels. According to the manufacturer specifications, it carries a voltage rating of up to 600 volts alternating current, a short circuit rating of 65000 Ampere, lug and tapped-hole connections described as 4AWGto600kcmilLineSideLugsandLoadSideTappedHoles, lugs suited to copper and aluminum conductors. It is built with a g90 galvanized steel enclosure, a powder coat finish, finished in ansi 61 gray, a UL Listed;Type 3R listing. This bus gutter is part of Milbank's BUSG product family and is sold by the each. Electricians and contractors use it to land and route feeder conductors between a metering cabinet, current transformer cabinet, or main service equipment where more than one line or load lug landing is required on a job.
