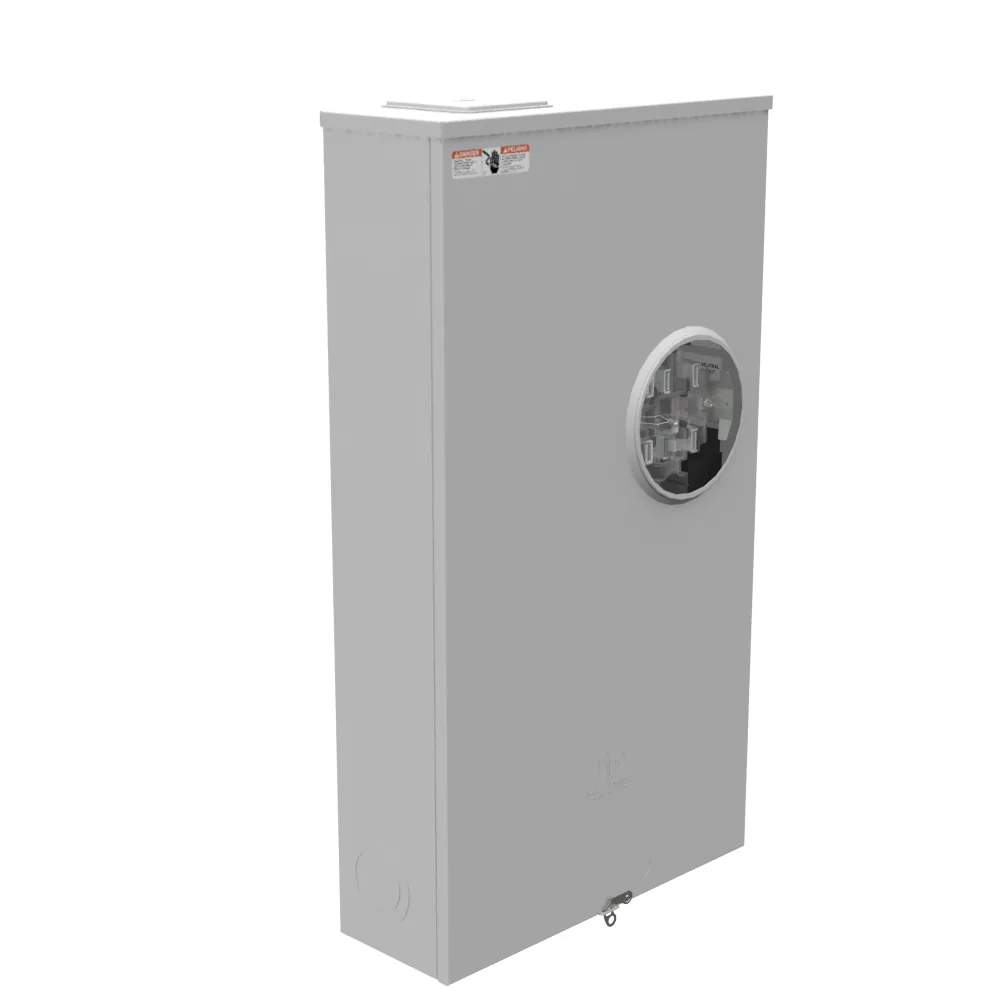

7 Terminal Meter Socket
7 TERM RNGLS LRG CLS PLT 3 POS GND LVR BYPS SIDE LINE BUSSED
- Milbank #
- U2594-X
- UPC
- 784572135529
The Milbank U2594-X is a meter socket with 7 Terminal jaw construction. It carries a continuous amperage rating of 320 Ampere. The socket includes a Lever Bypass for meter removal without an outage. It is built with Overhead and Underground and Side Wireway cable entry, a Large Closing Plate, an equipment ground provision described as Grounding Stud. The enclosure is fabricated from G90 Galvanized Steel with Powder Coat Finish, with a Glass Polyester insulating base, rated for 60 Hertz service, 3 Phase applications. Electricians and utility crews install a Milbank meter socket of this type at the service entrance so the utility can meter a residential, commercial, or industrial electric service, sourcing it through Arizona Electrical Solutions.
$18,889.02 MXN + VAT
| Price before IVA | $18,889.02 MXN |
|---|---|
| Total incl. 16% IVA | $21,911.26 MXN |
| Total incl. 8% IVA (border region) | $20,400.14 MXN |
Converted from USD $1,048.65 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 320 Continuous Ampere320 Continuous Ampere |
|---|---|
| Application | Meter SocketMeter Socket |
| Bypass Provision | Lever BypassLever Bypass |
| Cable Entry | Overhead and Underground and Side WirewayOverhead and Underground and Side Wireway |
| Main Breaker Size | No Main BreakerNo Main Breaker |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | Grounding StudGrounding Stud |
| Frequency Rating | 60 Hertz60 Hertz |
| Hub/Closing Plate | Large Closing PlateLarge Closing Plate |
| Insulation | Glass PolyesterGlass Polyester |
| Number of Jaws | 7 Terminal7 Terminal |
| Knockouts | TrueTrue |
| Mounting | Surface MountSurface Mount |
| Number of Main Breakers | 00 |
| Number of Meter Positions | 1 Position1 Position |
| Number Of Receptacles | 00 |
| Phase | 3 Phase3 Phase |
| Size | 6.5L x 19W x 34.125H6.5L x 19W x 34.125H |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Terminal | 3/8 Inch Stud3/8 Inch Stud |
| Type | Ringless Meter SocketRingless Meter Socket |
| Voltage Rating | 600 Volts Alternating Current600 Volts Alternating Current |
| Height | 34.125 in86.7 cm |
| Length | 6.5 in16.5 cm |
| Width | 19 in48.3 cm |
