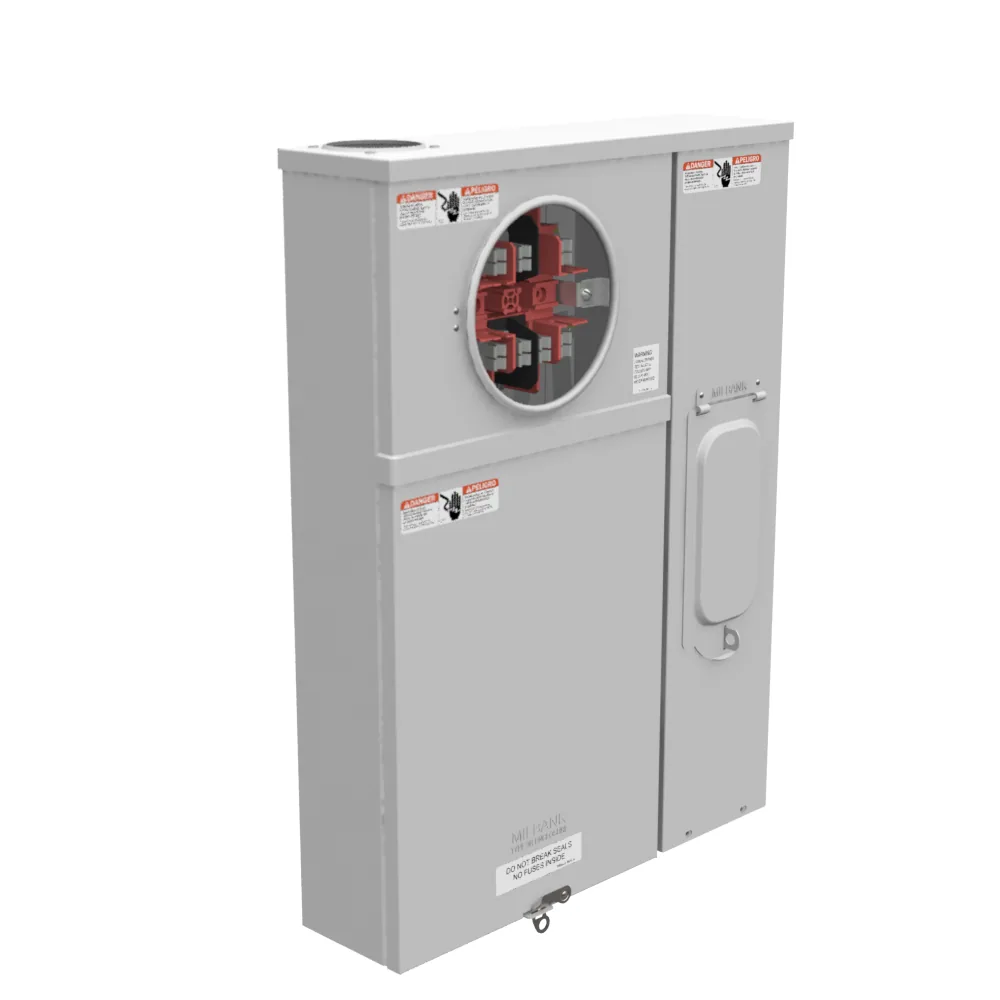

7 Terminal Meter Socket
7 TERM RNGTP SML CLS PLT TRIPLEX GND LNK BYPS 100 AMP MN BRKR 22KAIC 240V
- Milbank #
- U217MTB/22
- UPC
- 784572193741
The Milbank U217MTB/22 is a meter socket with main with 7 Terminal jaw construction. It carries a continuous amperage rating of 100 Ampere at 240V. The socket includes a main overcurrent device described as One 100 Ampere Main Breaker, an interrupting capacity rating of 22k AIC, a Test Block Bypass for meter removal without an outage. It is built with Overhead or Underground cable entry, a Small Closing Plate, an equipment ground provision described as Ground Lug, a line-side wire range of 14 AWG - 1/0, a load-side wire range of 4 - 1/0 AWG. The enclosure is fabricated from G90 Galvanized Steel with Powder Coat Finish, with a Fiberglass with Resin insulating base, rated for 60 Hertz service, 3 Phase applications. Electricians and utility crews install a Milbank meter socket of this type at the service entrance so the utility can meter a residential, commercial, or industrial electric service, sourcing it through Arizona Electrical Solutions.
$31,583.29 MXN + VAT
| Price before IVA | $31,583.29 MXN |
|---|---|
| Total incl. 16% IVA | $36,636.62 MXN |
| Total incl. 8% IVA (border region) | $34,109.95 MXN |
Converted from USD $1,753.39 at the 10/08/2026 reference exchange rate (18.0127 MXN per dollar). Shipping not included; we confirm price and availability in your quote.
Specifications
| Amperage Rating | 100 Continuous Ampere100 Continuous Ampere |
|---|---|
| Application | Meter Socket With MainMeter Socket With Main |
| Bypass Provision | Test Block BypassTest Block Bypass |
| Cable Entry | Overhead or UndergroundOverhead or Underground |
| Main Breaker Size | One 100 Ampere Main BreakerOne 100 Ampere Main Breaker |
| Material | G90 Galvanized Steel with Powder Coat FinishG90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | Ground LugGround Lug |
| Frequency Rating | 60 Hertz60 Hertz |
| Hub/Closing Plate | Small Closing PlateSmall Closing Plate |
| Insulation | Fiberglass with ResinFiberglass with Resin |
| Number of Jaws | 7 Terminal7 Terminal |
| Knockouts | TrueTrue |
| Line Side Wire Range | 14 AWG - 1/014 AWG - 1/0 |
| Load Side Wire Range | 4 - 1/0 AWG4 - 1/0 AWG |
| Mounting | Surface MountSurface Mount |
| Number of Main Breakers | 11 |
| Number of Meter Positions | 1 Position1 Position |
| Number Of Receptacles | 00 |
| Phase | 3 Phase3 Phase |
| Size | 4.625L x 18.125W x 24.75H4.625L x 18.125W x 24.75H |
| Standard | UL Listed;Type 3RUL Listed;Type 3R |
| Terminal | Single MechanicalSingle Mechanical |
| Type | Ring Type Meter SocketRing Type Meter Socket |
| Voltage Rating | Up to 240 Volts Alternating CurrentUp to 240 Volts Alternating Current |
| Height | 24.75 in62.9 cm |
| Length | 4.625 in11.7 cm |
| Width | 18.125 in46.0 cm |
